Challenge

Creating a Floor plan, Footing detail and Isometric view using AutoCad

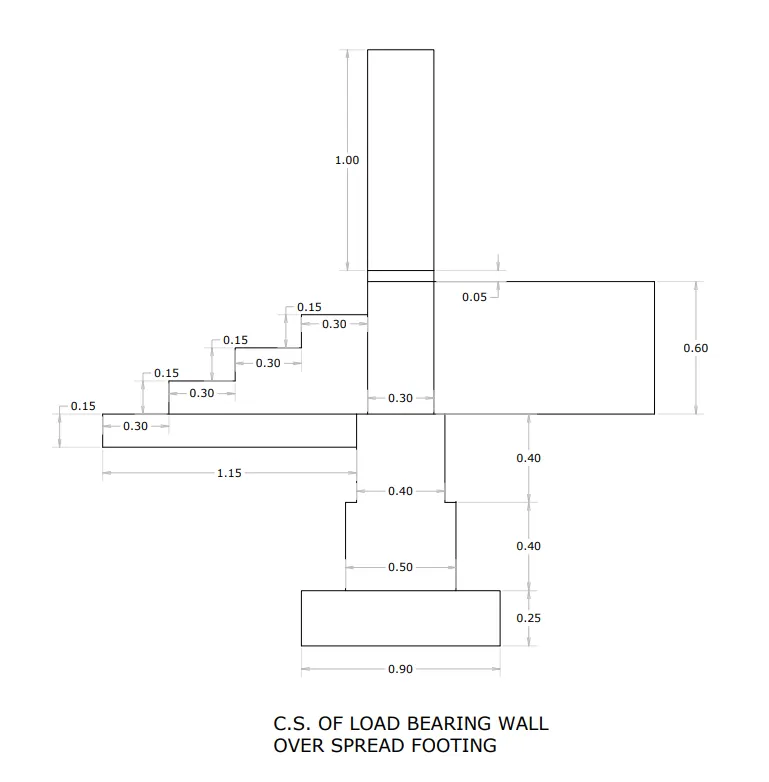

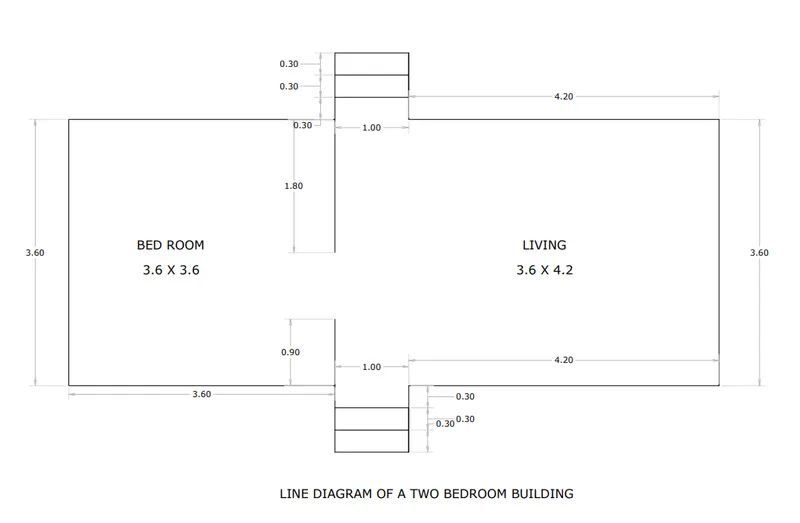

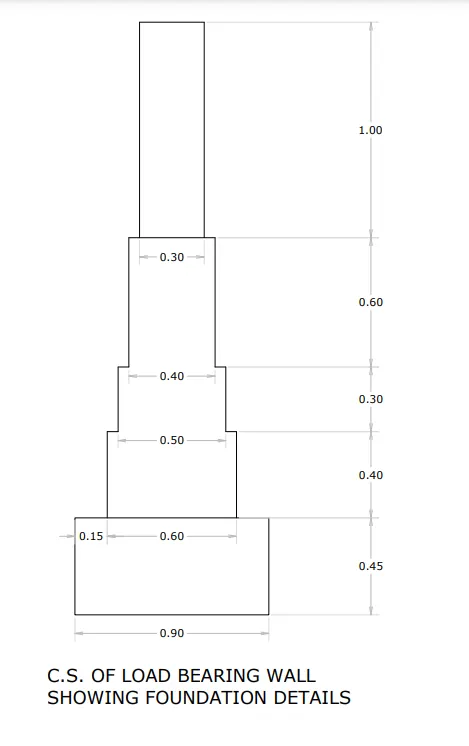

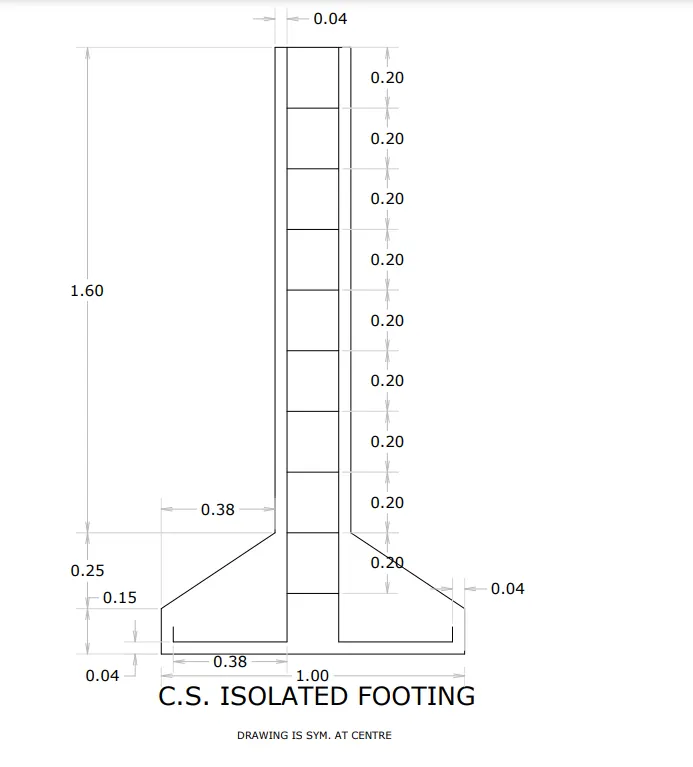

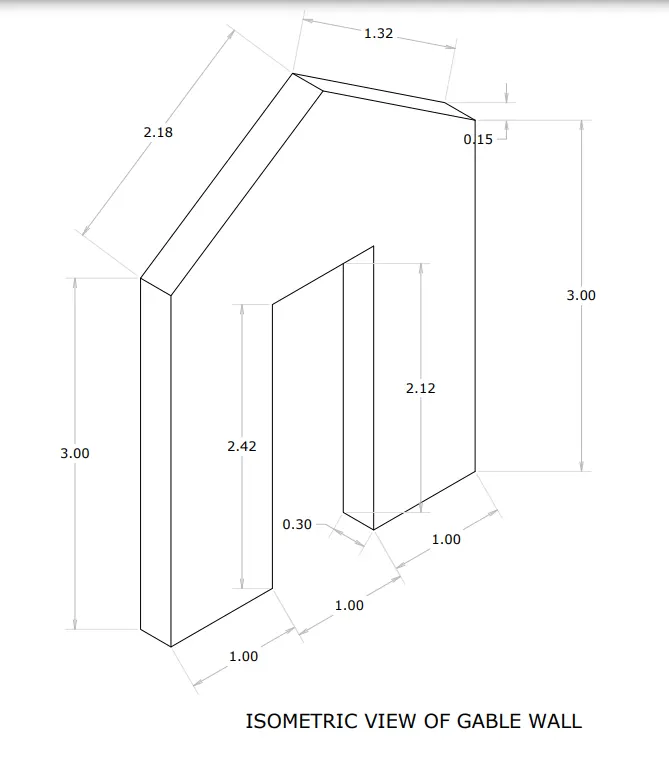

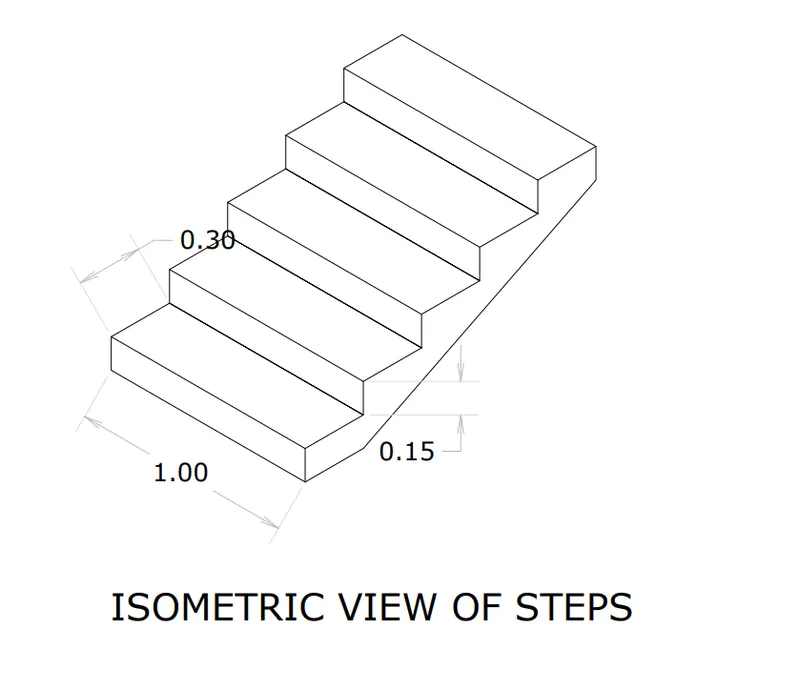

Aim: To draw the foundation details, lne diagram of a building, isometric view of steps and gable wall as give in the diagram

COMMANDS USED: Line, alinged, dimension style, ktext, isometric planes, erase, trim, move, mirror.

PROCEDURE:

UNITS-DECIMAL-PRECISION-0.00-METRE-OK
LIMITS-0,0-ENTER-420,297-ENTER
ZOOM-ALL
Using line command draw the figure by giving apprpriate dimension in relaative coordinate system by keeping ortho ON.
Now using dimension tool mark the length of each line and name the drawing using Mtext tool.

RESULT: This figures are drawn in accurate dimensions.
