Creating 3D Isometric view of various structural elements in AutoCAD

VVikrant Singh Tomar26 Jan 2022

Aim: To Create a 3D Isometric View of the building with plan and elevation

Procedure:

Open Autocad 3d
set-top view
Set units to engineering and inches
set limits to 0',0' and 100',100'

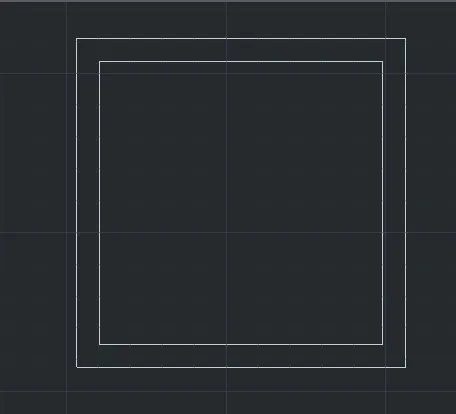

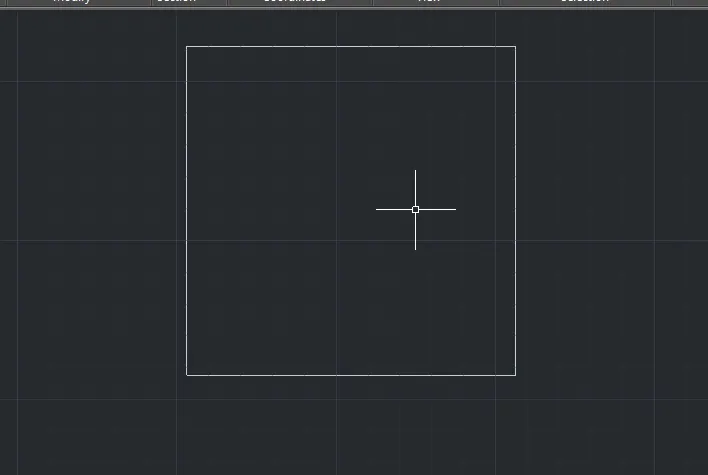

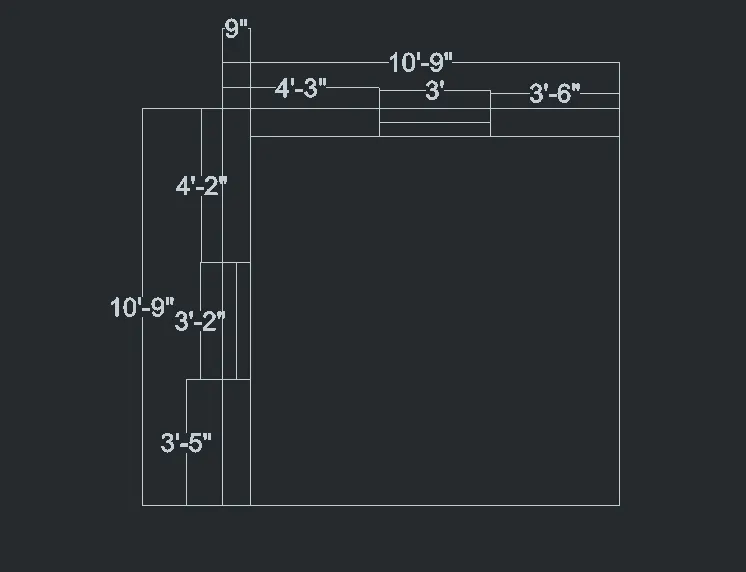

Now use rec command to draw a rectangle of size 10'9"x10'9"

'

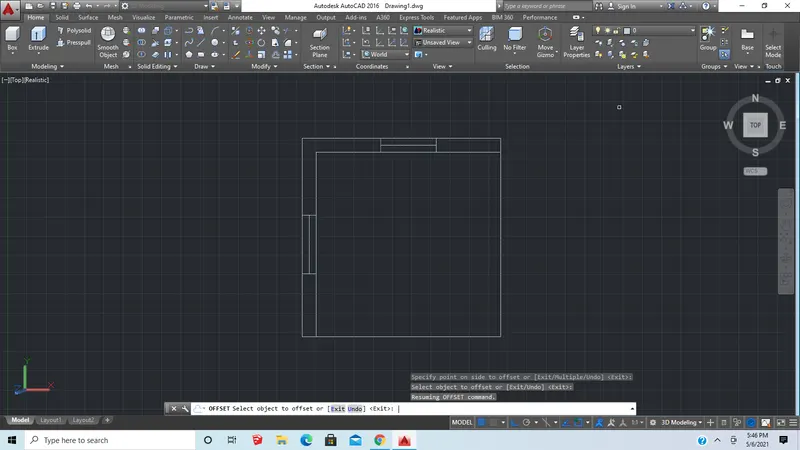

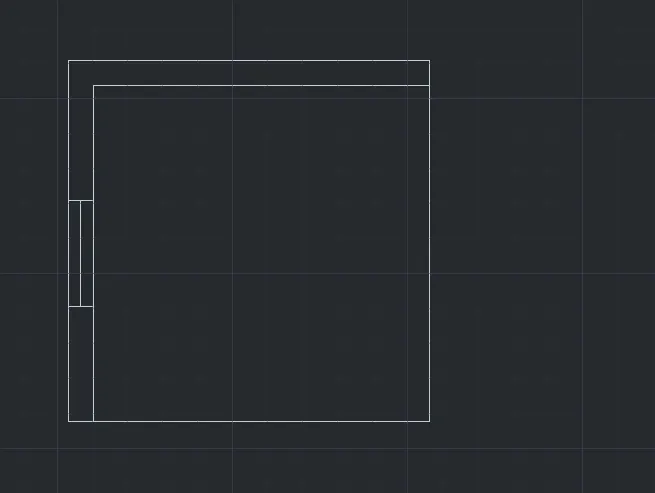

Now make a offset of 9" inside as shown

Now trim both lines and extend the line to the outer rectangle

Now draw windows as shown

Now give dimension using dim command

Now by using 3d face command make 3d face to all

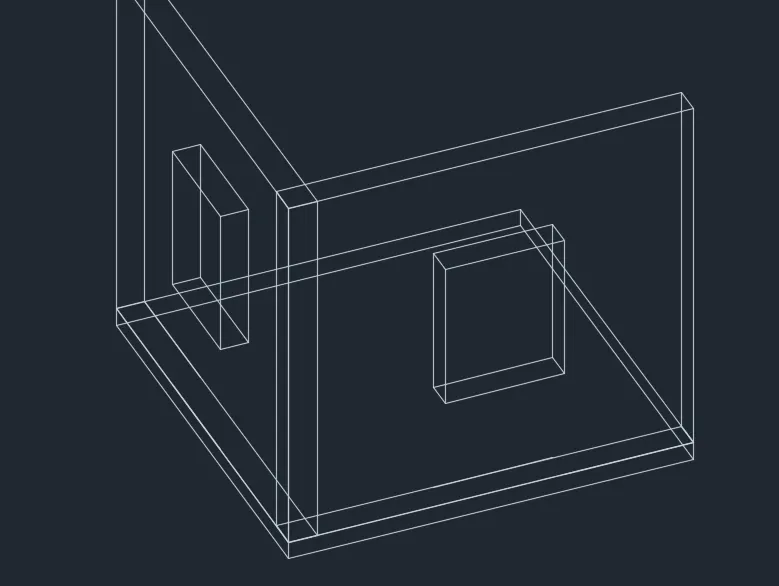

Now extrude the walls and move the windows up as dimension

Now select any wall face and modify the window and give dimensions

Now select another wall face and modify the window and give dimensions

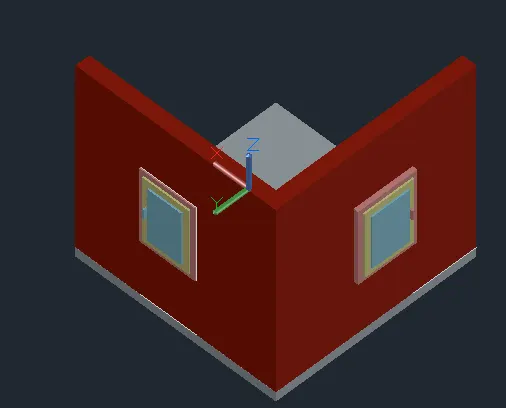

Now apply layers and keep them in isometric view

Result:

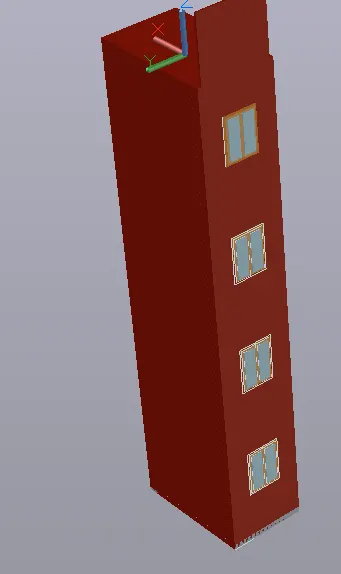

Aim: To Create the 3D View of the Building Façade as given in the plan and elevation and detail of the window.

Procedure:

Open Autocad 3d
set-top view
Set units to engineering and inches
set limits to 0',0' and 100',100'

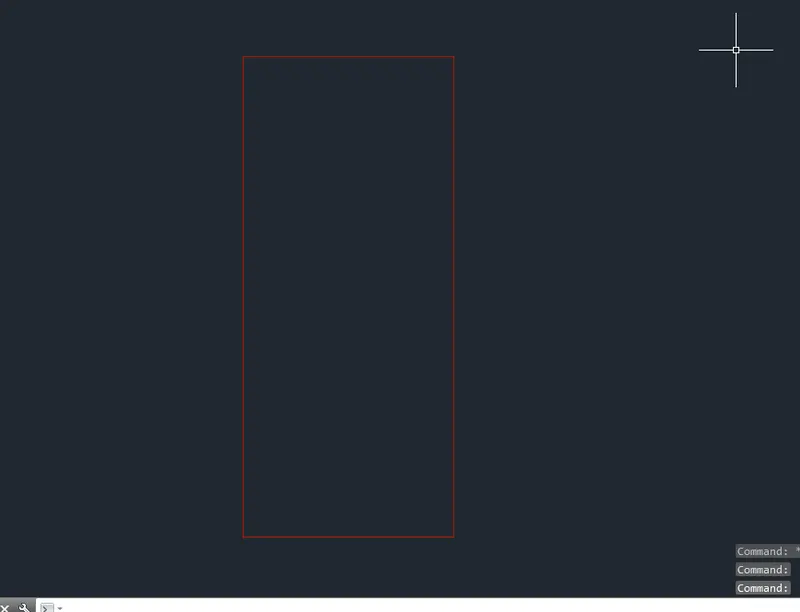

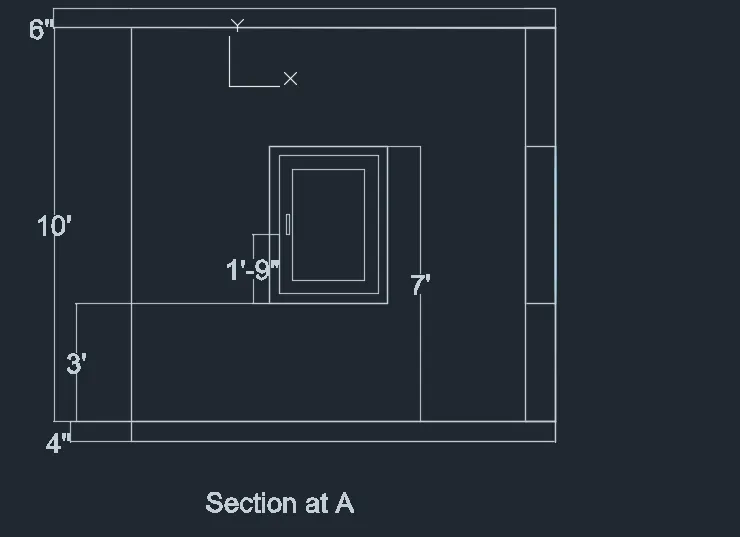

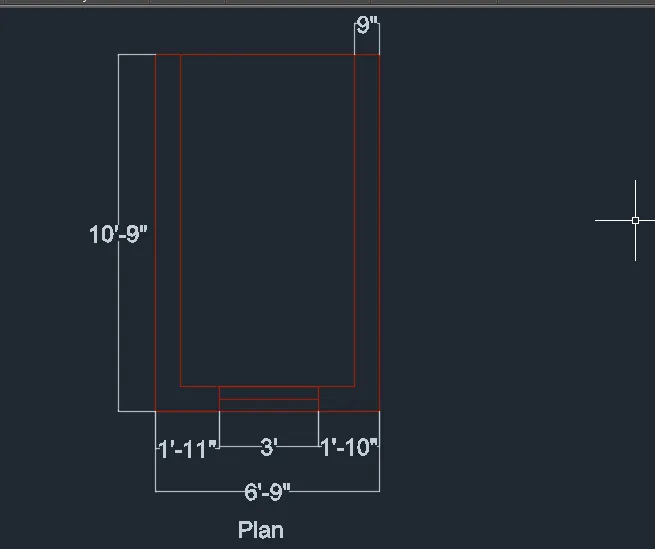

Now use rec command to draw a rectangle of size 10'9"x6'9"

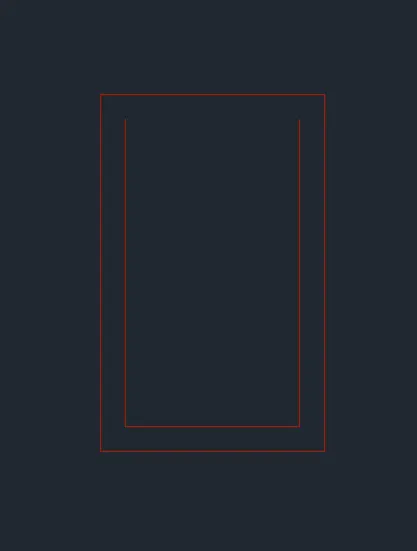

Now make a offset of 9" and trim the extra line

Now extend the trimmed line till the outer rectangle

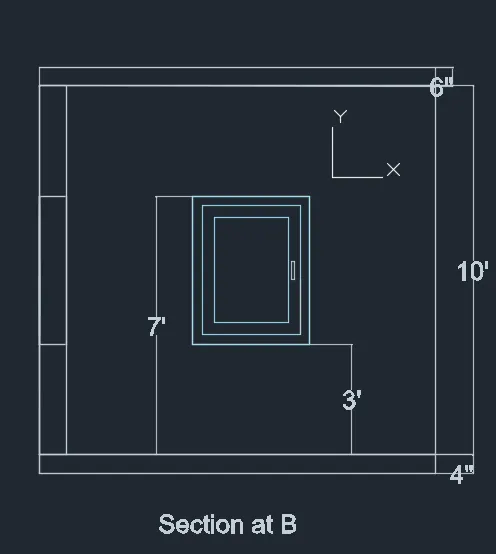

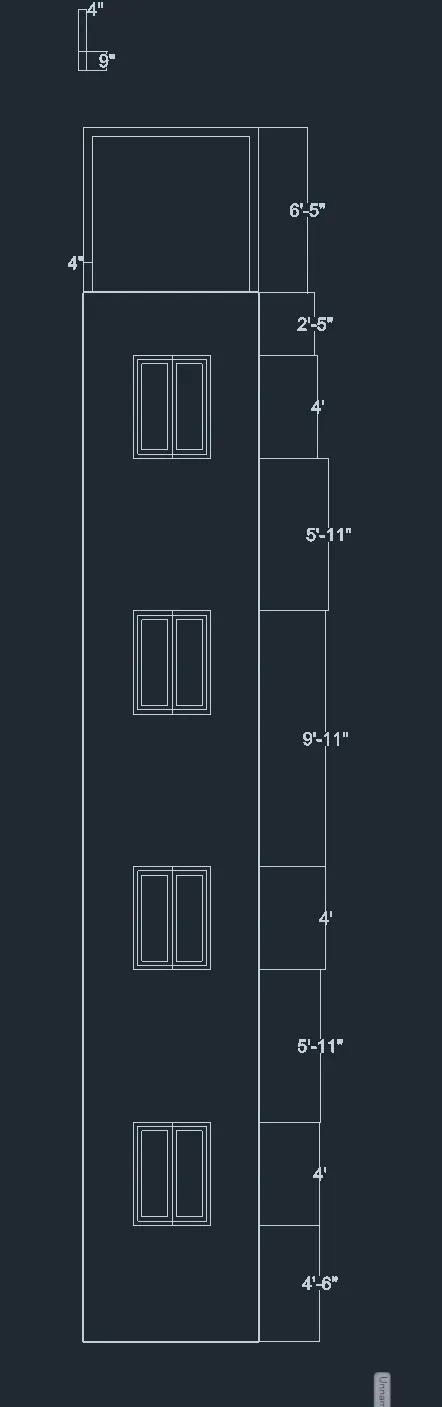

Now draw a window and give dimensions

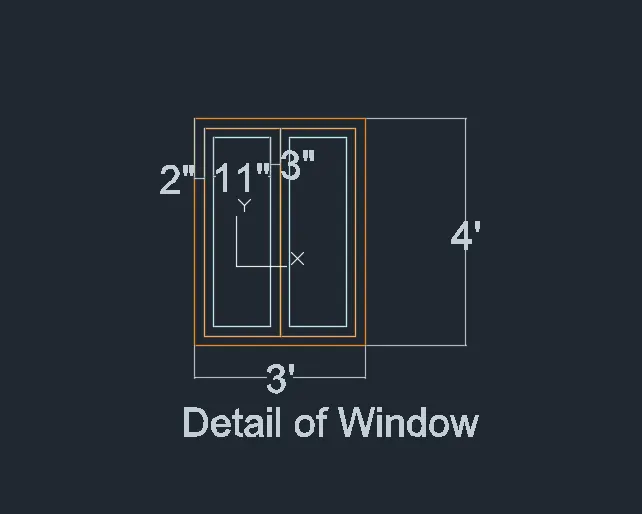

Now draw the window detial and give dimensions

Now extrude the drawn plane and keep it in a front view and place this window drawn at given heights as shown

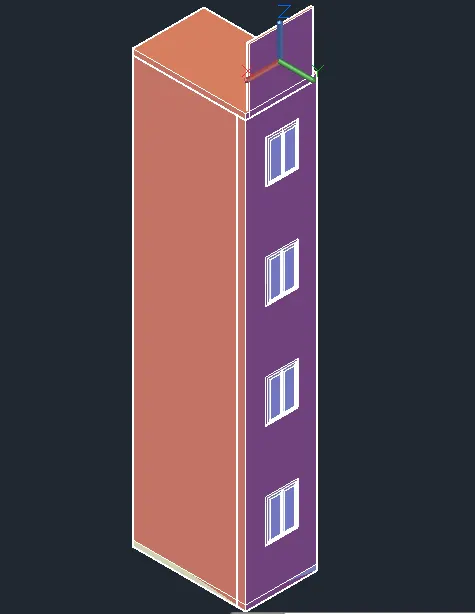

Now press home button near Ucs to make it as isometric view

Result:

Aim: To Create the isometric 3d view of a stair with a railing

Procedure:

Open Autocad 3d
set-top view
Set units to engineering and inches
set limits to 0',0' and 100',100'

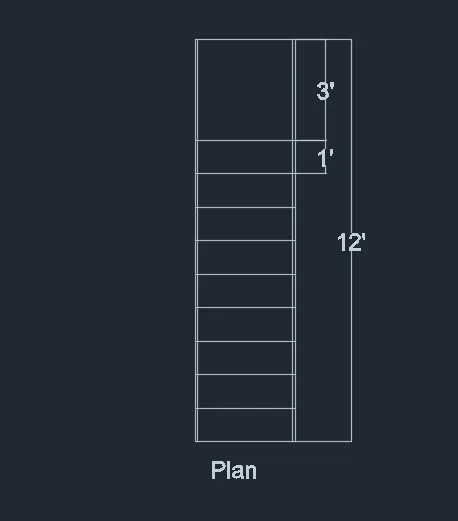

Now use the line command and draw a line of 12' vertically
Now make a 3' offset for the 12' line
Now join the two vertical lines at the bottom with a horizontal line
Now make 9 offset line at 1' distance between each line
Now after 9 offsets make the offset distance to 3' and draw an offset
Now give dimensions as shown

Now by using the line command draw the side elevation and give dimension as shown

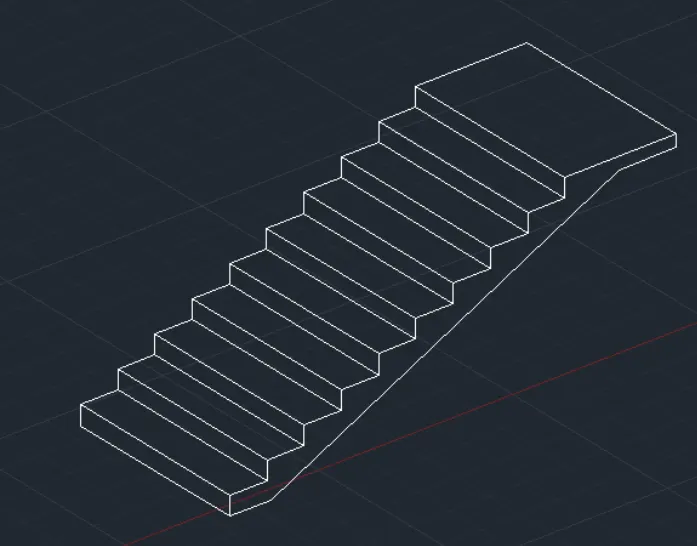

Now remove the railing and keep it in isometric view and extrude the stairs as shown

Now apply layer

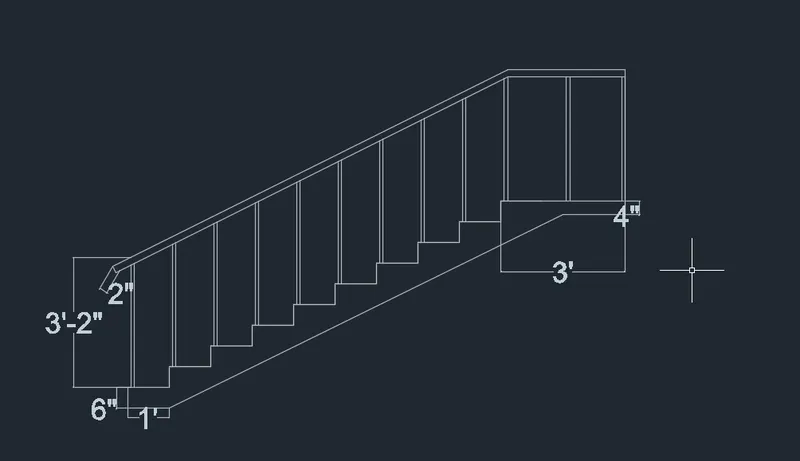

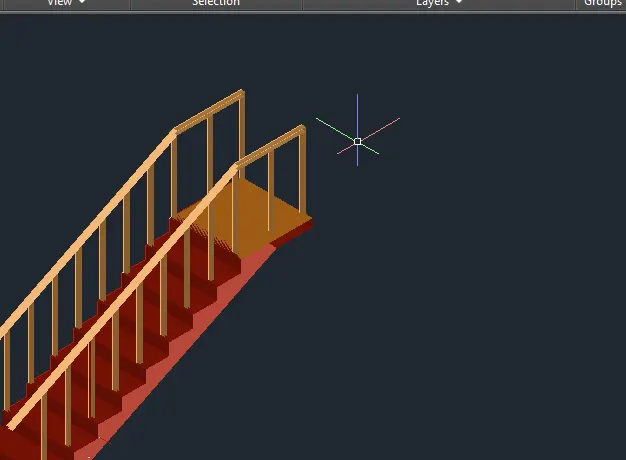

Now by using the circle command and extrude command, we draw the railing as shown

Result:

Aim:To create the 3D view of a Wall with spread footing

Procedure:

Open Autocad 3d
set-top view
Set units to decimals and mm
set limits to 0,0 and 100,100
Now use the line command and draw a line of 7500 vertically
Now make an offset of 670
Now join two vertical lines in up and down using the horizontal lines
Now make 3300mm offset for horizontal lines in top and bottom
Now make offset for the vertical line as reqiured

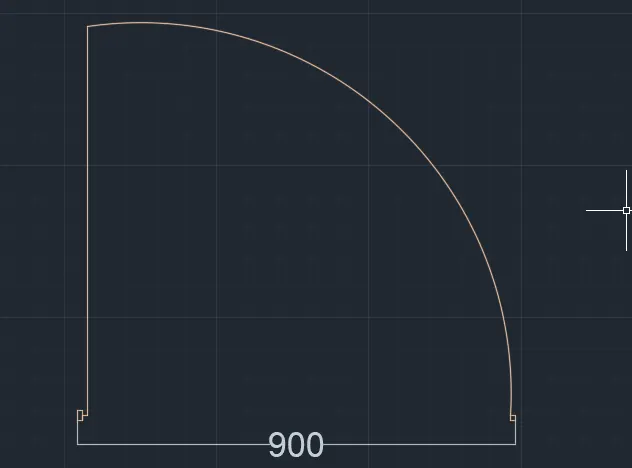

Now draw a Door as shown

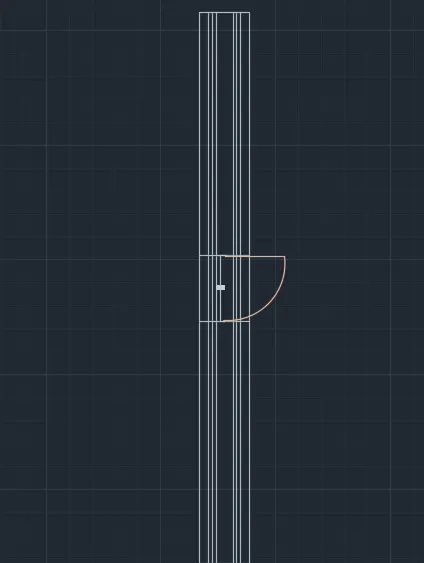

Now place this door in the wall as shown

Now hatch the wall as required and give dimension

This is the top view

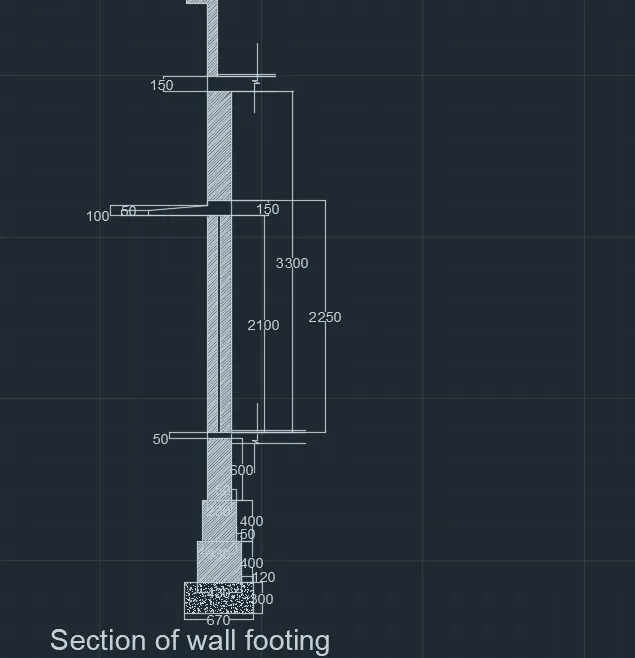

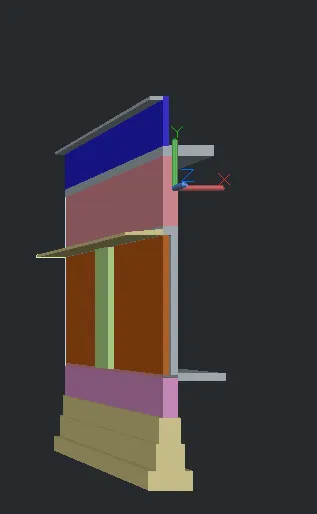

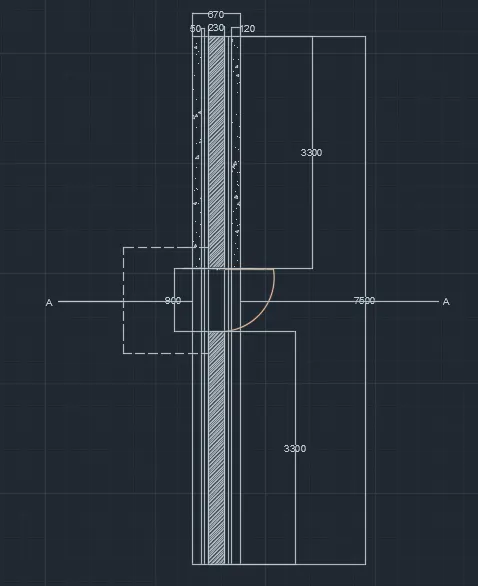

Now we are drafting the section of the wall footing
Now by using line command and rectangle command the section of the wall footing is drawn
Now give hatching where ever required
Now give dimensions

now keep in isometric view and extrude the section and apply layers as shown

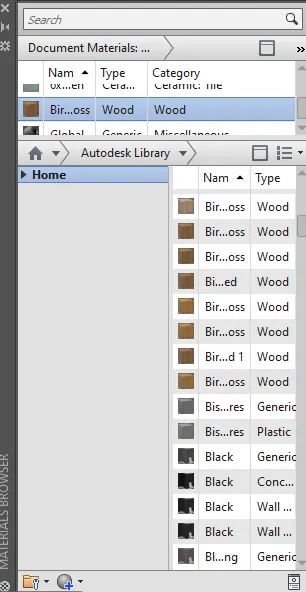

Now go to ribbon bar and open visualization bar and go to the material browser and select the materials

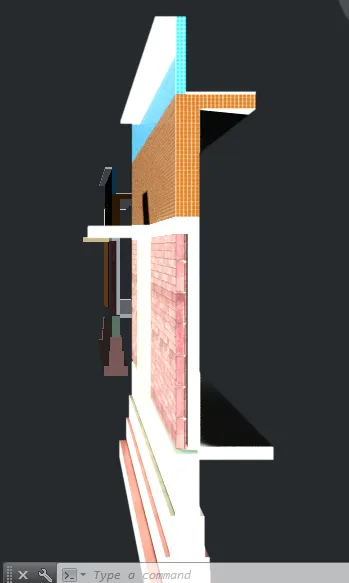

Now apply the selected materials to the section and make a render using render command

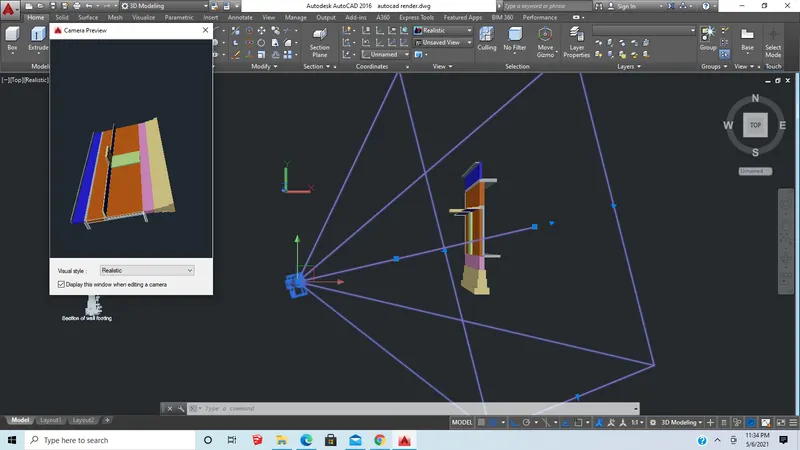

Use the camera command to take a picture

Result:

Final result:
