Creating 3D Isometric view of various structural elements in AutoCAD

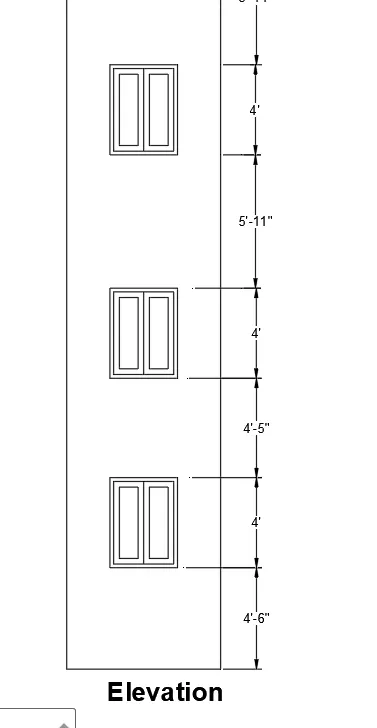

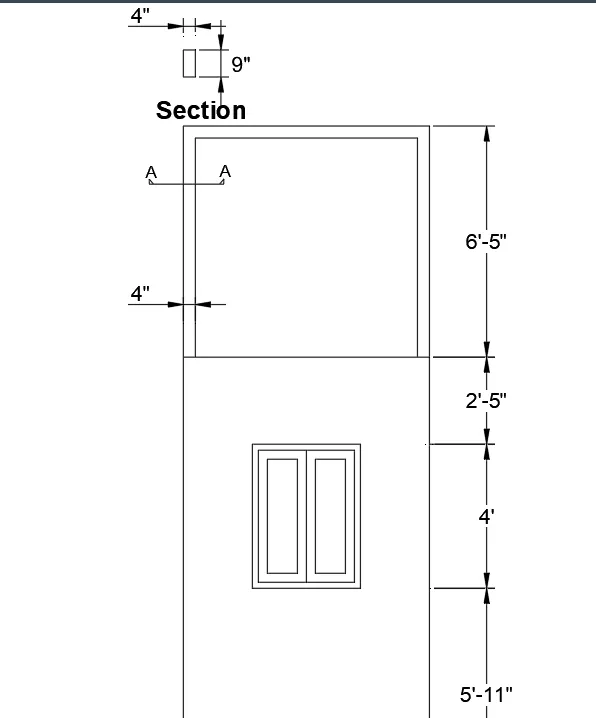

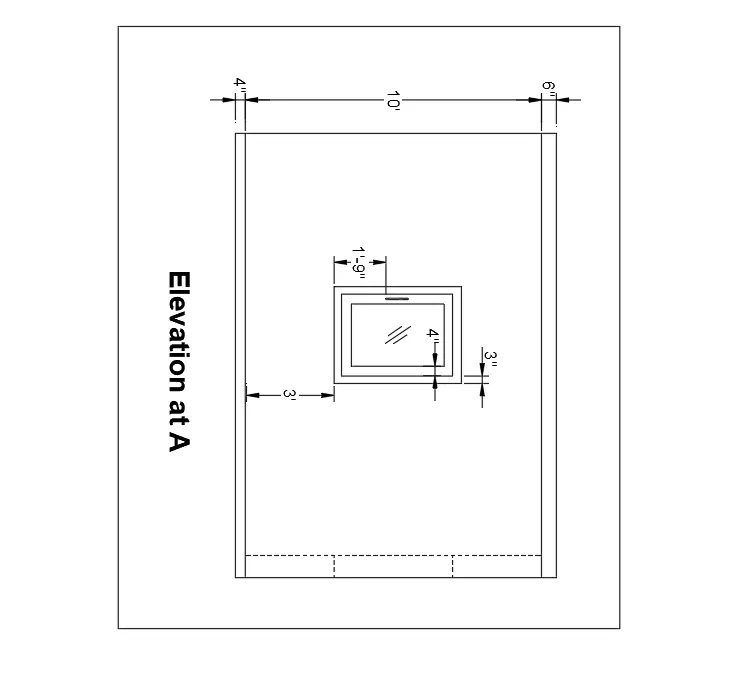

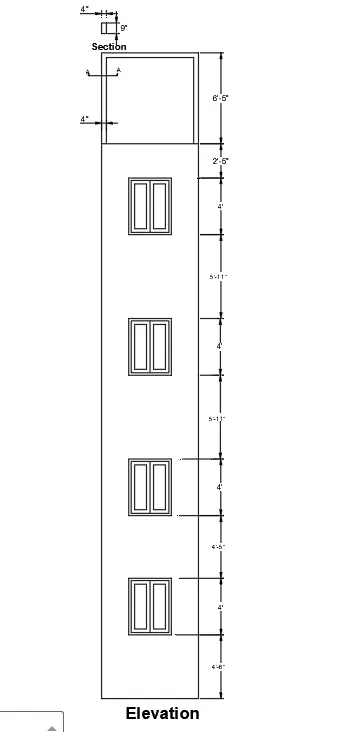

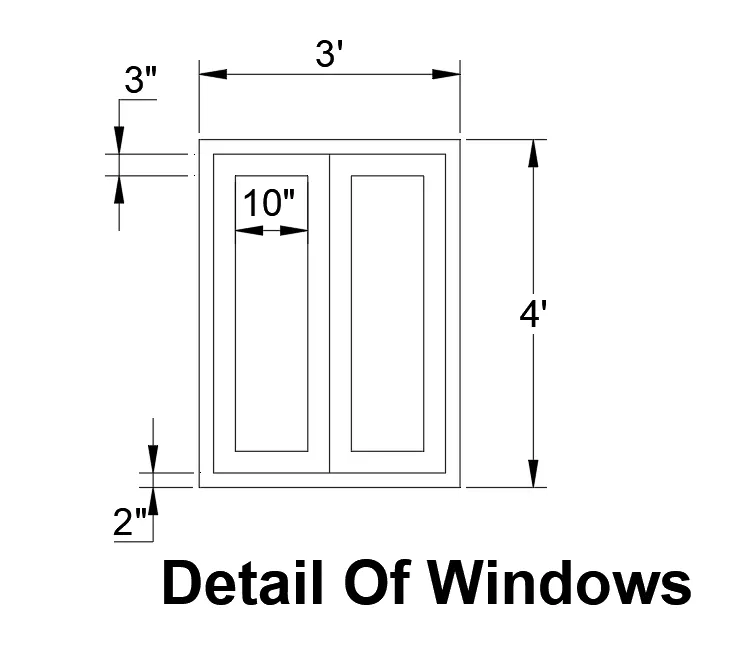

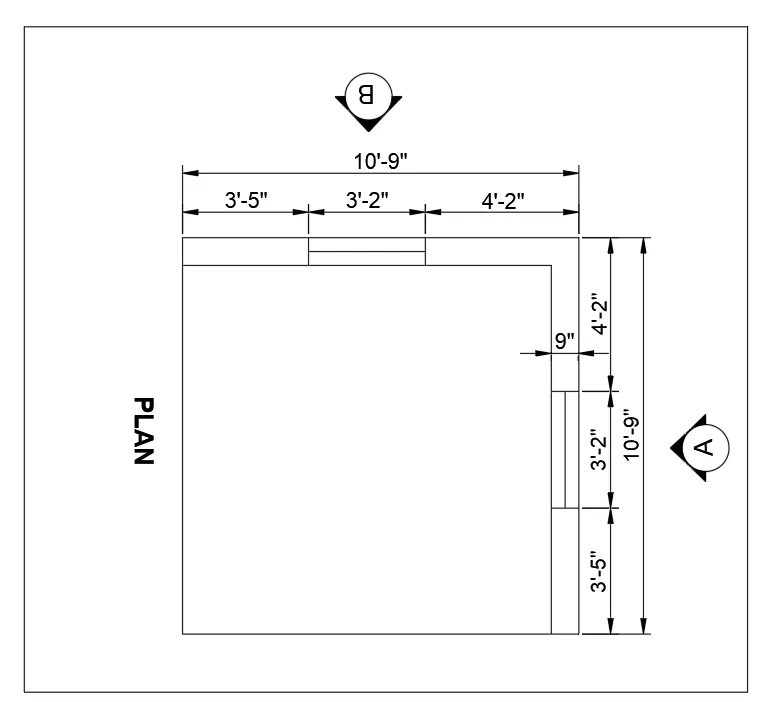

1. Create a 3D Isometric View of the building with plan and elevation given.

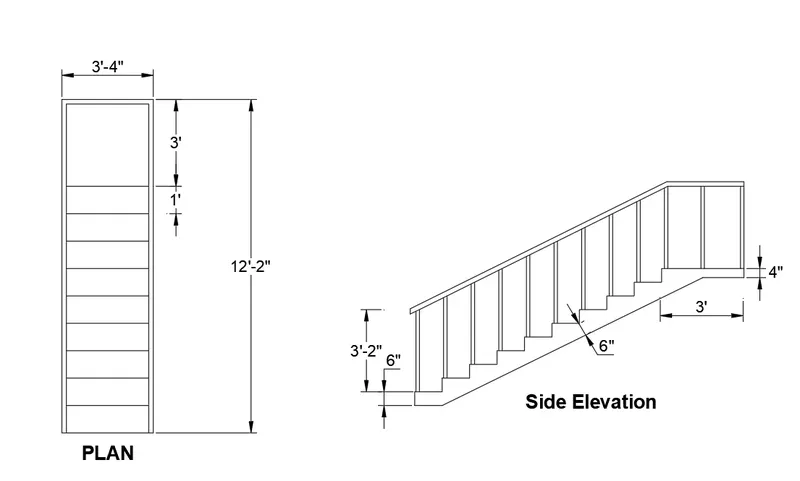

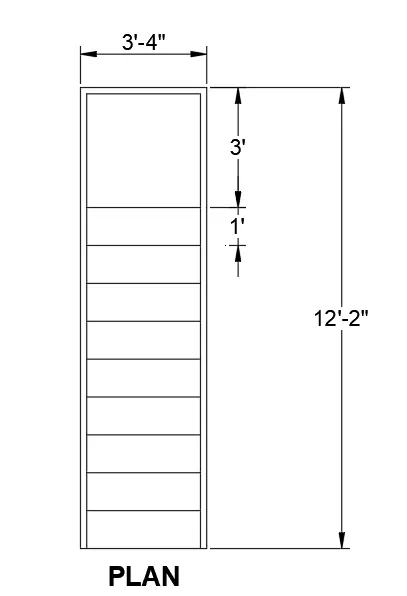

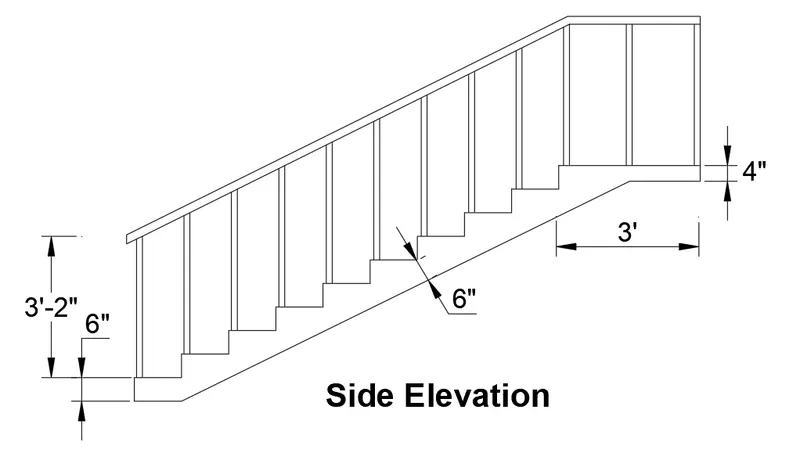

3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.

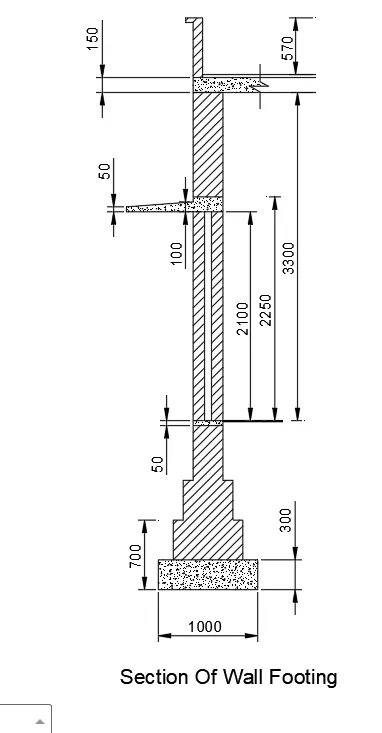

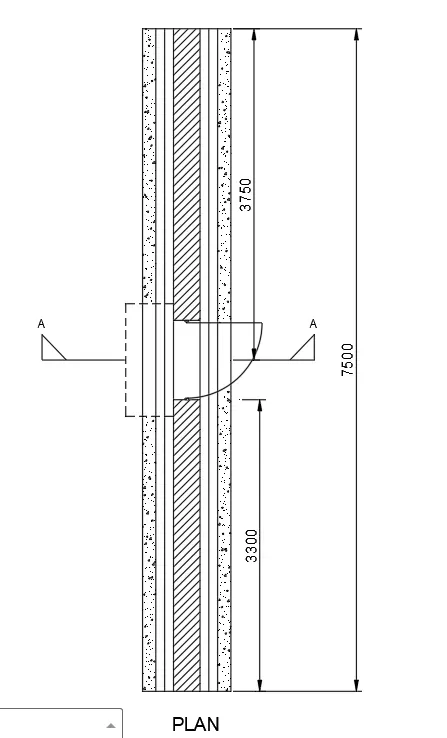

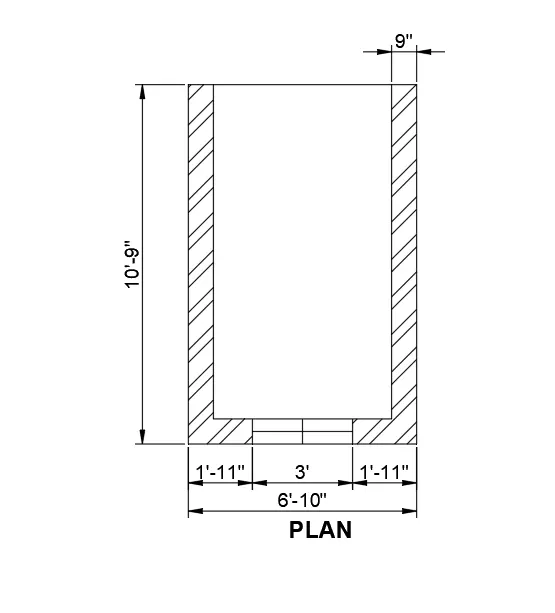

4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.

In these objects different types of commands are used:

LINE

CIRCLE,

tan tan radius circle

X-LINE

FILLET

TRIM

OFFSET

MIRROR

ROTATE

RECTANGLE

TEXT

COPY

DIMENSION

HATCH COMMAND
