Creating 3D Isometric view of various structural elements in AutoCAD

CChithirai Selvan13 Dec 2022

AIM:

To draw the 3D Isometric View of the building as shown in the figure
Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.
Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.
Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.

Commands Used,

Line
Rectangle
Trim
Move
Copy
Explode
Circle
Dimlinear
Dimcontinue
Boundary
3Dorbit
3D rotate
Extrude
Region
UCS
Camera
Block
Render RR
Sweep
Create Light

AIM:

To draw the 3D Isometric View of the building .

Procedure:

Open AutoCAD

In Startup settings start from scratch select Imperial (Feet and Inches)

Open grid and snap settings.

Change snap and grid spacing.

Type ‘un’ in command box and press enter.

Change units’ type to decimal and precision to 1’1/16” and insertion scale to inches.

Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’.

Open Layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer.

Change the current layer to 3DWall

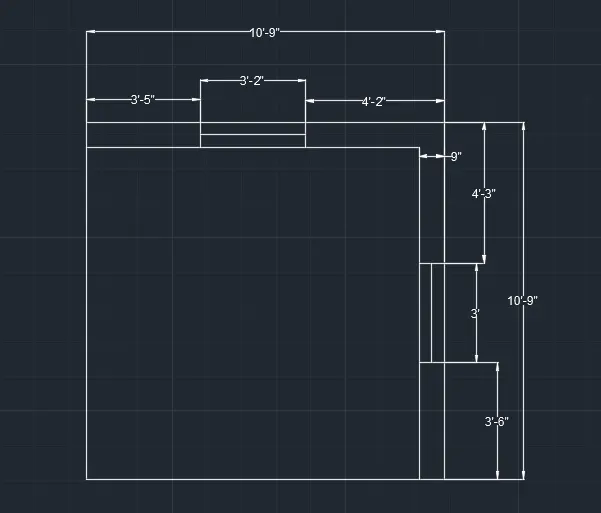

Create a rectangle of dimensions 10’9”X10’9” at any point on the screen
Offset the rectangle to inside to distance of 9” as wall thickness
Delete the left and bottom lines and extend them to the edges

Change the current layer to 3D_Window_Frame

Draw the window with dimensions 3'2" at top and 3' on right side as shown in figure.

Change the view to 3d by clicking on home button of view cube

Set UCS as world

Create the boundaries for the walls using ‘BO’ command

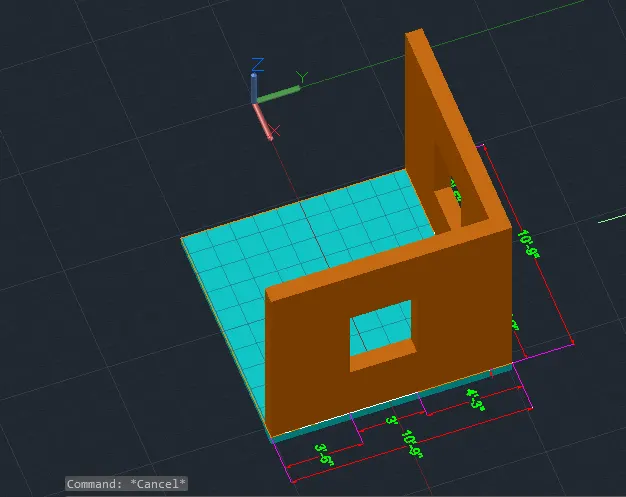

Extrude the boundaries created to total height of 10’10”
Select all the wall and use group command to group then together

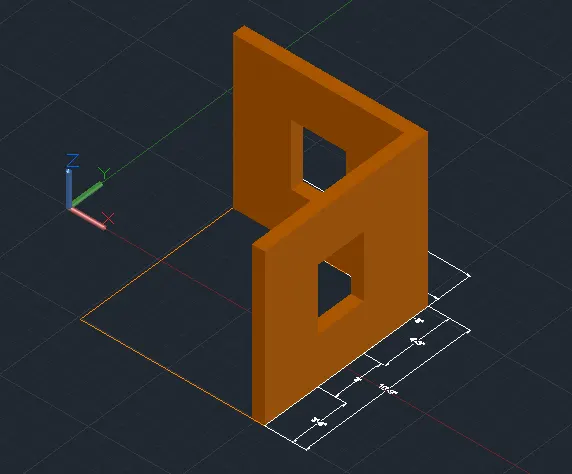

Draw rectangles at both windows and change them to boundaries using boundary command

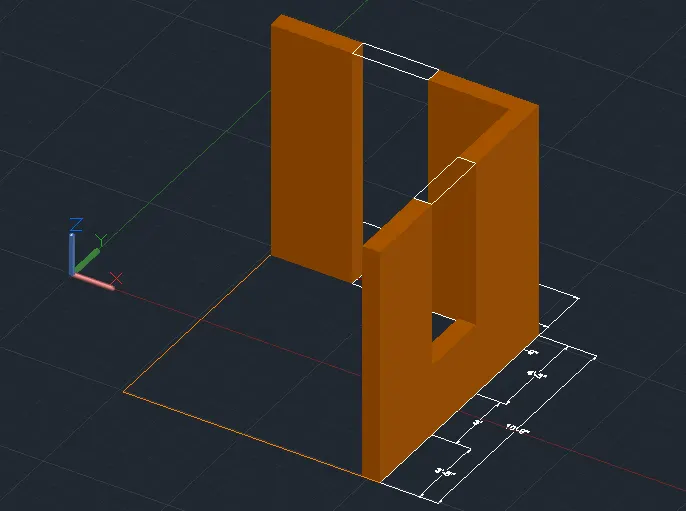

Extrude both rectangles drawn to height of 3’4” as shown in the figure
Draw rectangles at top of both window openings and change them to boundaries using boundary command

Type UCS and click on face and select the face having 3’ wide window

Draw a rectangle from bottom part of window with dimensions @3’,4’

Type UCS and click on face and select the face having 3’2” wide window

Draw a rectangle from bottom part of window with dimensions @3’2”,4’

Change the ucs back to world

Extrude the rectangle drawn at top side to top edge of window

Change the current layer to 3D_Window_Frame

Type UCS and click on face and select the face having 3’ wide window

Draw a rectangle of dimension @3’,4’
Offset the rectangle to inside to distnce of 3”
Offset the offset rectangle to inside to distnce of 4”

Start the boundary command and click on pick points

Click inside the window frame area and press enter

Start SUBTRACT comman

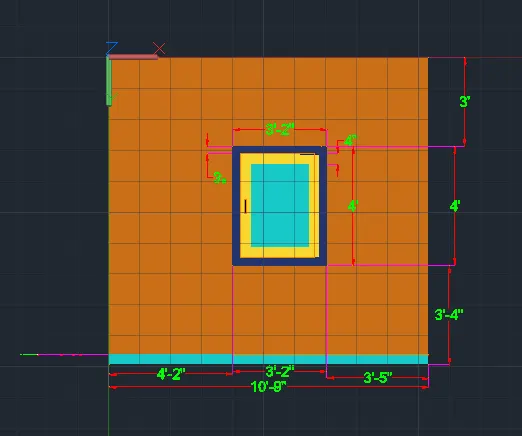

window elevation A,

window elevation B,

AIM:

2.Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.

Procedure:

Open AutoCAD

In Startup settings start from scratch select Imperial (Feet and Inches)

Open grid and snap settings

Change snap and grid spacing

Type ‘un’ in command box and press enter

Change units’ type to decimal and precision to 1’1/16” and insertion scale to inches

Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’

Open Layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer

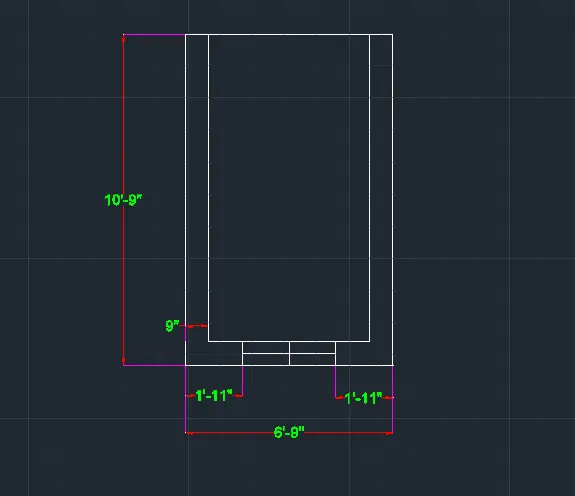

Create a rectangle of dimensions 6’9”X10’9” at any point on the screen
Offset the rectangle to inside to distance of 9” as wall thickness
Explode the rectangles drawn
Delete the top line and extend them to the edges

Change the current layer 3D_Window_Frame

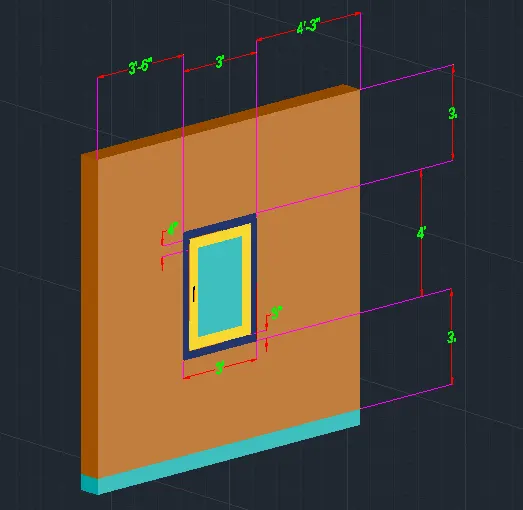

Create the window opening of dimensions 3’ wide as shown in figure
Add dimensions are drawn using dimension layer
Create the boundaries for the walls using ‘BO’ command
Extrude the boundaries created to total height of 10’10”
Create a boundry region over the window lines
Extrude the boundary to aheight of 4’6”
Draw a rectangle on top of the window opening using rectangle command
Chanhe the rectangle into a region
Extrude the region to distance of 1’3” to below and then window openin is created as shown in figure

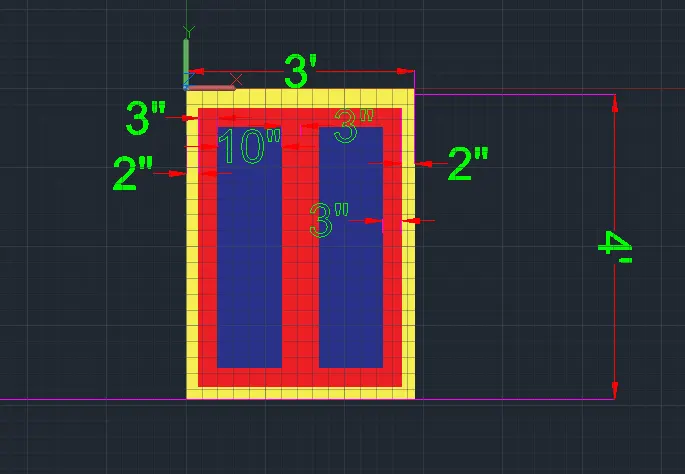

WINDOW DETAIL:

Draw a rectangle of dimension @3’,4’
Offset the rectangle to inside to distnce of 2”
Offset the offset rectangle to inside to distnce of 3”
Draw center line connecting midpoints
Offset the lines to both sides to a distance of 3”
Trim all the unnecessary edges

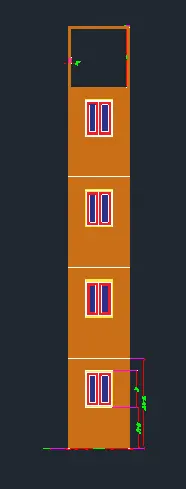

Group all the items to create the elevation view

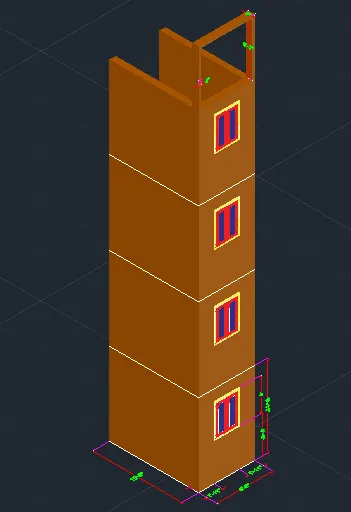

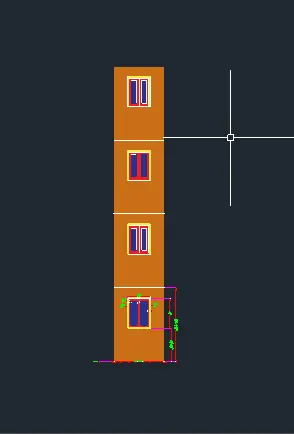

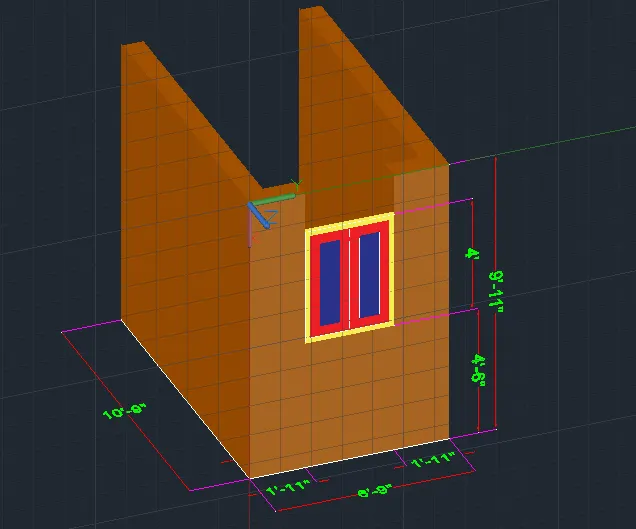

Copy the block having 4’ height window and place it 3 times as shown in figure

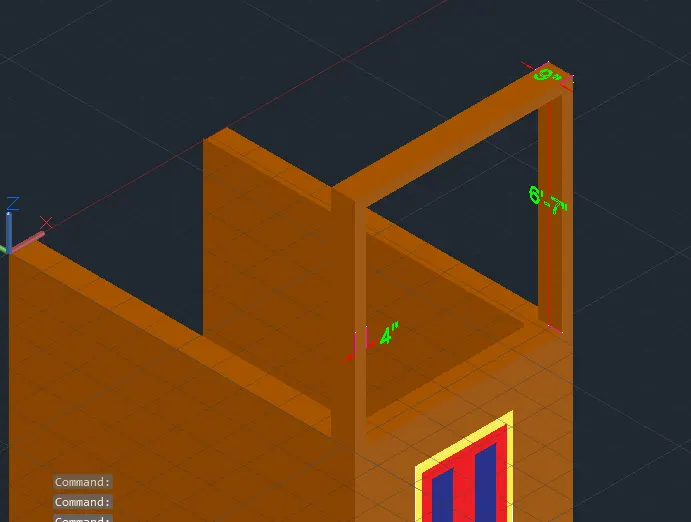

Create the top part of the drawing using 4” wall with height 6’5” from top

Create a boundary for the wall
Extrude the boundary to 9” .

AIM:

3.Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.

Procedure:

Open AutoCAD

In Startup settings start from scratch select Imperial (Feet and Inches)

Open grid and snap settings

Change snap and grid spacing

Type ‘un’ in command box and press enter

Change units’ type to decimal and precision to 1’1/16” and insertion scale to inches

Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’.

Open Layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer.

Change the current layer to stairs

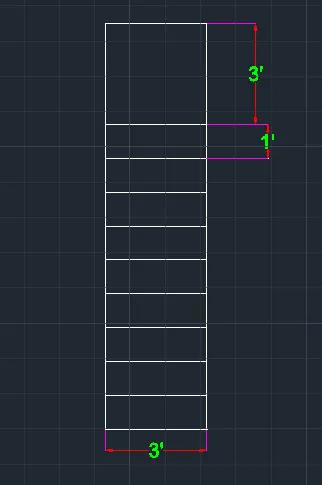

Draw a rectangle of dimensions 3’X12’
Explode the rectangle
Offset the side edges to inside to a distance of 1”
Offset the bottom edge to a distance of 1’ as shown in figure

Change the view to 3d by clicking on home button of view cube and chance the view to right view

Set UCS as Right

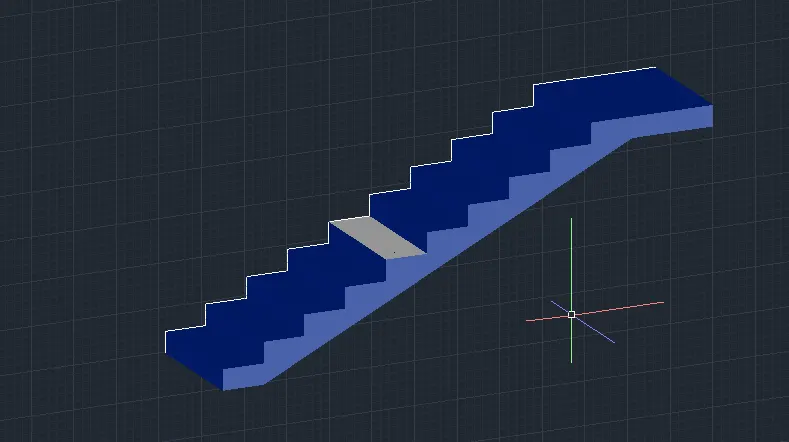

Start line command and draw a vertical line of length 6”
Draw a horizontal line of length 1’
Repeat the same process for 9 times to draw 9steps
After reaching 9 steps draw a landing of length of 3’
Draw a line of 1’ at the bottom step
Draw a line of 6” at the top right edge of landing
Draw a line of 1’6” backwards
Draw a slab joining the lines

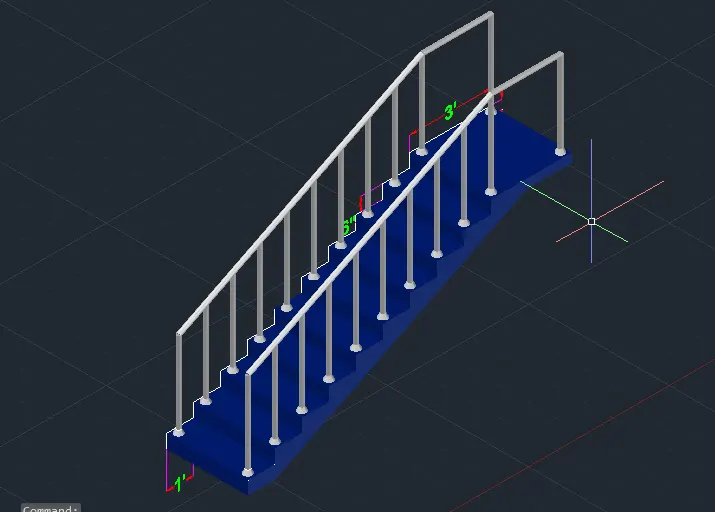

Draw circle of diameter 1” with 2” offset from the top right edges of the first thread of staircase
Change the circle into a region
Extrude the region to a height of 3’ as shown in the figure

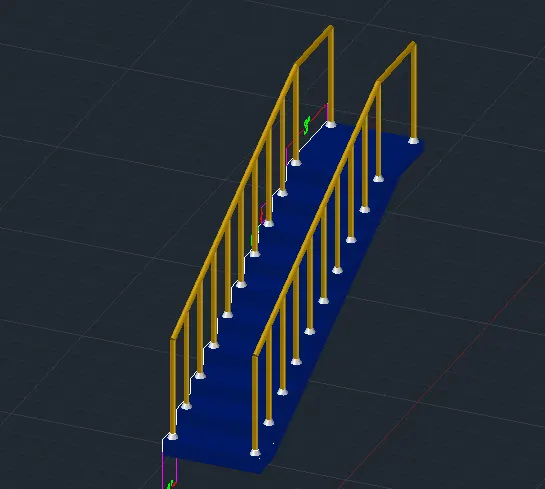

Change the current layer to Stair handrails Stand

Draw a handrail stand at the bottom with dimension 2” and extrude
Copy the same to the other side

AIM:

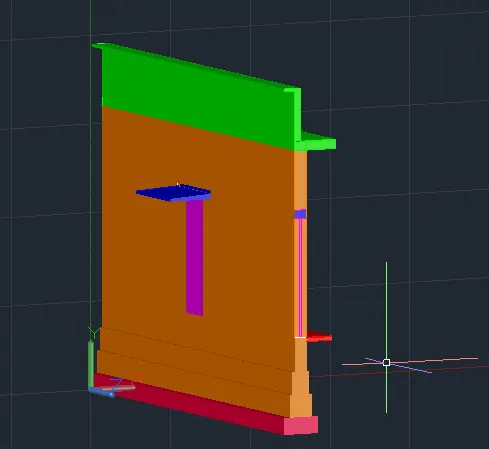

Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.

Procedure:

Open AutoCAD

In Startup settings start from scratch select Metric (Meters and mm)

Open grid and snap settings

Change snap and grid spacing

Type ‘un’ in command box and press enter

Change units’ type to decimal and precision to 0.00 and insertion scale to inches

Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’

Open Layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer

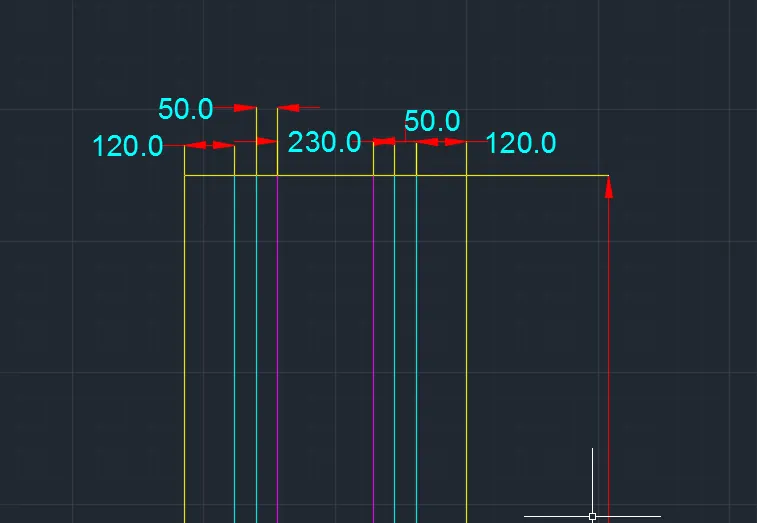

Draw a rectangle of dimensions 670X7500
Offset the rectangle to inside to a distance of 120mm
Offset the offset rectangle inside to distance of 50mm twice.
Explode all the offset rectangle
Delete the top and bottom edges of the exploded rectangles
Extend all the rectangle to top and bottom edges of outer rectangle.

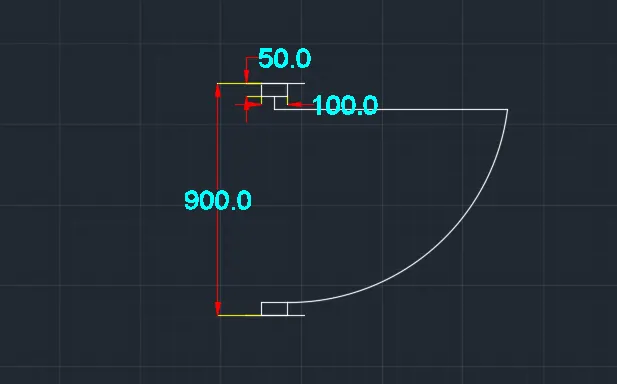

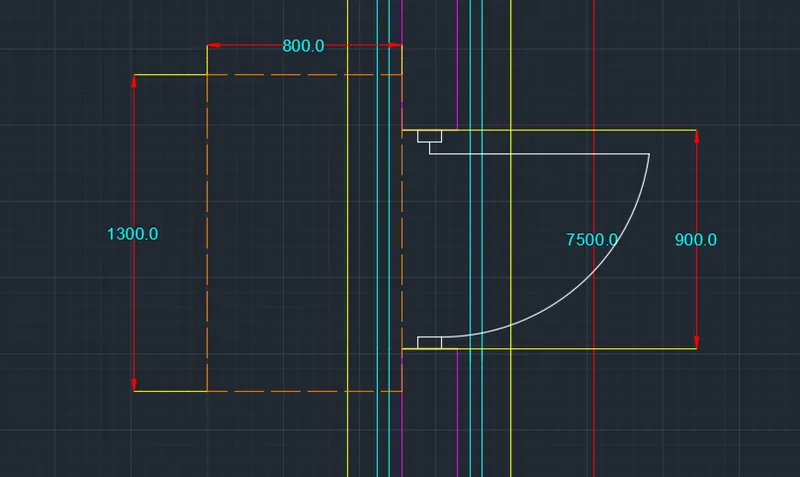

Door Block

Draw a rectabgle of dimenson 50X100mm each sides.
Draw a line of length 850mm from the edge
Draw an arc line of the door swing
Convert the door into block
Edit the block and add flip parameters

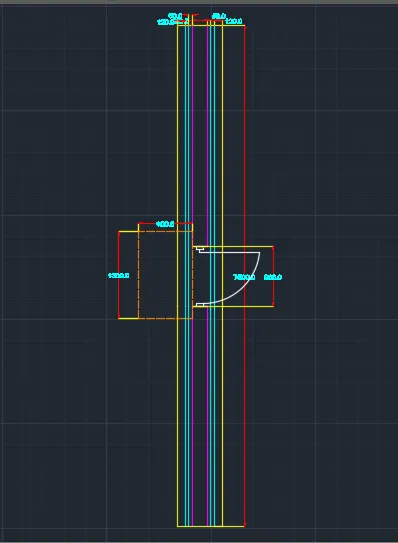

Create the door opening of 900mm at the middle
Add the door block by rotating the door
Add the door shade using respective layer

Click on the Front view of the view cube and zoom for better view

Change the ucs to front

Draw a line of certal length
Offset the line to bottom 25mm
Offset the last offset line bottom to distance of 100mm

Change the current layer to Wall

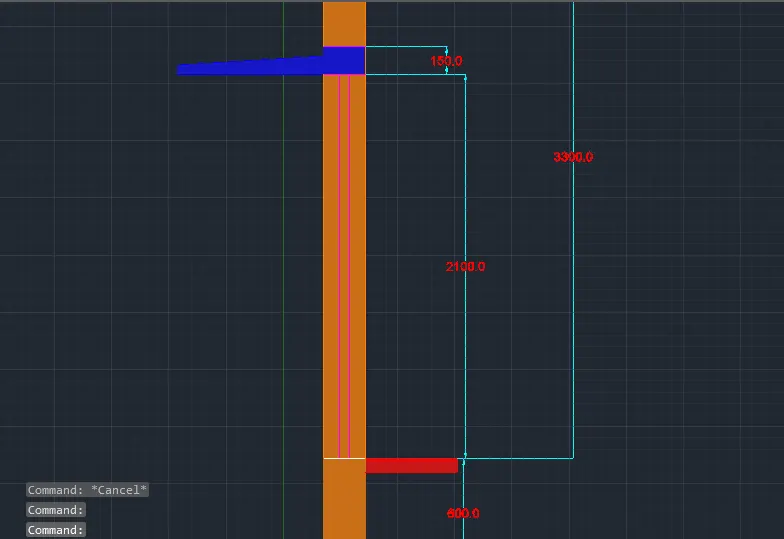

Draw a rectangle of dimension 230X 3300 from the top left edge of Ground level

Change the current layer to roof level

Draw roof of thickness 150mm
Draw a Parapet wall of height 600mm

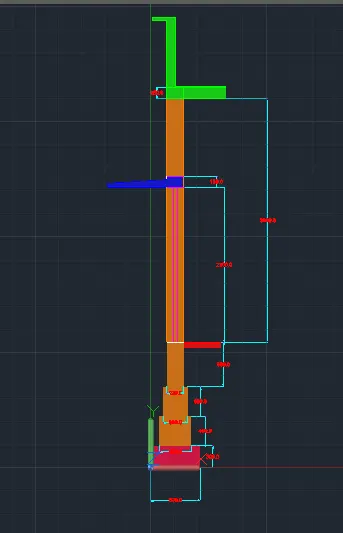

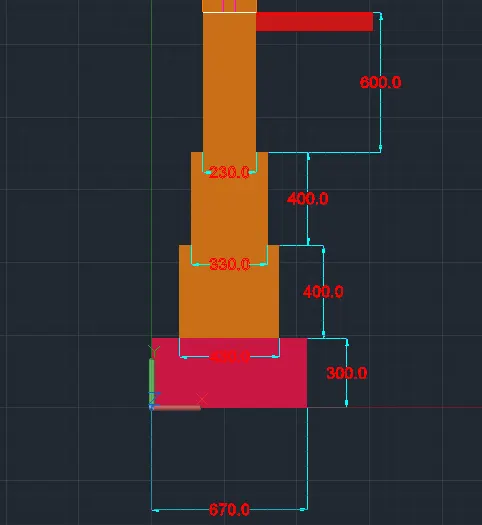

Footing :

Draw a rectangle of dimension 230X600, below the floor level as shown in figure
Draw a rectangle of dimension 330X400, below the first level as shown in figure
Draw a rectangle of dimension 430X400, below the second level as shown in figure
Draw a rectangle of dimension 670X300
