Control logic of a “washing machine” using Stateflow

AIM :- Carry out a system-level simulation of an all-terrain BAJA vehicle OBJECTIVES :- To make a techinical report on the model properties and analyze the results obtained INTRODUCTION All Terrain Vehicle :-  An all-terrain vehicle (ATV), also known as a light utility vehicle (LUV), a quad…

Aim :- To make a Simulink chart for the “Gear shift” logic as per given conditions   Objectives :- Following conditions are to be satisfied :-  Speed Range(kmph)   Gear 0 to 15 1 16 to 25 2 26 to 40     3 41 to 60    4 Above 61 5 ** Give speed input…

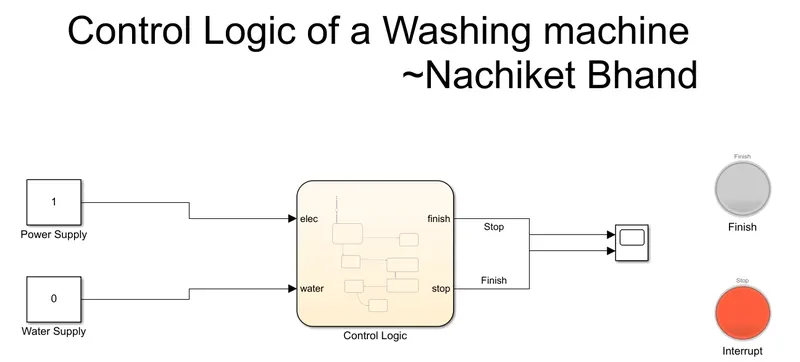

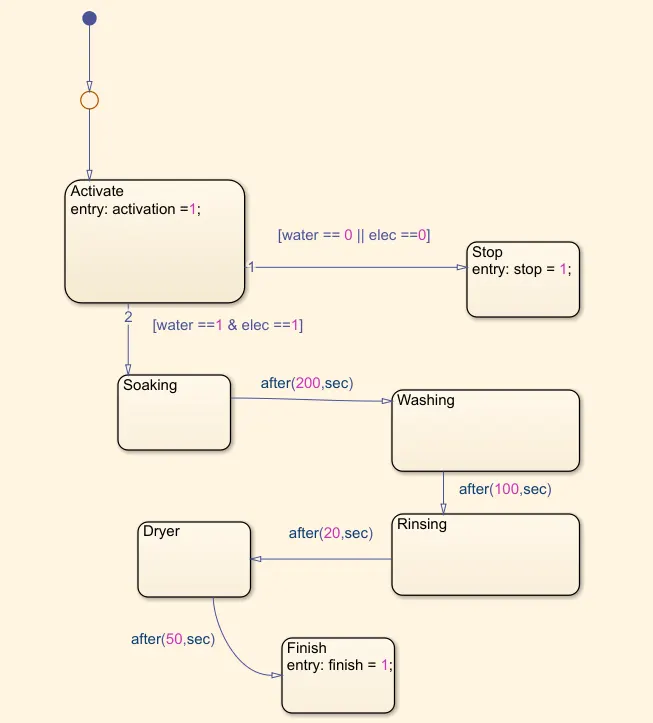

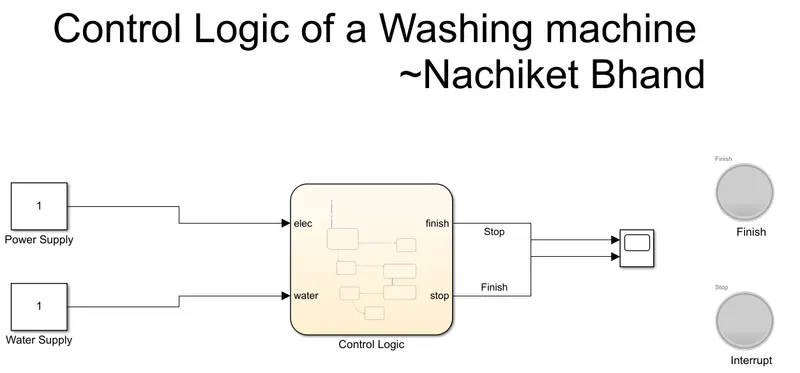

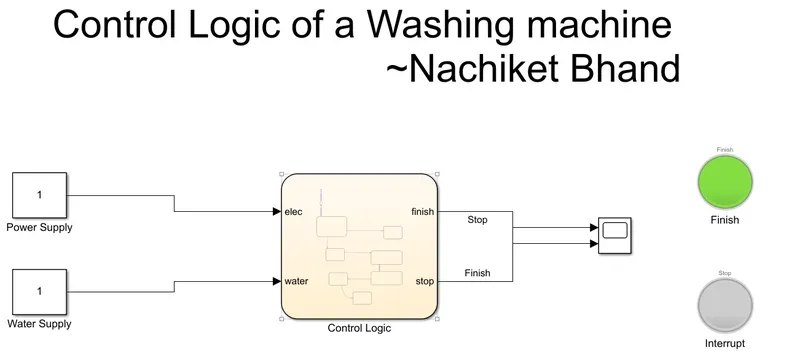

Aim:-  Implement control logic of a “washing machine” using Stateflow as per given sequence Objectives:- Understand and implement the logic control of a State Machine using Stateflow If the power supply is available, the system gets activated  If the Water supply is not available, stop the process…

Aim:- Use a thermistor to sense the temperature of a heater & turn on or turn off the fan as per below conditions:- Temperature source: 20 °C from 0 to 10 seconds, 27 °C from 10 to 30 seconds, 23 °C from 30 to 50 seconds Fan conditions: ON if the temperature above 25 °C, OFF otherwise…

Aim:- To create a simulation of electrix doorbell using SIMULINK Objectives:- Understand the wroking of a solenoid Built the simulink model of a doorbell with certain assumptions  Analyse the result of the same Schematic Diagram:- Solenoid is the generic term for a coil of wire used as an electromagnet. It also…

                                                                                 SYNTHESIS OF A 4-BAR MECHANISM 1)AIM: Aim…

                                                   FILE ANALYSIS USING PYTHON AIM: Parsing a data file using Python and calculating various performance parameters OBJECTIVE: Obtaining the data…

AIM: Write a PYTHON Program to perform curve fitting and understand the parameters affecting the curve fit OBJECTIVES: Write code to fit a linear and cubic polynomial for the Cp data.  Plot the linear and cubic fit curves along with the raw data points. Understand the parameters used to measure the fitness characteristics…

AIM: Find minimum pressure with Newton-Raphson method to break ice with air cushion vehicle with the help of a PYTHON program OBJECTIVES: The main objective pf the project is to find the minimum pressure for the given value of height  Analyse the change in values of number of iteration with respect to change…

AIM: MATLAB program to create simulation of rankine cycle and analyze it  OBJECTIVES: To Develop a  basic program that calculates the state points of the cycle at various stages To  add the thermodynamic relation to get the points inbetween the state variables. To plot rankine cycle on T-s and H-s curve…

                                              Analysis of an Otto-cycle AIM :- PYTHON program to plot p-v diagram and calculate thermal efficiency of an Otto cycle OBJECTIVE:- To plot the pressure and…

                                               MATLAB PROGRAM FOR FILE PARSING AIM :  To extract 14 coefficients of each species and calculate the entropy, enthalpy and specific heat from the file…

                                              OPTIMISATION OF A STALAGMITE FUNCTION AIM: Writing a MATLAB code for optimisation of a stalagmite function using Genetic Algoritm OBJECTIVES: To find the…

  AIM: Write a MATLAB Program to perform curve fitting and understand the parameters affecting the curve fit OBJECTIVES: Write code to fit a linear and cubic polynomial for the Cp data.  Plot the linear and cubic fit curves along with the raw data points. Understand the parameters used to measure the fitness…

                                                   TRANSIENT BEHAVIOUR OF A PENDULUM AIM: A MATLAB Program to solve an ordinary differential equation of motion of a pendulum OBJECTIVES: …

                                                   Analysis of an Otto-cycle AIM :- MATLAB program to plot p-v diagram and calculate thermal efficiency of an Otto cycle OBJECTIVE:- To plot the…

                                                             2R ROBOTIC ARM  AIM: MATLAB Program for two arm robot manupulator. EQUATIONS USED(to obtail coordinates…
