Conceptual design of a building with columns and shear walls

Q.1

The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account the restraint of floor shrinkage, the lateral stiffness and the torsional one with respect to the vertical axis, the vertical reinforcement required for the same total flexural capacity at the base, the static eccentricity, the system’s redundancy, foundation systems, architectural constraints etc.

(ANS...)

Restraint floor shrinkage:-

Observation:

(a) Full restraints at all corner

(b) Corners are left free but restraint along the edge

(c) Non uniform restraint

Conclusion:

Option (a) will have higher restraint to shrinkage, thus lead to cracks in the floor.

Option (b) is average.

Option(c) will not effectively restraint the shrinkage, so possibly less cracks.

The lateral stiffness:-

Observation:

(a) Comparatively lower lateral stiffness in both X and Y

(b) Uniform and comparatively higher lateral stiffness in both X and Y

(c) Non uniform lateral stiffness in both X and Y

Torsion with respect to vertical axis:-

Observation:

(a) Corner walls provide more resistance to twist

(b) Edge walls provide good resistance to twist

(c) Irregular walls provide very poor resistance to twist

Option(a) will be best option with respect to  Torsional resistance whereas

Option(c) is the worst one

Vertical rreinforcement for similar base capacity:-

Observation:

(a) Walls are subjected to nominal flexural moment and heavy twisting moment

(b) Walls are subjected to nominal twisting moment

(c) Walls are subjected to heavy flexural moment and twisting moment

Conclusion:

Option(c) will require higher vertical reinforcement and

Option(b) will require the least.

Static ecentricity:-

Observation:

(a) Structurally symmetric

(b) Structurally symmetric

(c) Un-symmetric

Conclusion:

Only Option (c) will have static ecentricity and it is significant

System's redundandancy:-

Observation:

(a) Uniform placement of lateral load supports in both the axes

(b) Uniform placement of lateral load supports in both the axes

(c) Concentrated lateral load supports in both the axes

Conclusion:

Option (a) and (b) are more redundant than option (c)

Foundation systems:-

Observation:

(a) Due 'L' shaped walls, the geometry of foundation and its design will be critical

(b) Walls are in line. Easy to fix the geometry and design of foundation

(c) Walls are in line & concentrated. Easy to fix the geometry of foundation but critical in design

Conclusion:

Option (b) and Option (c) shall be incorporated with isolated footing/strip footings.

Option (a) is recommended to have peripheral box foundation.

Architectural constraints:-

Observation:

(a) Walls obstruct only

(b) Walls obstract faces of building.

(c) Vertical wall not allow passage

Conclusion:

Architecturally speaking, Option(a) is the preferred one.Option(b) is subjected to discussion.Option(c) will not be accepted both architecturally and commercially.

Q2

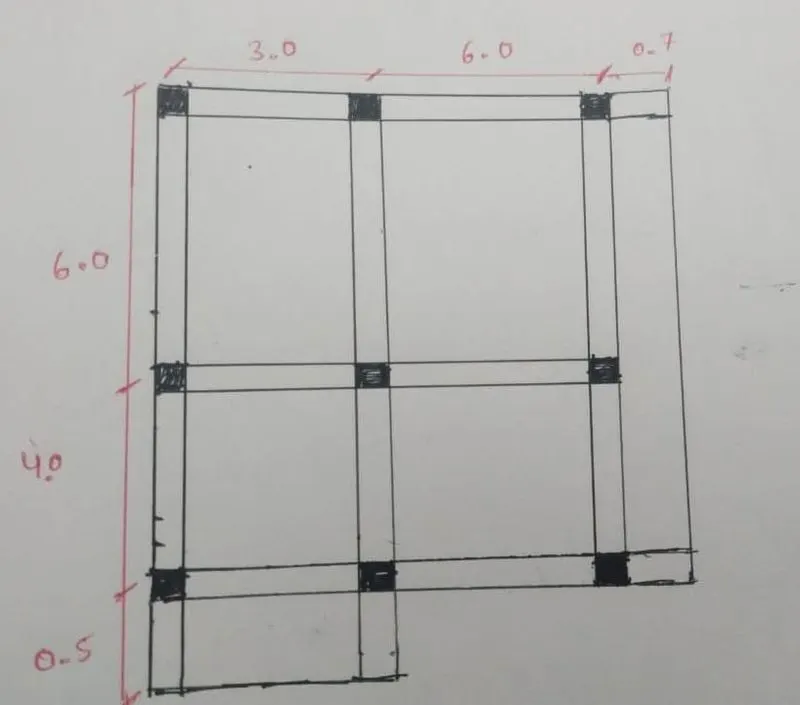

Discuss the suitability for earthquake resistance of the moment resisting framing plan of a three-storey building depicted here (cross-sectional dimensions in cm), the eccentricity of the centre of mass (as centroid of floor plan) to the centre of stiffness (from the moments of inertia of the columns) are shown. Suggest an alternative. Also, is there torsional flexibility? Are the two fundamental translational modes of vibration larger than the fundamental torsional mode of vibration. Discuss qualitatively.

(ANS.......)

Issue in the given framing plan:

Indirect lateral load transfer in X and Y directions-   The beams are connecting to another beams which is ineffective during lateral load transfer.In such conditions, the primary beams is prone to shere failure.

Eccentrycity-    The longer the distance between center of mass and center of stiffness, the higher torsional moment of the building. As per the given plan eccentrycity,the building is subjected to higher torsional moment (Torsinal flexibility) in both X and Y direction.

Strong beam week column possibility-   The size of columns majorly mentioned as 25 cm x 25 cm. But all the beams have much deeper section (50cm). Inrtia of beam is visually higher than column. If the reinforcement is adequately greater than that of beams, we are okay and since we do not have the reinforcement detail, this is doubtful. It is recommended to have slight bigger size for column.

Q3

A multi-storey building with basement, with a quadrilateral (non symmetrical floor plan) plan as, has interior columns in an irregular (not in a grid) pattern in plan that serves architectural and functional considerations. Partition walls and interior beams supporting the slab have different layout in different stories. However, there is no constraint to the type, location and size of the lateral force resisting components and sub-systems on the perimeter. Proposals are to be made and justified for the choice of the lateral-load-resisting system and its foundation.

(ANS.....)

Floor plan:-    The floor plan of building is not either uniform or symmetric. So naturally any lateral load induced in the floor will not have 100% influence in same direction. Definitely a special lateral load resisting system for these torsinal moments should be accommodated.

Random internal columns:-    Since the internal columns are random, they are unable to transfer lateral loads efficiently and can not achieve desirable building response. So we have to assume and design those columns for only gravity loads.

Floor to floor variations in partition walls and beams:-   Partition walls provide an important mass control in a building and beams play key role in shear transfer from floor to beam.All these elements are not in order. So heavy distortion and distribution of lateral loads will happen.

Suggestion on the lateral load system & its foundation:

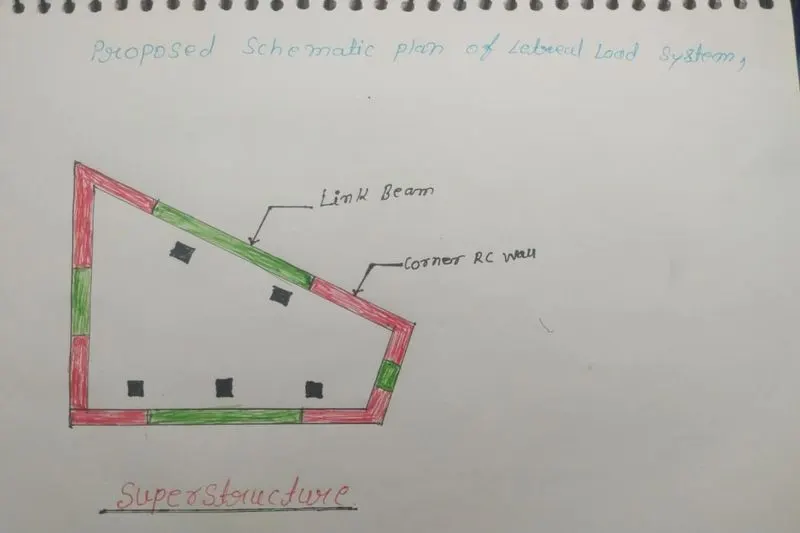

1. Heavy torsional force should be contrilled by respective lateral load system. So "Corner shear walls" are suggested.
2. The proportion of floor area is greater on the left side than the right side (Irregular quadrilateral). So  corner shear walls on the left side should be heavier than the right.

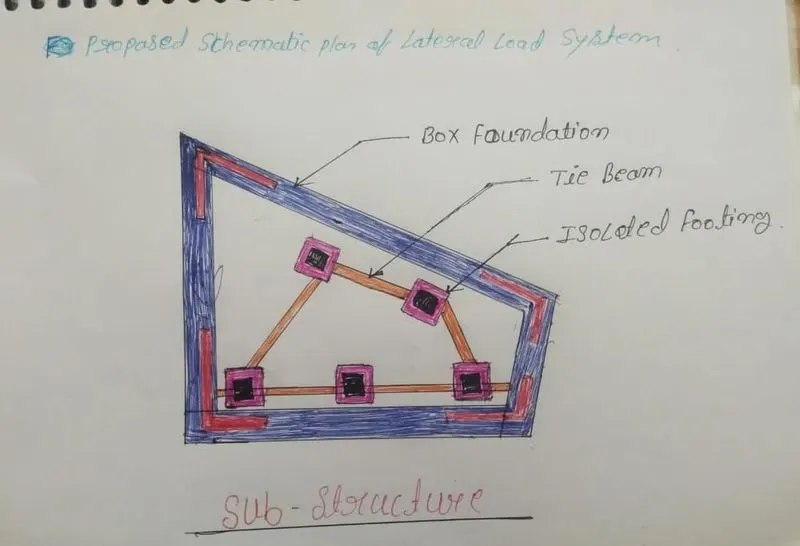

3. Corner shear walls shall preferably be supported over a box foundation. Shear walla should be connected by link beams to transfer shear from one to the other.
4. The internal columns shall be supported by isolated footings. Those isolated footings can be connected with shear walls through tie beams.
