Challenge 9 : Project : Technical Surfacing Kia Sportage
- Title of the Project : Technical surfacing kia sportage.
- Objective : To fulfilling all parameter of CAS surface modelling.
- Introduction : Here we are going to learn about those CAS surface and prepare them up to level,which can pass under class A.

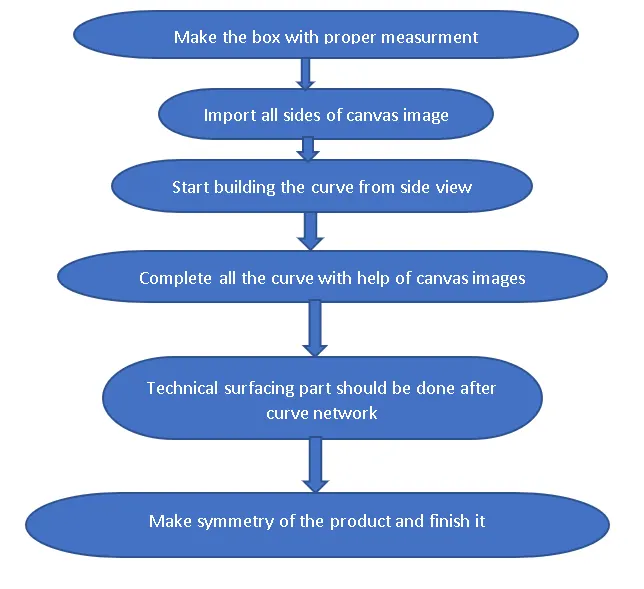

- Design methodology :
- Description :
-->" cube tool" is used in the very begning to generatethe box
-->"cv crv" "line" "duplt" "move" "align" were used during curve network generation.

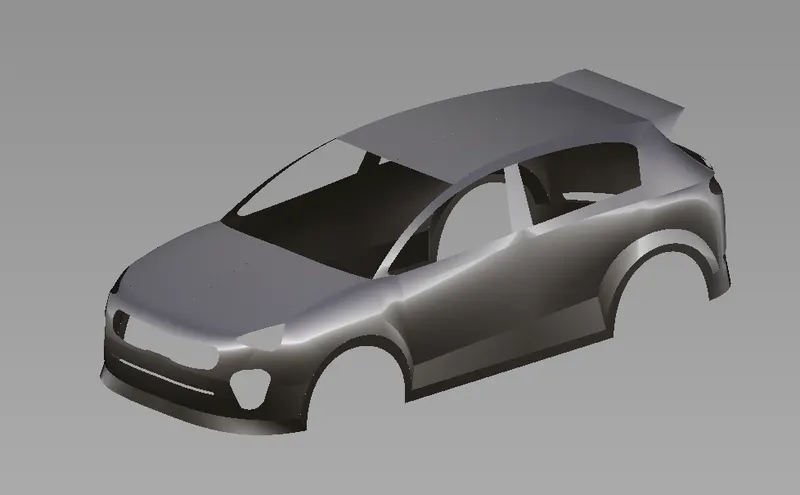

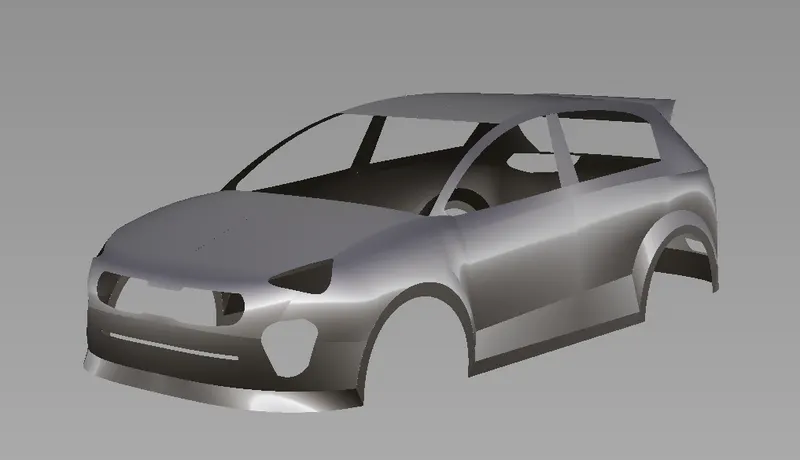

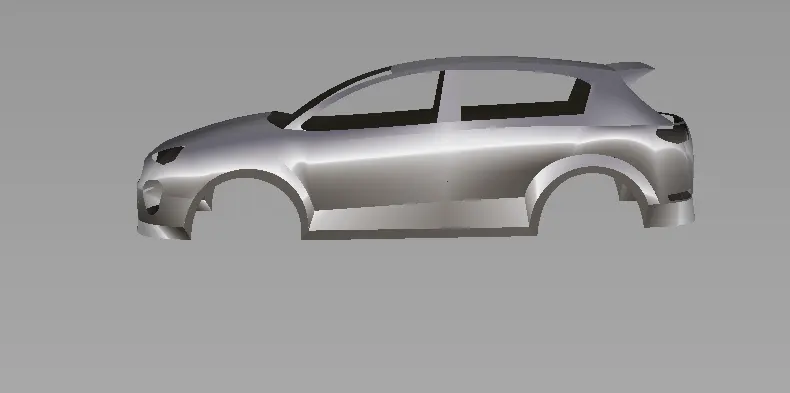

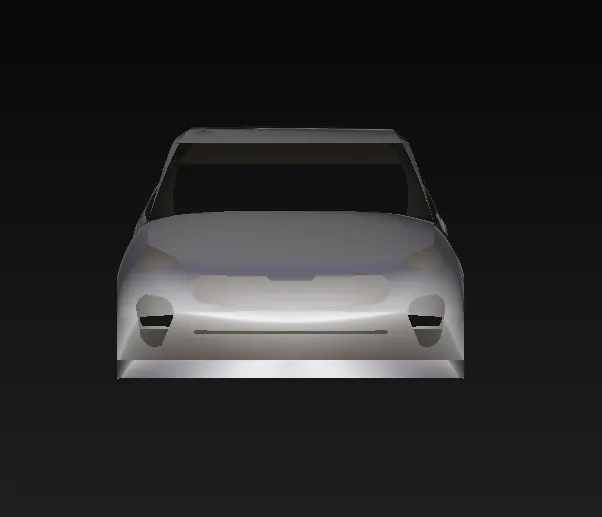

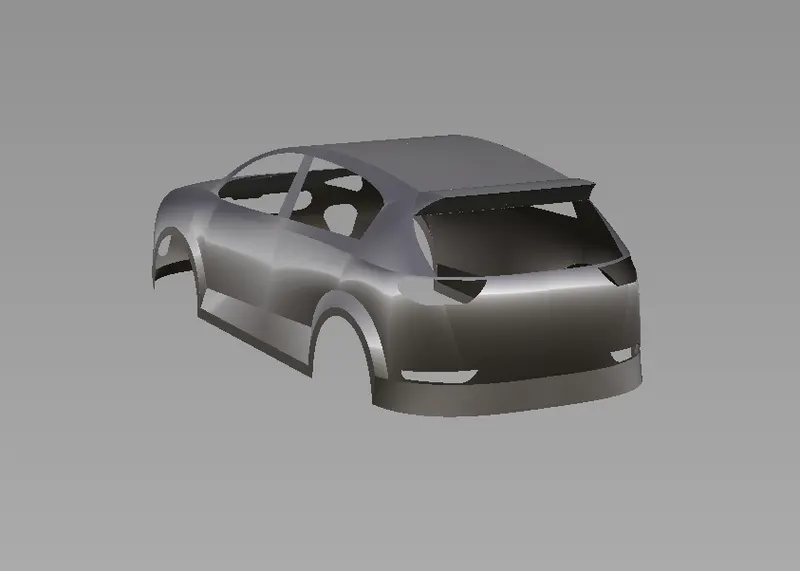

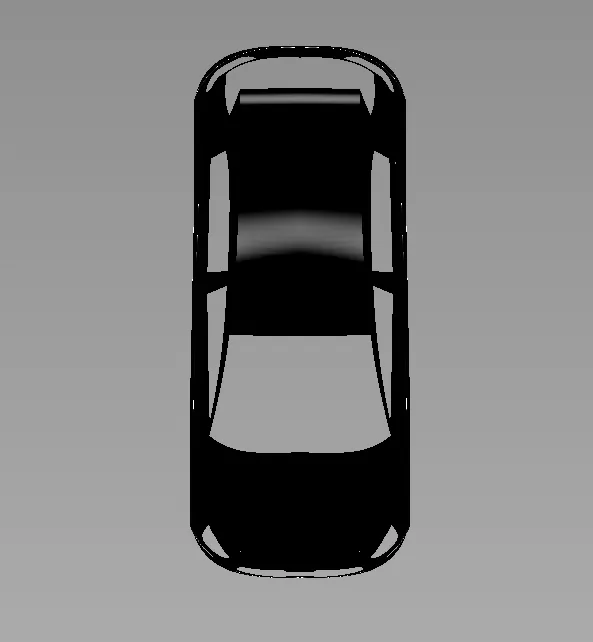

-->"skin" "brail" "squre" "extend" "project" "trim" are used for surfacing the model. - 4 screenshots of Model :
- Conclusion : From this assingment we learned to build clean curve and clean surface building.
