Challenge 4 : Concept Modelling of Alloy Wheel

1. Title of the Project : Concept modeling of alloy wheel


2. Objective :

   Objective of this assingment is to build the Surfaces for Alloy Wheel.
3. Introduction
   concept modeling of alloy wheel represents about surfacing,many tools going to used for this model here we are going to develop the surface for given alloy wheel.

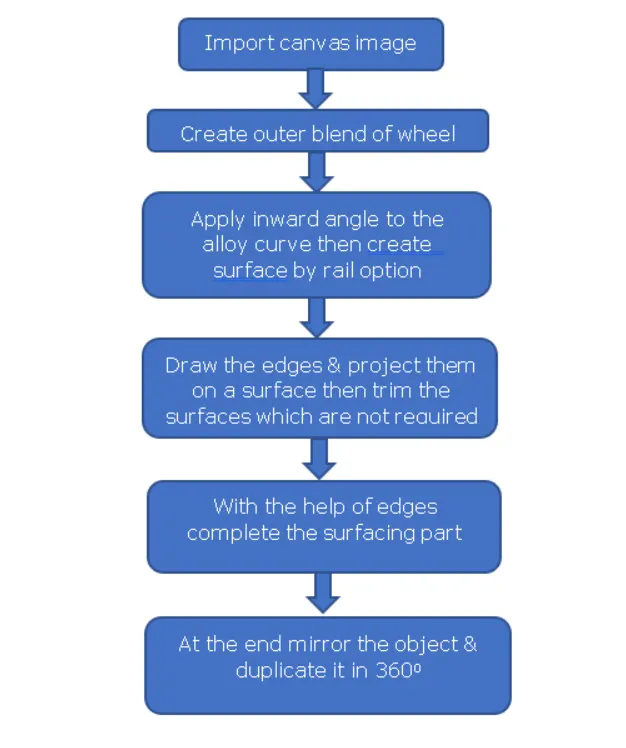

4. Design methodology / approach




5. Description


   Tools Used
   Pick	Transform	Curve	Object Edit	Surface	Surface Edit
   1. Nothing	1. Move	1. Circle	1. Detach	1. Skin	1. Project
   2. Object	2. Rotate	2. CV Curve	2. Extend	2. mrail	2. Trim
   	3. Scale	3. Blend	3. Align	3. ftblend
   	4. Pivot

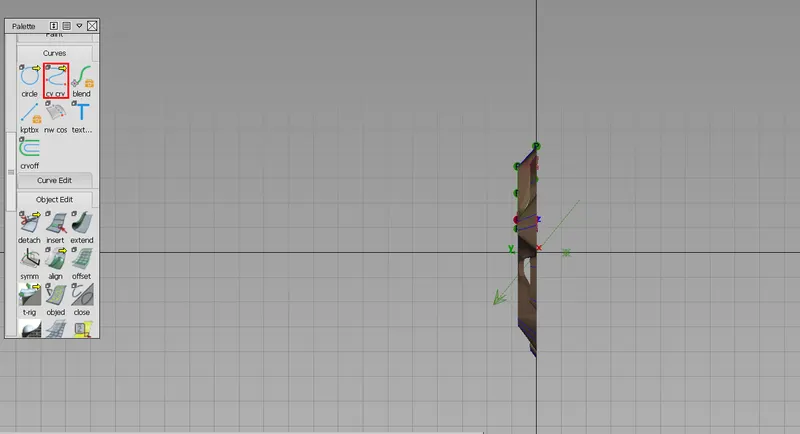

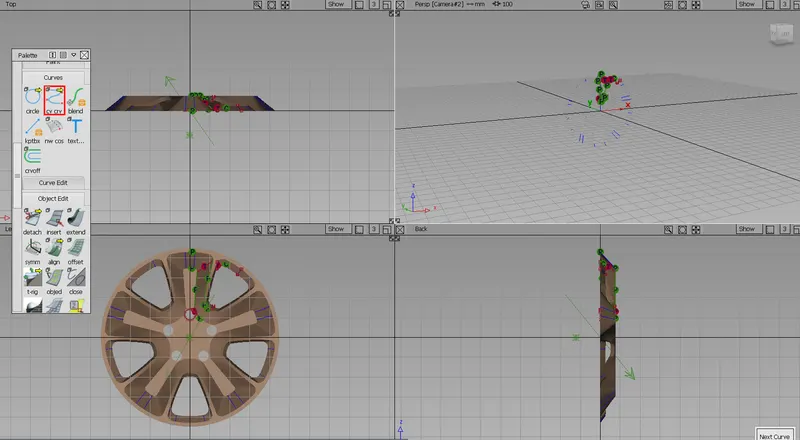

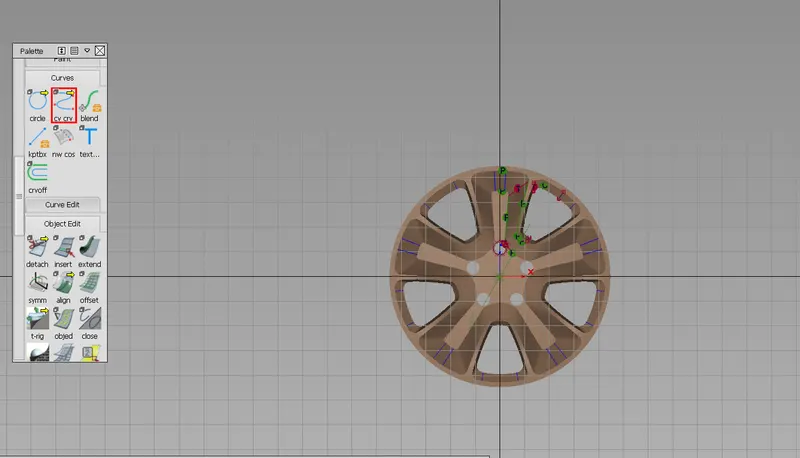

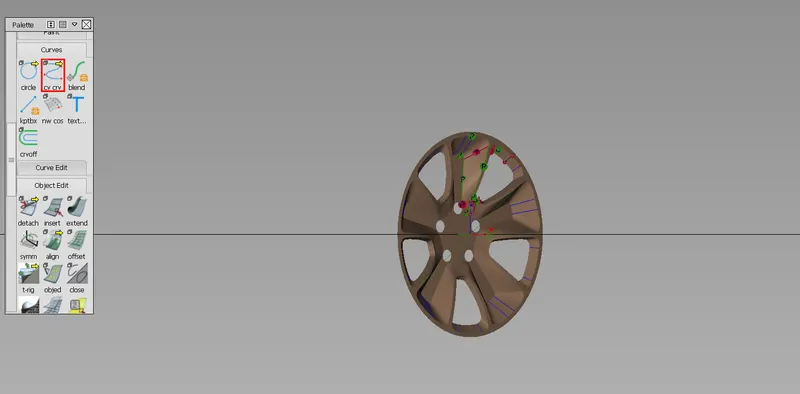

6. 4 screenshots of Model

7. Conclusion : From this we can conclude that surfacing can be build in any manner and one more object can be duplicate in all 3 direction
