Challenge 8 : Concept Modeling of Seats

TITLE: CONCEPT MODELING OF SEATS

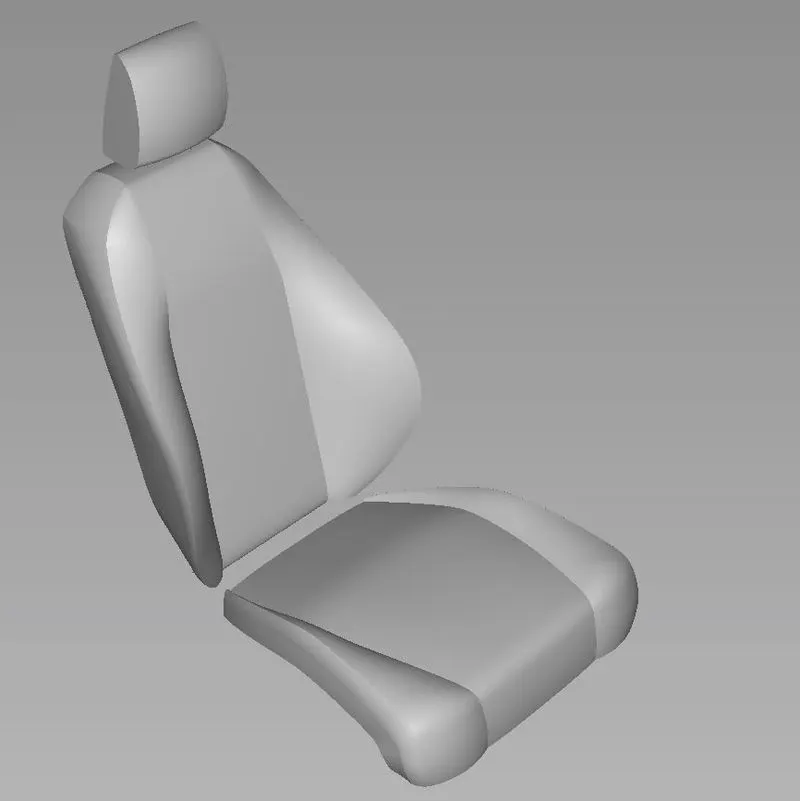

OBJECTIVE: Our objective is to design a concept model of a set entirely through visualisation.

INTRODUCTION

We are given a perspective view of a seat, This is to improve our visualisation skills while designing a component. In order to understand the full details of a product a 3D model is necessary. So to make that 3D model how you visualise it is important.

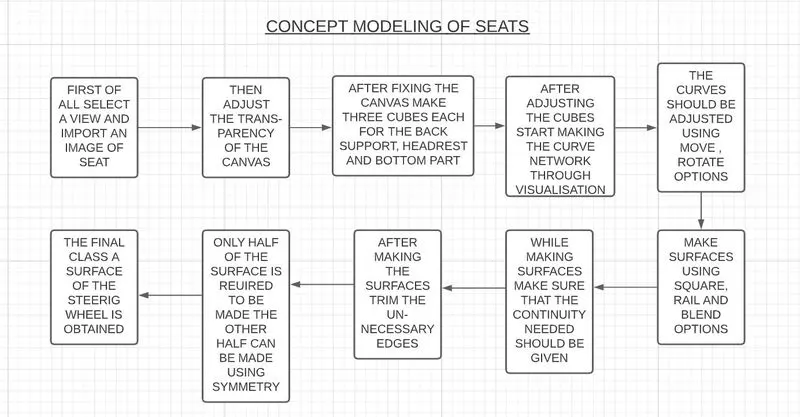

DESIGN METHODOLOGY

DESCRIPTION

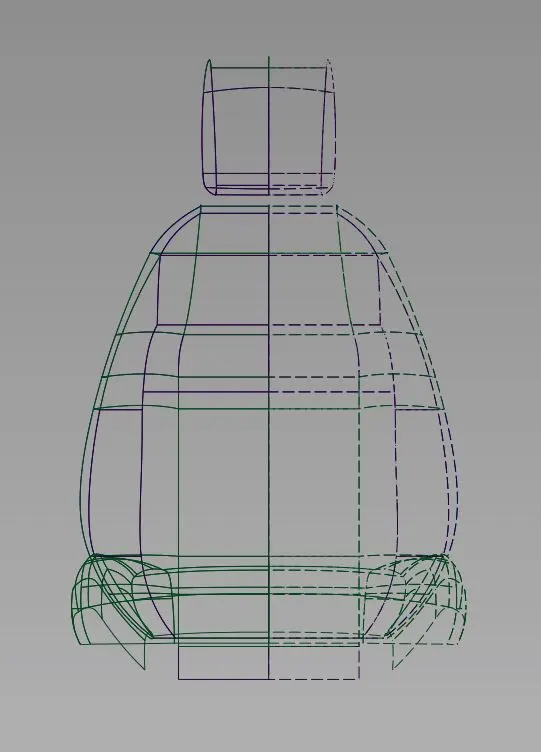

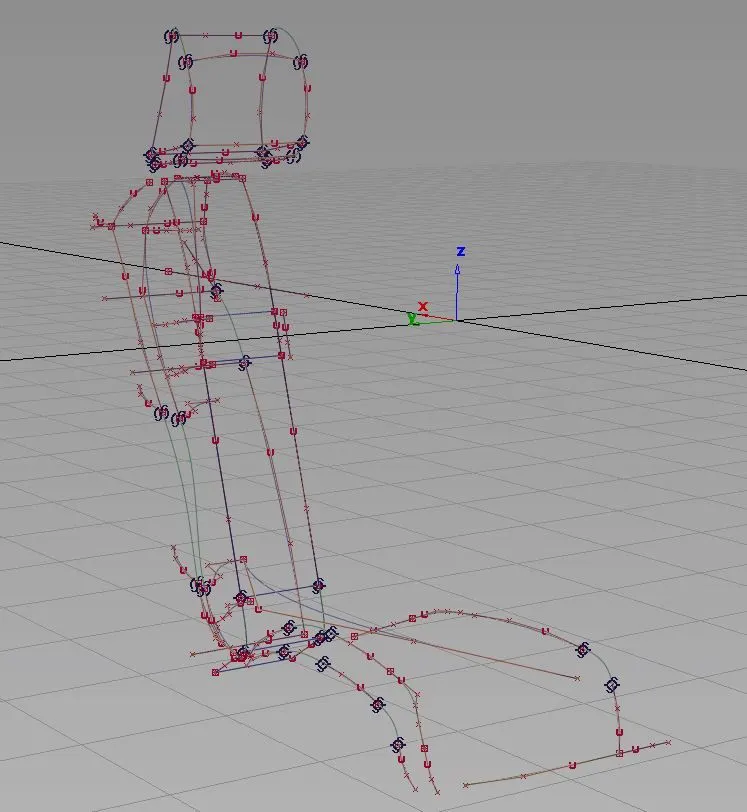

The curve network is made using commands in the cv sections and using blend options. These curves are moved, rotated and adjusted using visualisation.

The curve neteorl and surfaces are made simultaneously to get better result. For making surfaces Rail, square, blend and skin are used and for surface editing Project, Intersect, Trim, Untrim commands are used.

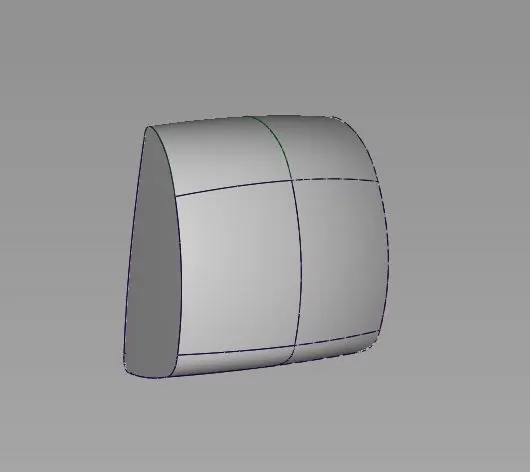

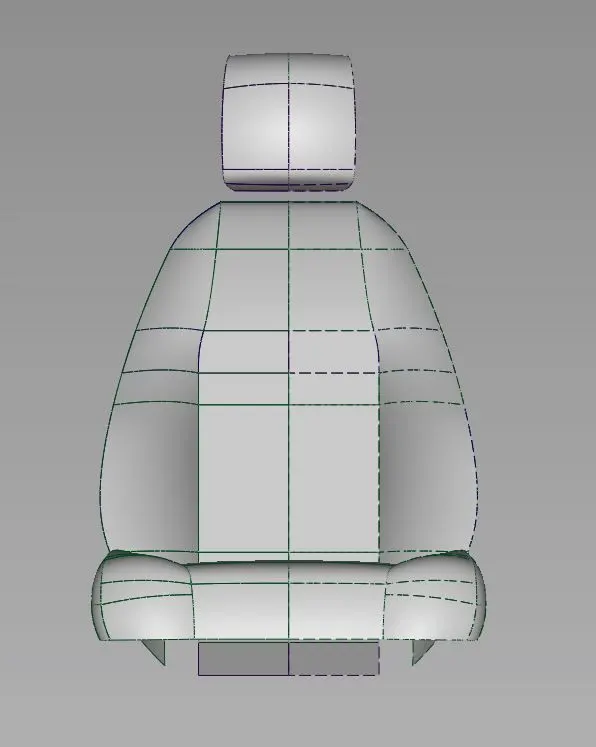

HEADREST

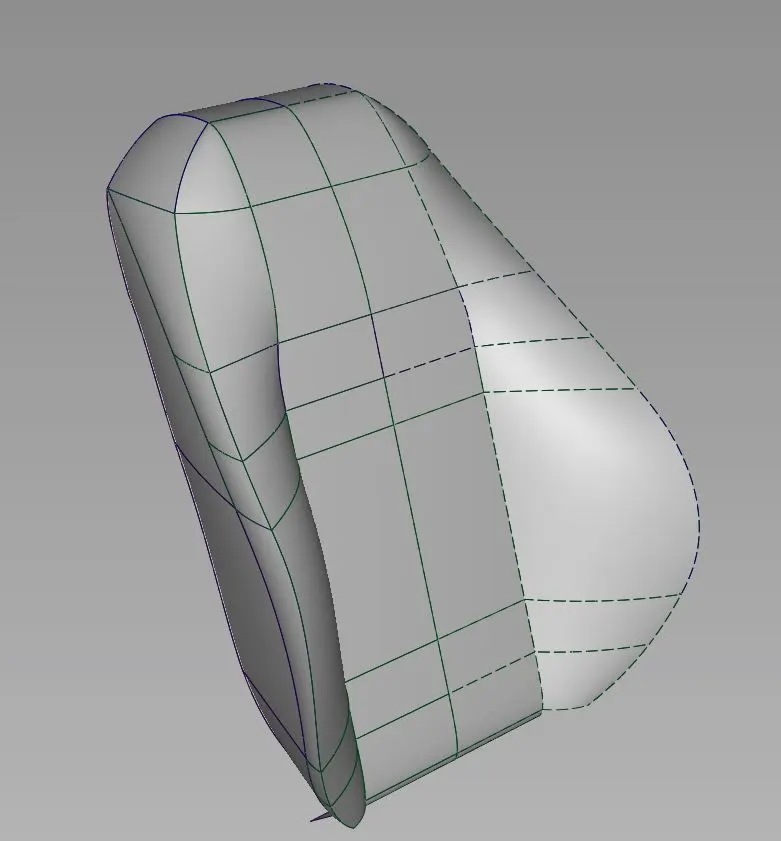

BACK SUPPORT

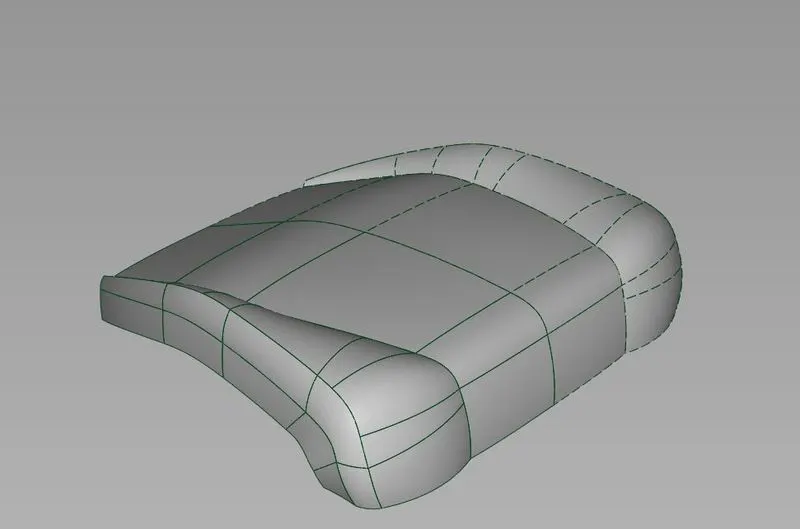

BOTTOM PART

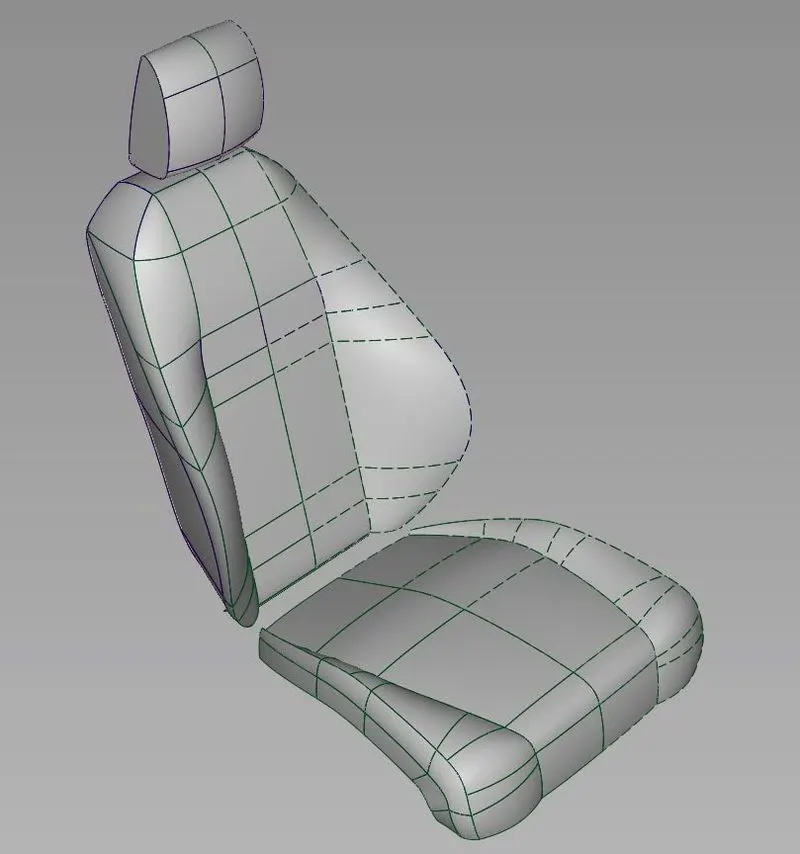

OTHER IMAGES

CONCLUSION

After completing the given challenge a great amount of knowledge on how to visualise a 2D image and convert the details obtained from this to a 3D model.
