Challenge 7 : Concept Modelling of Steering Wheel

Concept modeling of Steering

The purpore of this challange is to make surface model of steering wheel using reference images.

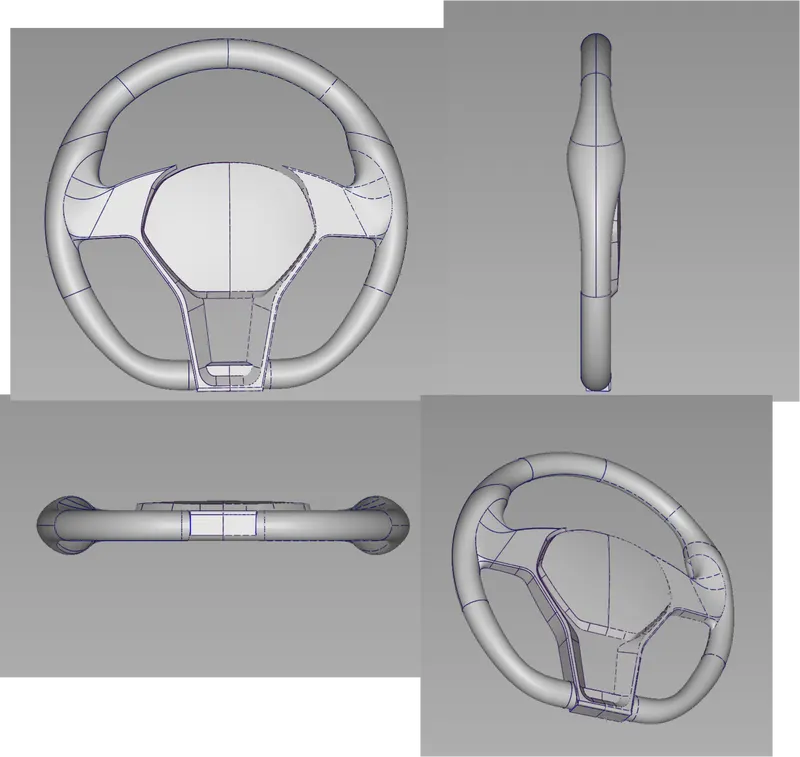

In challenge 7, surface model of steering wheel was modeled with the help of various tool plus using the reflection on the surface, the shape was analysed.

The tools used in this challenges with some description are as follow:

cv curve: to create curves with control vertices
key point box: to create basic shapes
blend: to create curves in relative to it surrounding
xsctrv: to cut curves at intersection
attach: to join 2 or more curves as 1
extend: to extend of the edges of surface
skin: to make surfaces using 2 lines
project: to project curves on surfaces
trim: to cut surfaces after projecting curves on it
untrim: to undo trim on a surfaces
symmetry: to create of a layer over a plane
srfillet:to create fillet between two surface.

In this challenge, I learnt more about making patch and also making symmetry of a group in more than one plane.
