Challenge 6 : Concept Modeling of Side Fender

1. TITLE OF THE PROJECT ;- CONCEPT OF SIDE FENDER.

2. OBJECTIVE ;- TO OBTAIN THE SIDE FENDER BY USING THE IMAGE.

3 INTRODUCTION ;- AS WE Create the side fender by using the canavas image we get to know the formation of the fender, and by the obtainig the right postion we get the formating struture.

4 steps;- firstly we import the image in the alias and we create the image in appromiate image where we get the exact image , next we select pic curves, and other options like we will make draft and fillet with desired postion.

and we find the surfaces and we will project it and teim the part which we dont want. and we make actullal image.

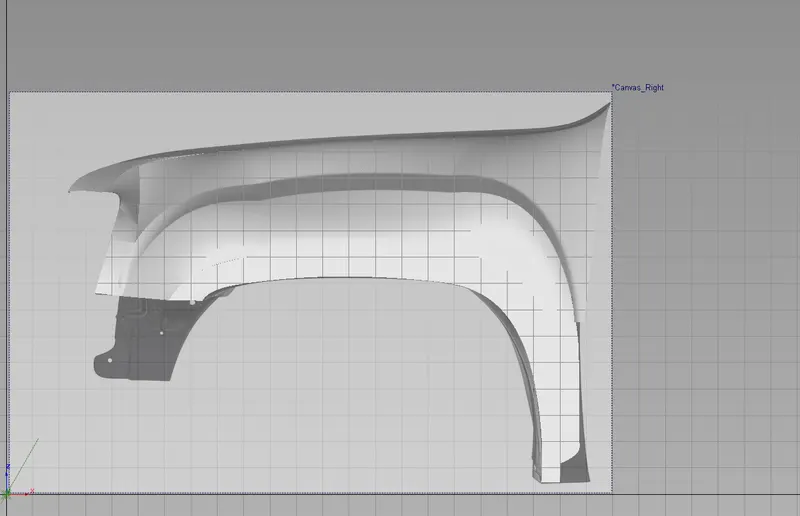

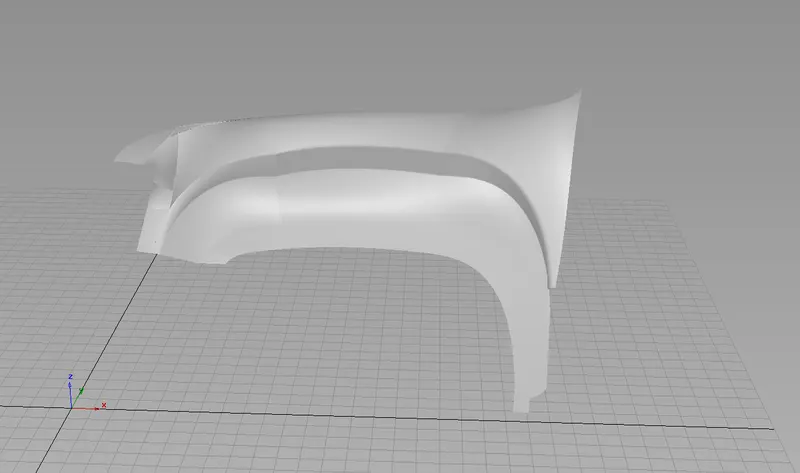

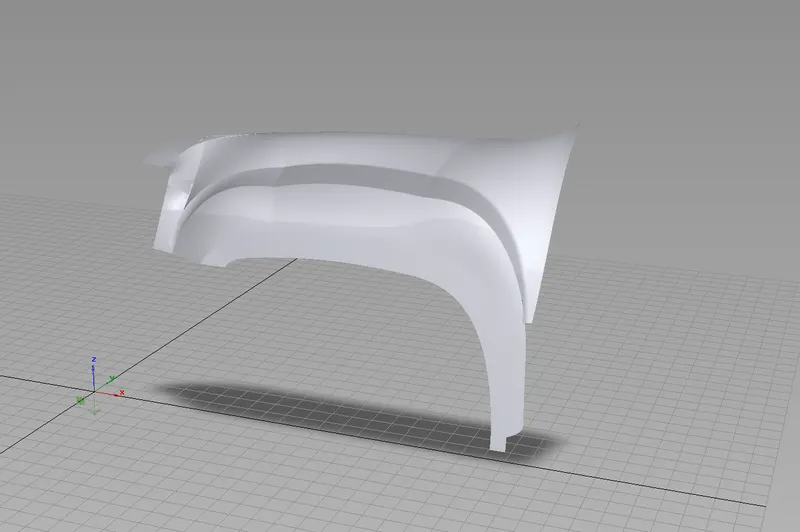

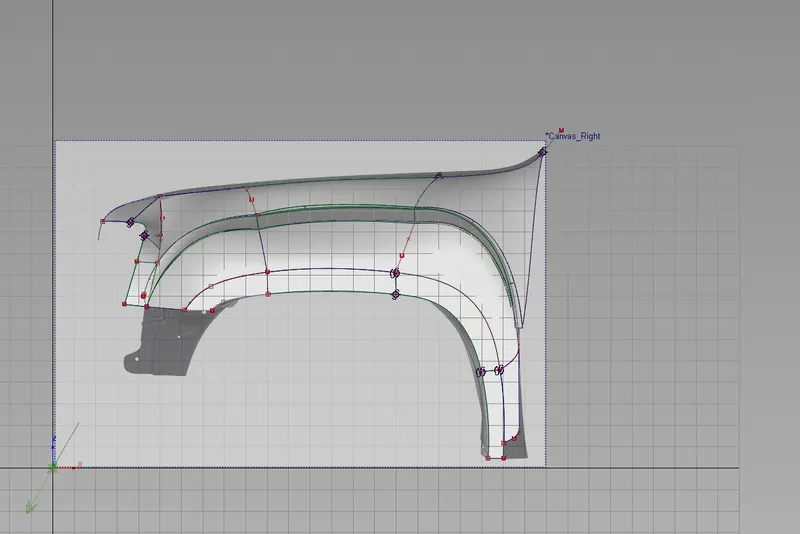

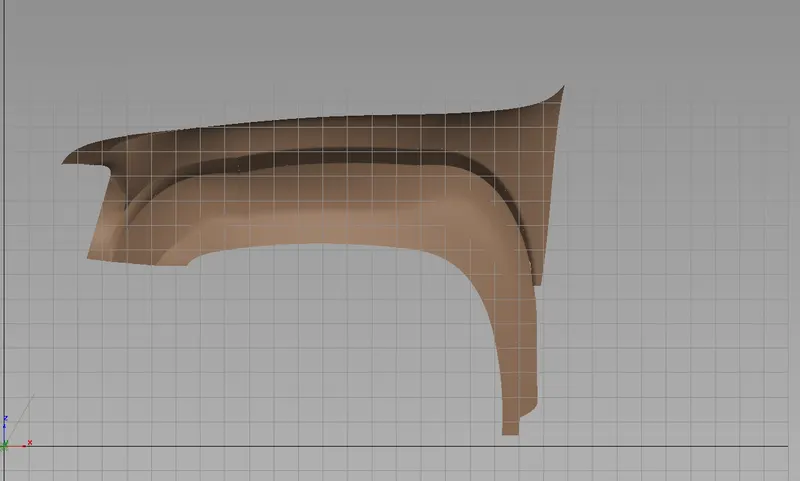

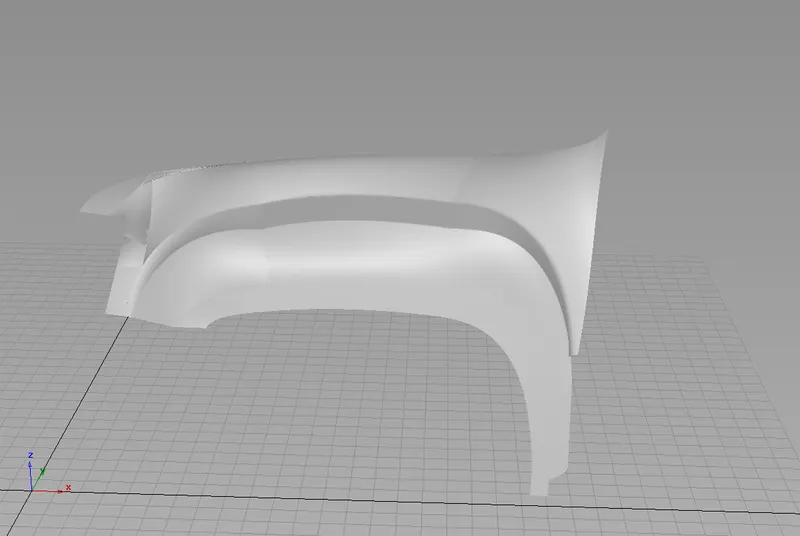

IMAGES;-
