Calculation of Stiffness in Structural elements

Question 1: Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc   Ans:       Question 2: For the following structures: Determine the number of degrees-of-freedom for dynamic analysis…

    • VARSHA MOHAN WAGH

      updated on 03 Jun 2022

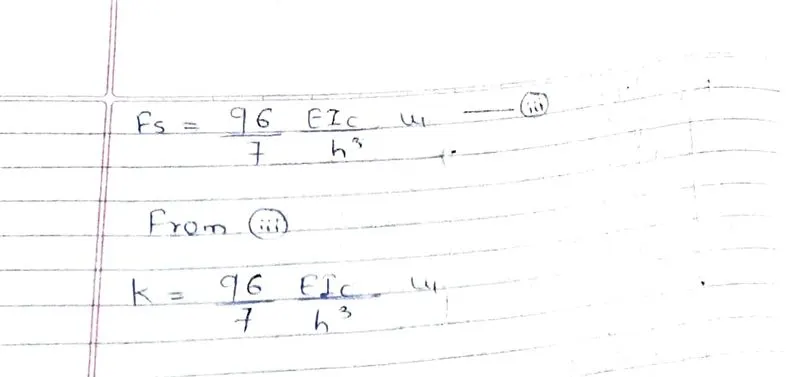

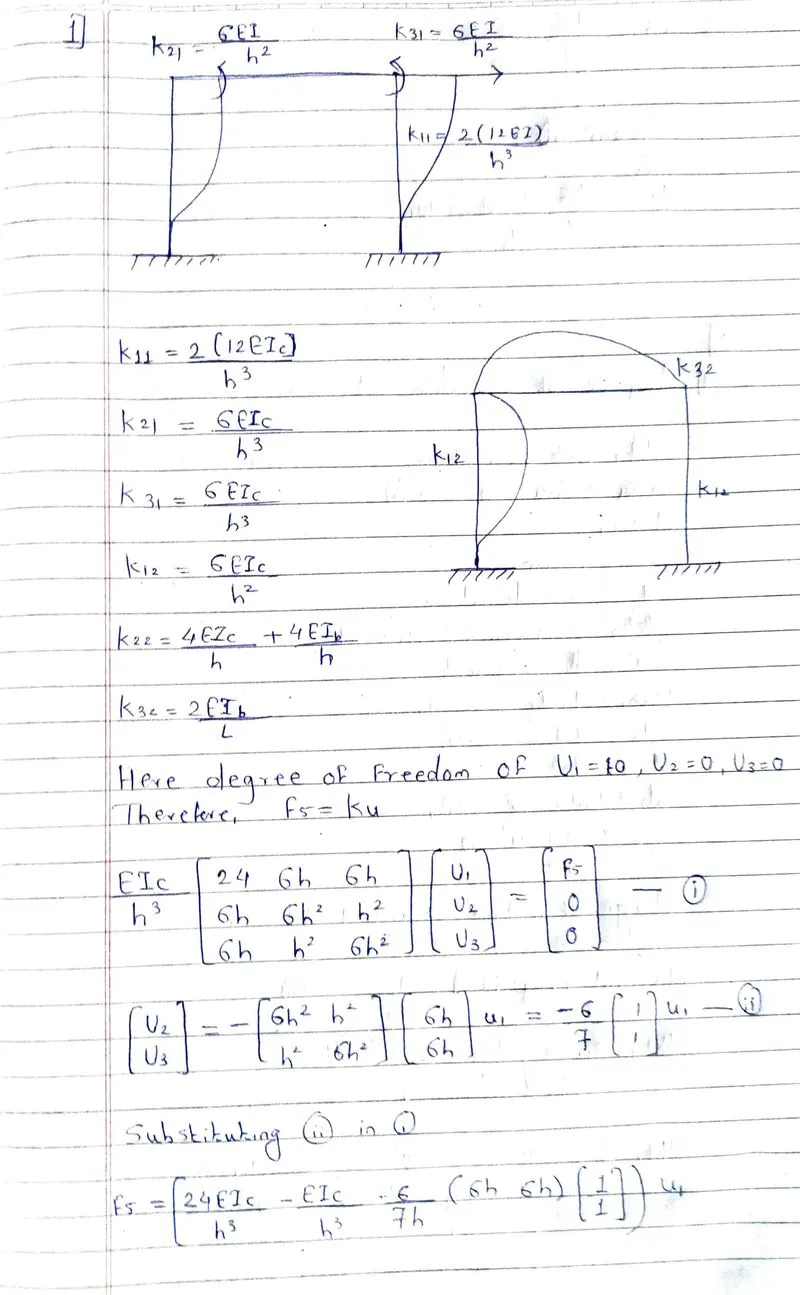

    Question 1:

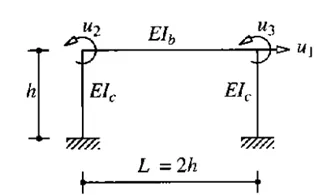

    Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc

    Ans:

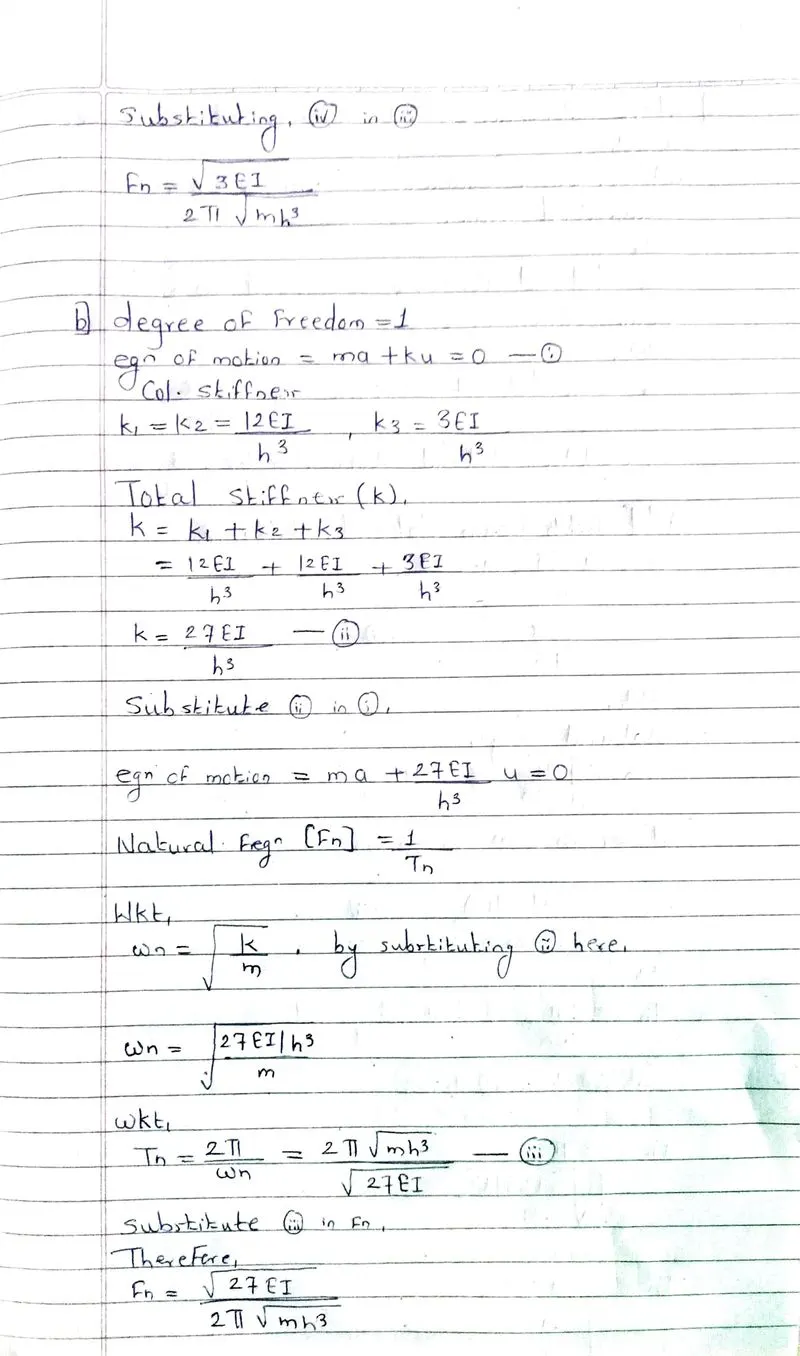

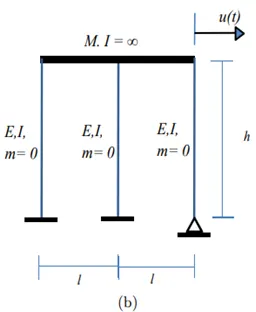

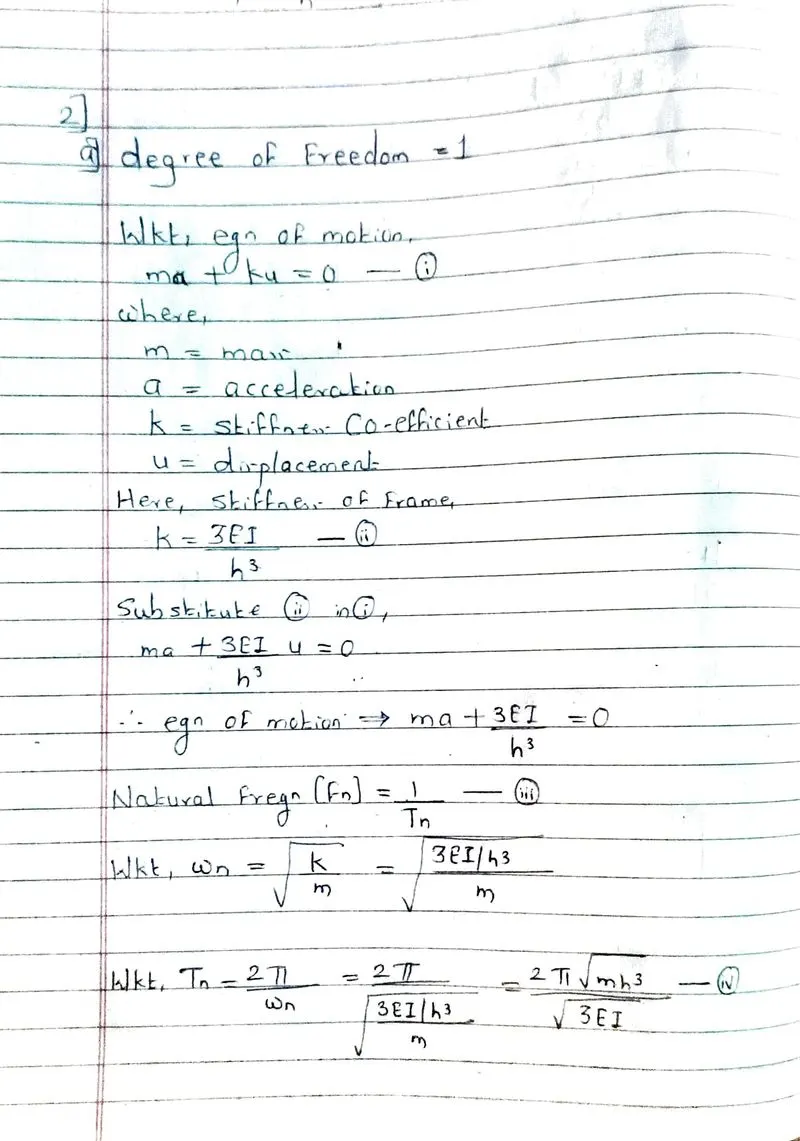

    Question 2:

    For the following structures:

    • Determine the number of degrees-of-freedom for dynamic analysis
    • Establish the equation of motion
    • Calculate their natural frequencies

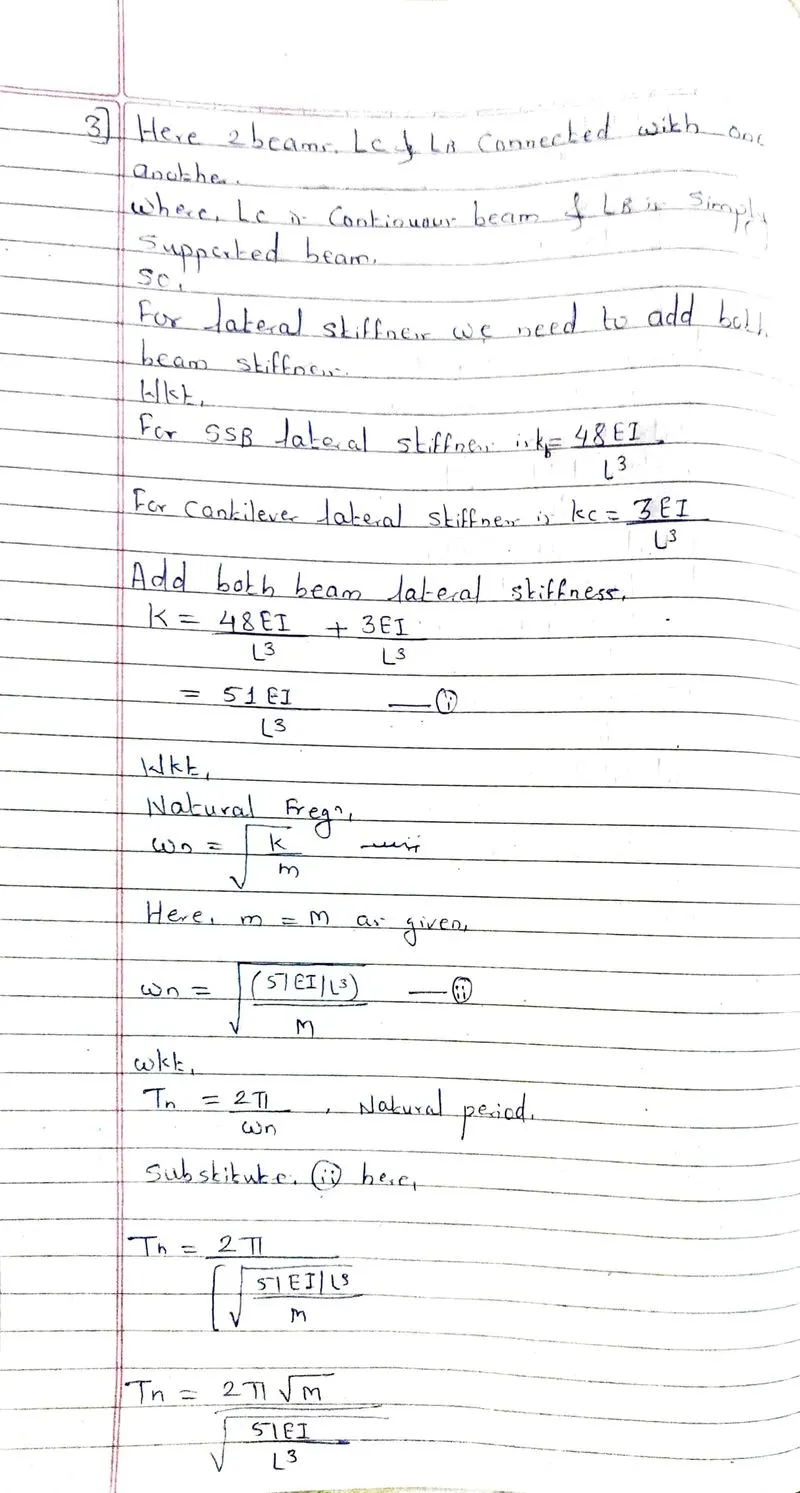

    Question 3:

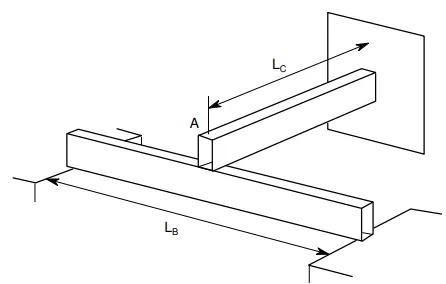

    Consider the propped cantilever shown in the figure below. The beams are made from the same steel section and have lengths as shown on the diagram. Determine the natural period of this system if a large mass, M, is placed at the intersection of the beams at point A. The weight of the beams in comparison with the mass M is very small.

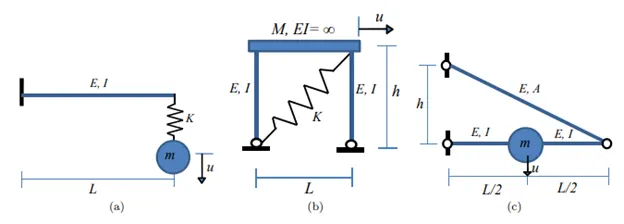

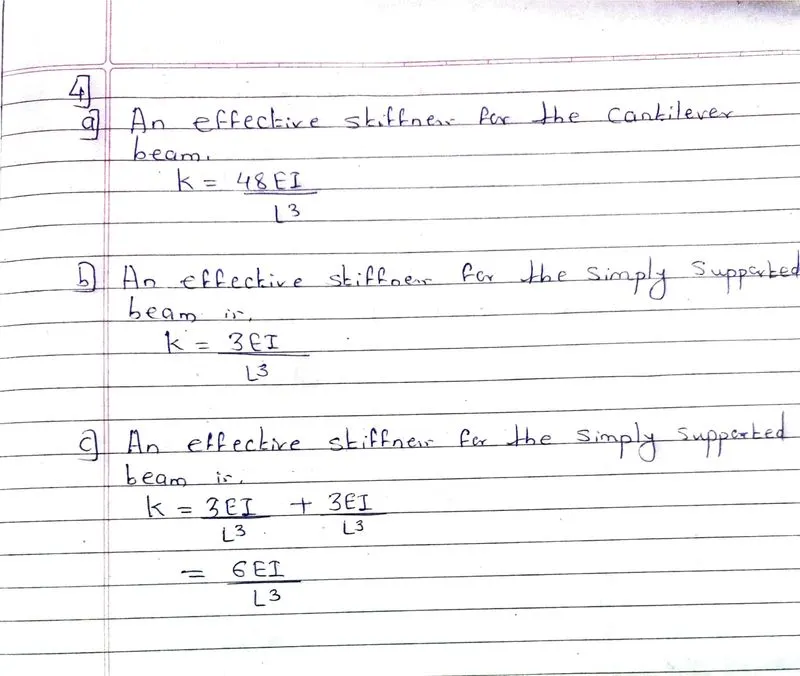

    Question 4

    Determine an expression for the effective stiffness of the following systems:
