Assignment 2

AIM:  1. To Run the case SI engine single cylinder at 1800 rpm and list down important parameters  air flow rate BMEP BSFC In-cylinder pressure 2. Increase the power output at 3600 rpm by 10%  PROCEDURE: I. The case is set at 1800 RPM. RESULTS: air flow rate = 24.64 kg/h BMEP = 9.47 bar BSFC = 239.17 In…

    • PHANI CHANDRA S

      updated on 19 Oct 2020

    AIM:

    1. To Run the case SI engine single cylinder at 1800 rpm and list down important parameters

    • air flow rate
    • BMEP
    • BSFC
    • In-cylinder pressure

    2. Increase the power output at 3600 rpm by 10%

    PROCEDURE:

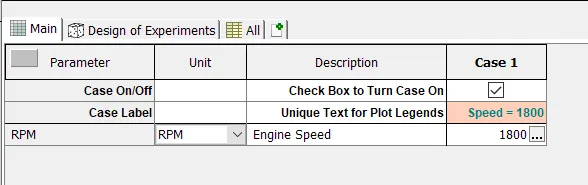

    I. The case is set at 1800 RPM.

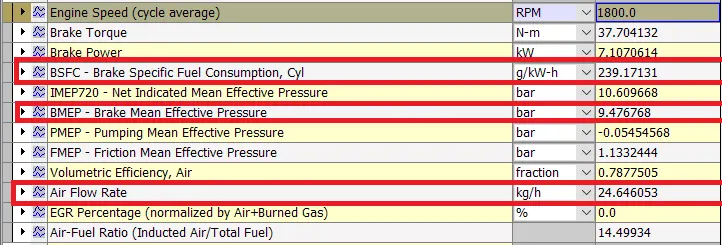

    RESULTS:

    air flow rate = 24.64 kg/h

    BMEP = 9.47 bar

    BSFC = 239.17

    In cylinder pressure(avg of max cylinder pressure) = 48.89 bar



    II. To increase the brake power by 10%

    brake power before increase = 16.69

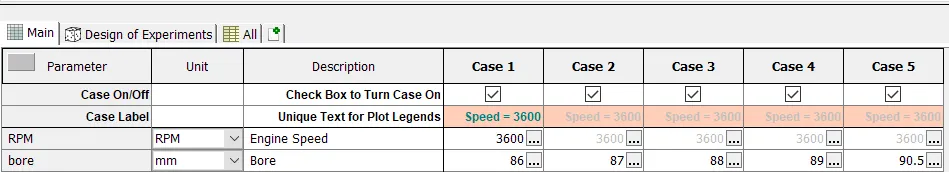

    brake power can be increased by increasing the bore size.

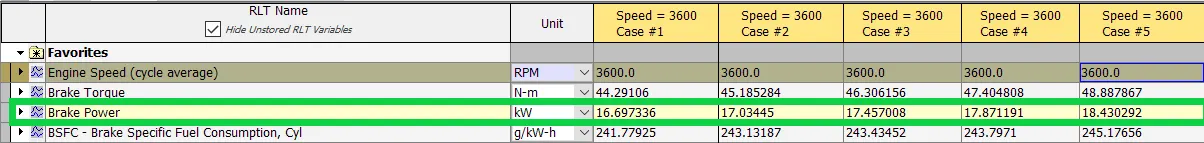

     From case-1 to case-5 the increase in brake power is 10.42%.
