Assignment 1-2D Meshing Challenge

objective

To do geometry clean up and meshing the files with given criteria

Procedure

1.Import the model

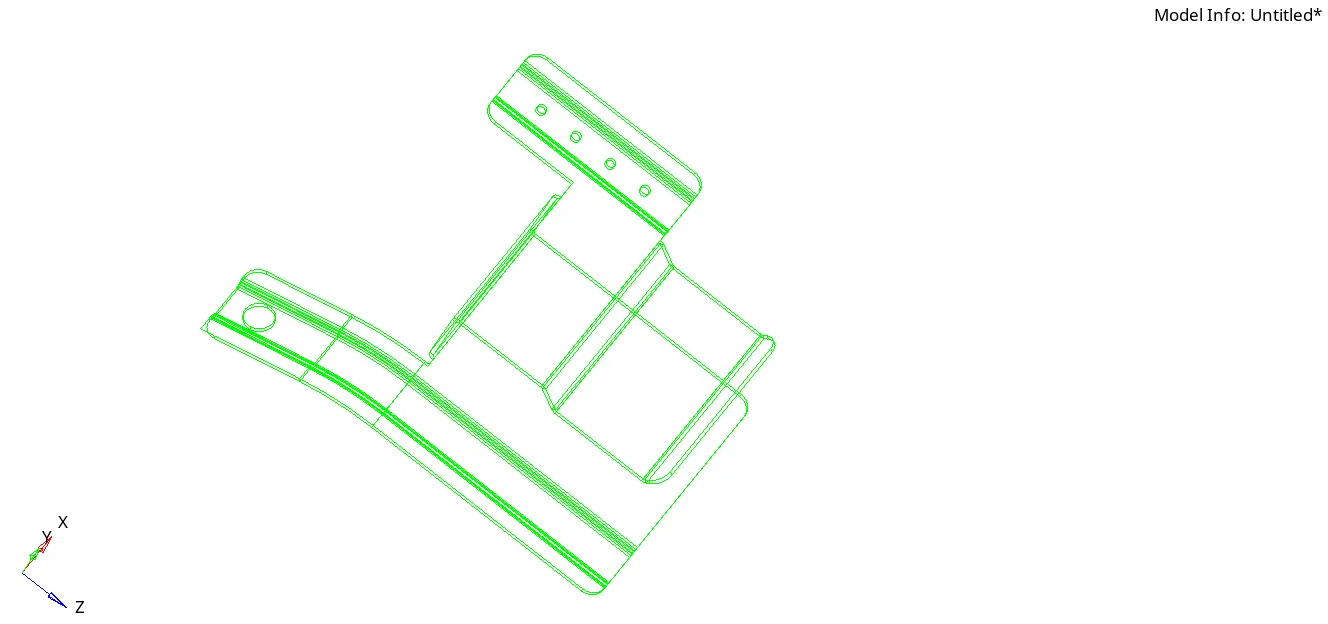

2.put it in wire frame mode .so that if there are geometry error , it will be visible .

Here, there is no geometry error

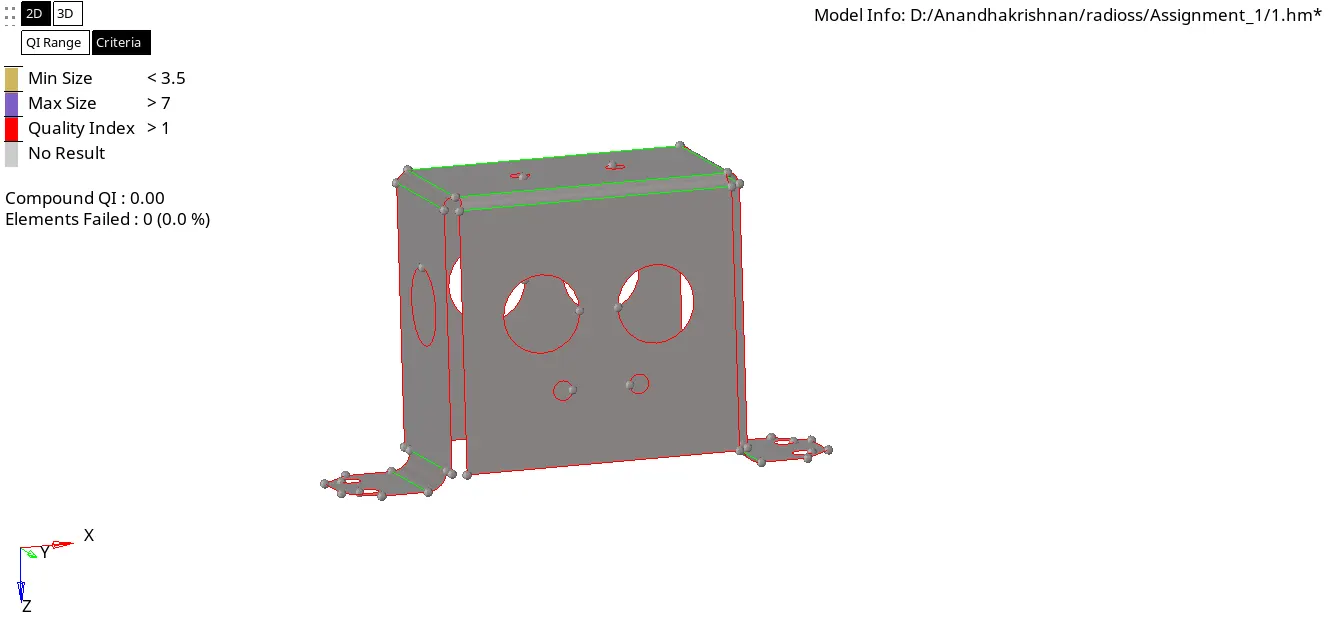

3.Taking mid surface with appropriate option from the auto mid surface option

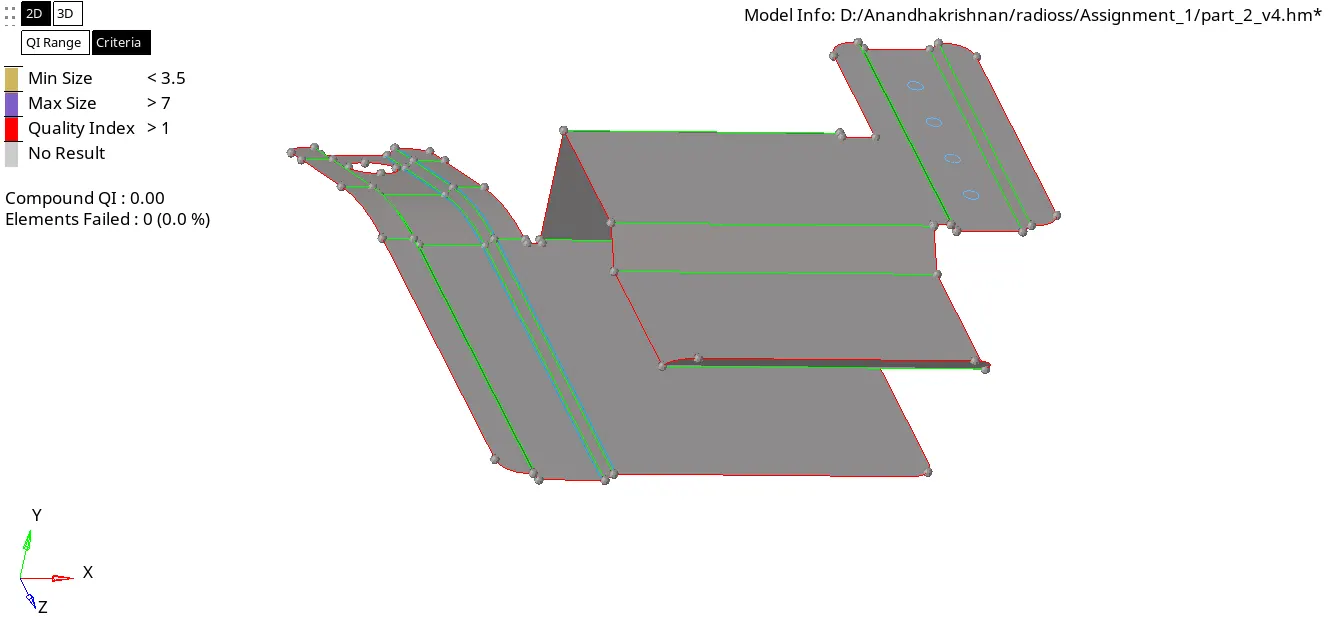

part-1 Skin offset has been used to extract the mid surface

Part-2 offset +sweep+planes option has been used

3.Quality criteria file settings

go to preference ,where quality file setting can be enable.

min =3.5

max=7

Ave=5

4.Meshing

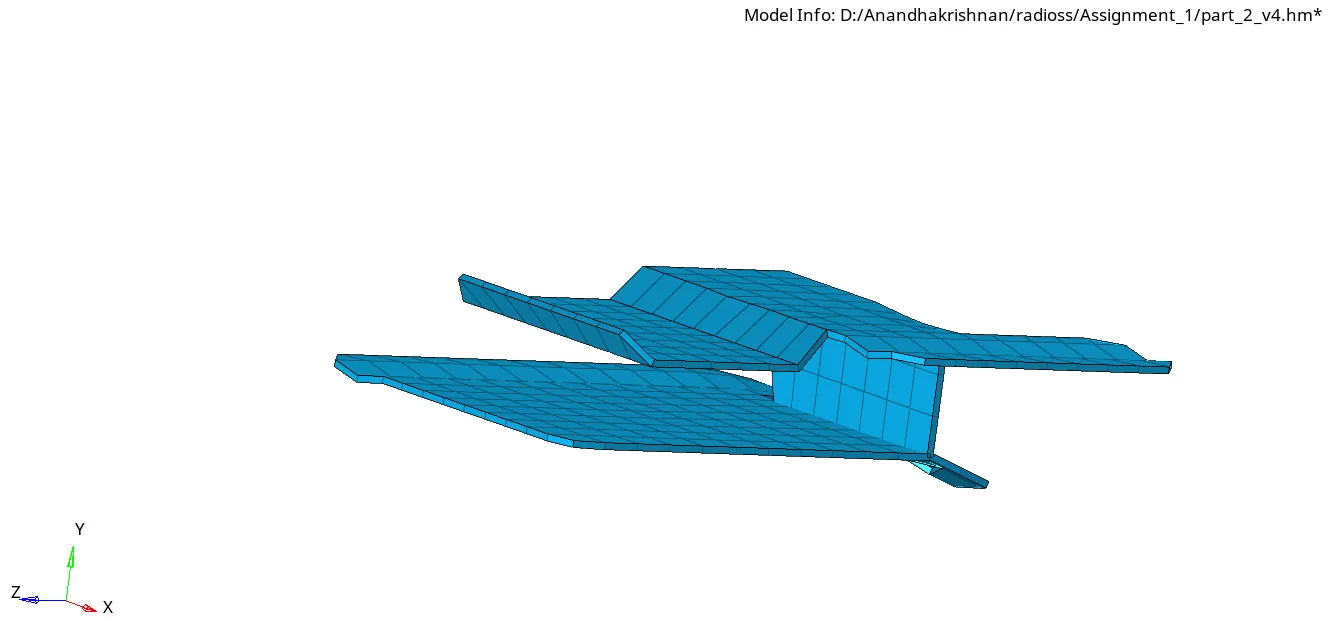

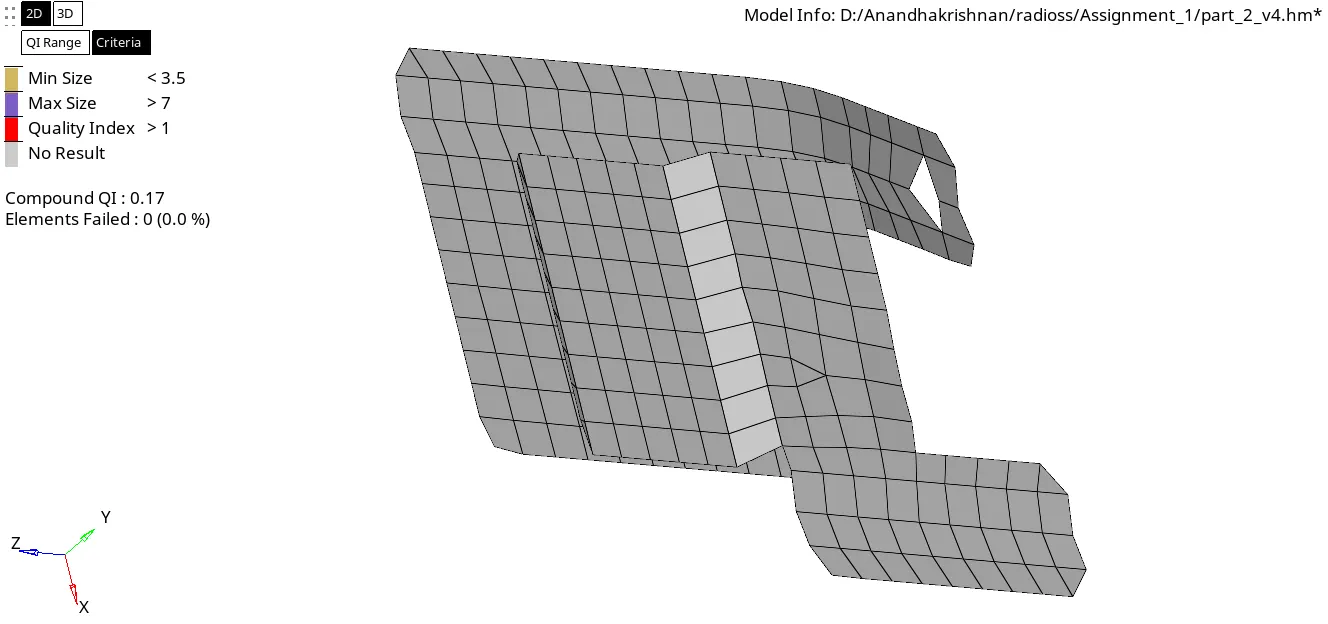

part-2 meshing done with zero element failing

Part-1

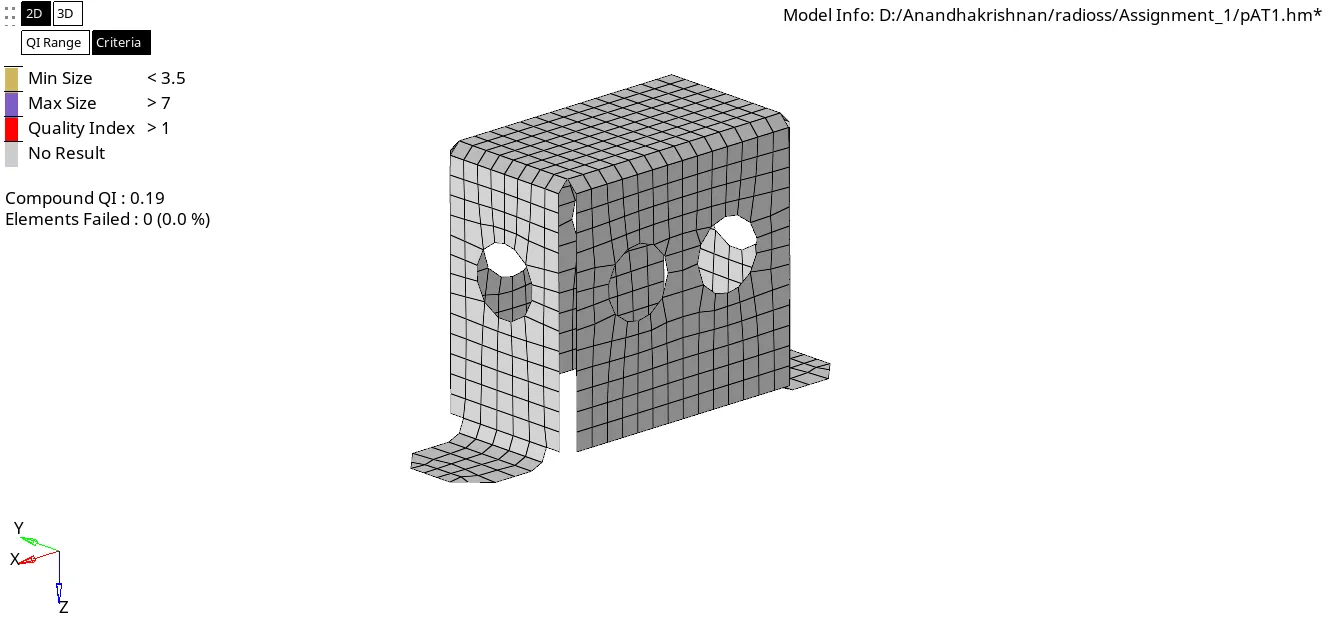

meshing done with zero element failing

4.thickness assign

part-1

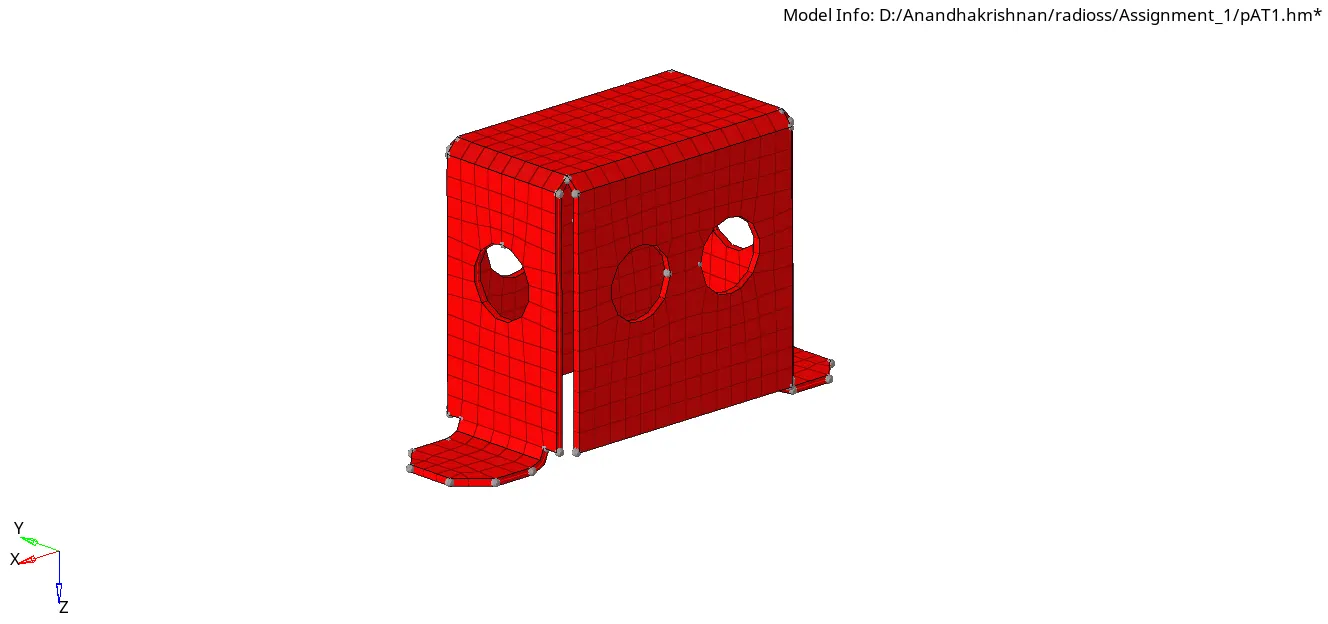

part-2

5.Thing learned

1.how to do geometry clean up with quick edit tools

2.how to take midsurface with auto midsurface option

3.how to do mesh flow with split ,swap, combine, rebuilt, smooth option

4.how to defeaturing

5.how to measure thickness with distance option

6.how to create properties,components

7.how to assign properties to components

6.conclusion

learned about geometry clean up, 2d meshing ,defeaturing, quality clearing, extracting the mid surface
