Assembly of Yacht

MODELLING OF YACHT

AIM

To model the Sunseeker Predator Yacht using different tools in solidworks.

OBJECTIVES

To build each and every part the yacht and assembled it perfectly in solidworks and the make yacht photorealistic using photoview 360.

Components of yacht

• Propeller
• Radar
• Hull
• Garage Door
• Rear Seat
• Front Seat
• Middle Seat
• Superstructure
• Radar Mast

Procedure

Propeller

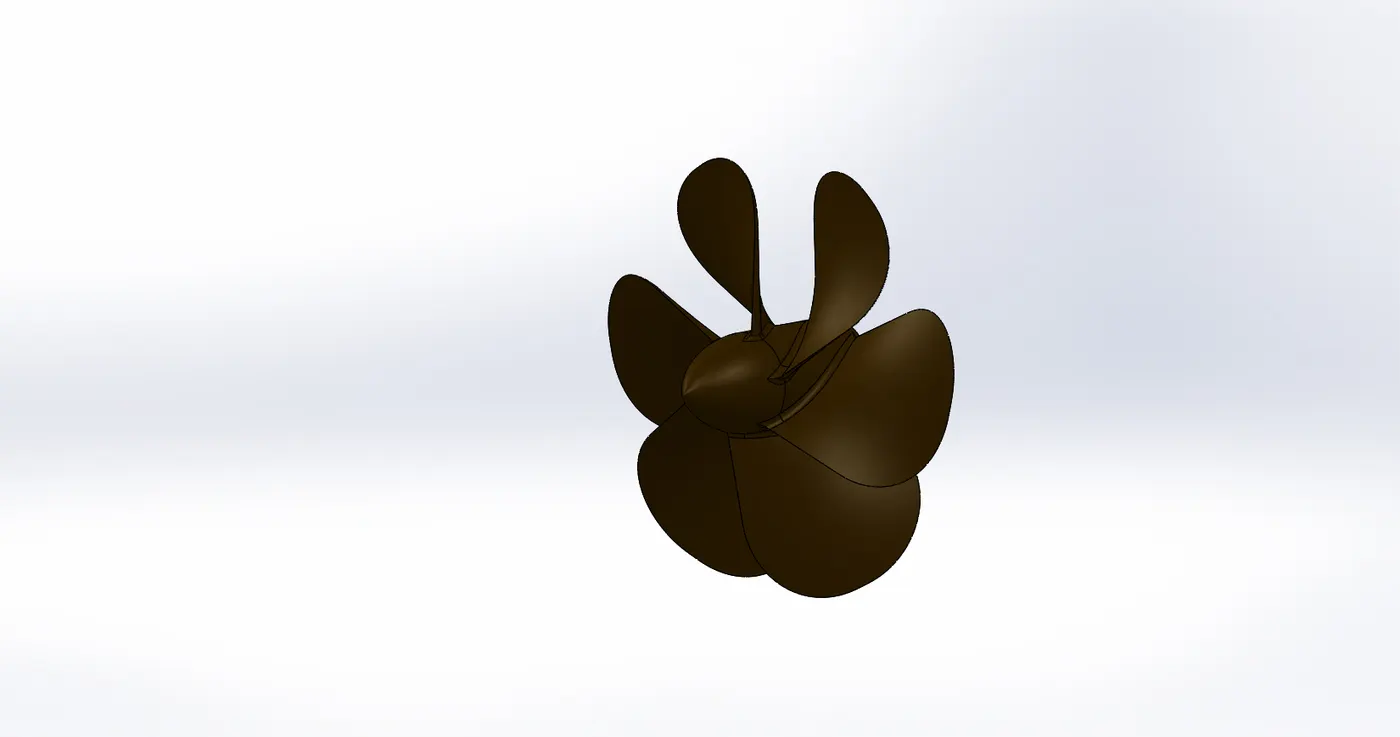

A propeller is a device with a rotating hub and radiating blades that are set at a pitch to form a helical spiral. It transforms rotational power into linear thrust by acting upon a working fluid such as water or air.

Feature used

• Sketch spline
• Revolve
• Reference Geometry
• Loft
• Fillet
• Extrude Cut
• Circular Pattern

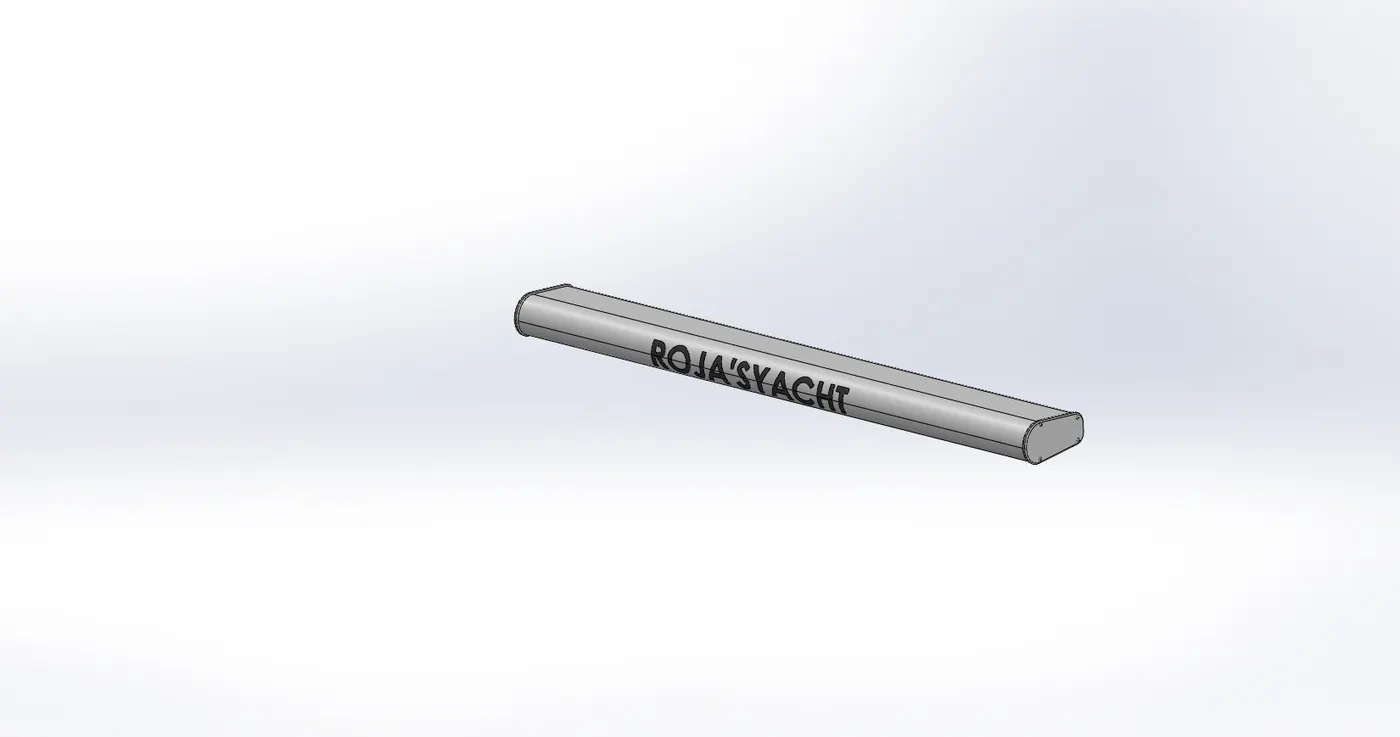

Radar

A radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is less than usual.

Feature used

• Sketch
• Extrude
• Fillet
• offset entities
• Pattern/Mirror
• Cut Extrude
• Text
• Split Line

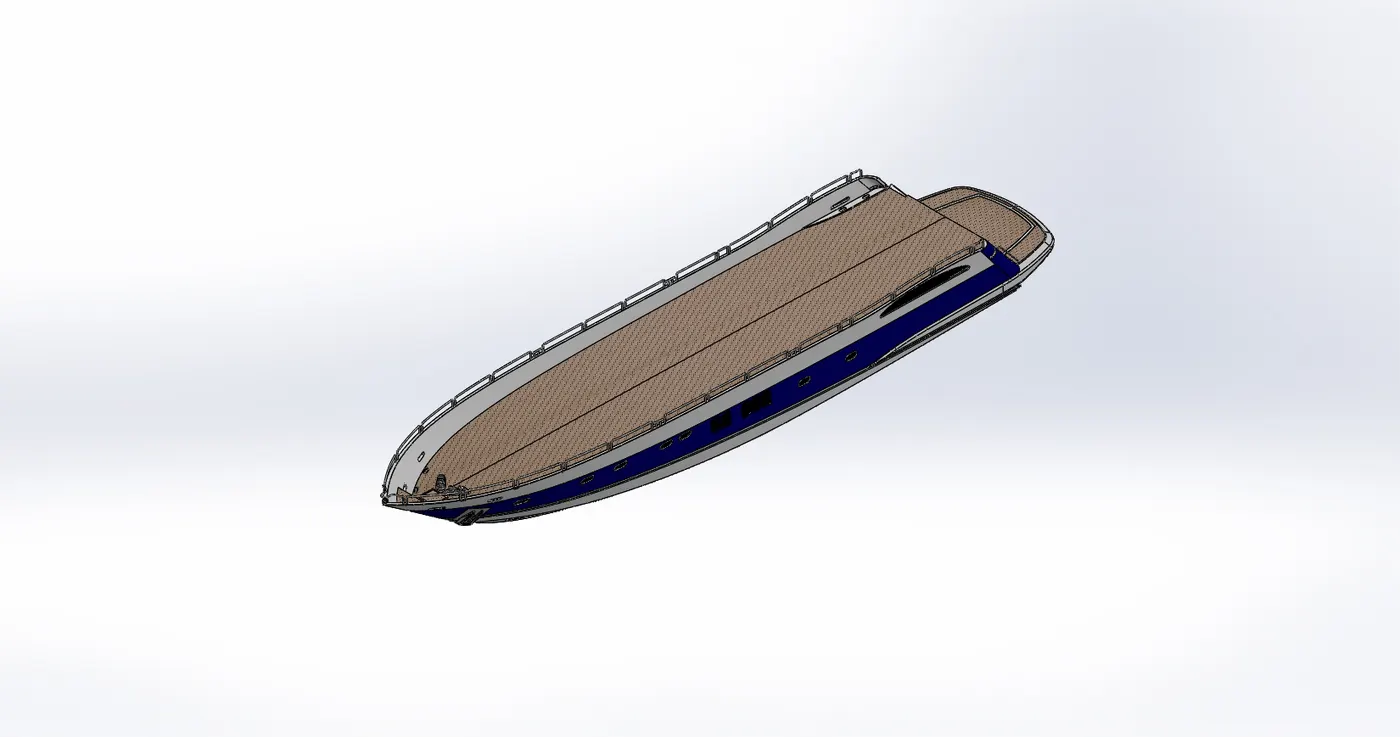

Hull

A hull is the watertight body of a ship or boat. The hull may open at the top or it may be fully or partially covered with a deck. A top the deck may be a deckhouse and other superstructures, such as a funnel, derrick, or mast.

Feature used

• Blueprint setup
• Sketch
• Projected Curve
• Surface Loft
• Surface Trim
• Surface Extrude
• Surface Knit
• Surface Fill
• Shell
• Fillet
• Pattern Feature
• Boss Extrude
• Chamfer
• Sweep
• Split Body

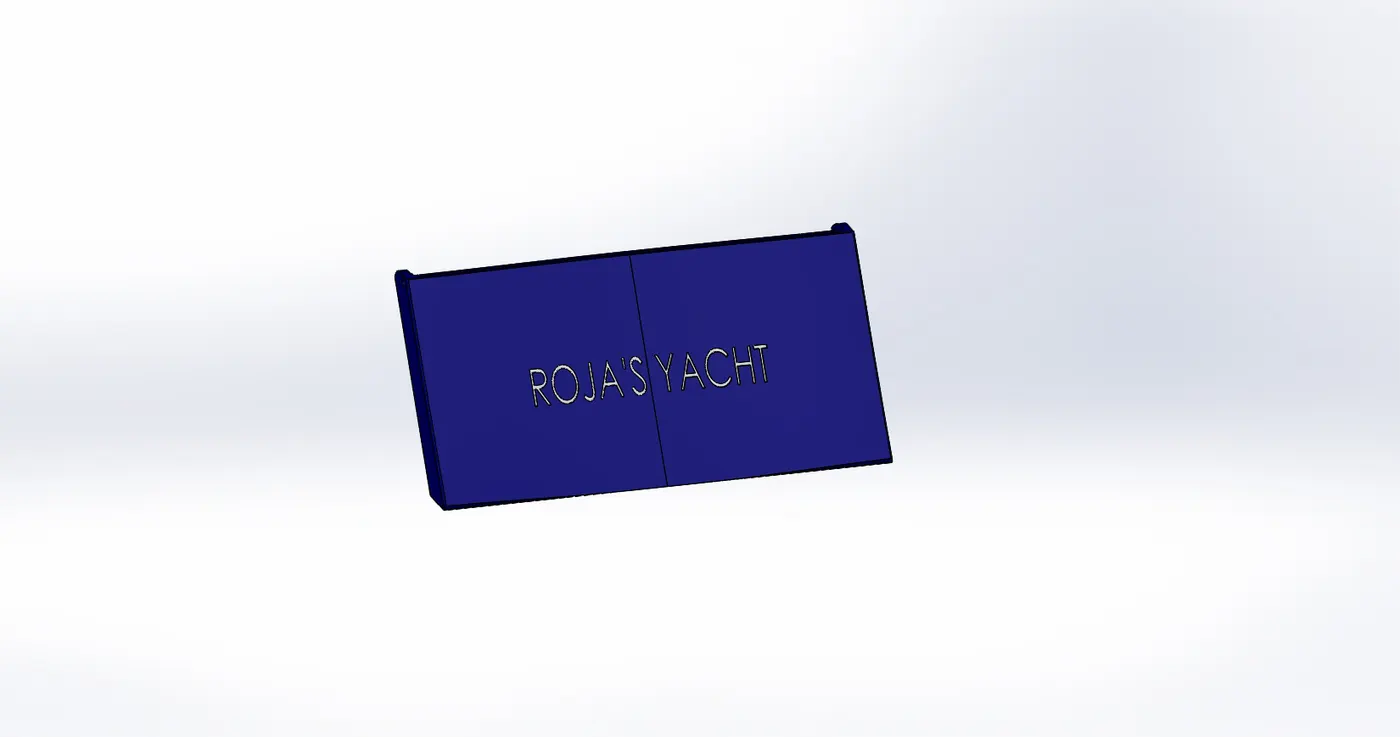

Garage door

The garage door is used to close the garage space.

Feature used

• Sketch
• Extrude Cut
• Shell
• Fillet
• Mirror
• Text

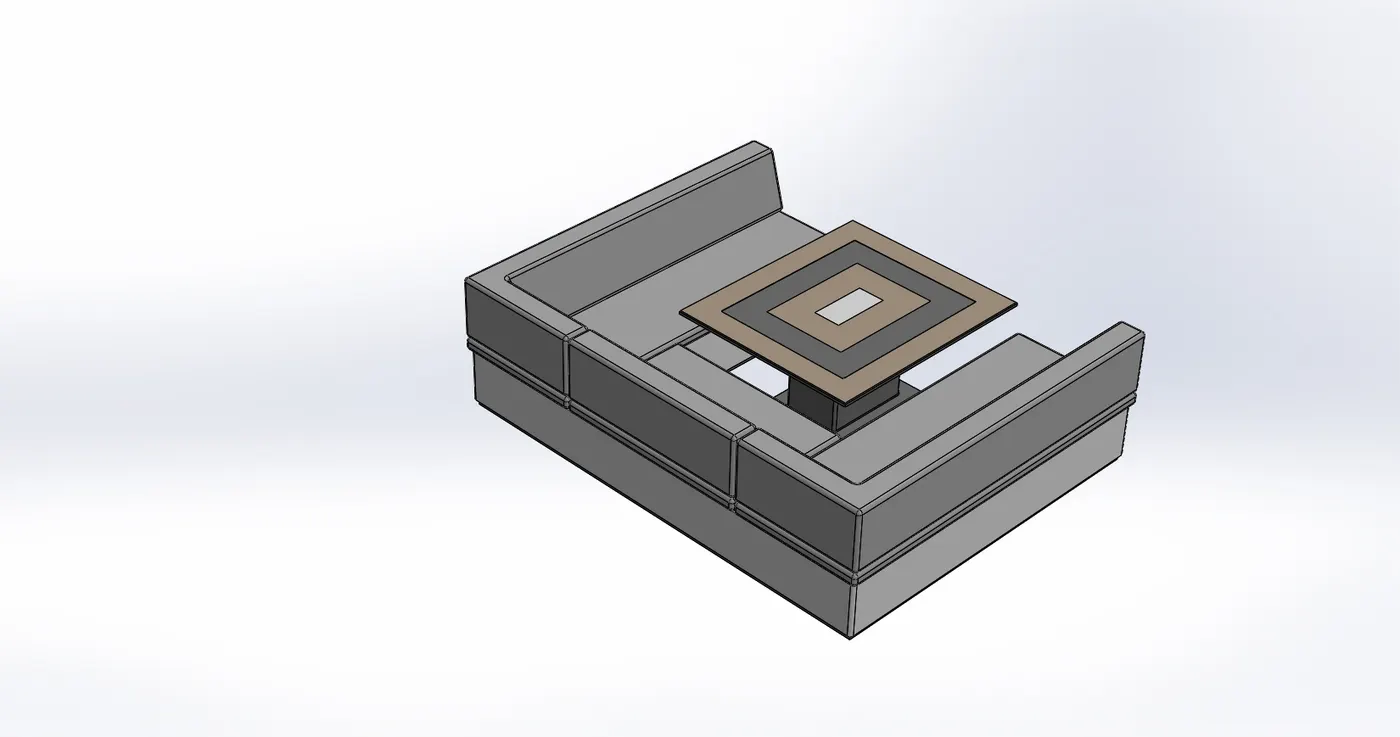

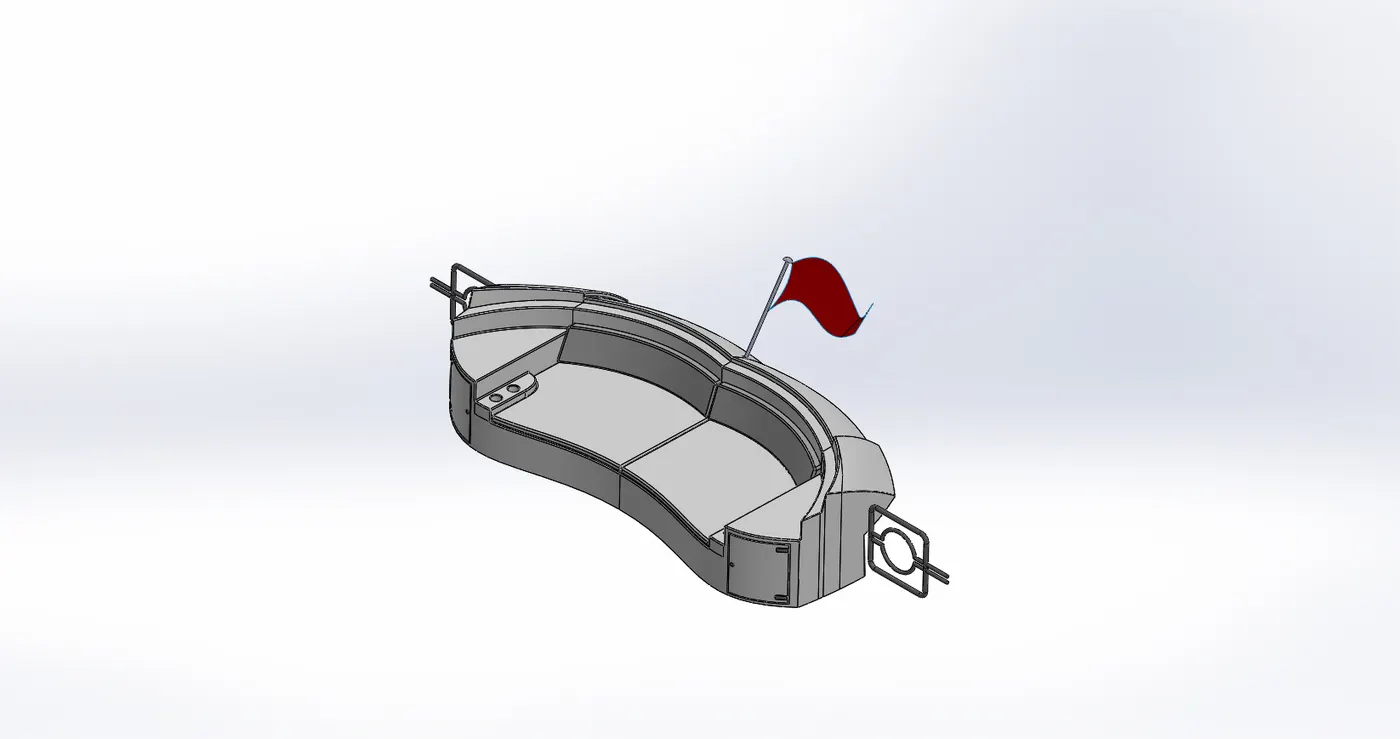

Seat

The seat is used to take rest and make some relaxation.

Feature used

• Sketch
• Surface Sweep
• Surface Offset
• Ruled surface
• Surface Knit
• Surface Extend
• Surface trim
• Surface Extrude
• Surface Loft
• Chamfer
• Fillet
• Sweep
• Mirror
• Revolve
• Dome

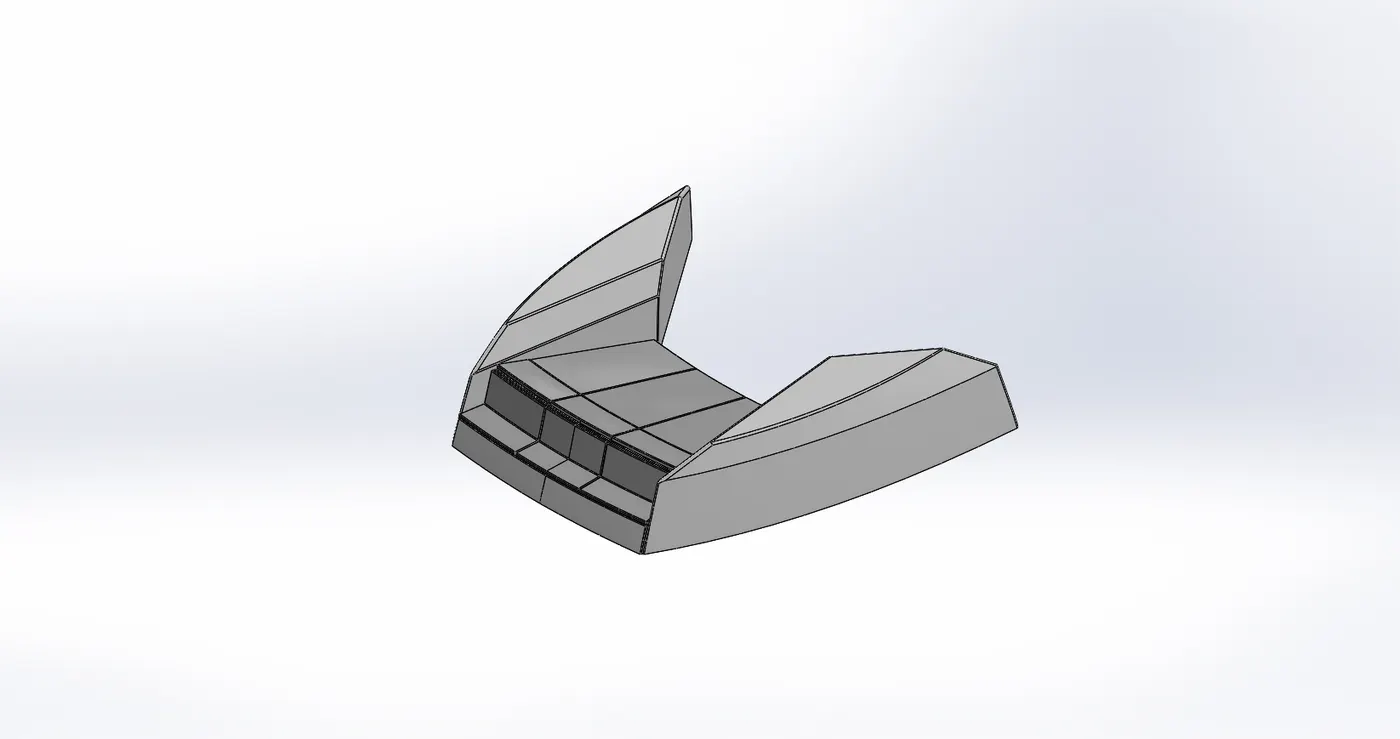

Front seat

Middle seat

Rear seat

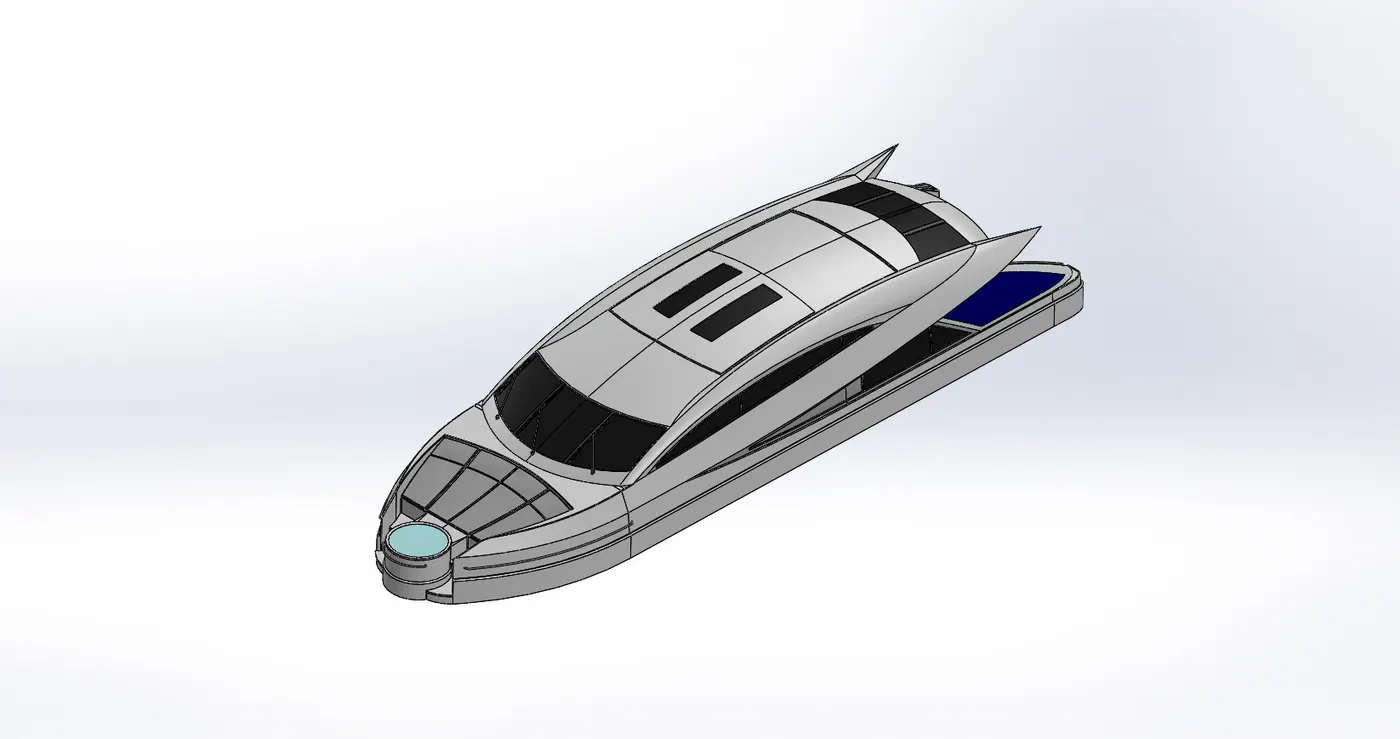

Superstructure

A superstructure is an extended construction of any building or platform that rises above the rest of the building or platform in a distinct manner. It is a control tower of the yacht, it is the operational center for all the activities on the vessel, and it is also the work station of a majority of the technical staff.

Feature used

• Sketch
• Surface Extrude
• Surface Sweep
• Surface Knit
• Fillet
• Ruled Surface
• Surface Trim
• Surface Loft
• Surface Extend
• Boss Extrude
• Dome Feature
• Sweep
• Extrude Cut
• Chamfer
• Project Curve
• Mirror

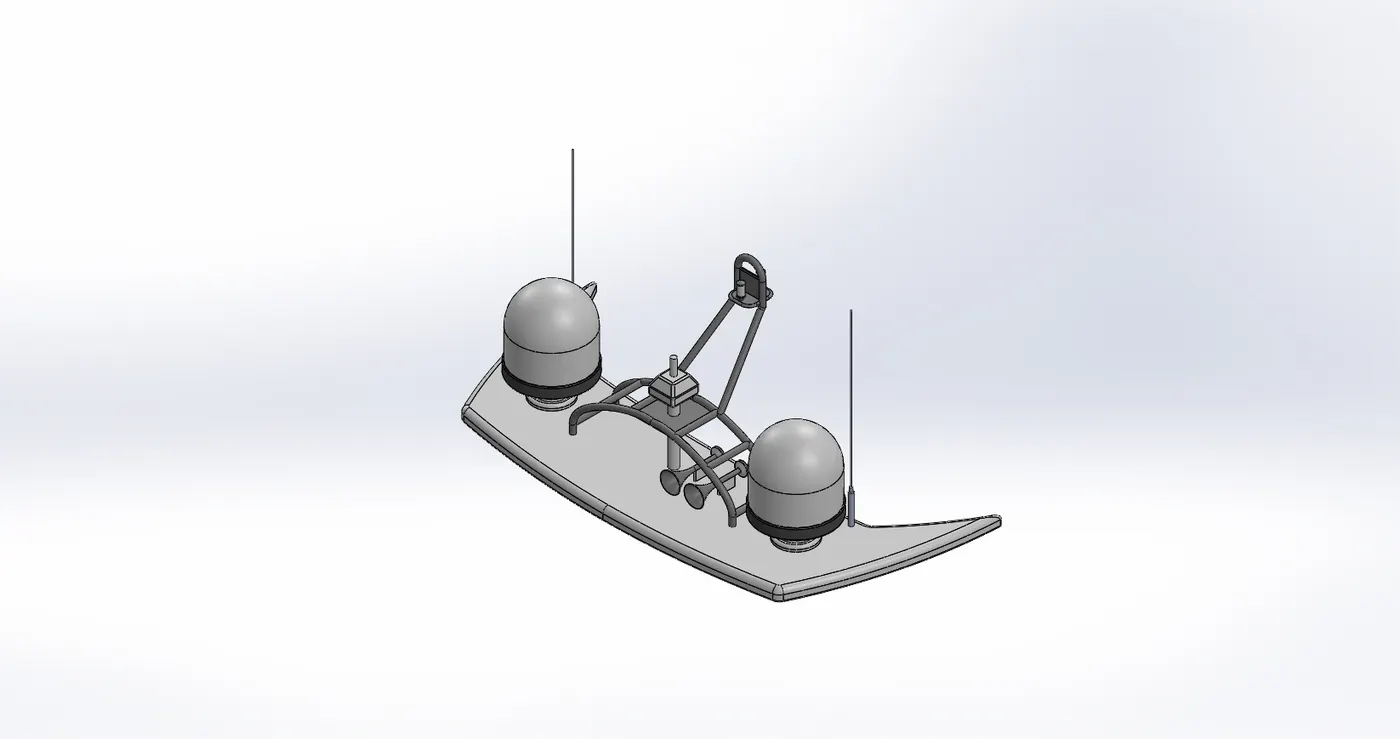

Radar Mast

Radar mast is used to detect other ships and land obstacles, to provide bearing and distance for collision avoidance and navigation at sea.

Feature used

• Sketch
• Boss Extrude
• Fillet
• Revolve
• Sweep
• Project Curve
• Chamfer
• Mirror
• Dome

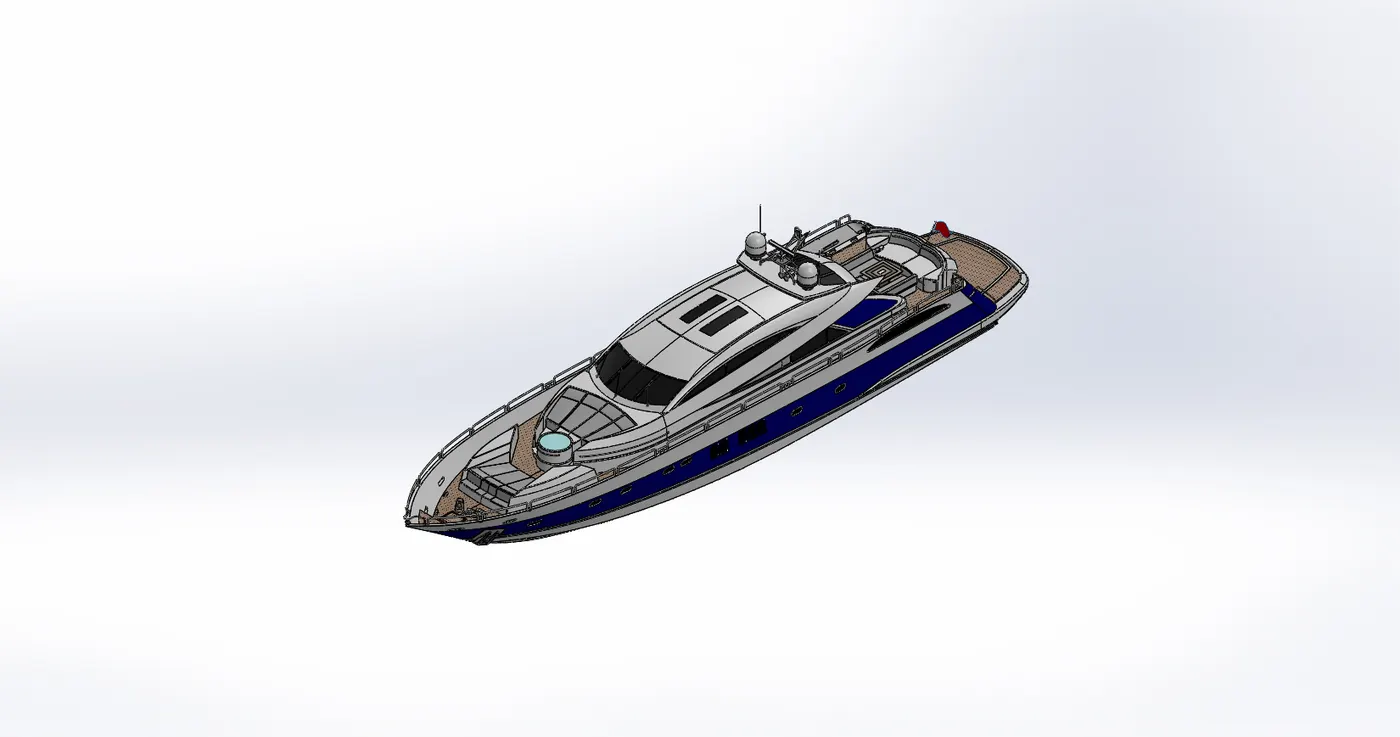

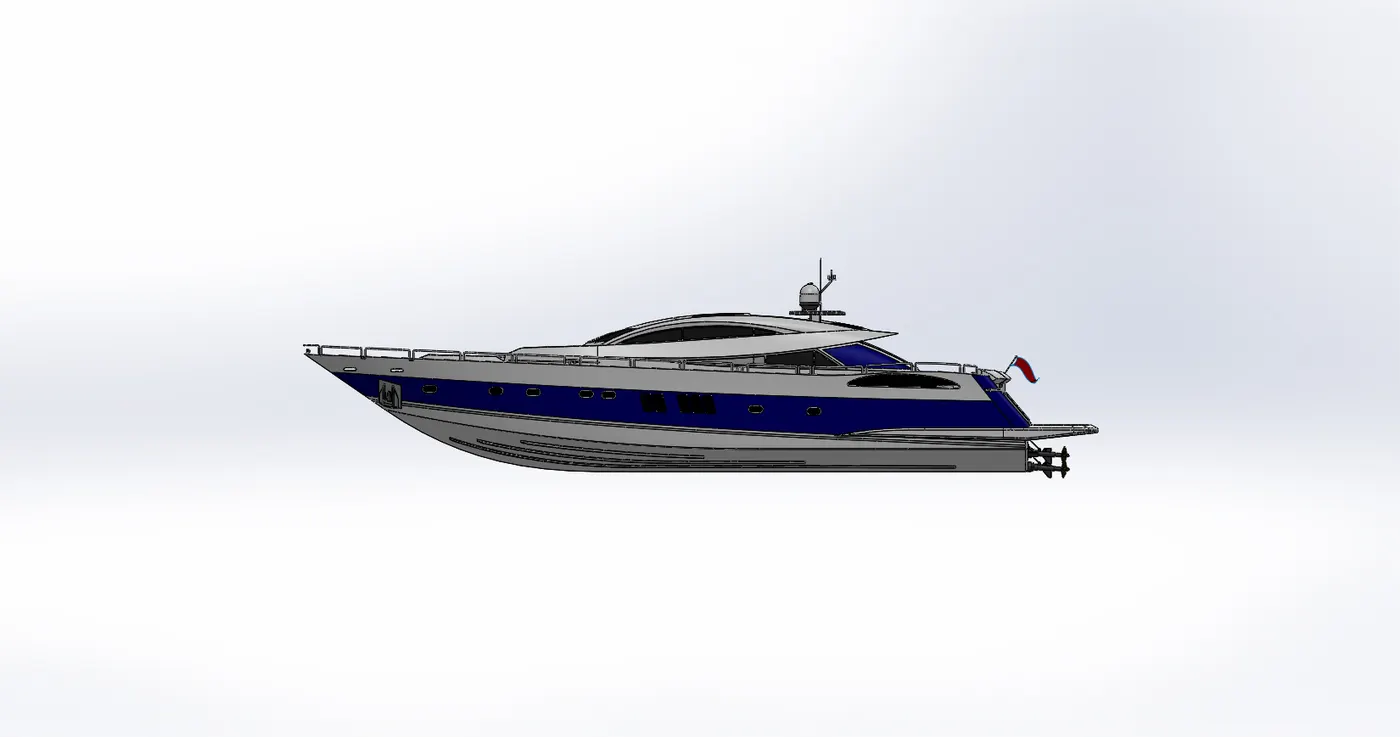

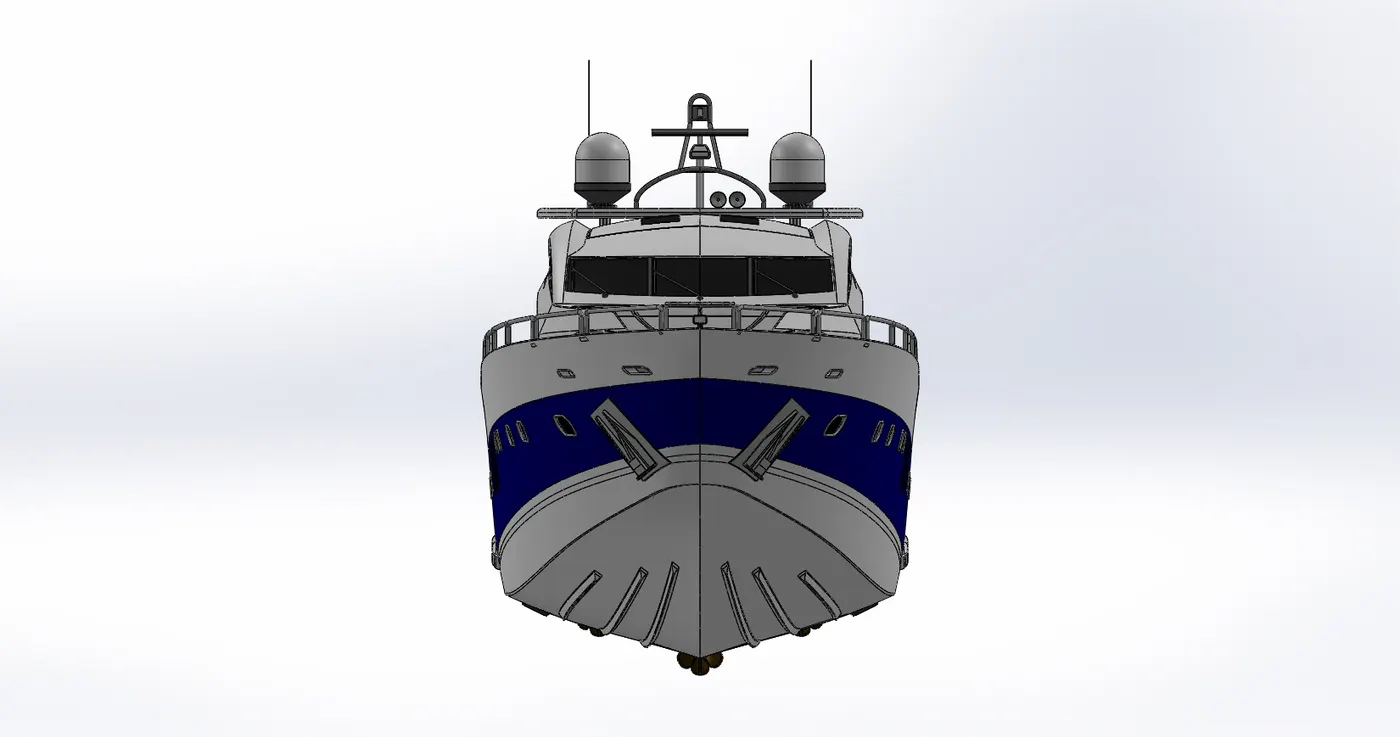

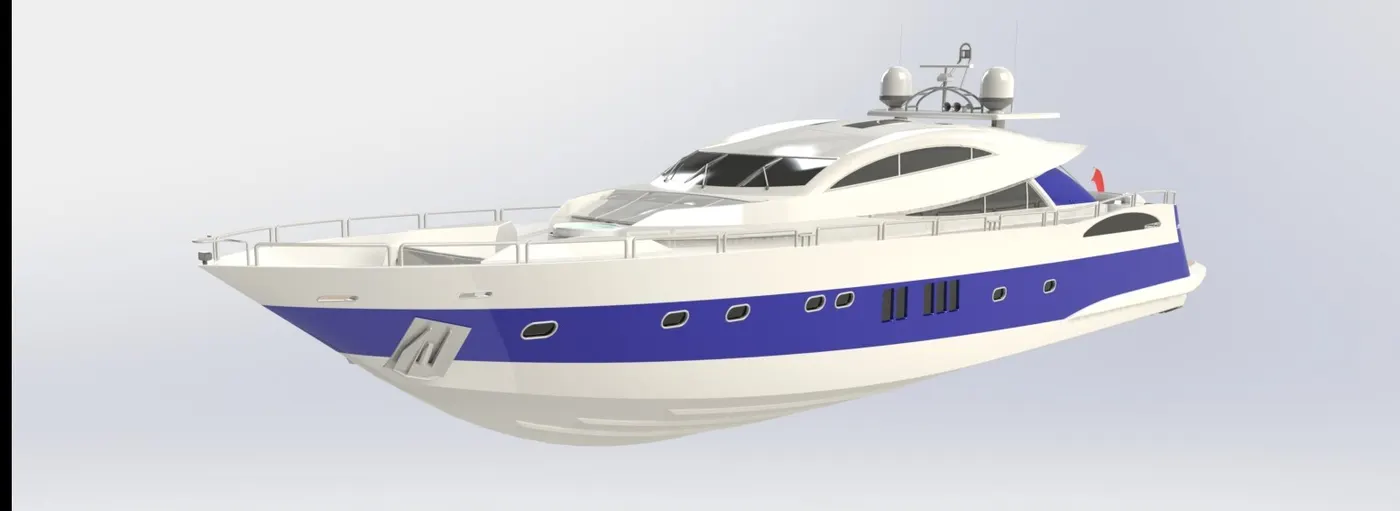

Assembly of Yacht

Each and every part of the Yacht is successfully completed and the parts are assembled with each other in a proper way to describe the structure of yacht using solidworks assembly feature.

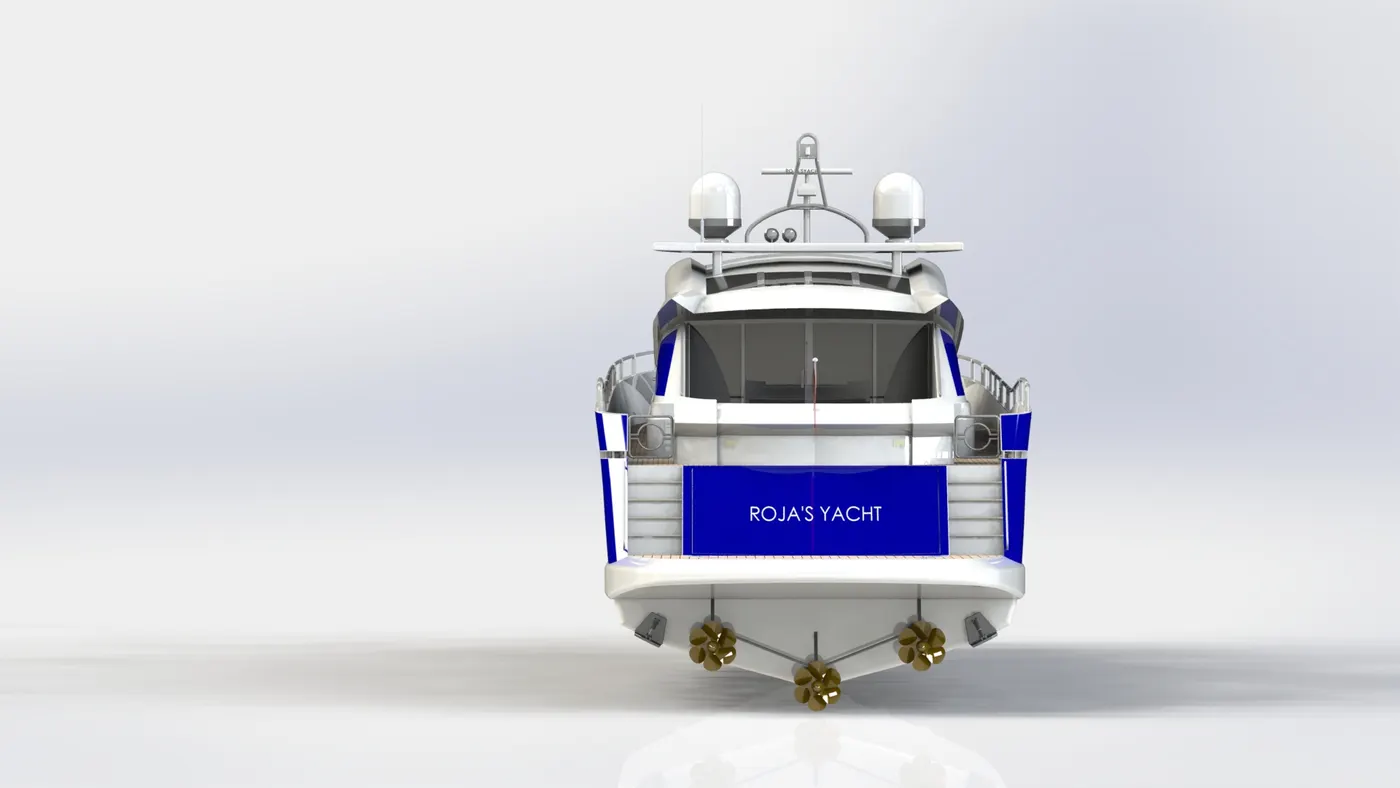

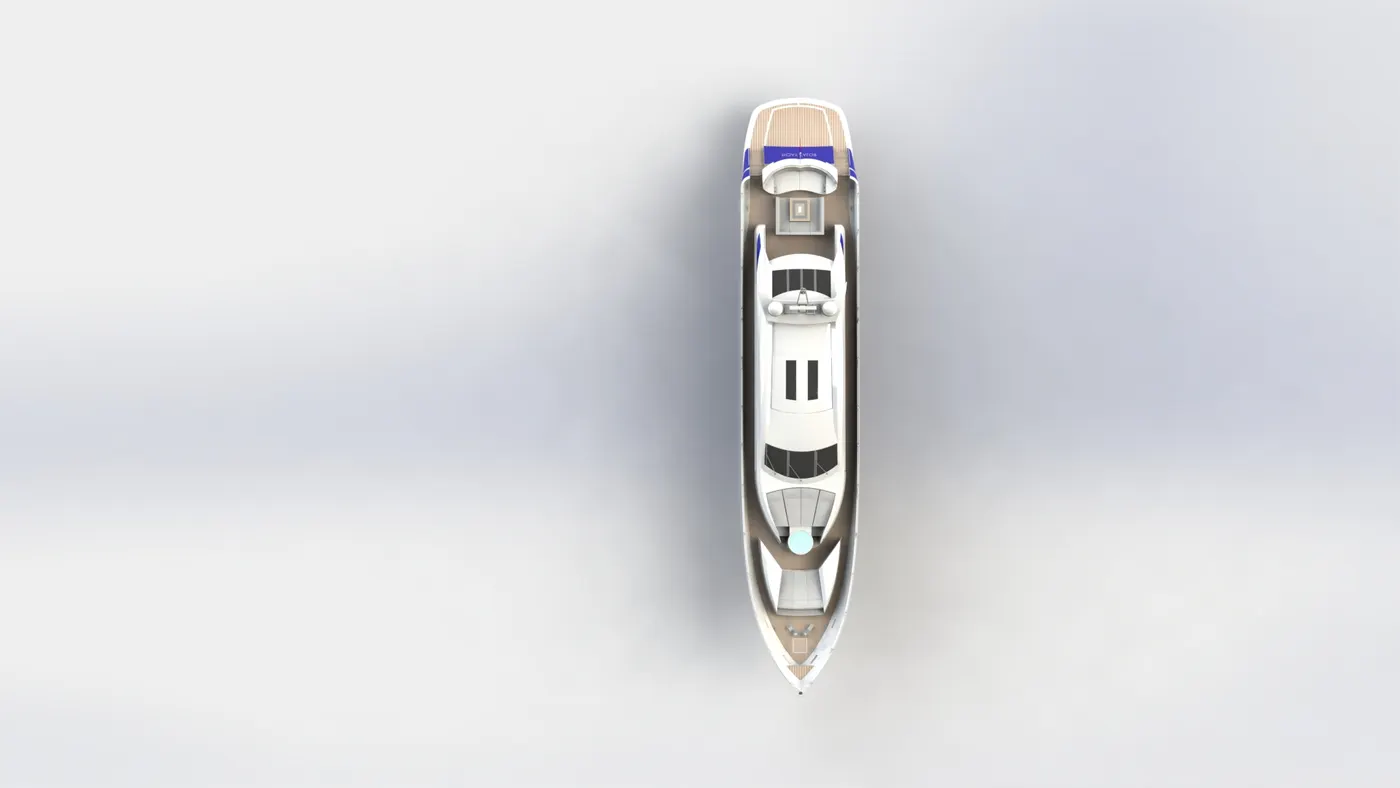

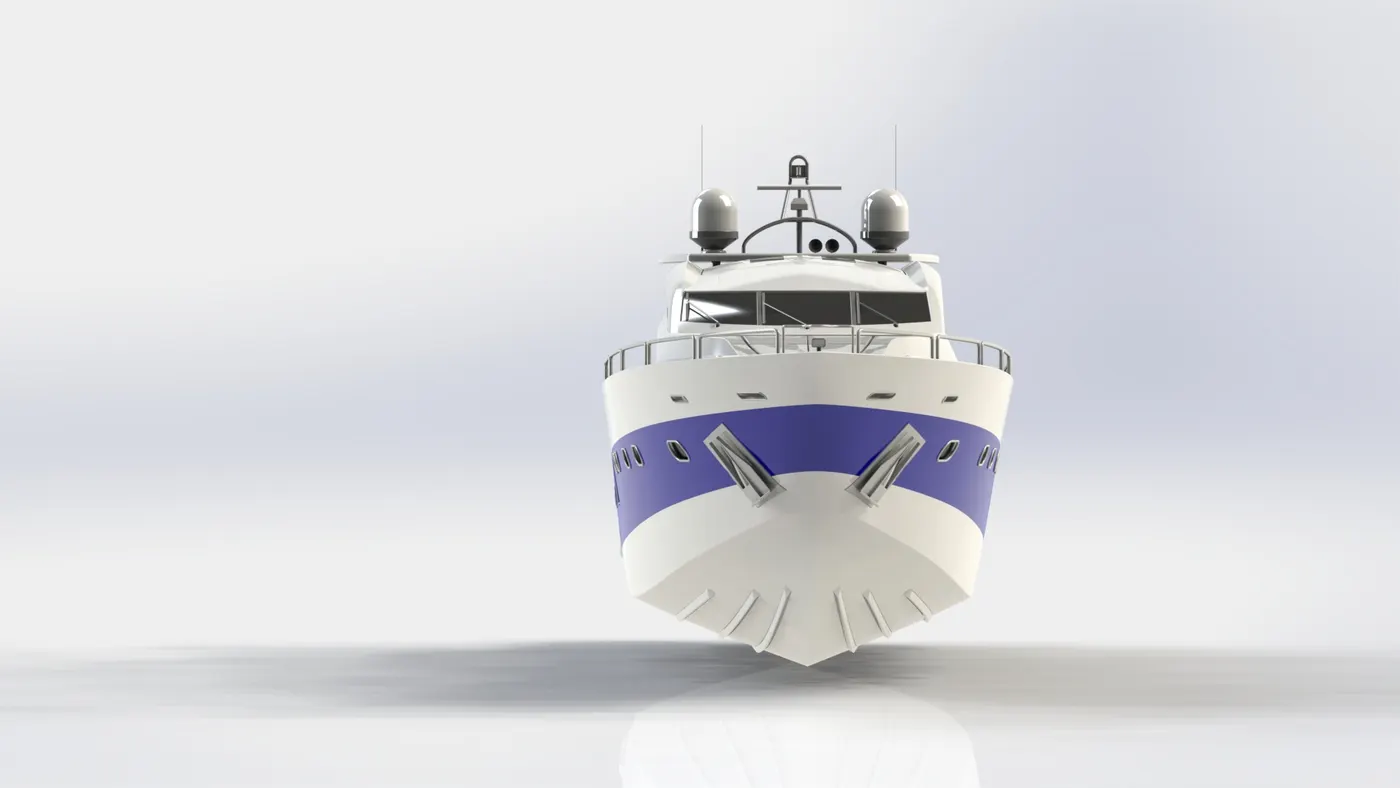

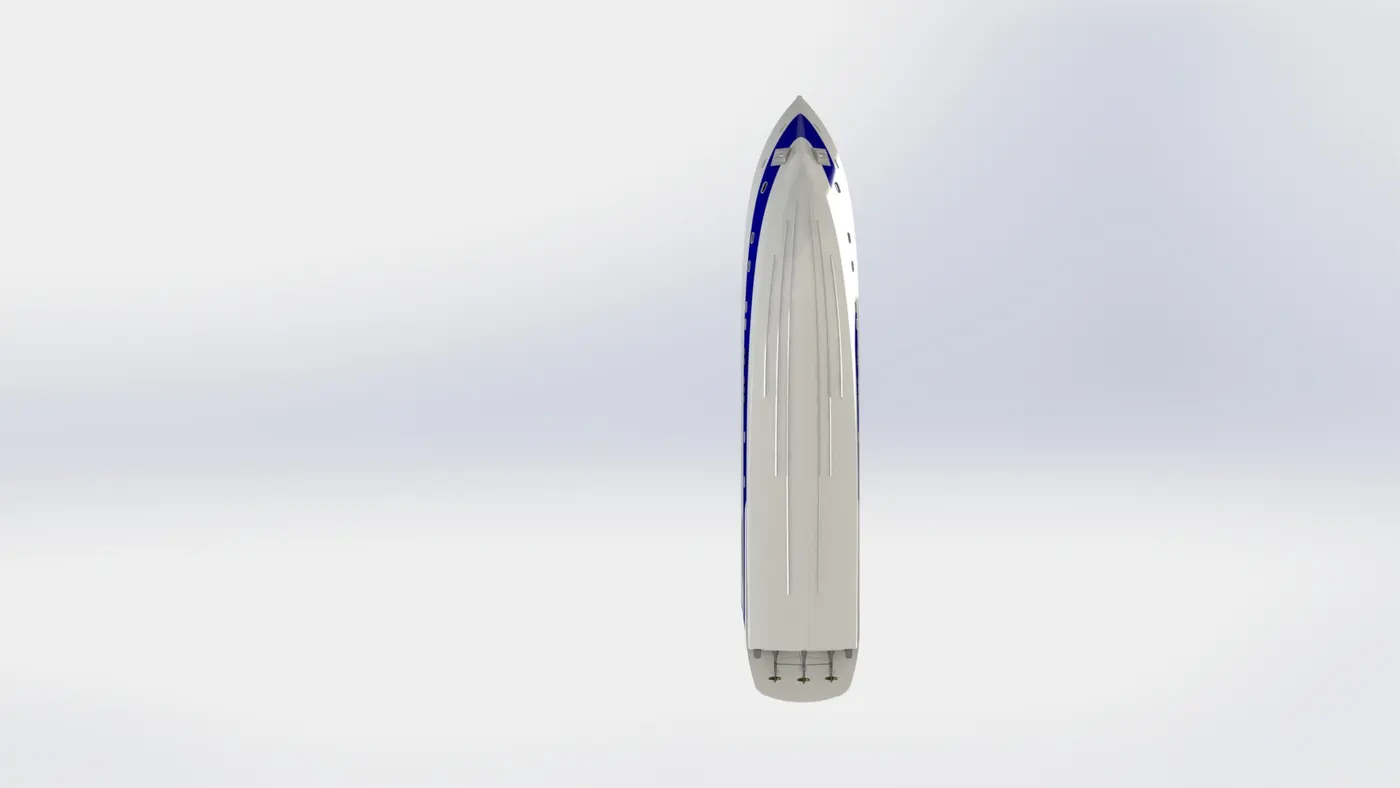

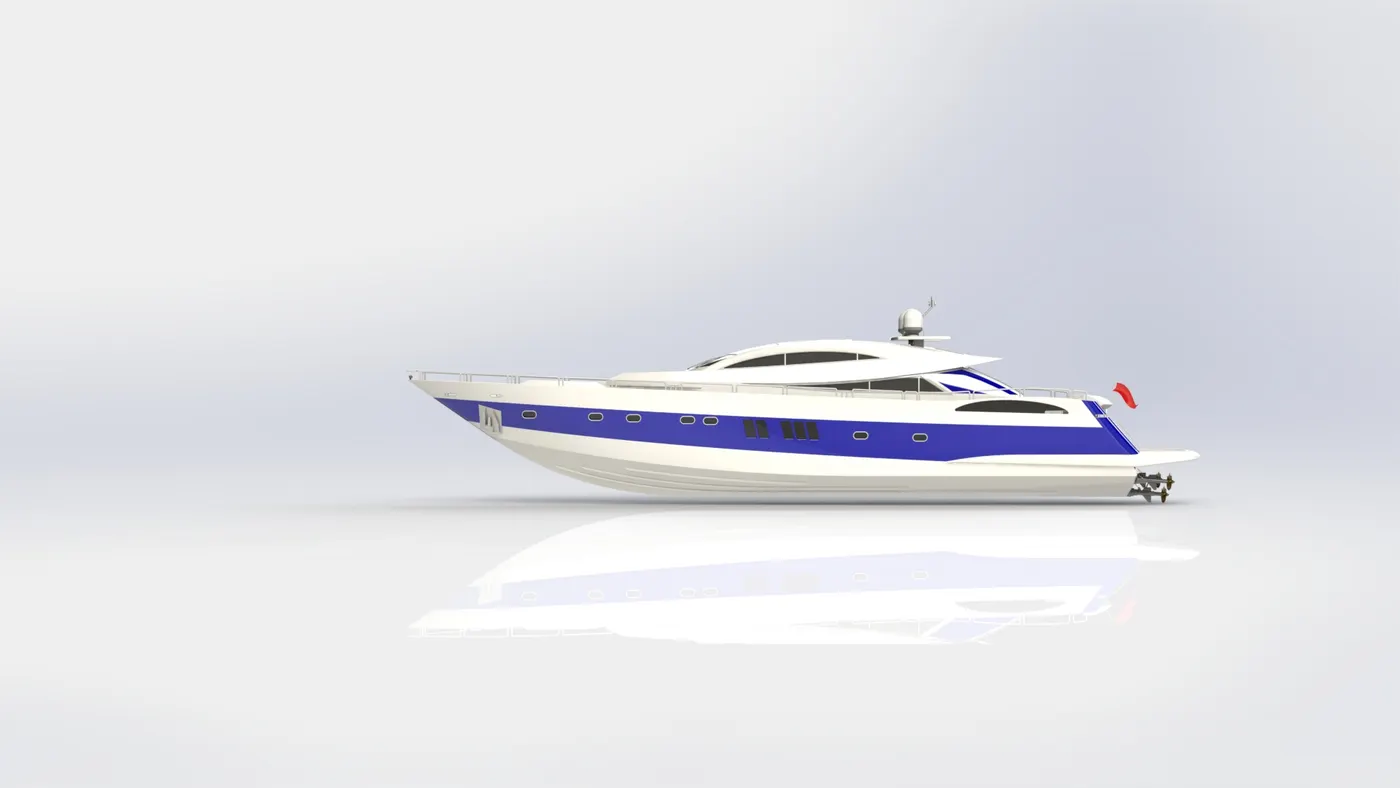

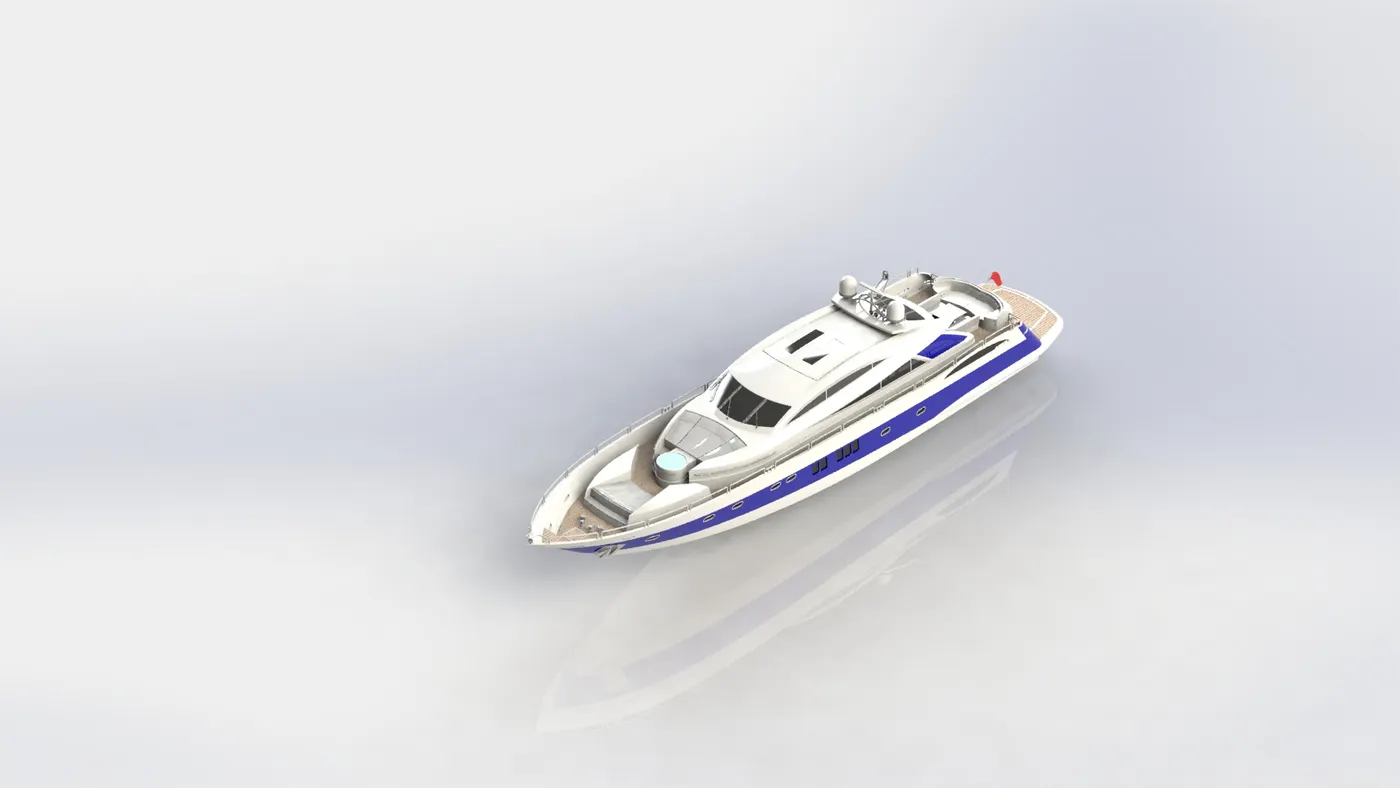

Rendering

Rendering is used to provide the image of the yacht in different environmental conditions with different views. Here the rendering is carried out using photoview 360.

Conclusion

Thus, the modelling of the Sunseeker Predator Yacht is successfully completed using different tools in solidworks and the photorealistic view of the yacht is done by using photoview 360.
