Analysis & Design of RCC shear walls in the model using ETABS

AIM :

To run the analysis and design the RCC shear walls shown in the etabs model.

Step 1:

1) Open the ETABS file

2) After the analysis click Concrete frame design

Step 2:

1) Need to check there is any failures occurs

2) Click Shear wall design tool

3) select Display info and choose PM failure

Step 3:

1) Click any wall and check the details

2) Here there is no failure occurs all the values of reinforcement ratio is within 4%

Step 4:

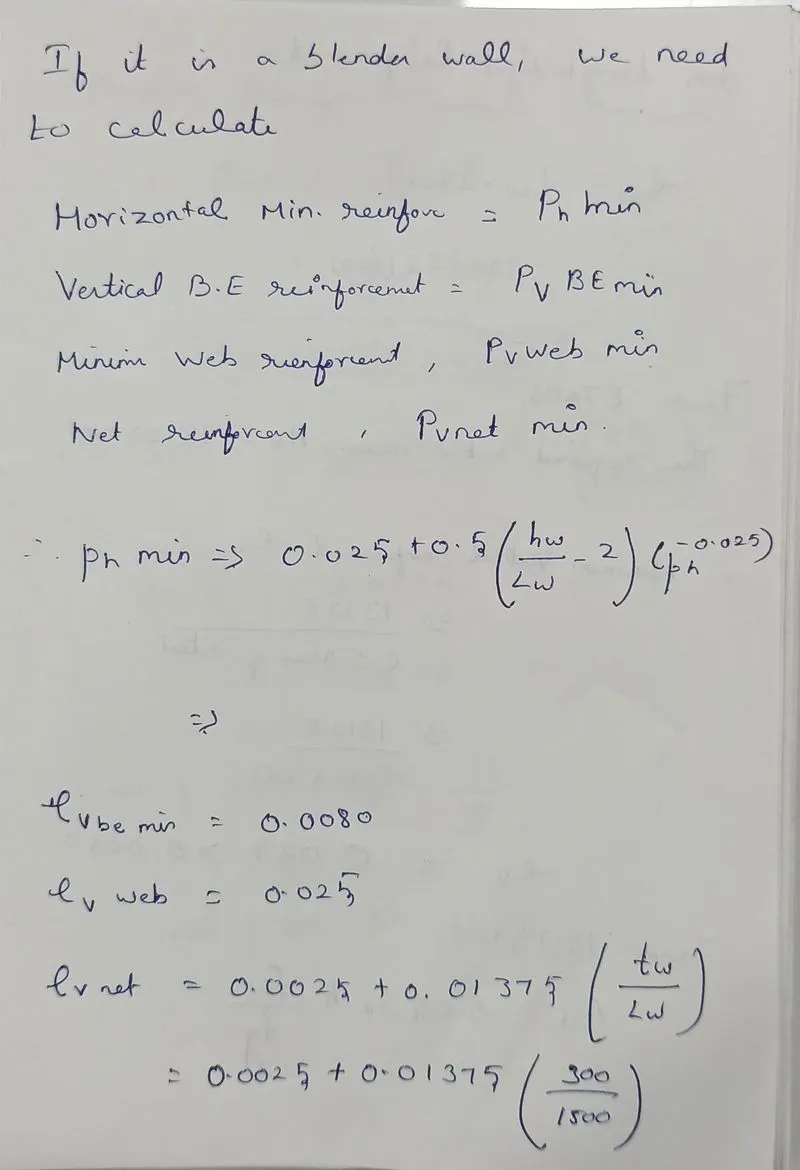

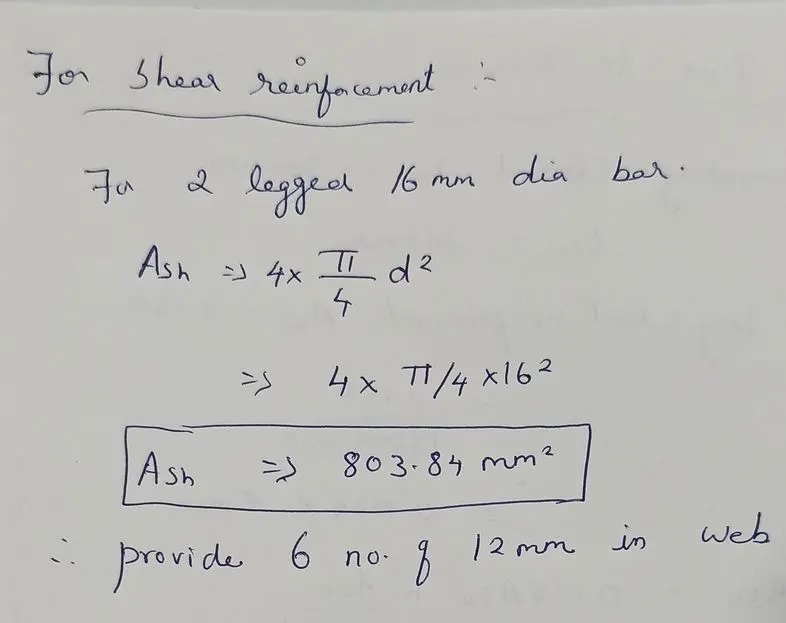

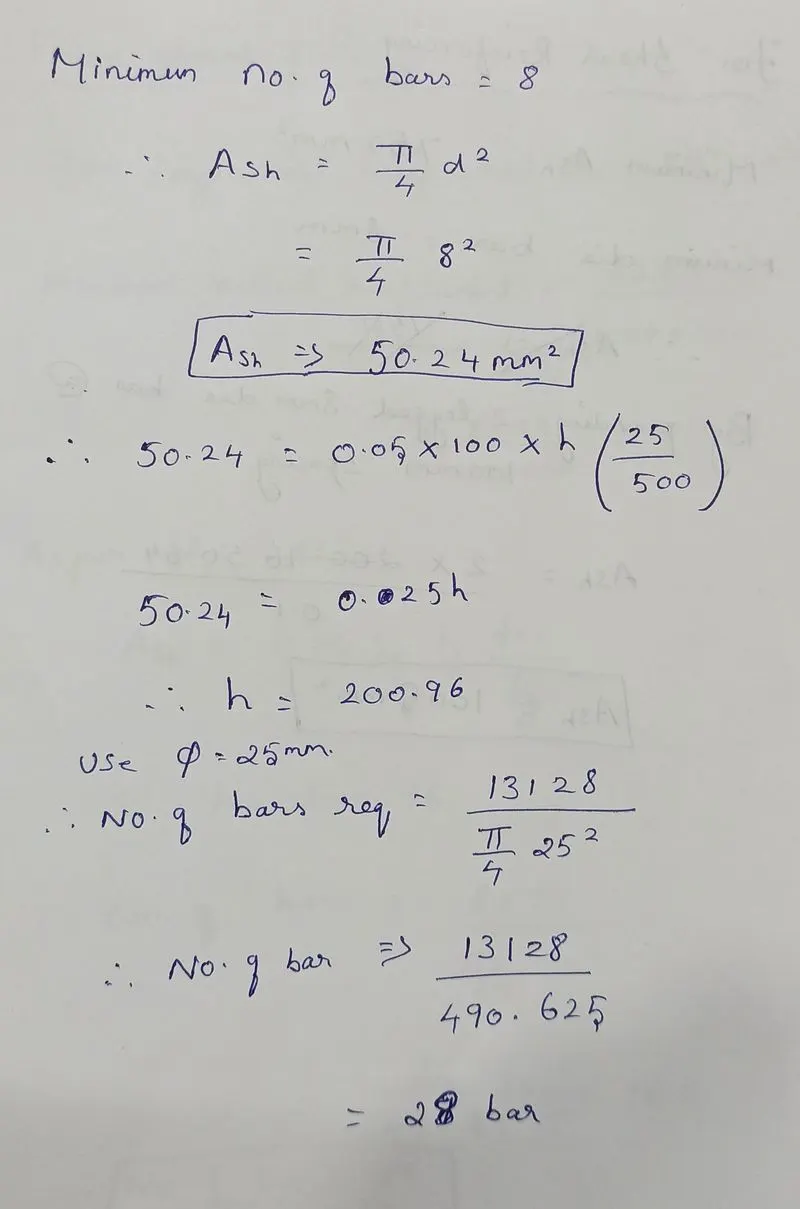

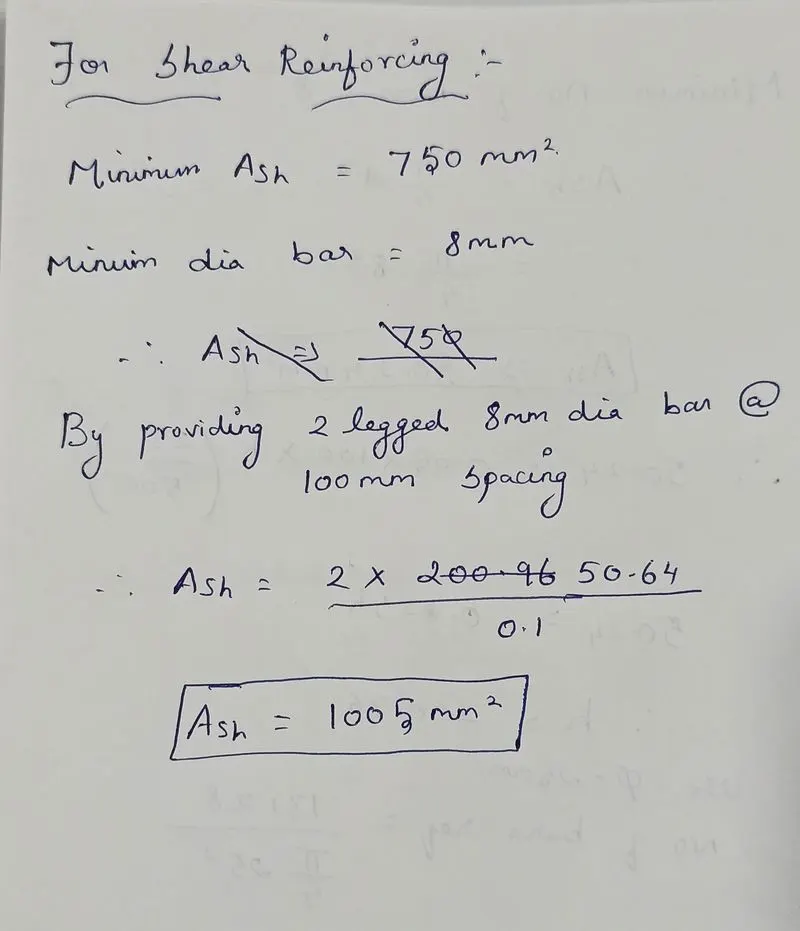

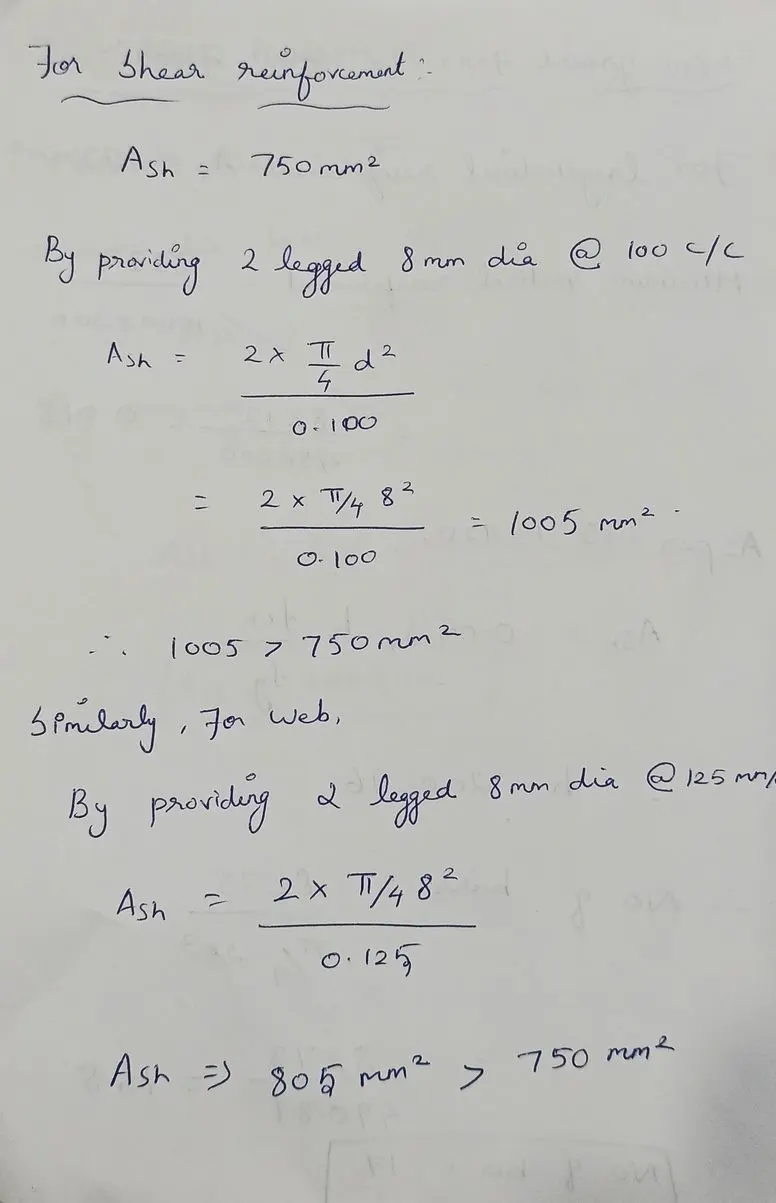

shear reinforcement:

1) Go to concrete frame design

2) Click Display design info

3) Choose Shear reinforcing

step 5:

1) Go to concrete frame design

2) Click Display design info

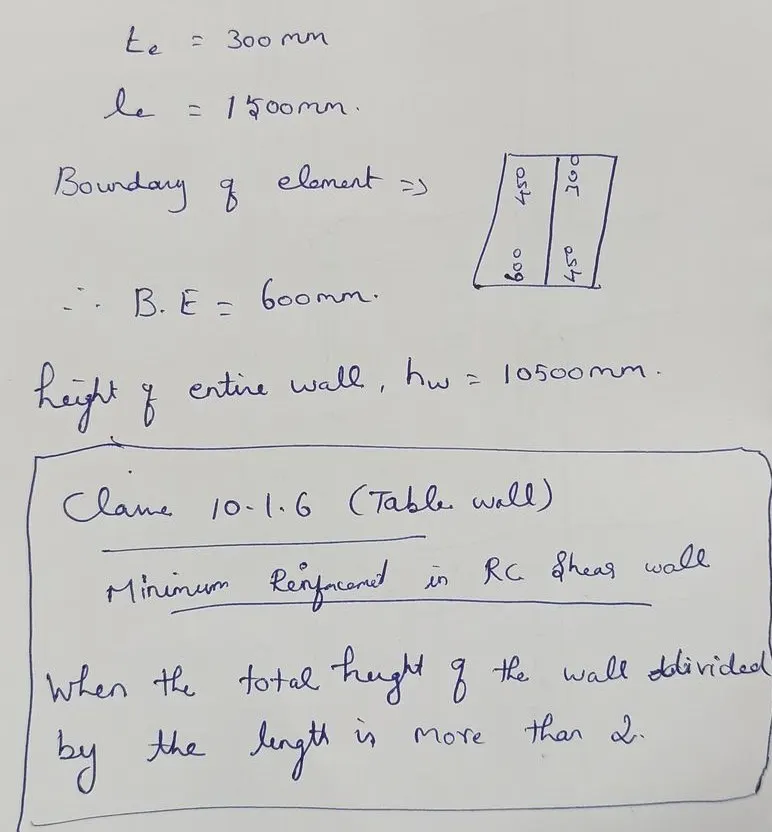

3) Choose Pier edge or boundary zone width

Step 6:

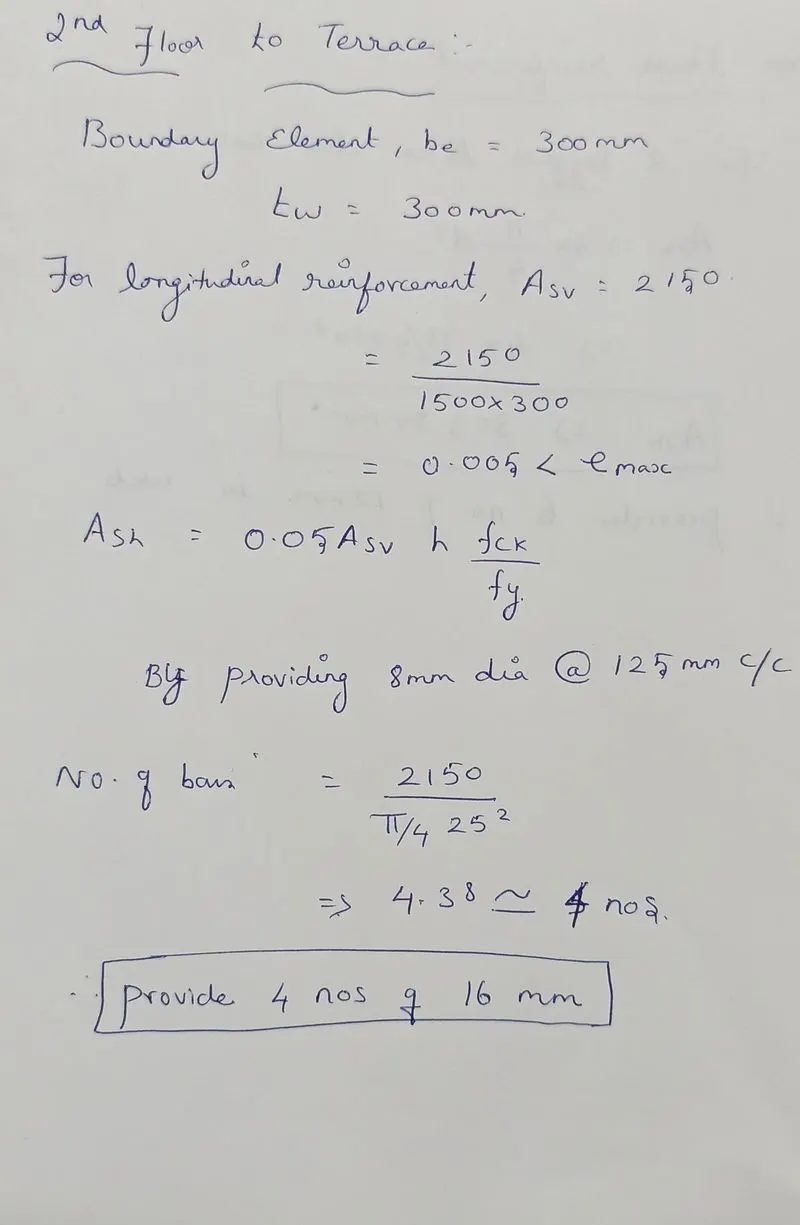

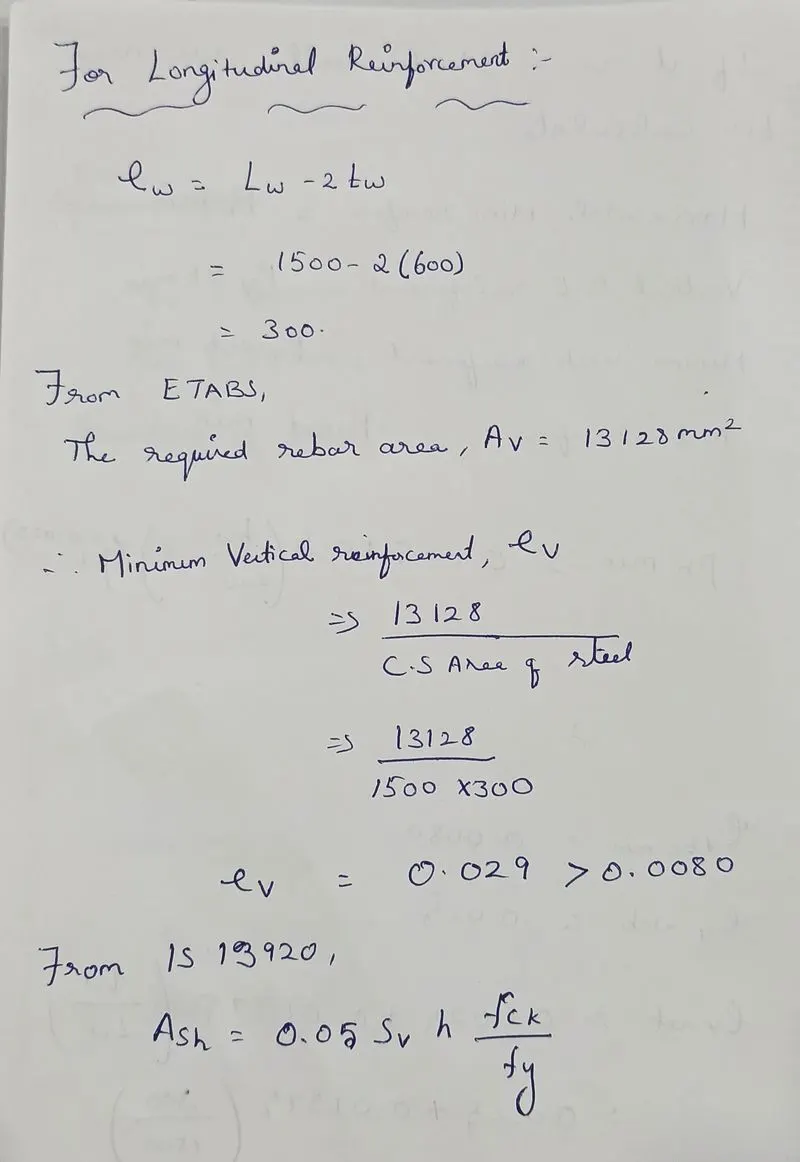

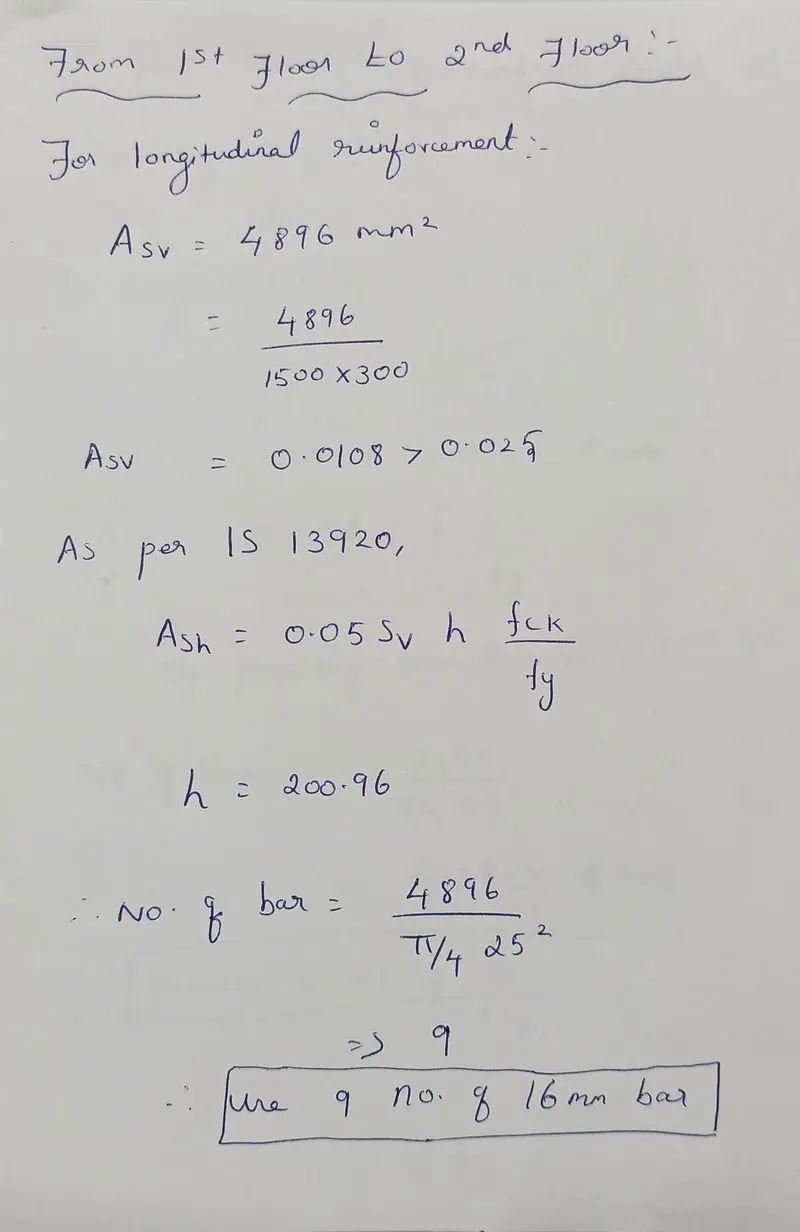

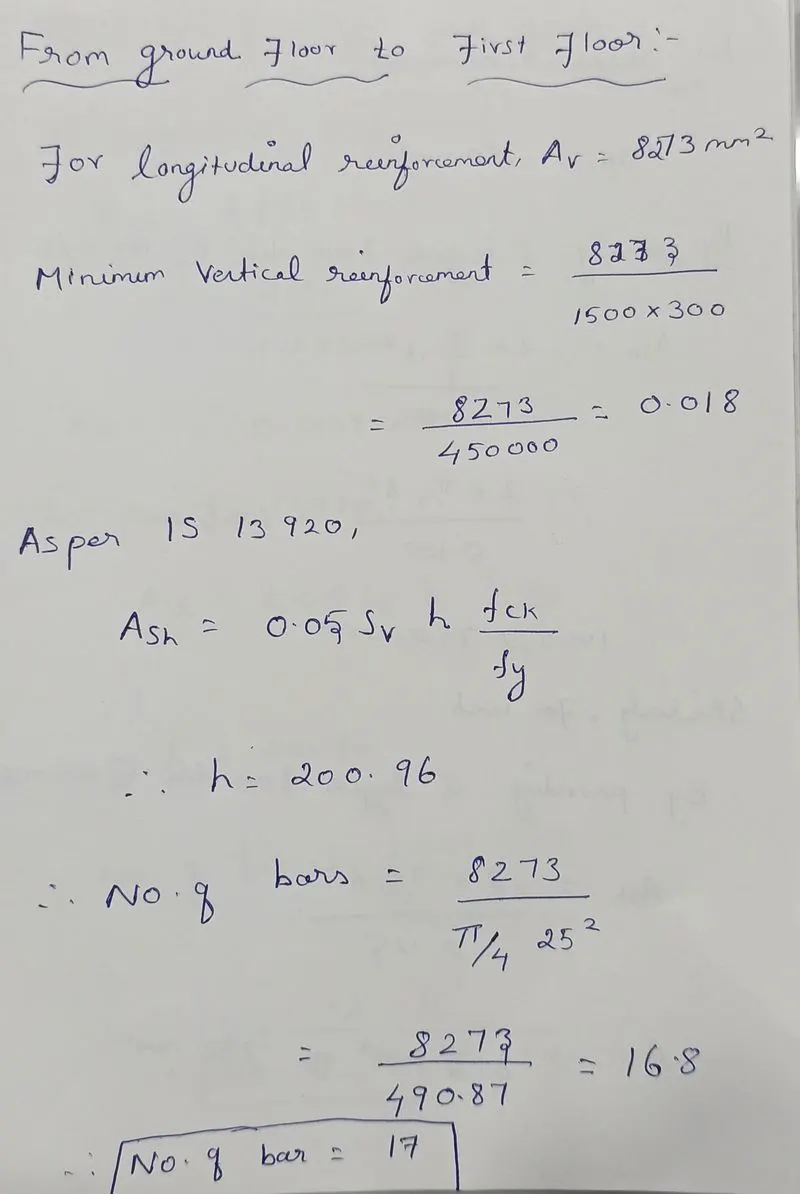

Longitudinal Reinforcement:

Step 6 :

longitudnal reinforcement:

1) Go to concrete frame design

2) Click Display design info

3) Choose Pier longitudinal reinforcing
