Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

TITLE OF THE PROJECT :Metal Bracket

OBJECTIVE: To complete the sheet metal with required output.

1. Title of the Project
2. Objective
3. Introduction

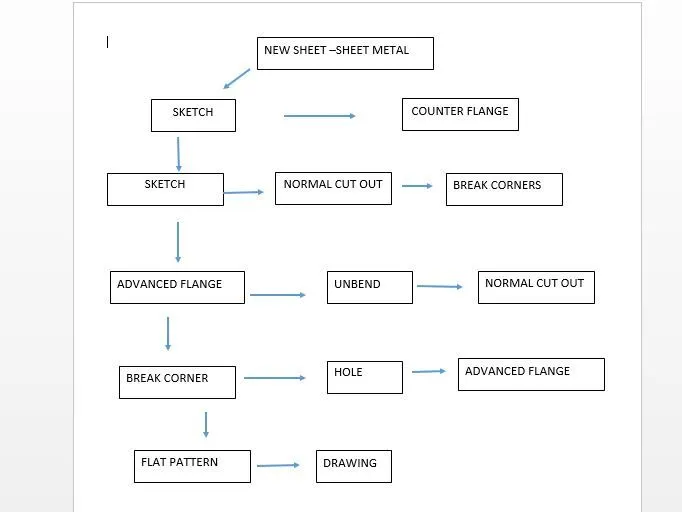

4. Design methodology / approach (To be explained with the help of Flowcharts only)
5. Description (Need to explain tools/ Features used while designing)
6. Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)
7. Attach Detailed Drawing Sheet Image (If Required)
8. Conclusion

INTRODUCTION: The sheet metal bracket is created in NX CAD sheet metal from 2D diagram and some of the dimendions are assumed.

DESIGN METHODODLOGY:

 DESCRIPTION:

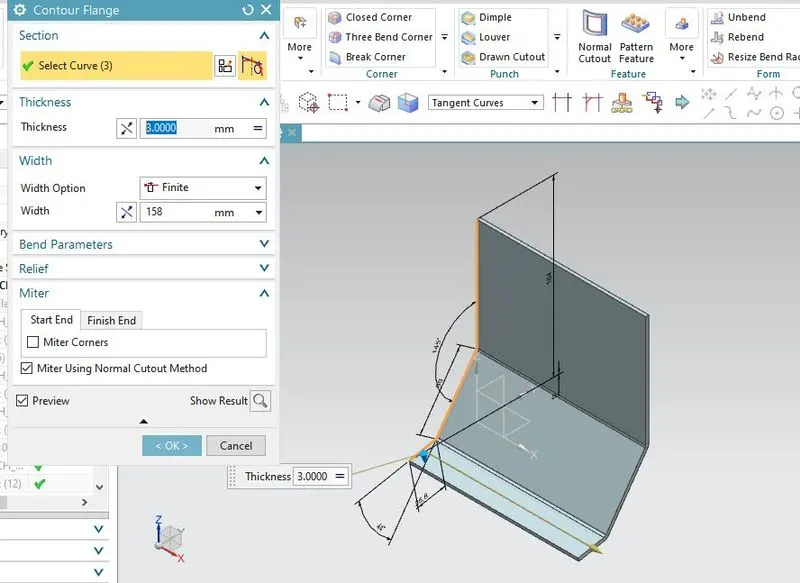

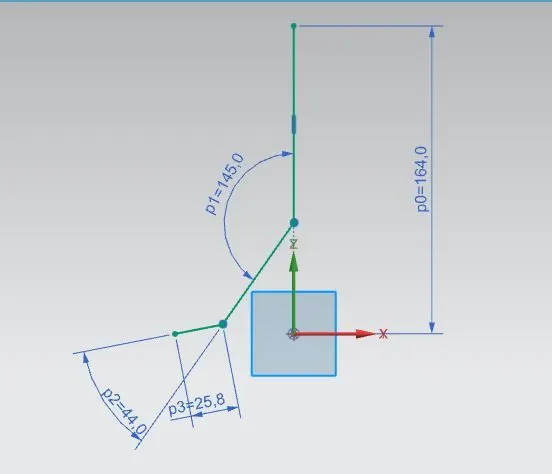

select sketch click on YZ Plane and give counter flange for 158mm.

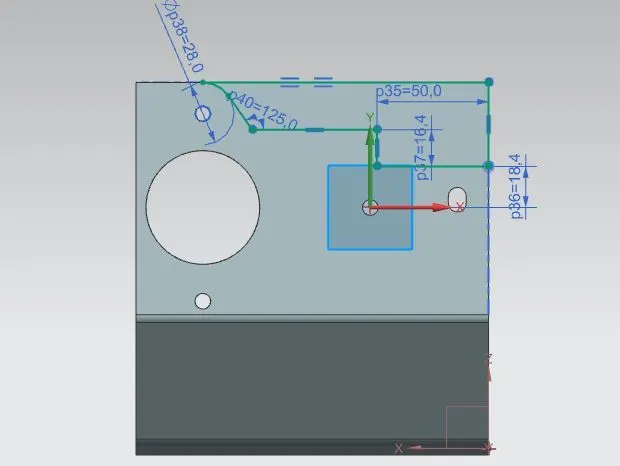

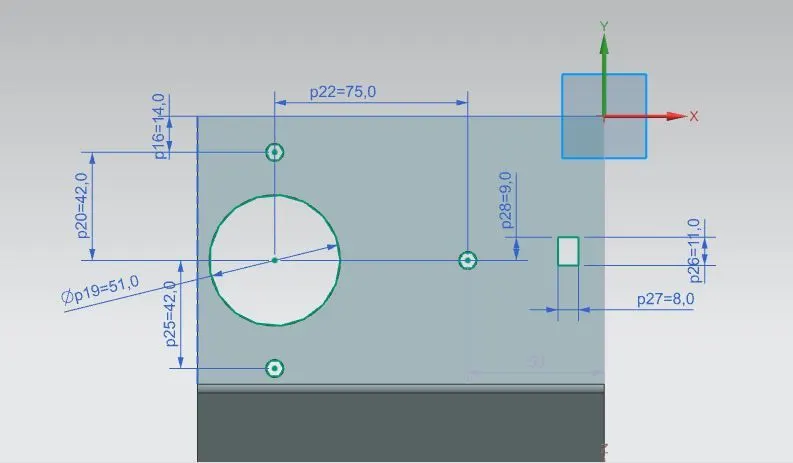

select the face on sketch the circle and rectangle for normal cut out

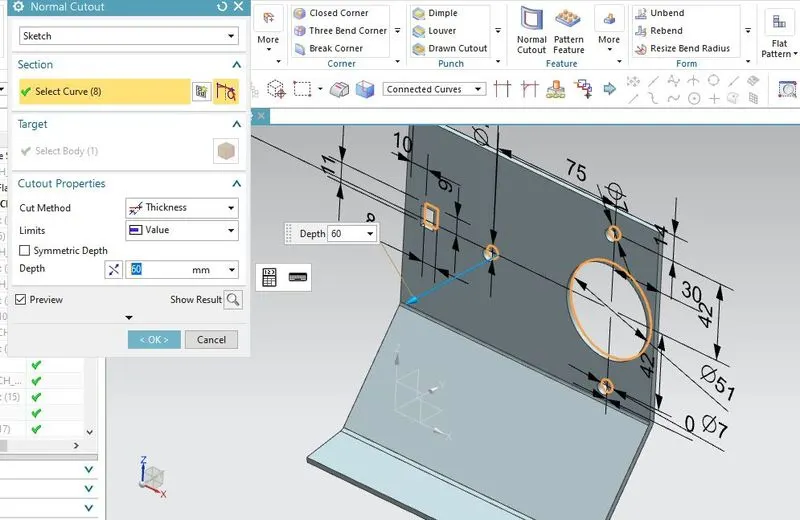

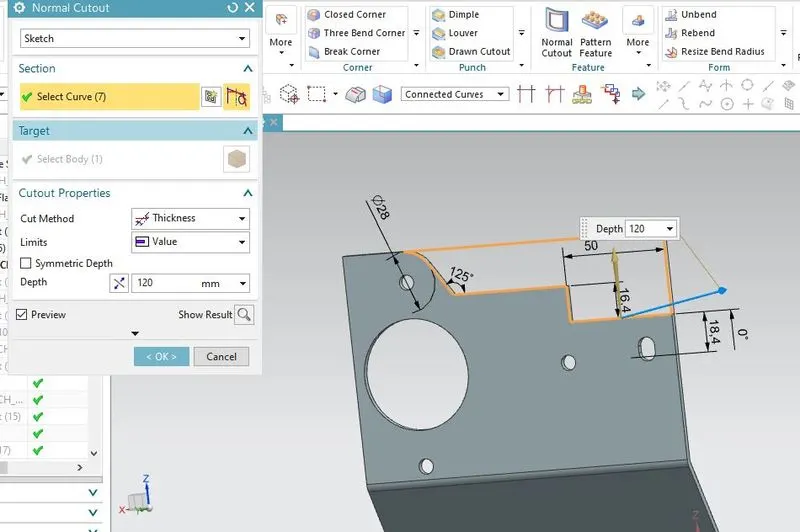

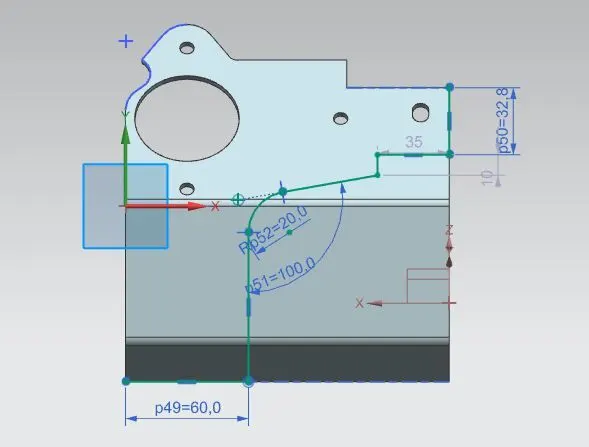

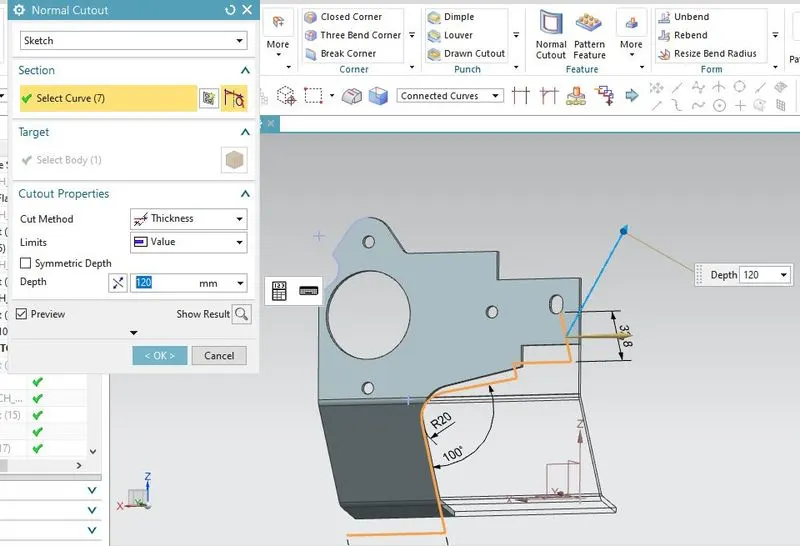

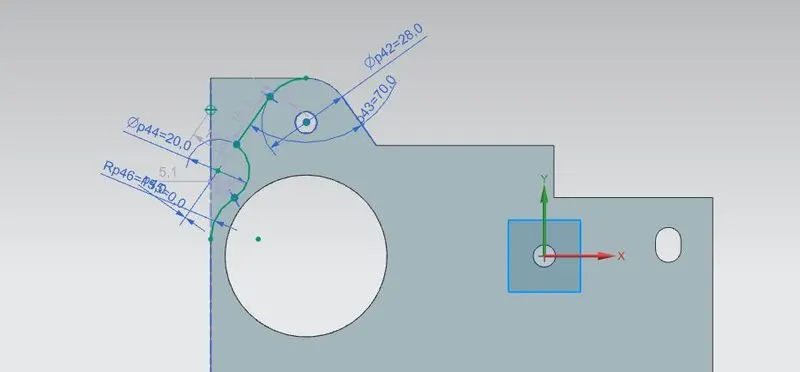

now sketch the step cut and give normal cut out



normal cut out on other side is done.



normal cut for down face is done

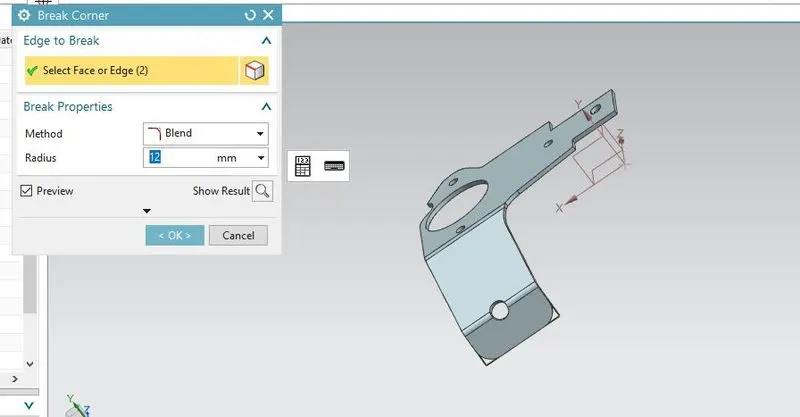

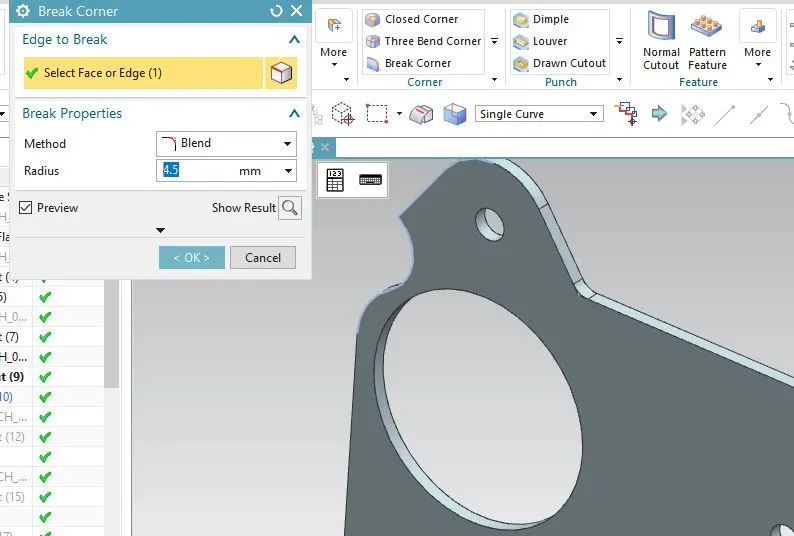

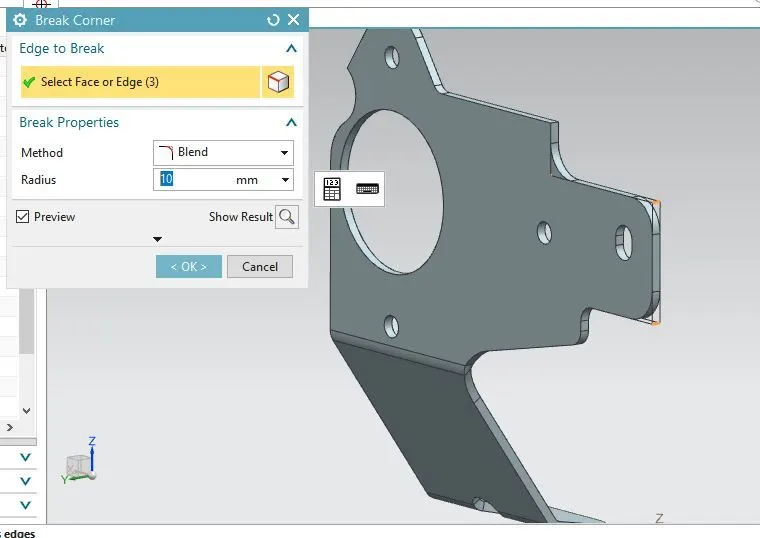

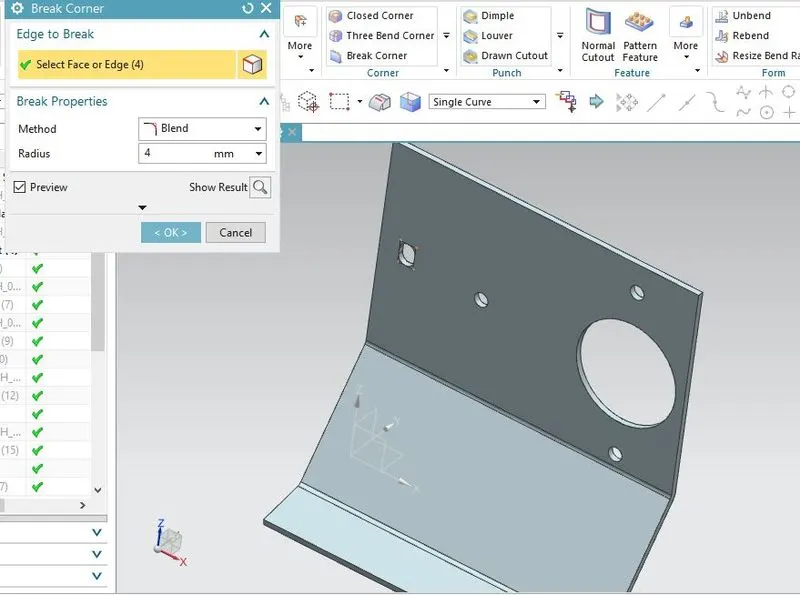

break corners are given at edges needed.

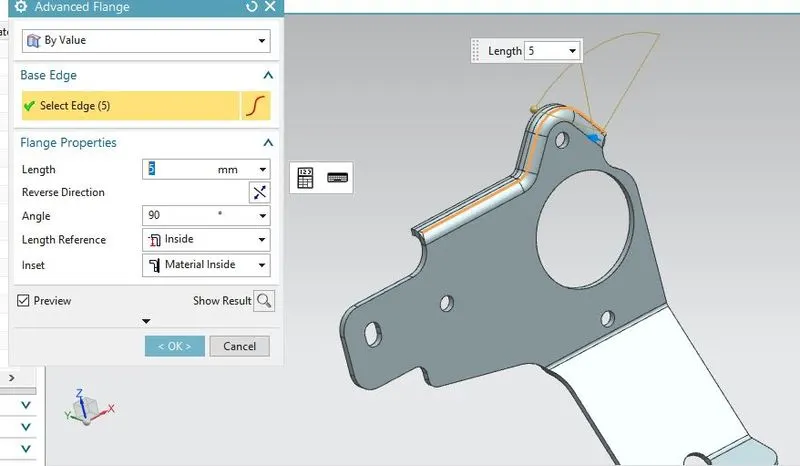

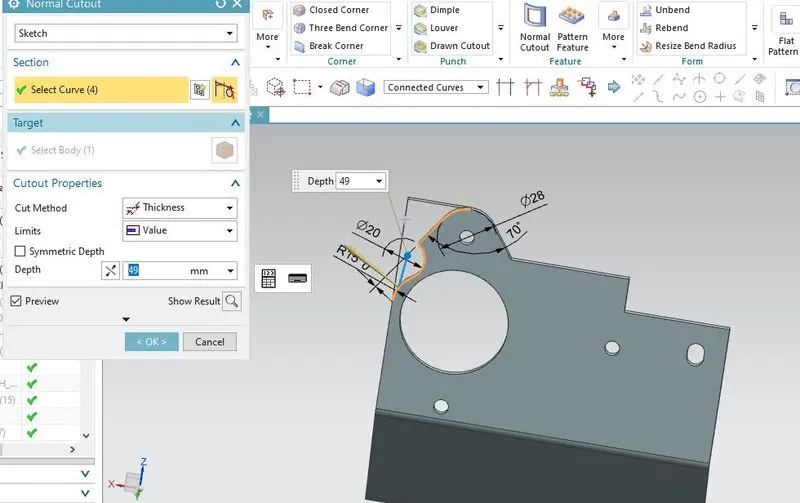

now give advanced flange on the top curved edge.

go to unbend click on the face and bend to get a flat body so that the other features like hole,beads,etc can be creqted.

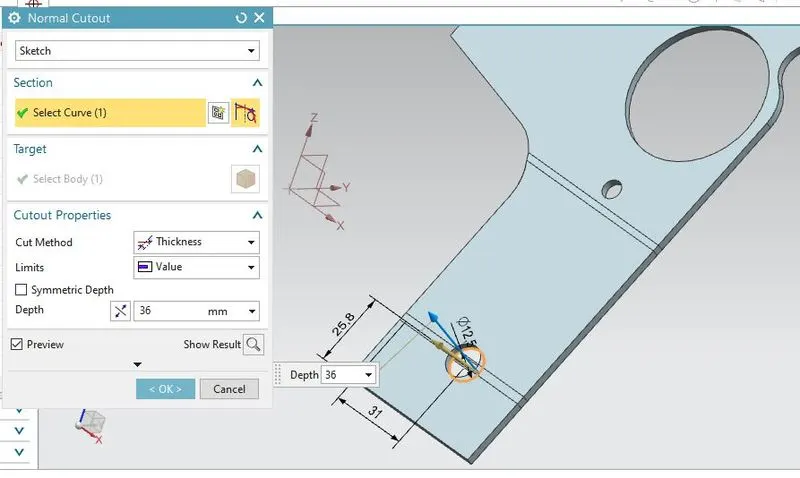

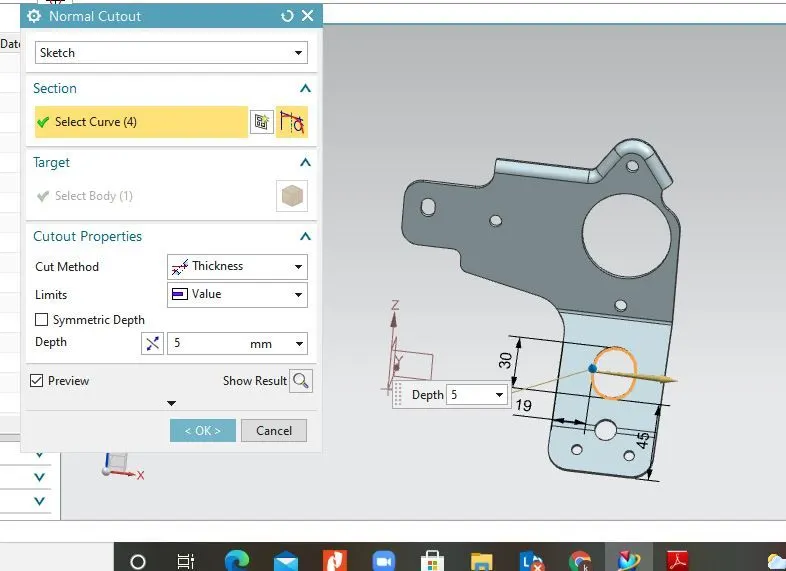

draw a circle on the bottom face and give normal cut out.

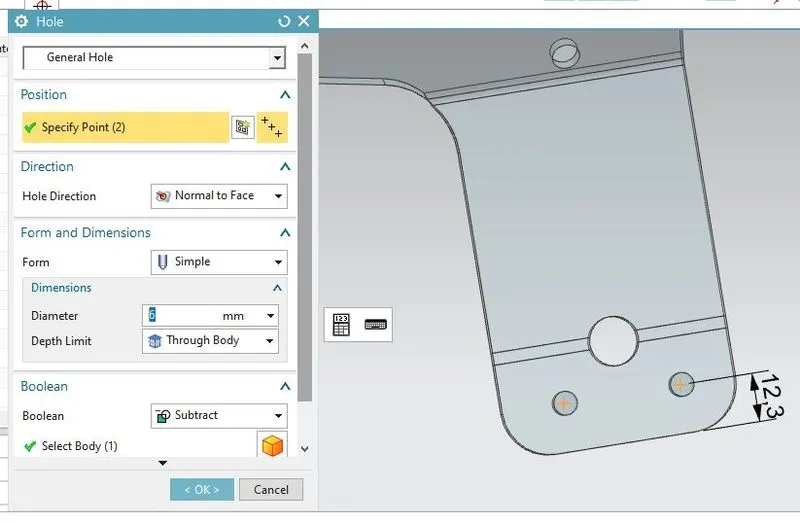

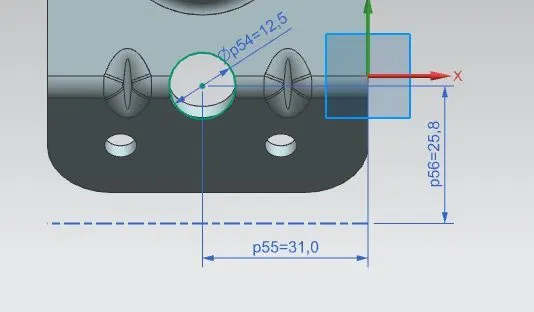

Draw 2 pints on down face for hole.

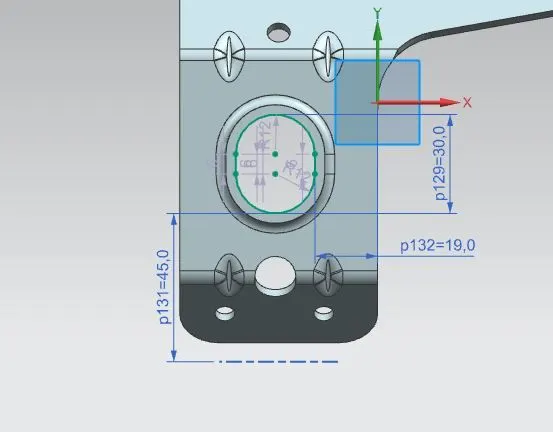

Draw a sketch give normal cut out and then Advanced flange for the same

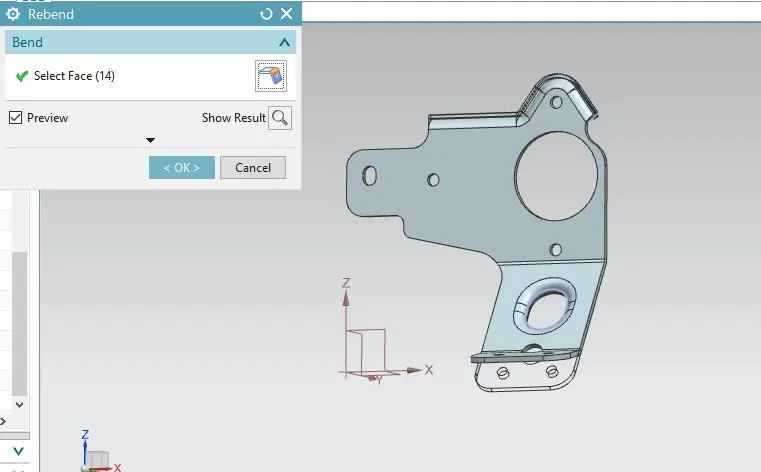

noe rebend the flat body

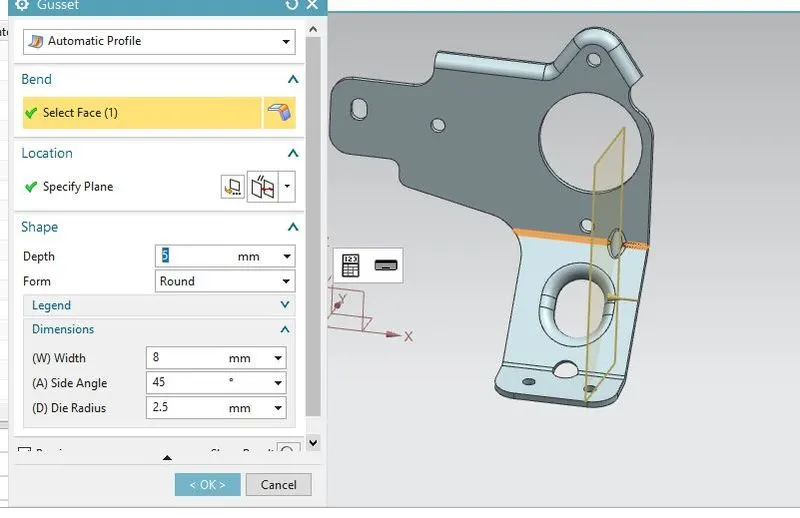

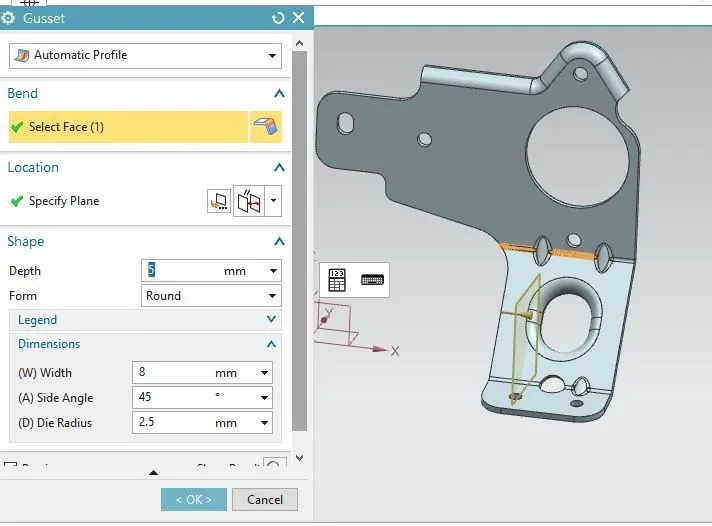

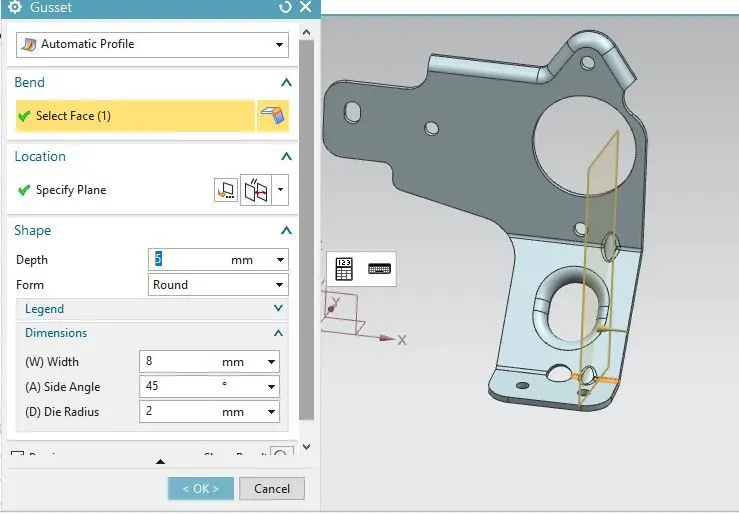

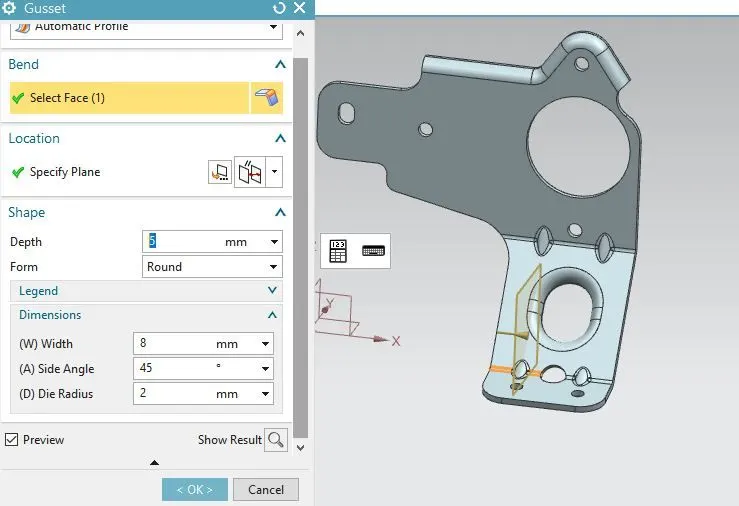

gusset is drawn on both sides at plane distance of -15 and 45 degree.4 gussets and created.

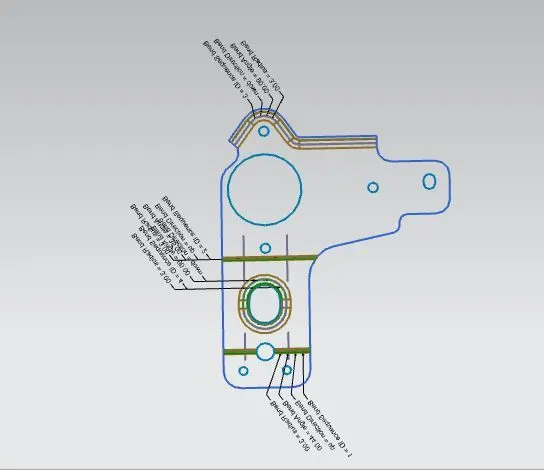

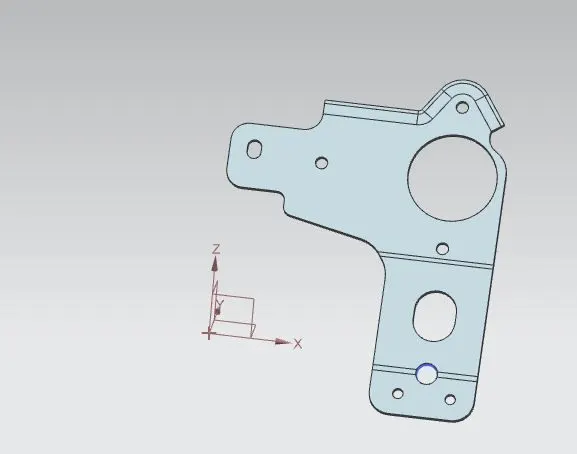

give flat pattern to view the flat pattern go to model views.

 '

Drawing

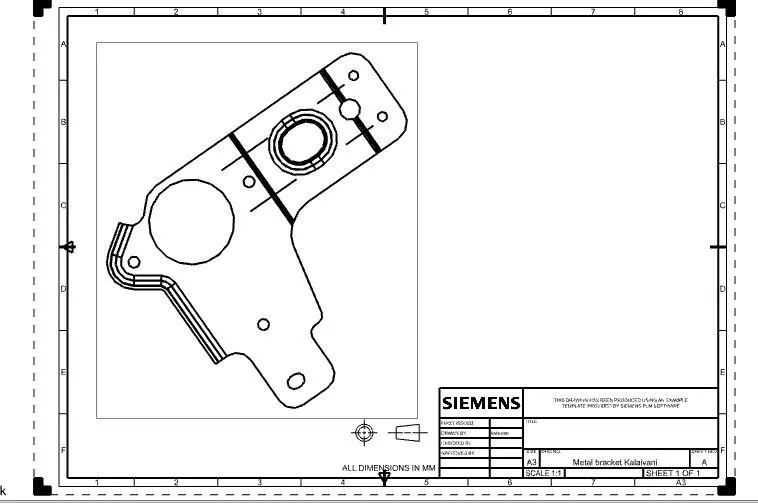

go to Application-drawing- select sheet size-base view -model view -flat pattern

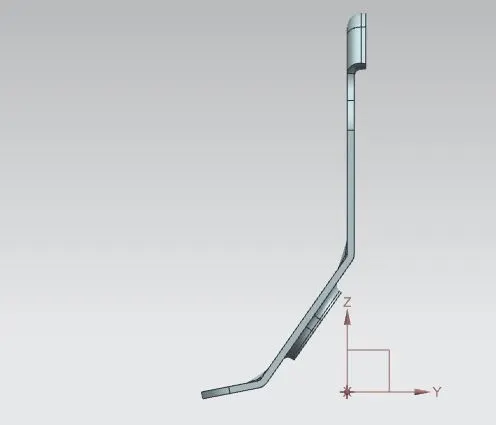

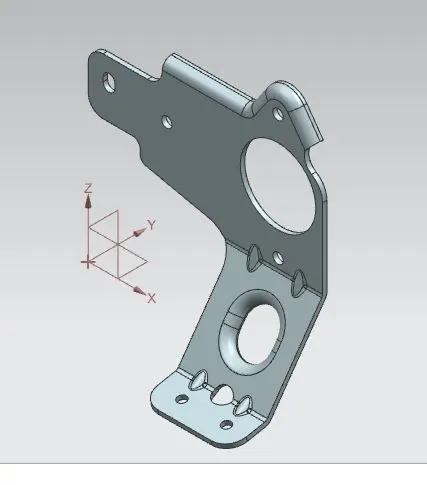

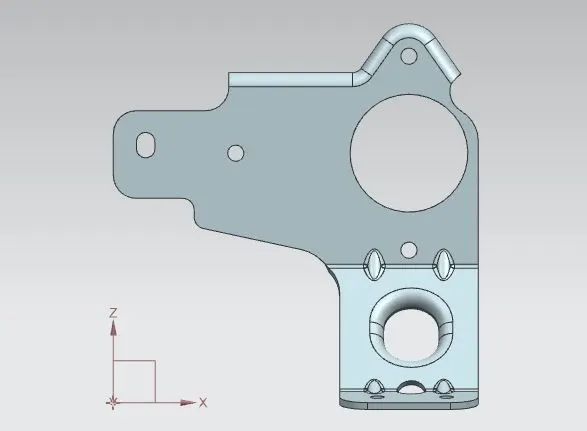

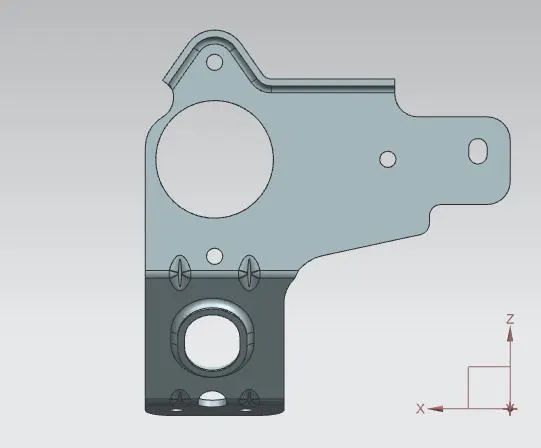

final part
