Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

ODD SHAPED ENCLOSER

sketch on the x-y plane at 200mm length and twosides at 60 deg angle

extrude the sketch upto 200mm distance

make a sheet from the solid by at the 5 faces in 3mm tichness

then , the edges of top face can bend upto5mm

make flange upto 20mm in the 200mm lenth side od sheet

make shetch on the other 200mm side at a draw line as the refference

make a jog bend as the refference of sketch upto 20mm

unbend the sheet as the stationary face is top of of sheet

make sketch two line as given refference

create the bend by using two lines at 3mm radius

create hole at the required places

then rebend the unbend areas

make the flat pattern at the refference of top surface

make drawing sheet at the A4 size

using base view to take needed face make the draft view

save the file Odd Shaped Enclosure

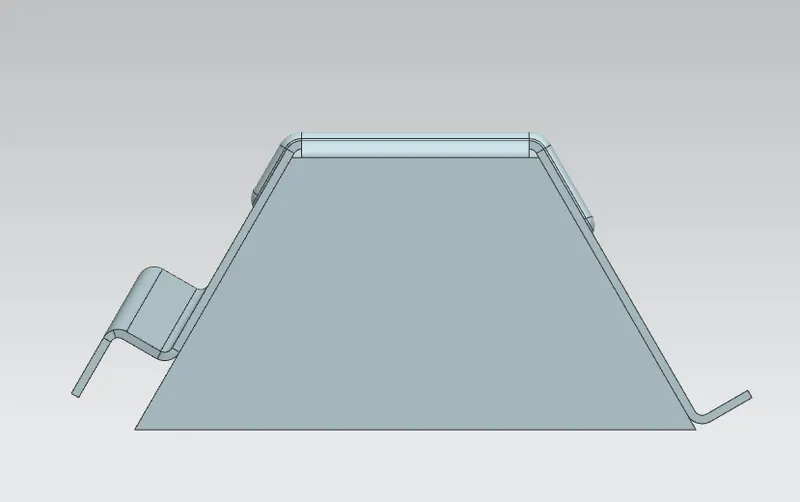

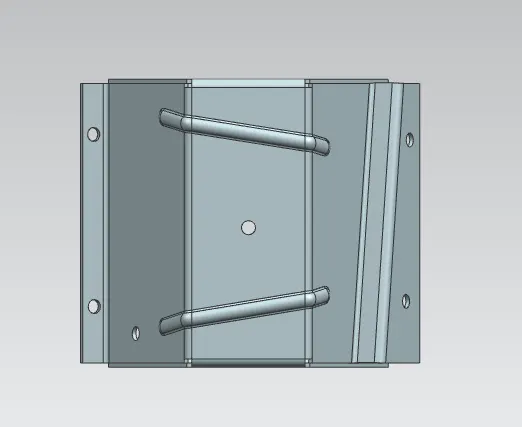

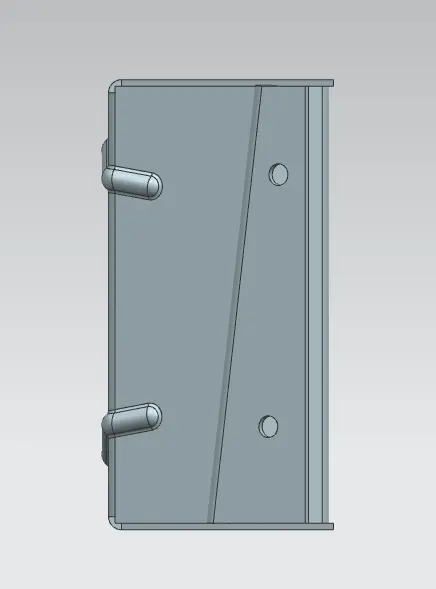

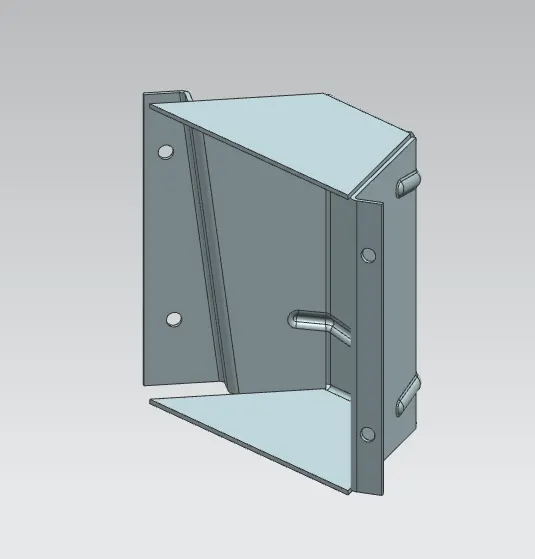

Model images:

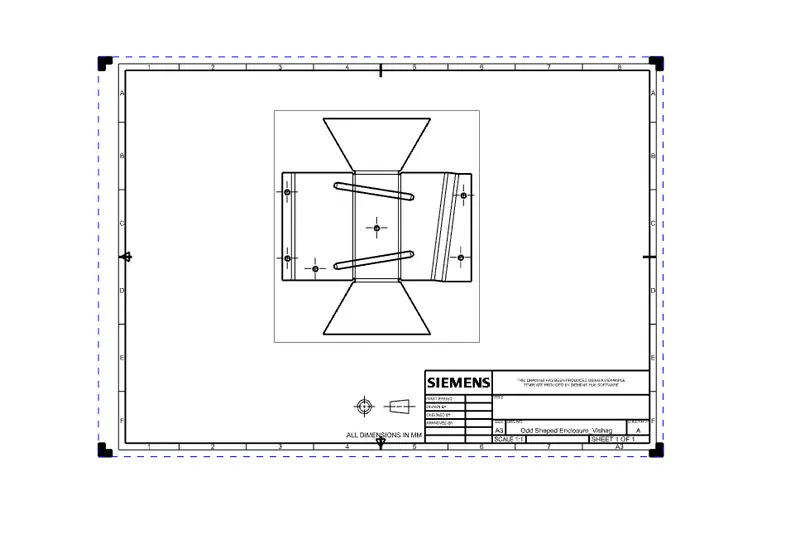

Drafting image:

Conclusion:

l learned various tools for sheetmetal design
