Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

OBJECTIVE

• To design an odd shaped encloser in sheet metal by using nx cad siemens.

INTRODUCTION

• Here we are going to create an odd shaped encloser in sheet metal. these kind of encloser are very useful for machine protection. it protect machine like motor and so on from water, unfortunate impacts and most importantly it is used for safety purposes. safety purposes like heat, exploading and so on.
• while creating an encloser we have to be aware of choosing a material. there are some factor that we shold considered before we select those are applications,corrorsion resistance,strength weight,cost,and etc.

DESIGN METHODOLOGY

• while design of an encloseer we have to assuming some parameters so our product will perform well in manufacturing place

which are given below

1. uniform thickness
2. keep holes diameter atleast larger than sheet metal thickness
3. spacing between holes atleast 2 times the sheet metal thickness.

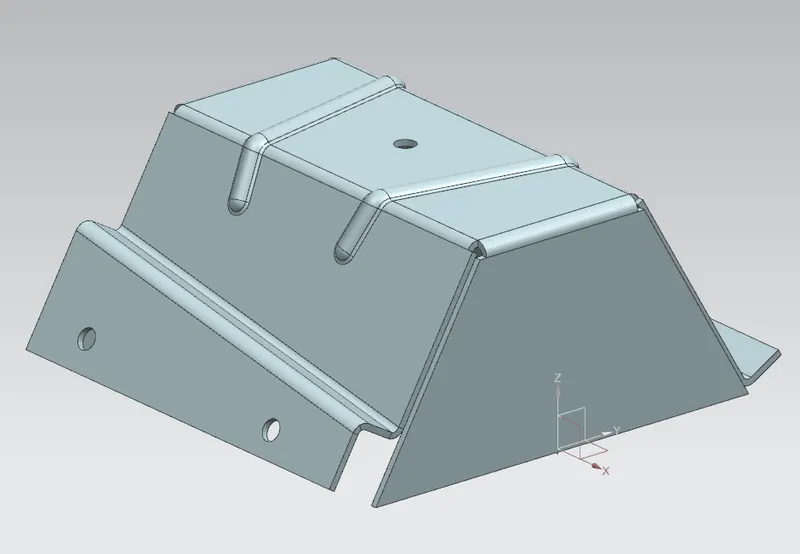

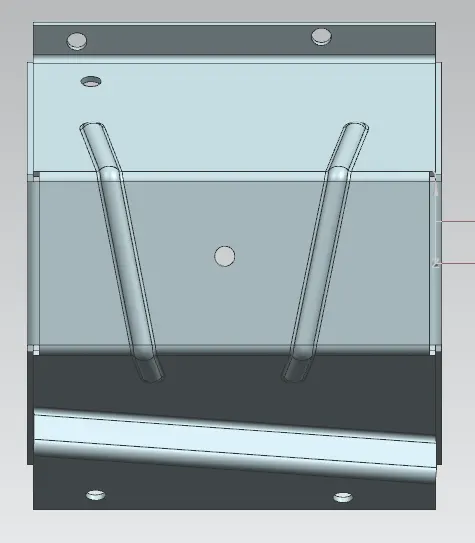

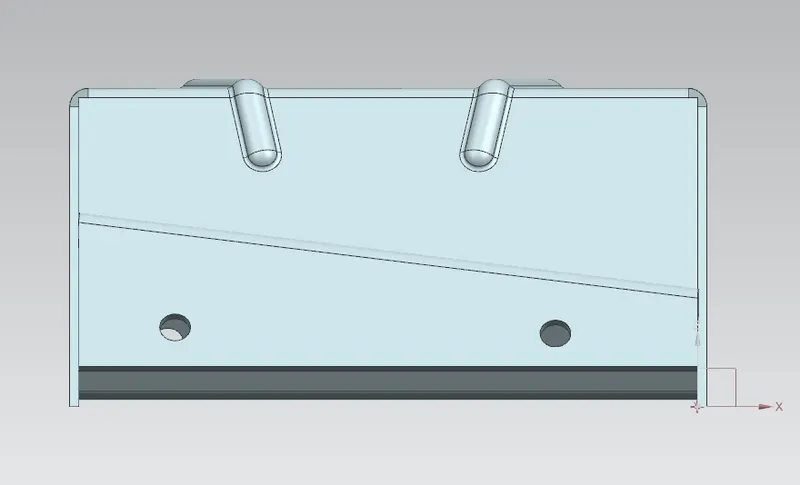

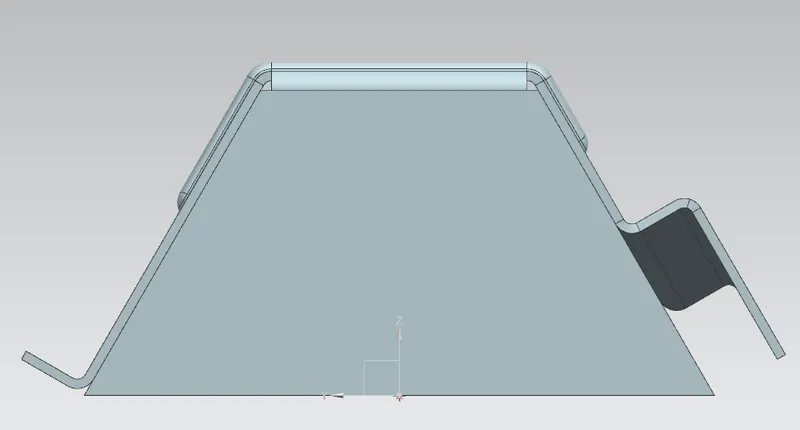

Final design as per PPT
