Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

DESIGNING ODD ENCLOSURE USING NX CAD SHEET METAL APPLICATION

1. OBJECTIVE

To design odd enclosure using NX CAD sheet metal application. And drawing sheet should be created for designed enclosure.

2. INTRODUCTION

Generally thickness of sheet metal ranges between 0.4 to 6mm. Metals such as Steel, Aluminum, Copper, Brass, Nickel and Titanium can be made into sheets by rolling process.

odd enclosure assembly is designed using NX CAD sheet metal which has various flanges, beads and bends.

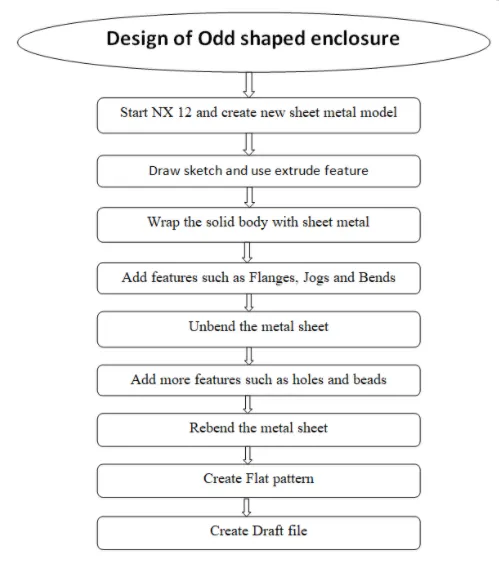

3. DESIGN METHODOLOGY

4. DESCRIPTION

• Extrude
• Bend
• Flange
• Unbend
• Hole
• Bead
• Rebend
• Flat pattern

5. STANDARD VIEWS OF MODELLING

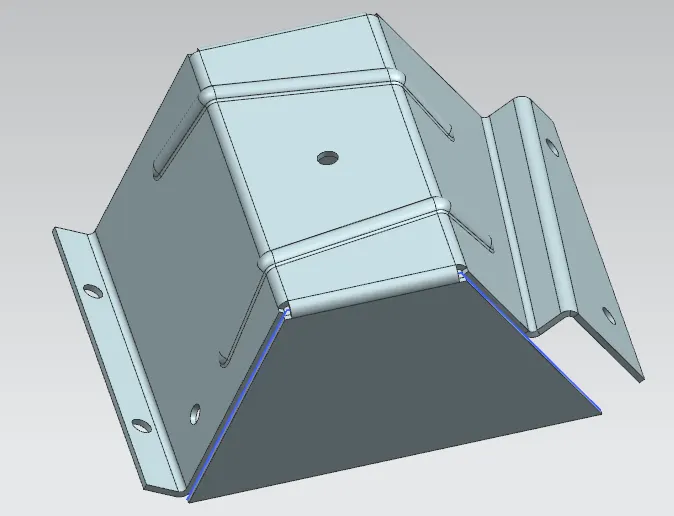

a. isometric view

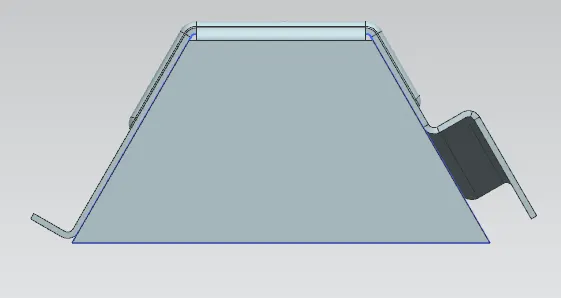

b. front view

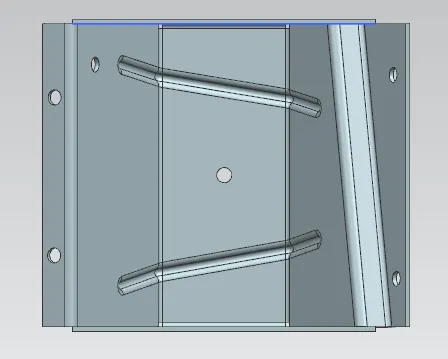

c. top view

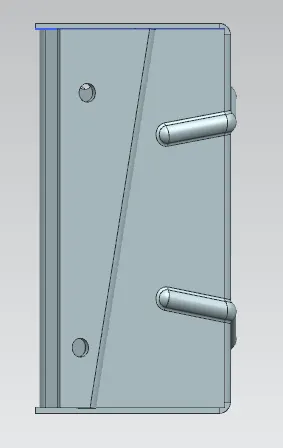

d. side view

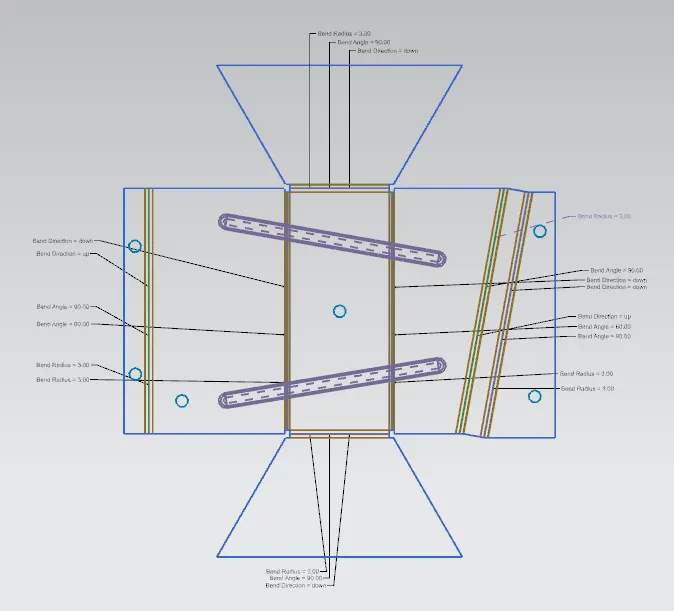

e. flatpattern view

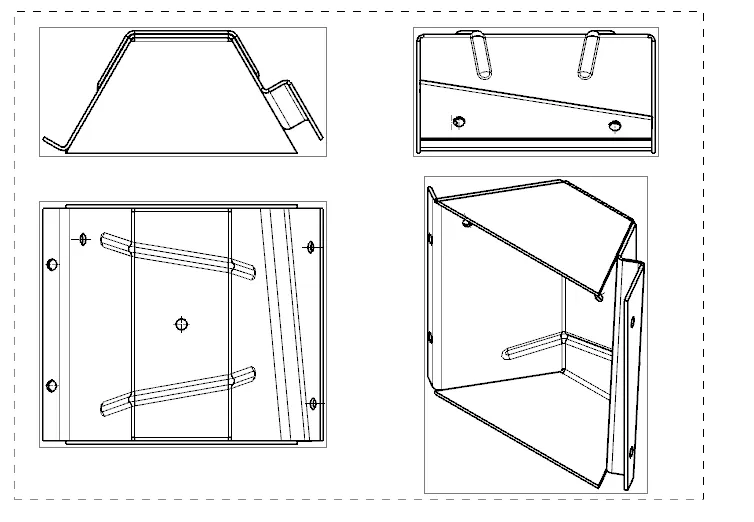

6. DRAWING SHEET OF ODD ENCLOSURE

7. CONCLUSION

Thus, the project has been completed by designing and drafting ODD ENCLOSURE using NX CAD sheet metal and drawing application.
