TITLE: SHEET METAL BOX ASSEMBLY DESIGN USING SIEMENS-NX.

OBJECTIVE:

Learn to design a sheet metal Box Assembly by using Siemens NX and write a detailed report on Sheet Metal Component with good explanation on Sheet Metal modelling tools applied throughout the modelling. Also attach the Final model Images (Min. 4 images) of Sheet Metal Box Assembly.

INTRODUCTION:

Sheet metal parts are widely used in machinery, enclosure, brackets, and automobile due to its various advantages. The parts are normally manufactured with break press. Sheet metal is nothing but the thin sheets made from metal of size ranging from 0.5 to 6mm. In this project I used NX CAD tool for designing the sheet metal bracket. NX CAD is used as design tool in more than 85% of the sheet metal industries.

DESIGN METHODOOLOGY:

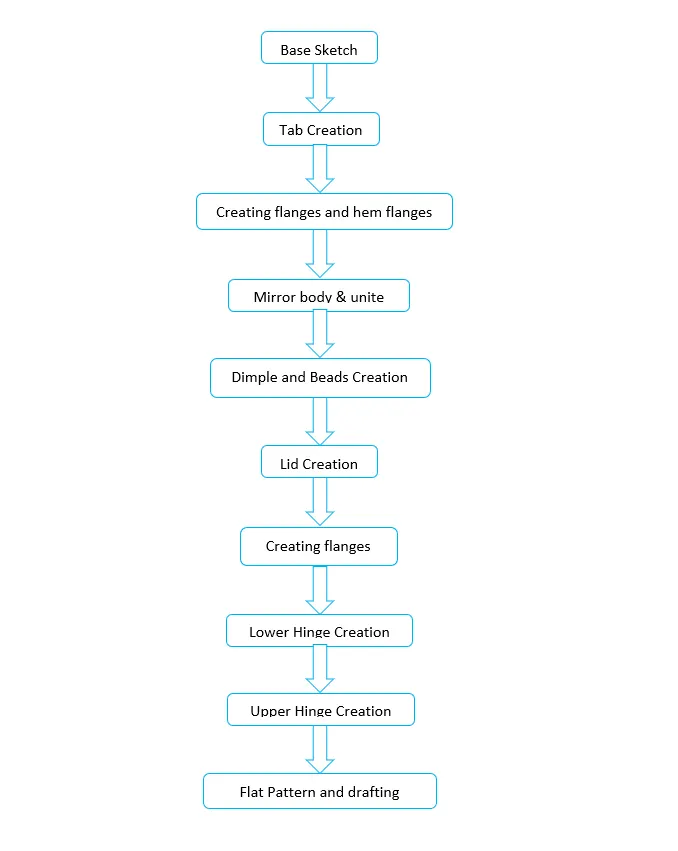

The design methodology used for modeling Box assembly is summarized in below flowchart.

A detailed report on the Design is as follows :-

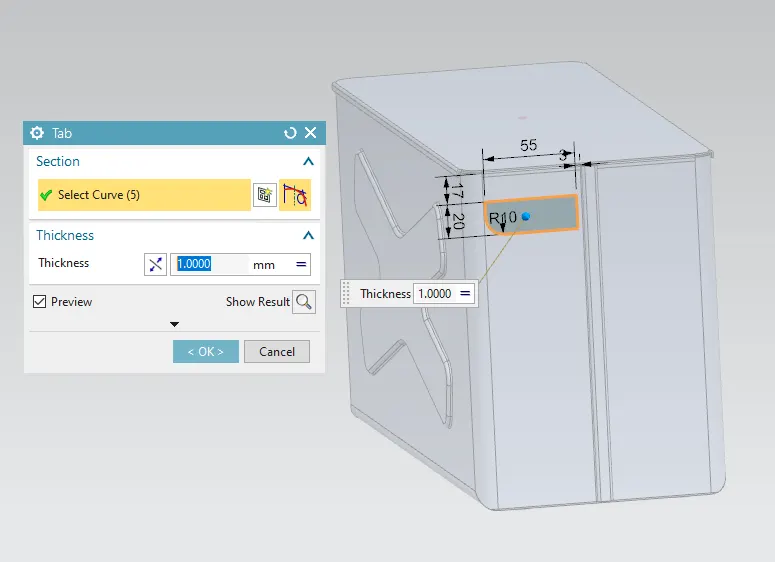

Tab:

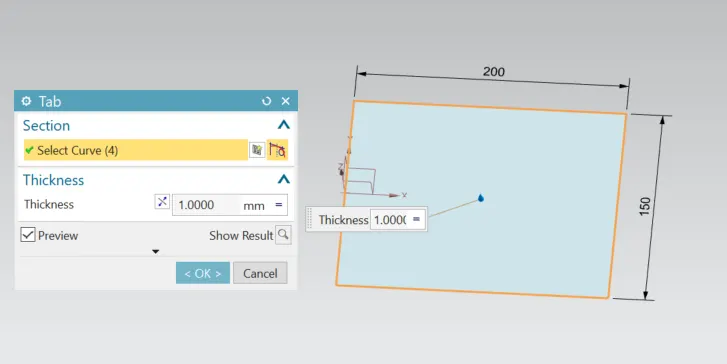

In this box assembly design, lets create the tab by using the sketch on XY plane having dimensions of 150*200 and add tab of given thickness as shown below

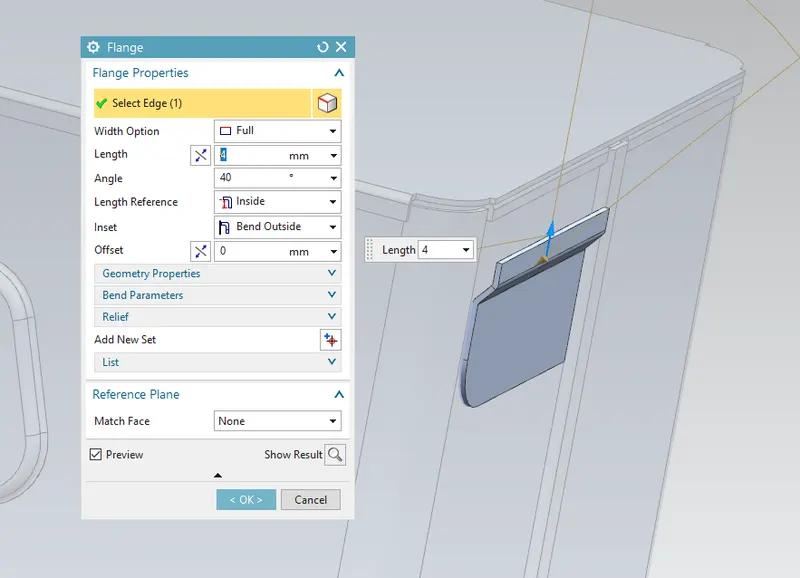

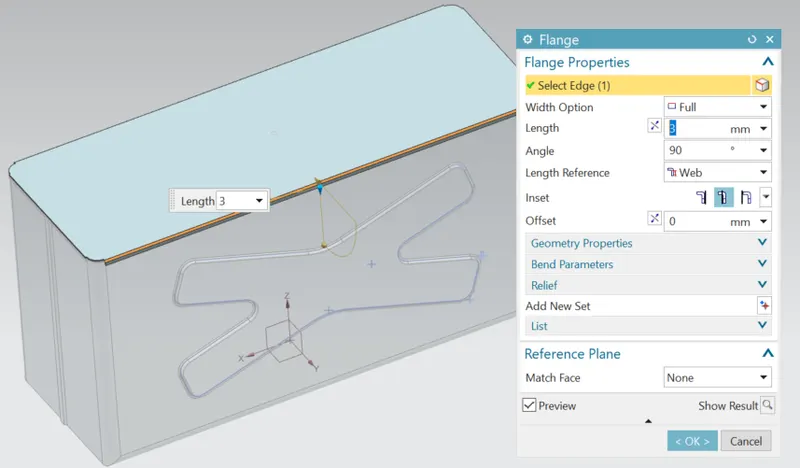

Flange:

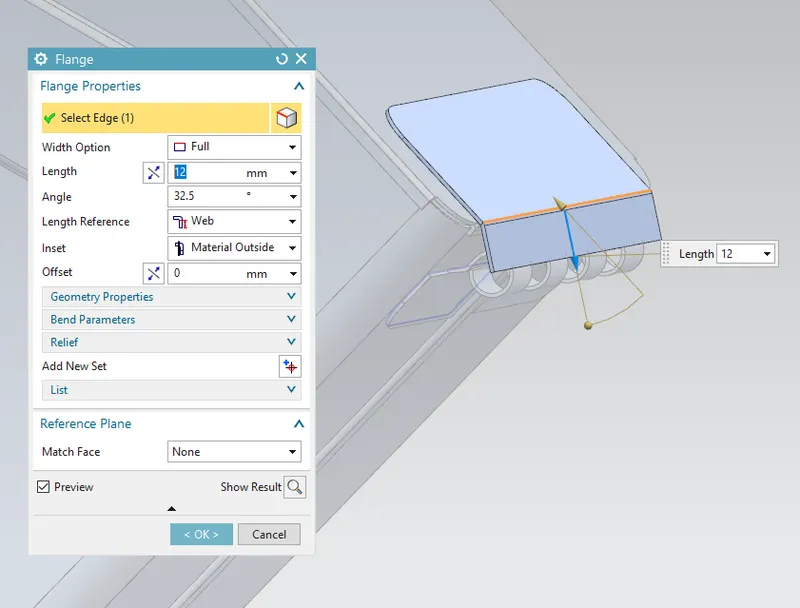

Flange is used to add extra material to the existing edge at any angle and of any size.

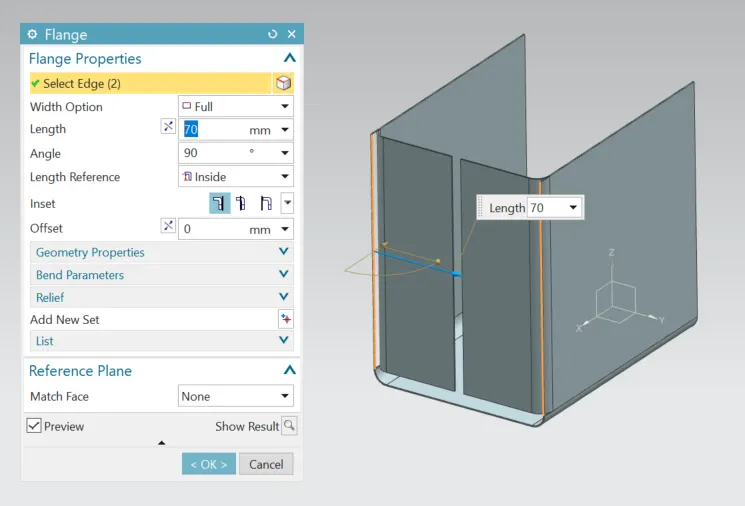

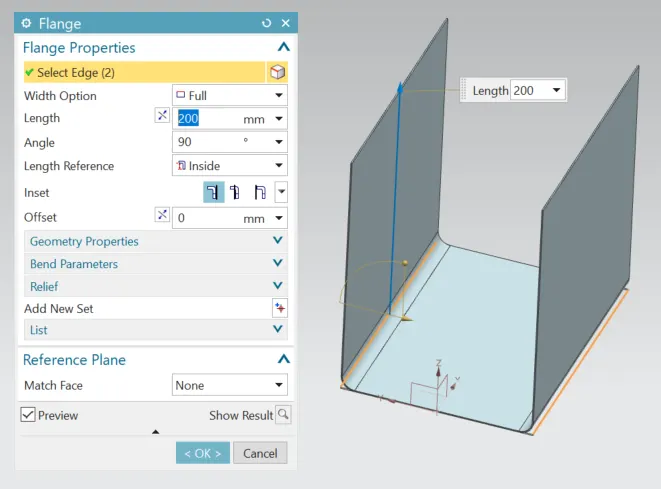

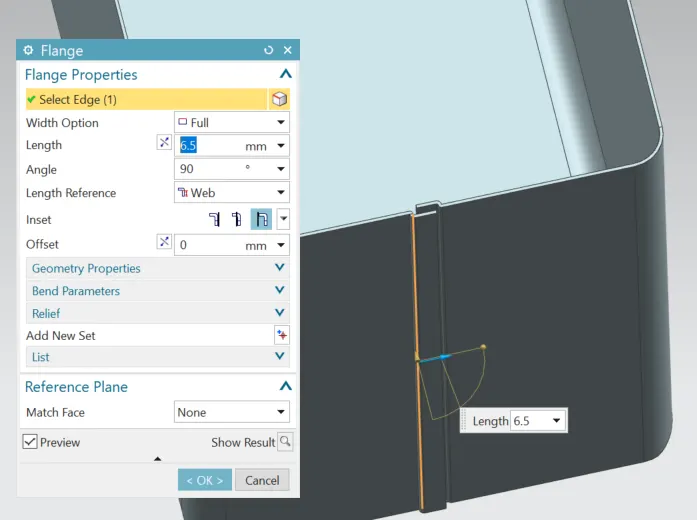

let us add four flanges on different edges, firstly creating two flanges with 200 mm length normal to the XY plane and then another two flanges with length of 70 mm are added normal to XZ plane.

Closed corner:

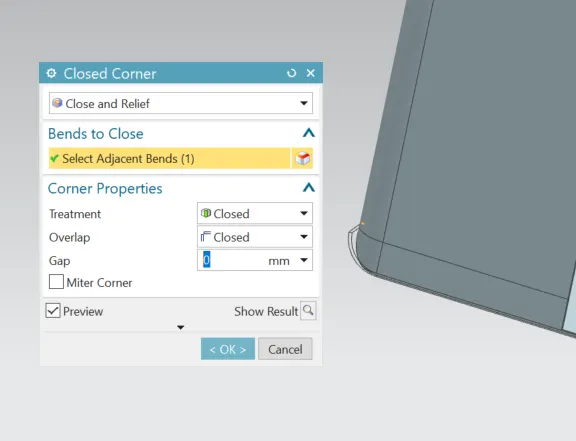

Close corner feature is used to close a corner where two adjacent flanges meet by extending the bends and flanges.

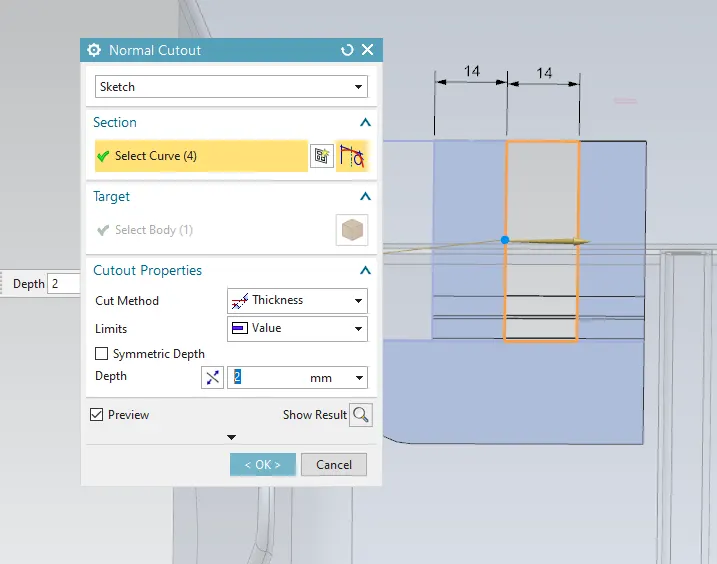

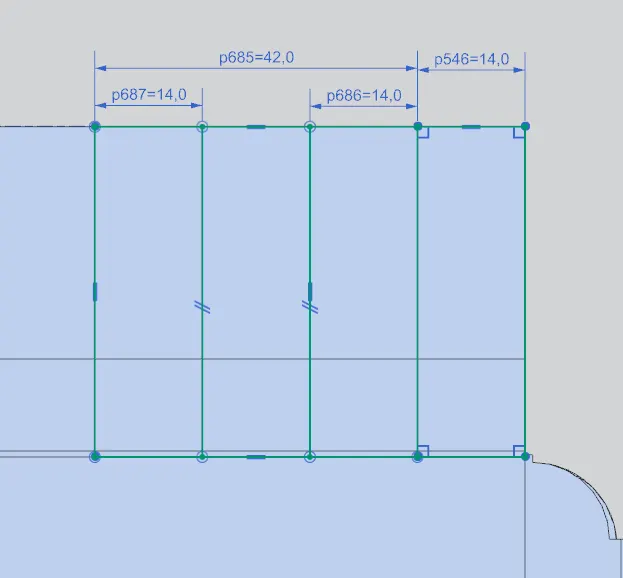

For fastening or connecting the two flanges on side of box assembly lets model these flanges as shown below

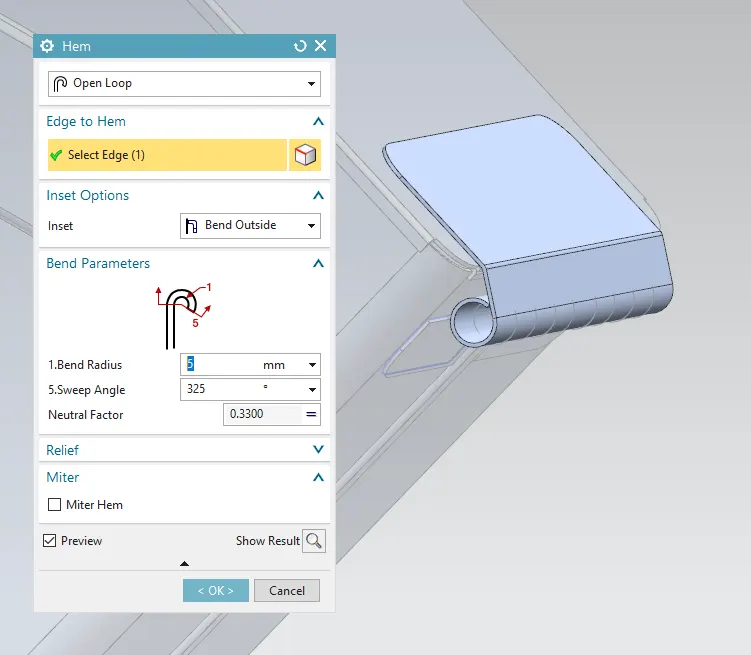

Hem flange:

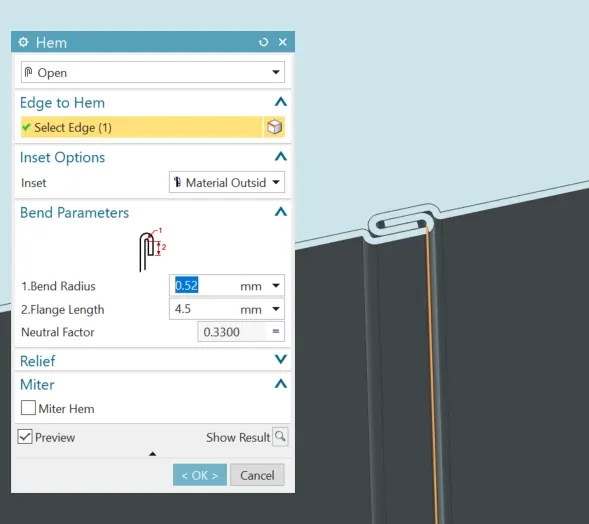

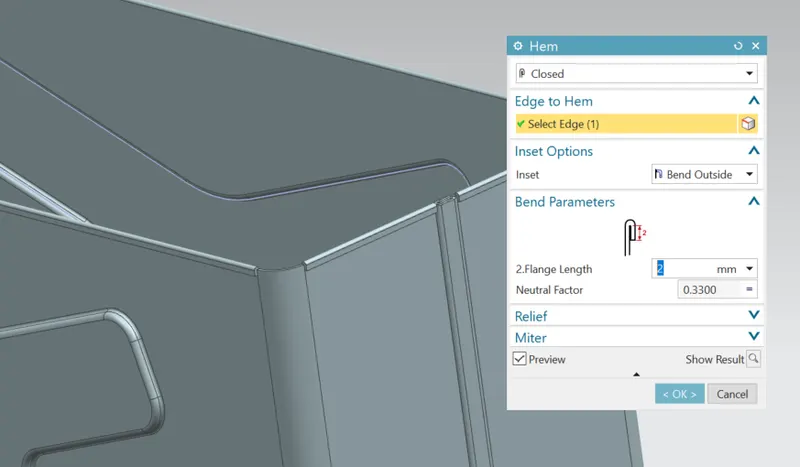

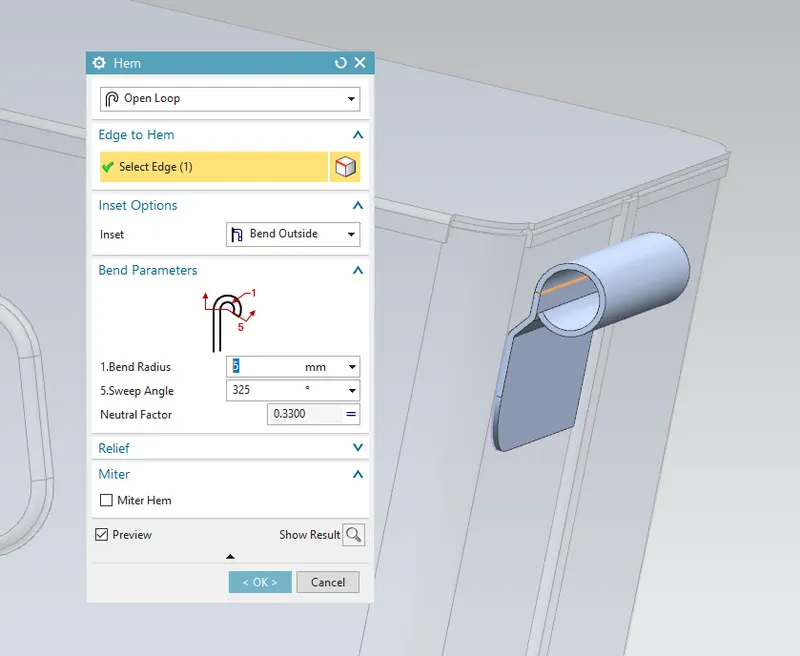

Hem flange feature is used to modify the model by folding the edge of a flange. The main purpose of this feature is to increase the stiffness and for safe handling. For this box assembly let us create the hem flanges.

Mirror body:

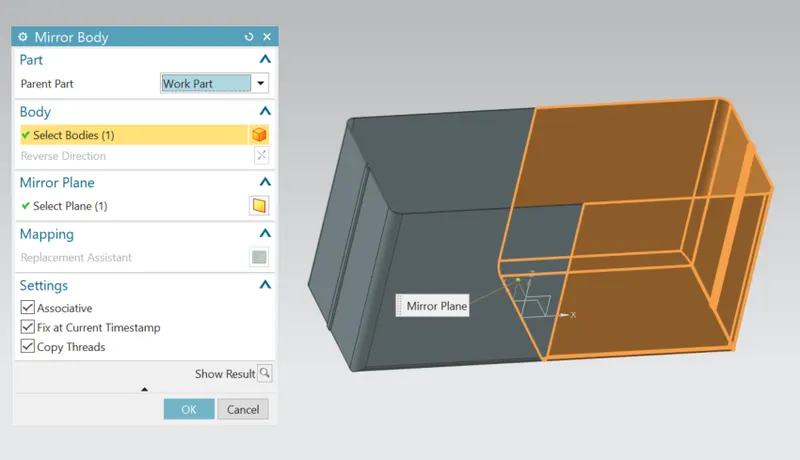

Using mirror body feature to mirror the half body about YZ plane.

Unite:

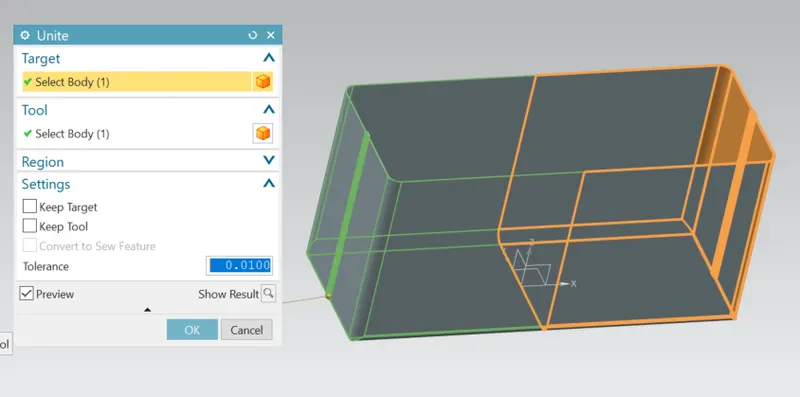

Unite feature is used to combine two different bodies which are in contact. Using unite feature to combine the body before the mirror and after the mirror feature.

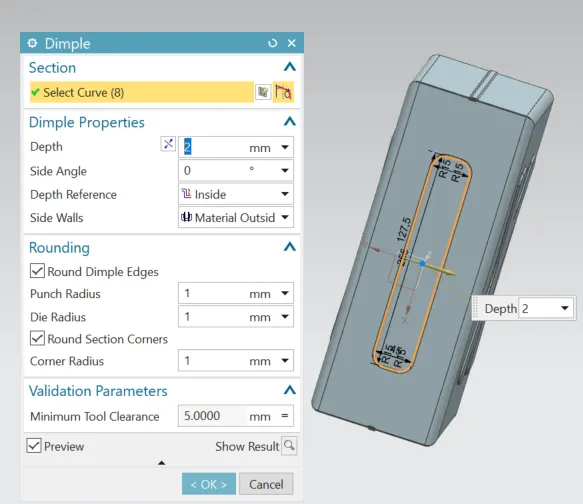

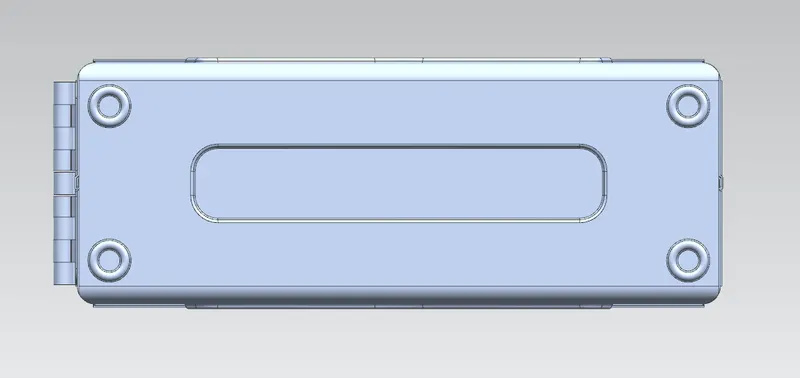

Dimple:

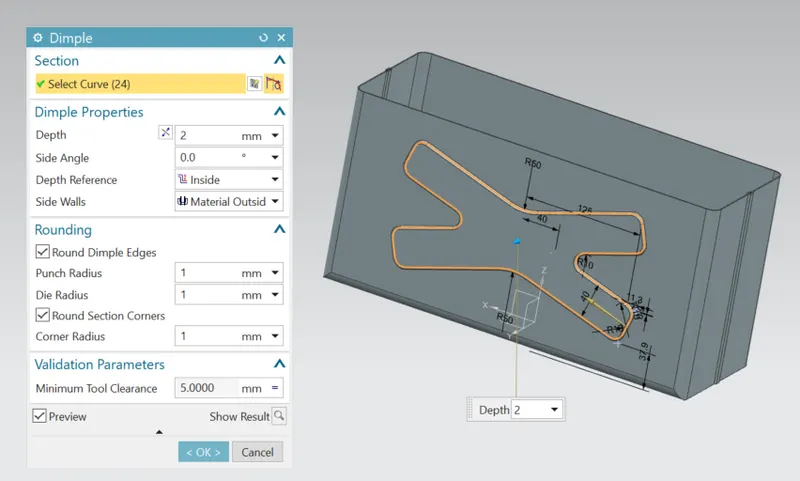

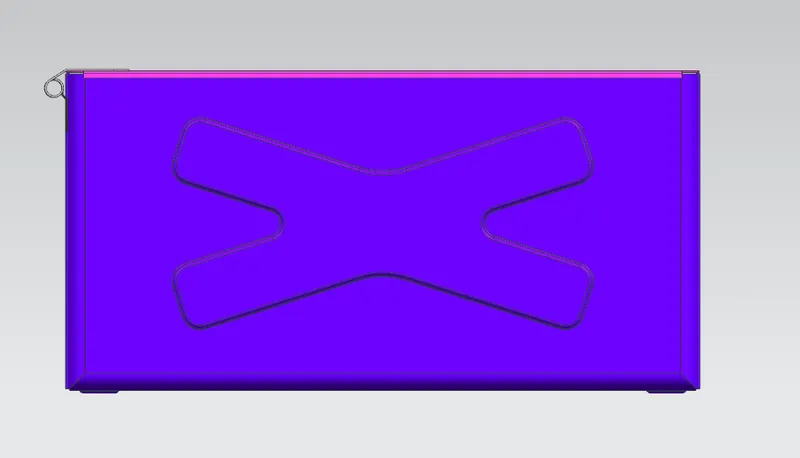

Add dimple on adjacent sides using given dimensions and use the mirror feature and add another dimple at the bottom side

Unbend and Rebend:

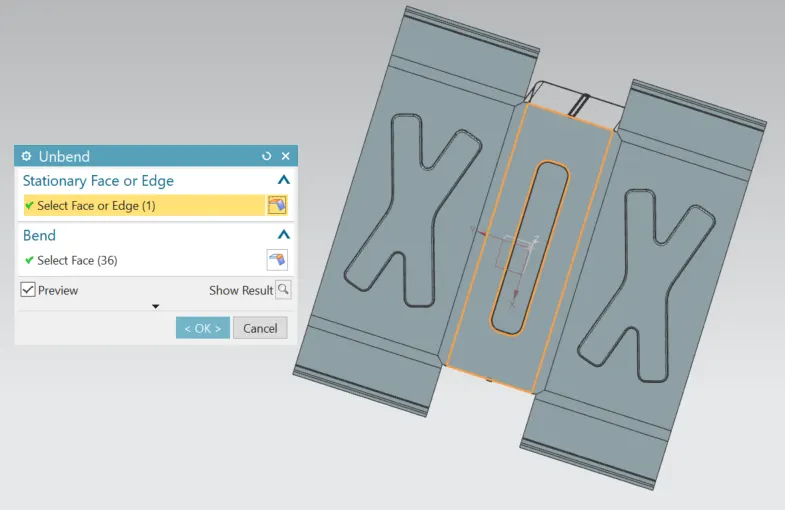

Unbend and rebend the metal sheet.

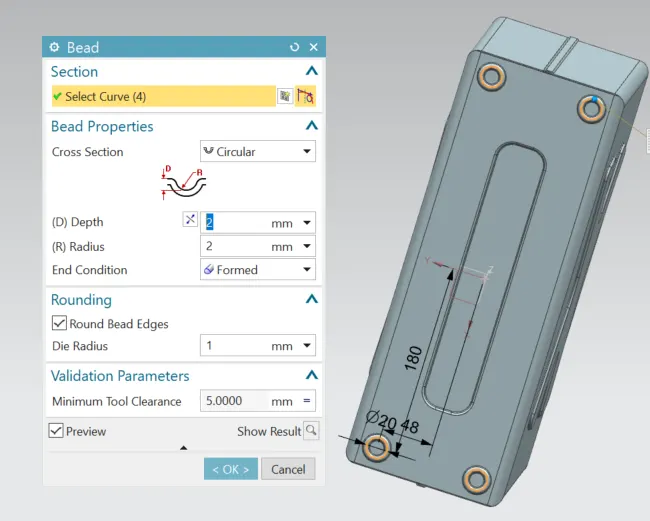

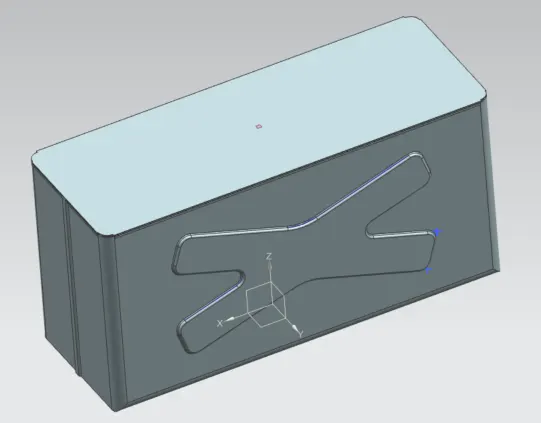

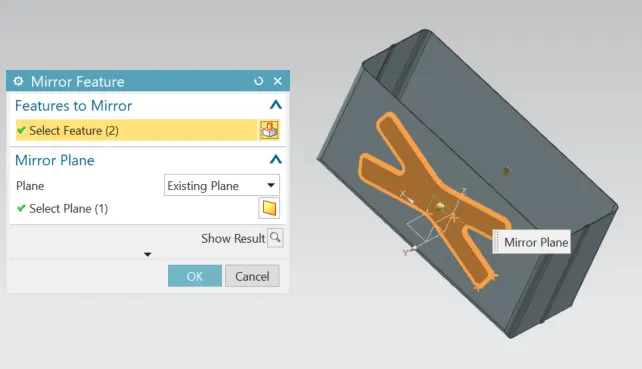

Beads:

Beads are similar feature like dimple the only difference is that by using dimple we lift an area while in bead we lift the contour of the sketch. It also added to strengthen the component. Adding beads now as shown below.

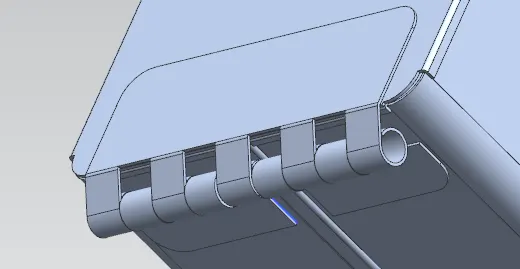

Add Hem flange:

Add hem along all upper edges of plates using given dimensions.

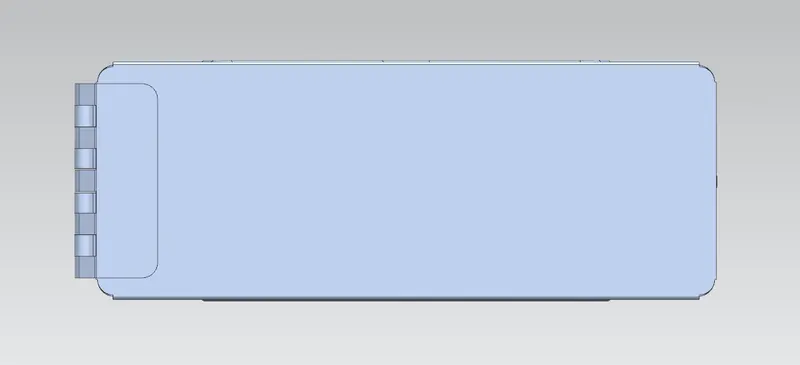

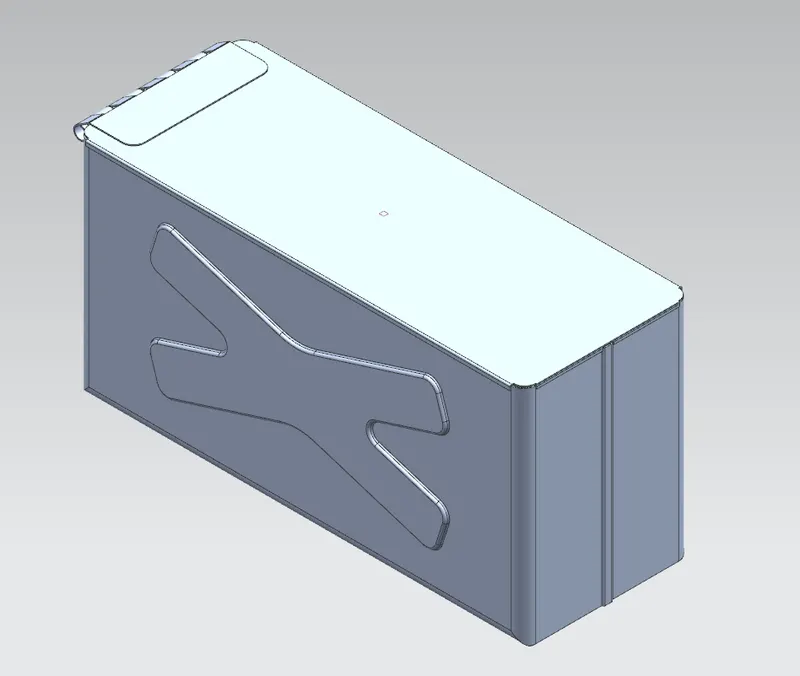

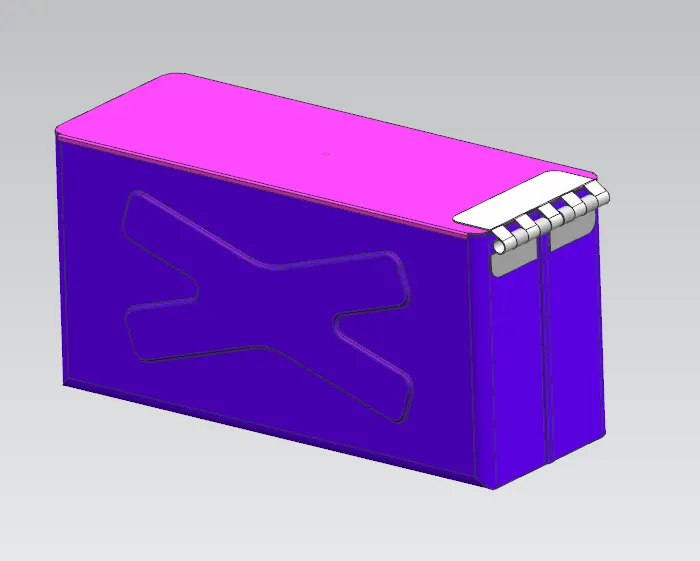

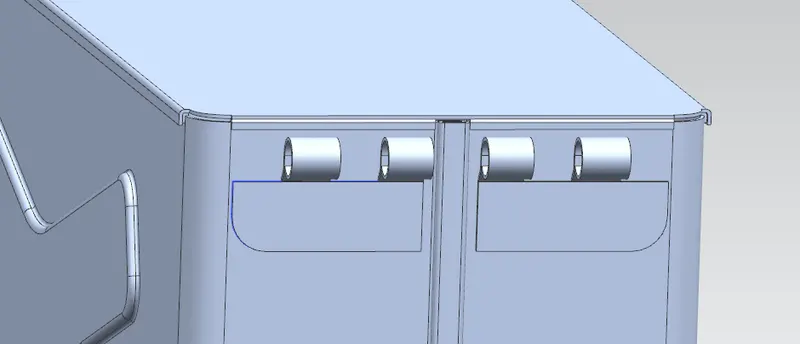

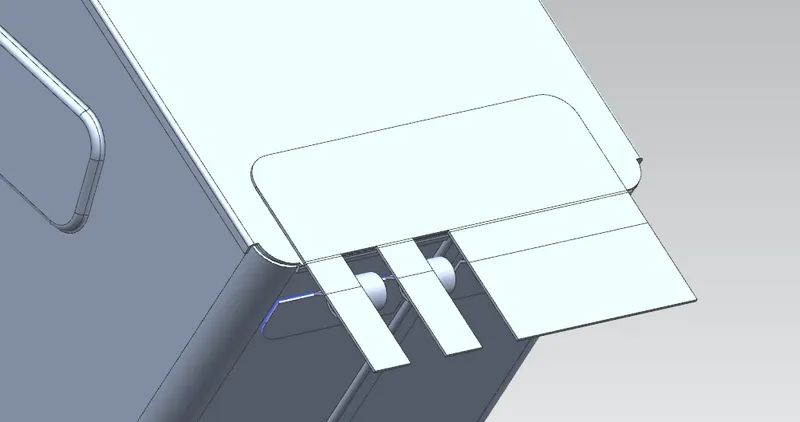

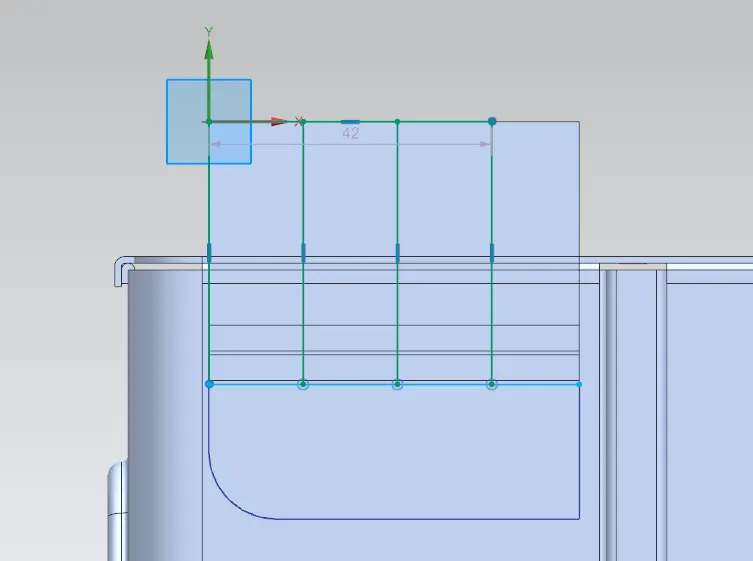

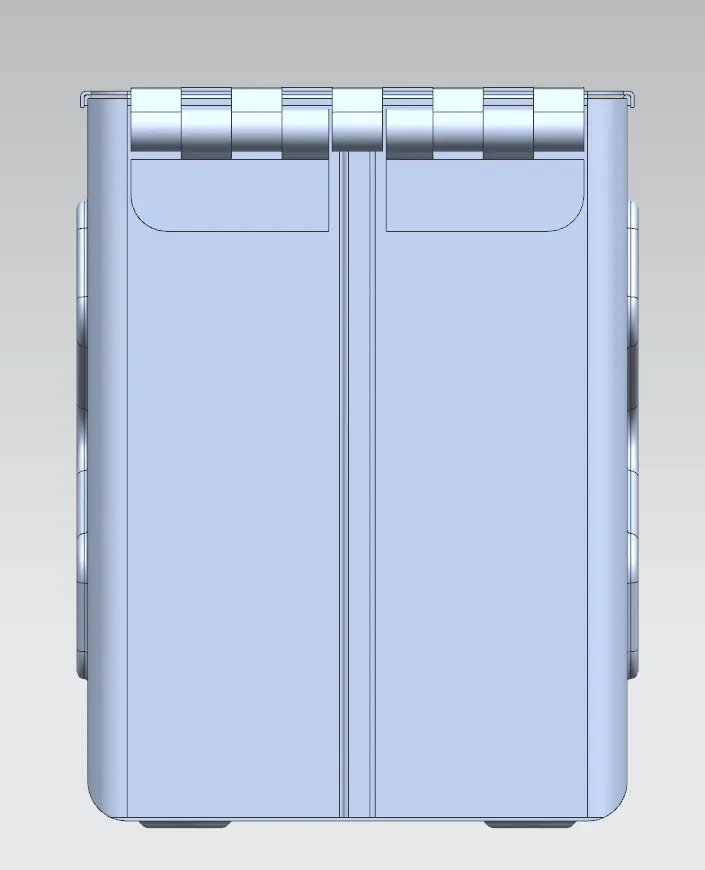

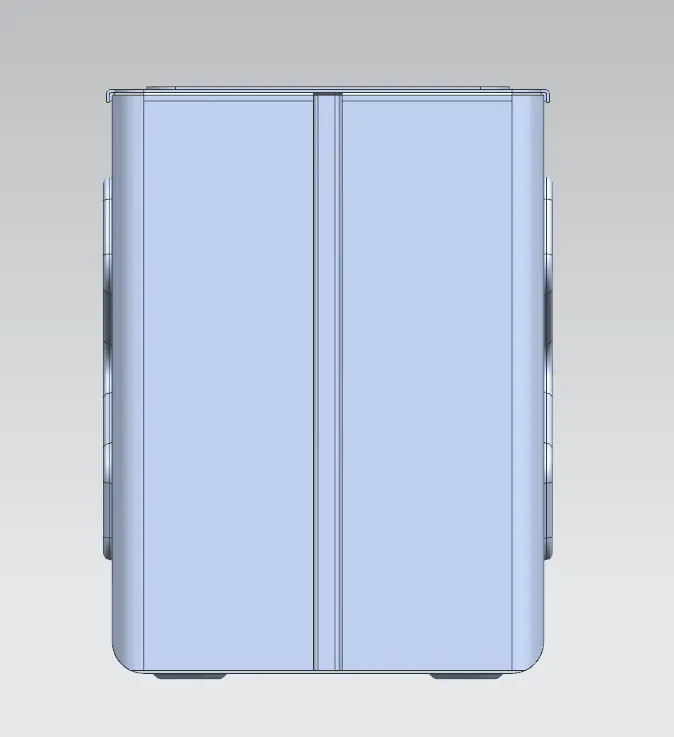

Lid creation:

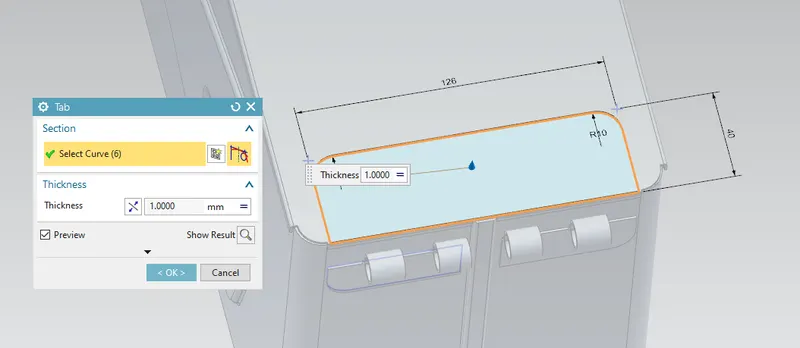

For creating the lid for the box, a datum plane was created at a distance of 202 mm from XY plane. The sketch was created by taking the reference of the edges from the top view of the box design. Then the base tab was created with the sketch to create the lid.
