Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

Title of the project :-

Advanced sheet metal design uding NX CAD Box assembly.

Objective :-

To design a box type of the model and assembly to using the NX Cad sheetmetal application.

Introduction:-

Sheet Metal ;

It is a metal formed by an industrial process into thin and flat place. Sheet metal is one of the fundamental form used in metal work and it can be cut their and bend into variety of shapes.

Application :-

Aircraft bodies, automobile bodies, ute3nsils, used for domestic purpose, bevarage can. The sheet metal application provides an environment for the design of sheetmetal parts used in machinery and automotive, aerospace etc.

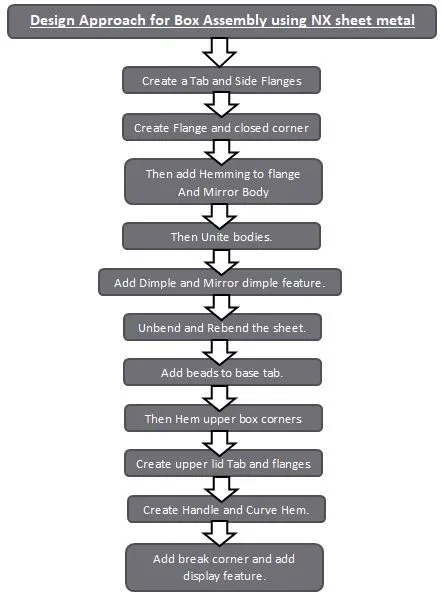

Methodology :-

Description :-

• Tab

it is used to base feature exturding the sketch and thickness.

• Flange

This command used to angle of the planar add into two faces.

• Closed Corner

This command is used to two flange are one operation and close the corner.

• Hem flange

This command used to folding purpose and safe handling.

• Mirror body

it is used to mirror the part.

• Unite

This command used to combine two parts into one part.

• Dimple

It is used to lift an area of the model inside sketch that and stamping tool.

• Mirror feature

This command is used to mirror the other side of the sketch.

• Unbend

It is used to rebend the falttern sheet material.

• Rebend

It is used to rebend the flattern sheet material.

• Bead

It is used to contour sketch and stiffen sheet material.

• Datum plane

This feature is used to project a new plane.

• Normal Cutout

This command is used to remove the unwanted material.

• Break Corner

This command is used to chamfer and shar corners to tab flange.

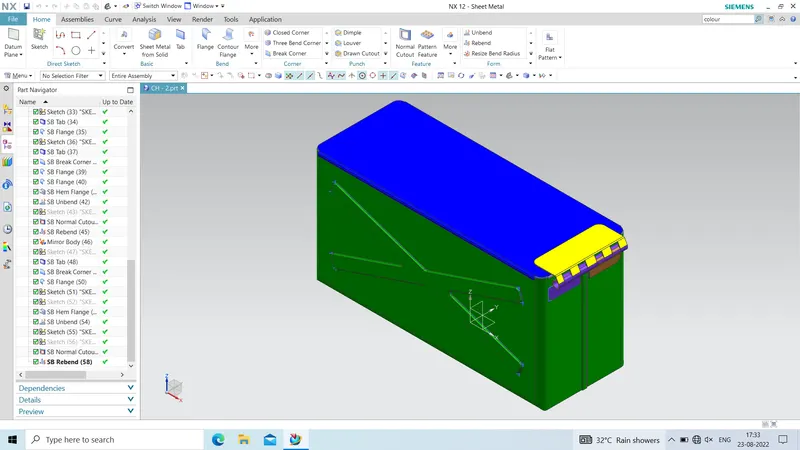

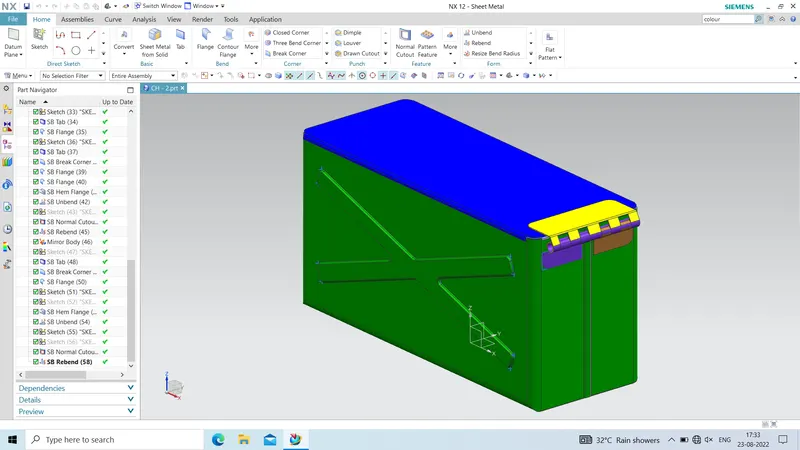

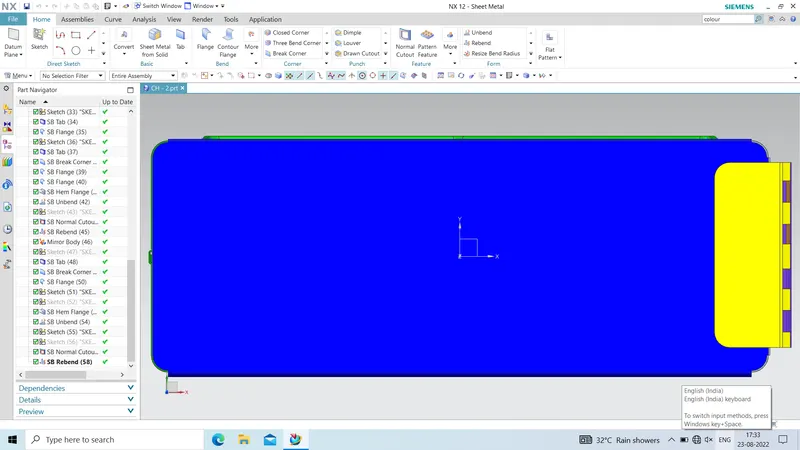

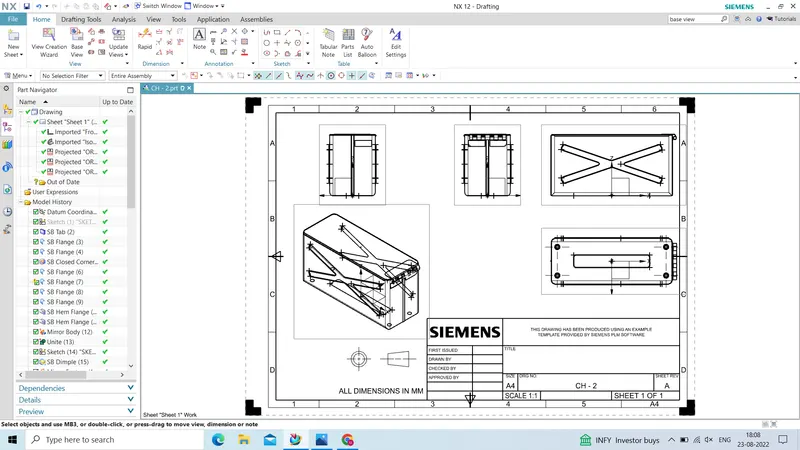

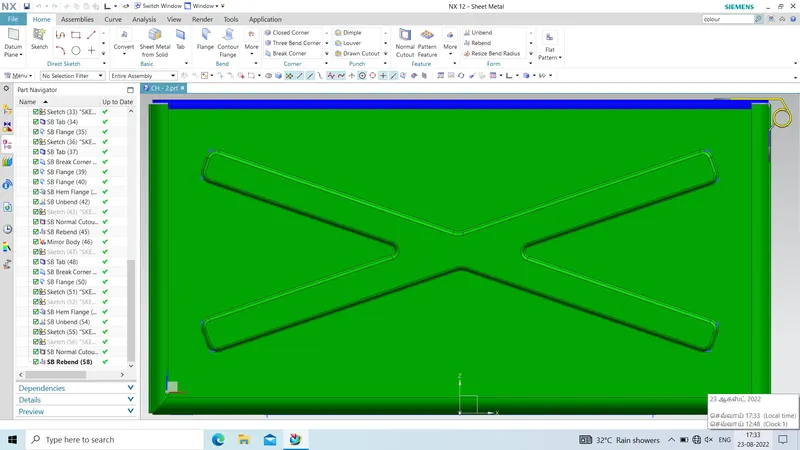

Screen Shots :-

Conclusion :-

The given casing project of the box assembly is executed and explained successfully.
