3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Ans 1:-

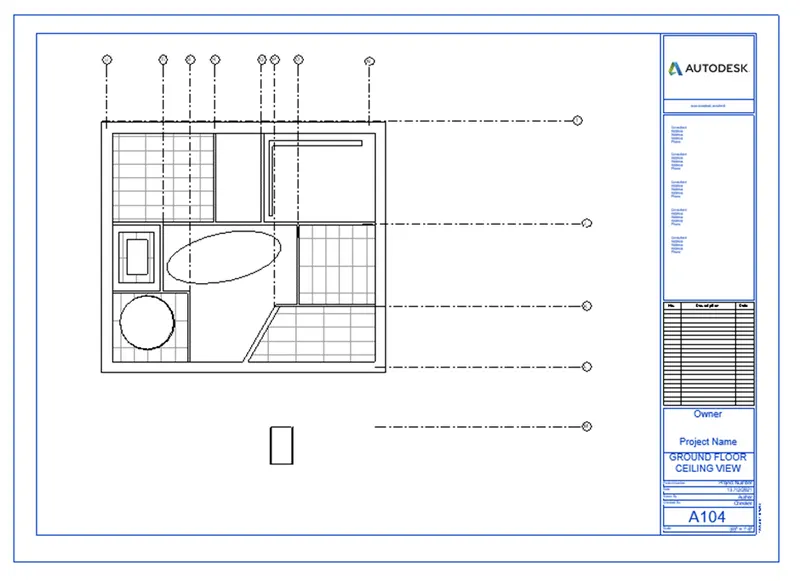

Aim:- To model a ceiling from the architecture tab above the first floor level

Commands used: Architecture , Ceiling

Procedure:

1. Open the model

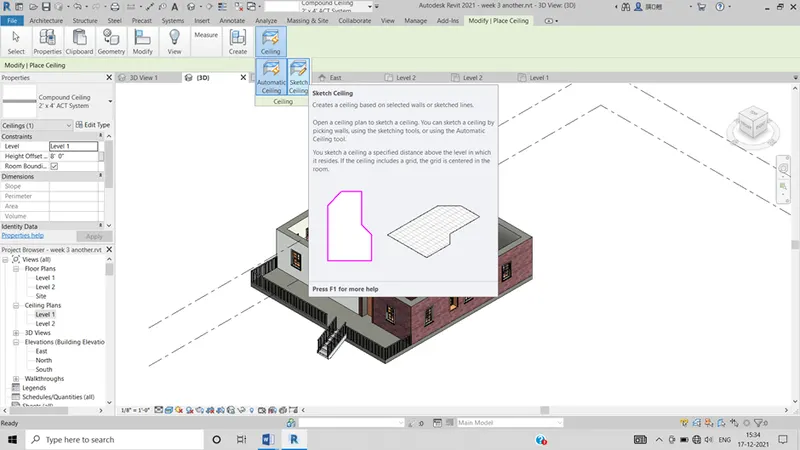

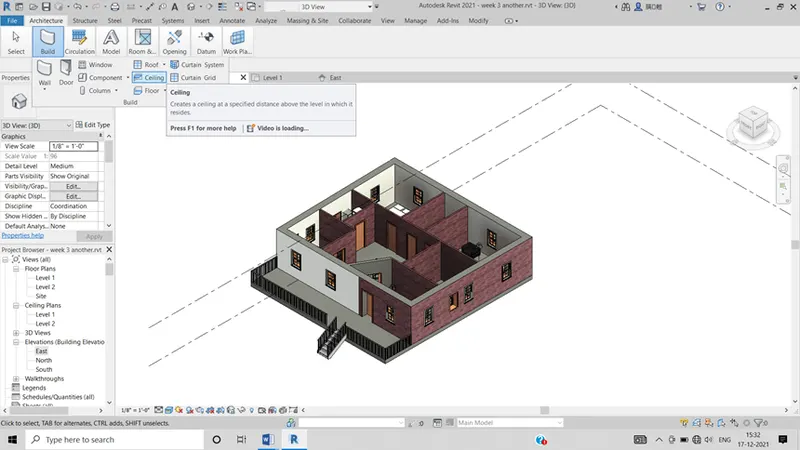

2. Click on the architecture tab and select ceiling
3. Select the celing and click on sketch ceiling
4. 1. Draw the ceiling in required shapes and adjust the height and type of material required in ceiling and click ok.

   Result:

   Ans 2:

   Aim:-To model a roof above the ceiling by selecting the foot prints of ceiling.

   Commands used:- Architecture. Roof

   Procedure:

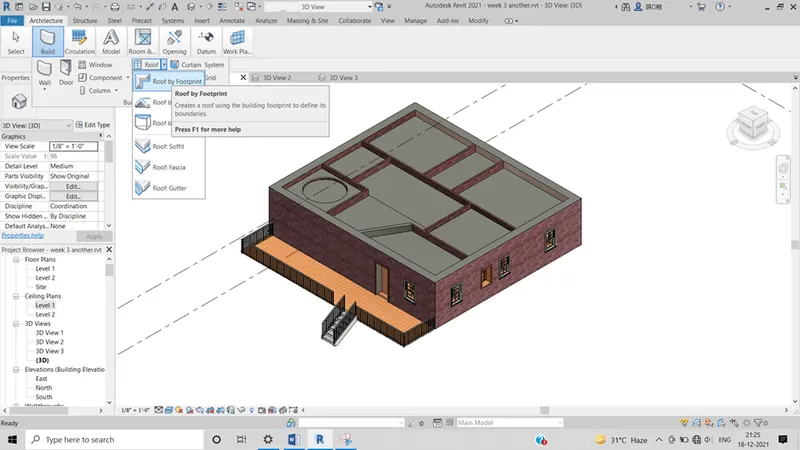

   1. Open the architecture toolbar and select the roof by foot print option as shown
5. Draw the roof and adjust the slope in the propert panel shown at the left corner click ok.
6. Result:

Ans 3:

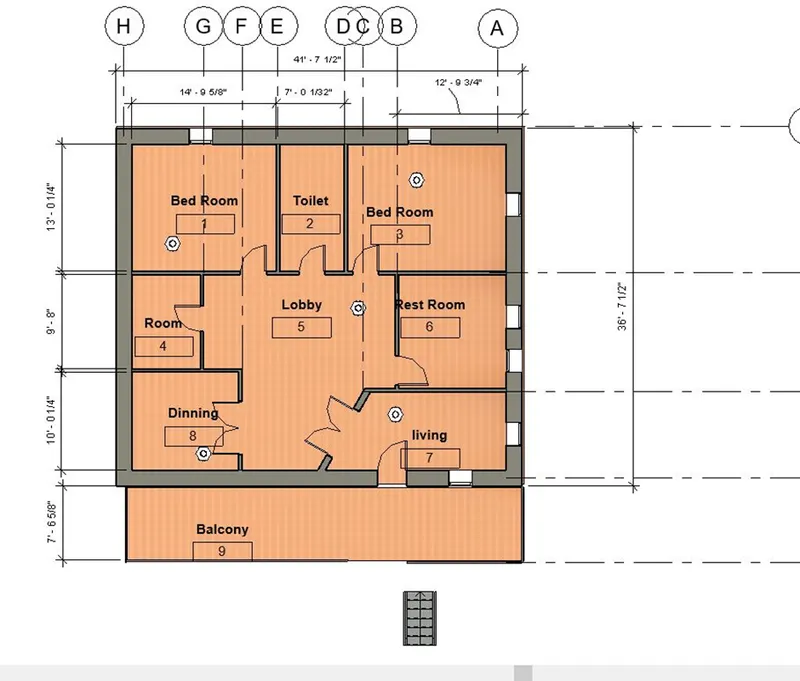

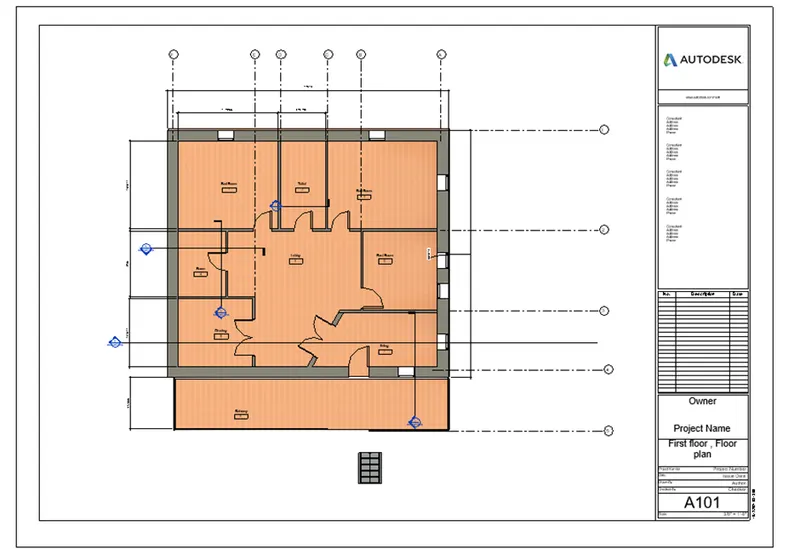

Aim:-to create the plan views for ground floor level and FF level including the walls ,floors and components and to separate them to architecture structural plans

Commands used:

The structural plan view is the default view when you start a new project using structural template .

Most projects include at least one structural plan ,new structural plan views are created automatically as you add new level to projects

Th e floor plan view is the default view in anew architectural project. Most projects include at least one floor plan

Procedure

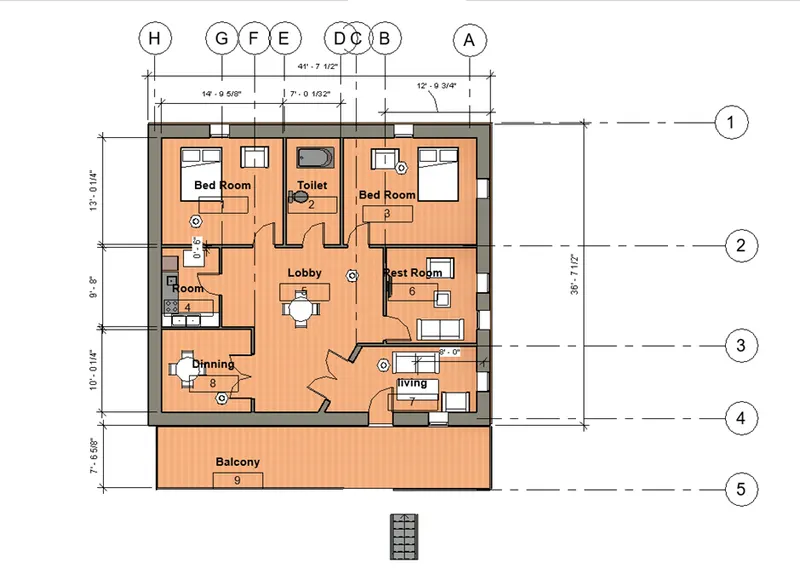

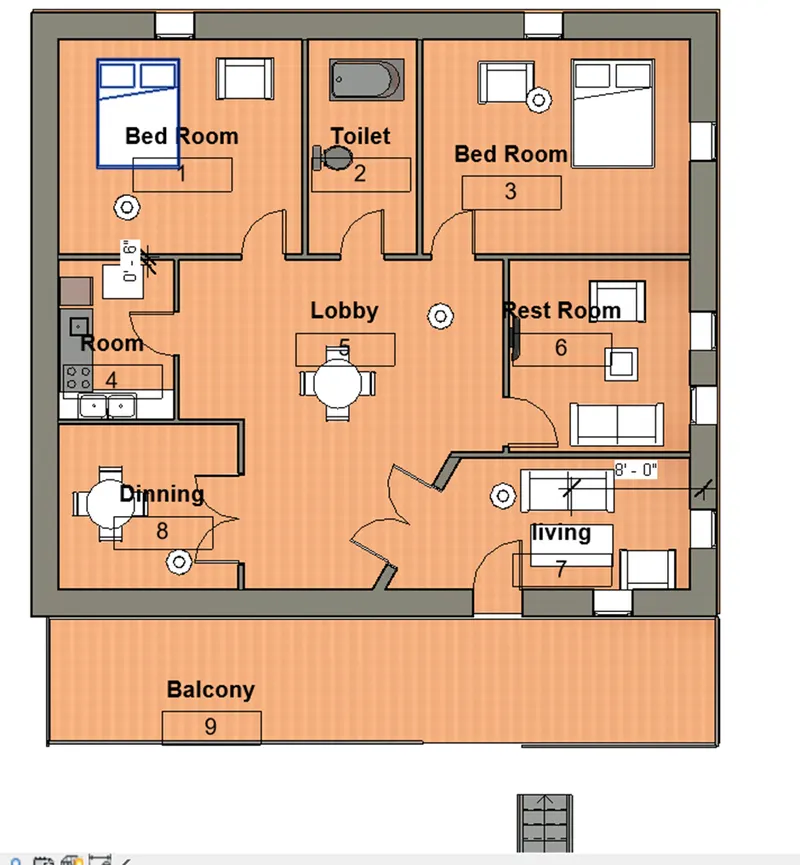

1.first we draw the architectural plans of the FF and SF as shown below

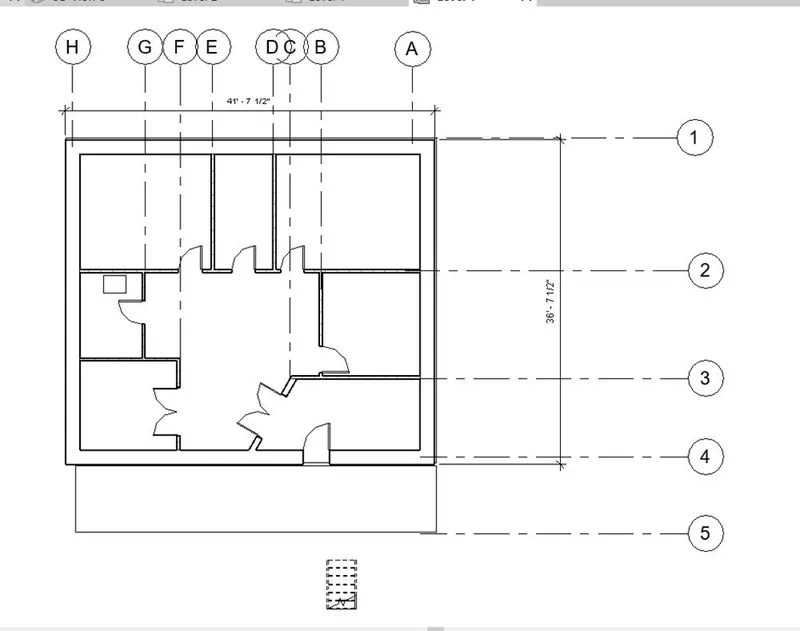

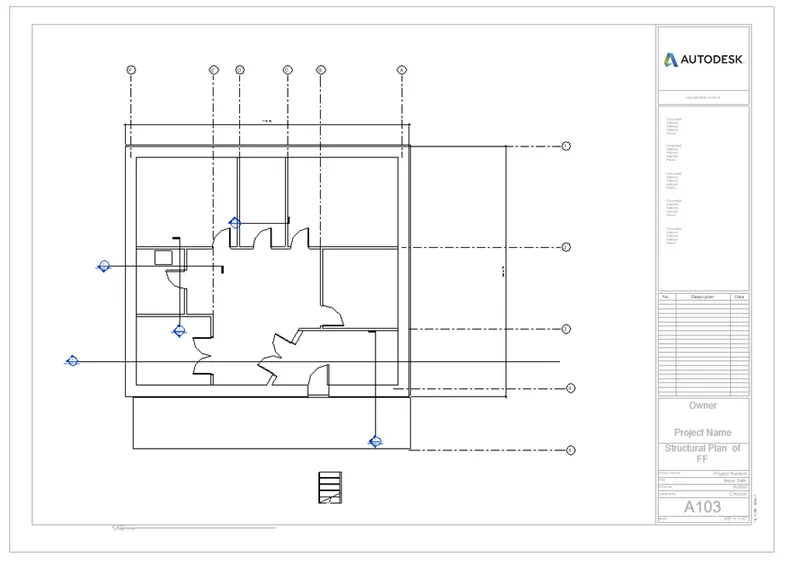

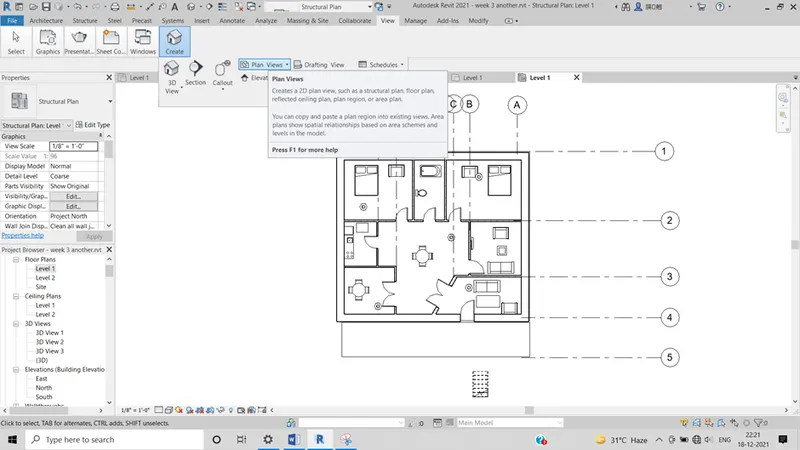

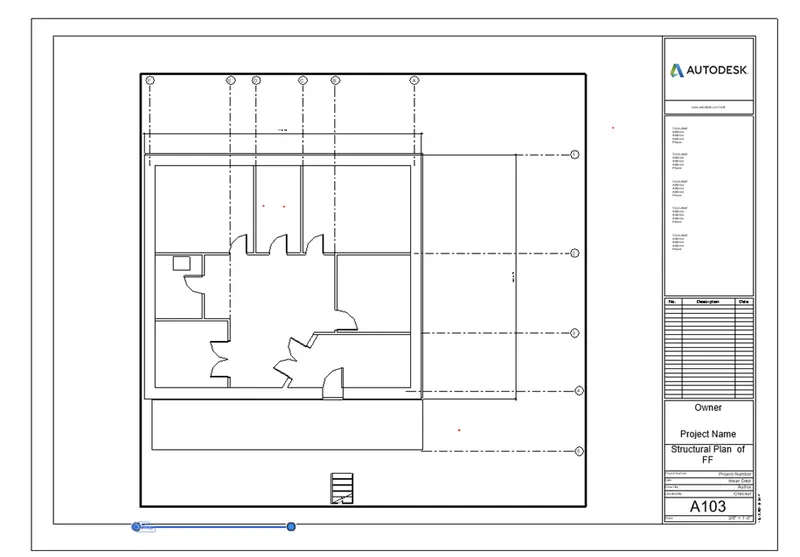

2. next we draw the structural plans for ff and sf levels for this go to view tool bar there under #d panel select the structural plans

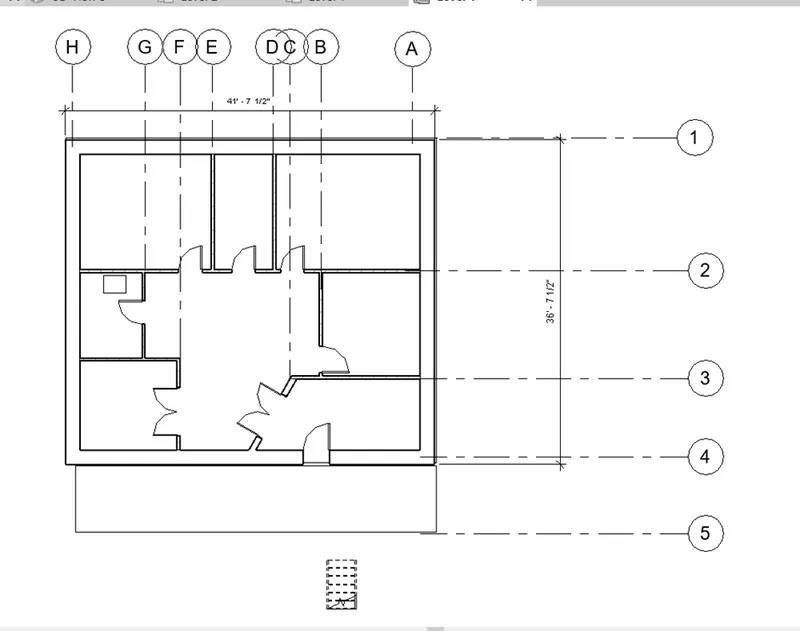

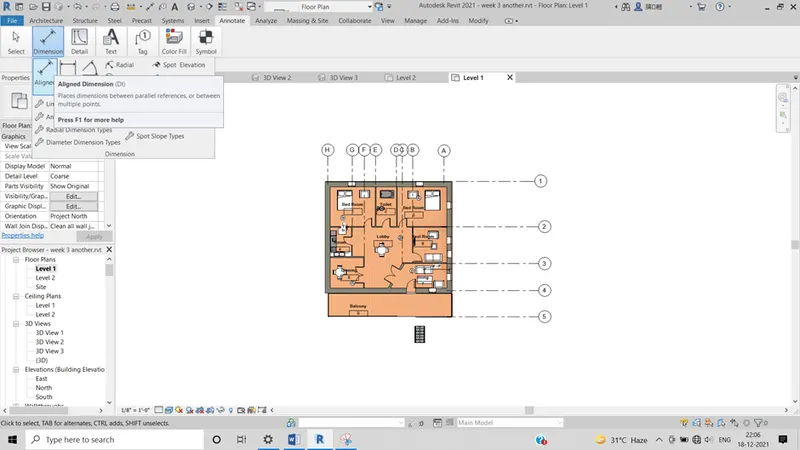

   Ans 3:- Aim:- to Add the dimensions to all the walls and floors with reference to the grids

   Commands used: Architecture, Datum

   Procedure

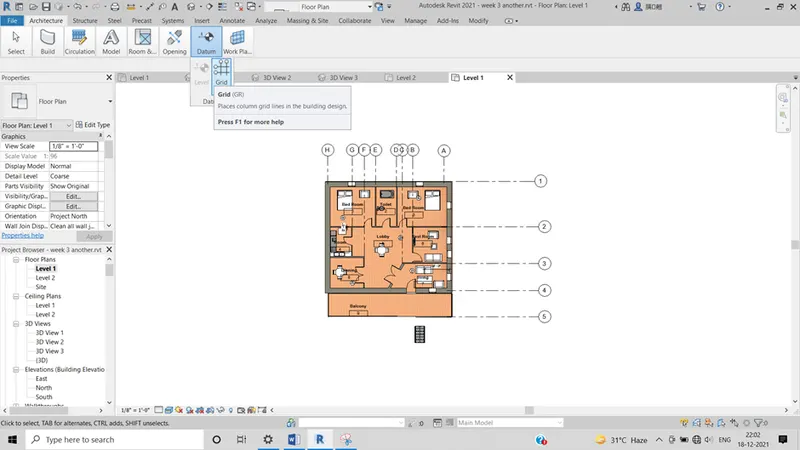

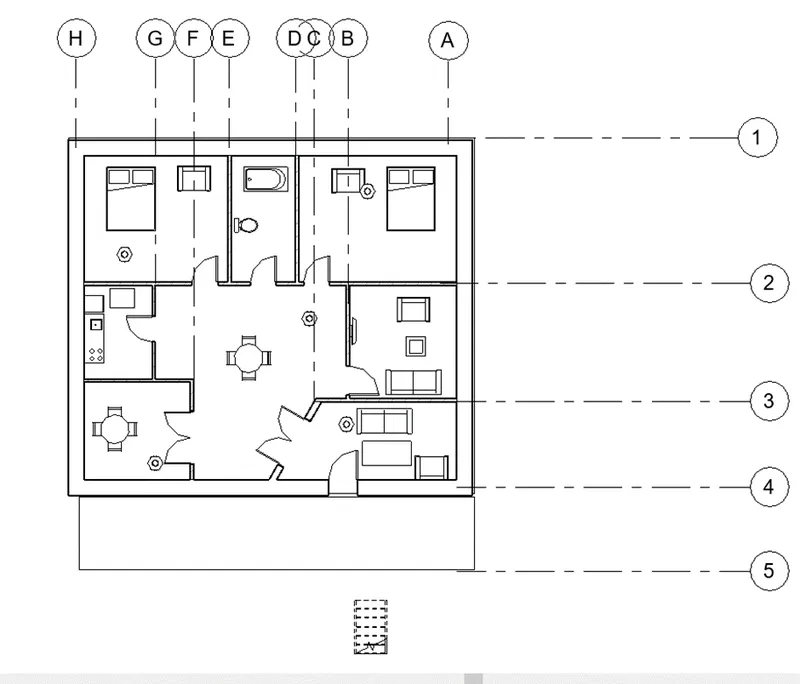

   1. Open the architecture tool bar and click on datums and then grid
   2.next step is to add the grids and named them accordingly3.Nest go to annotate toolbar and select the annotate and click on dimensions
3. 5.
4. start drawing the dimensions
5. For the structural plan go to view toolbar and select on the create panel and click on structural panel.
6.

   Ans 5:

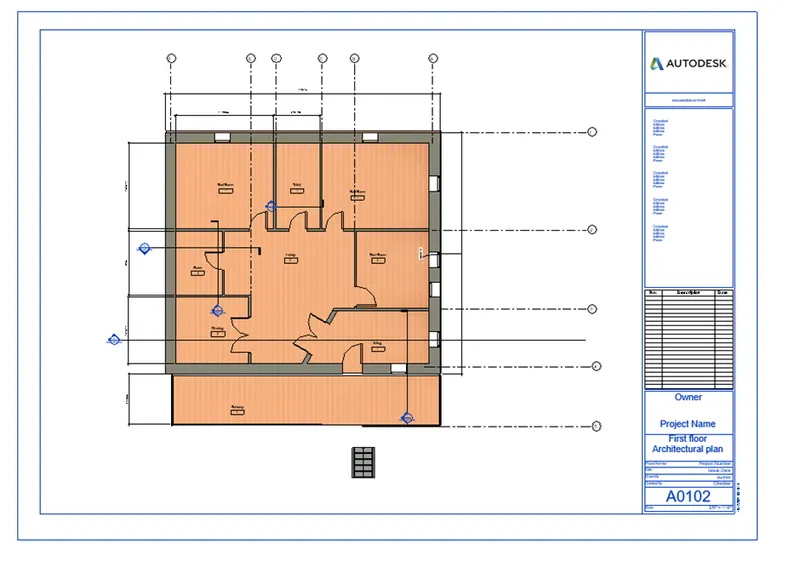

   Aim:-To create the sheet template from the view tab and to add the appropriate views

   Commands used: view elevations

   Procedure

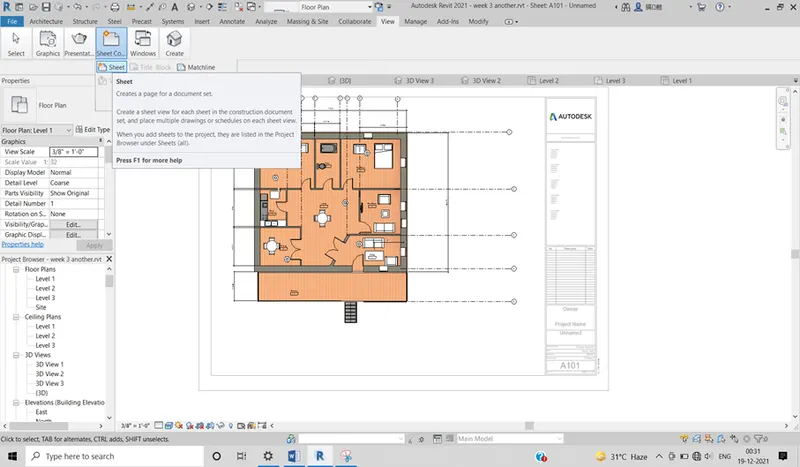

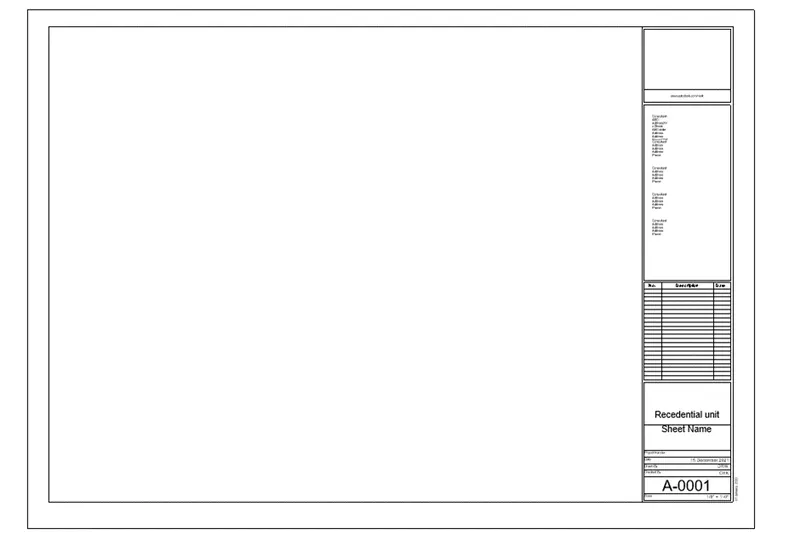

   1.Click on the view toolbar and click on sheets2. A sheet will be appeared on the screen edit the details in the right corner
7. Add the required details by editing it

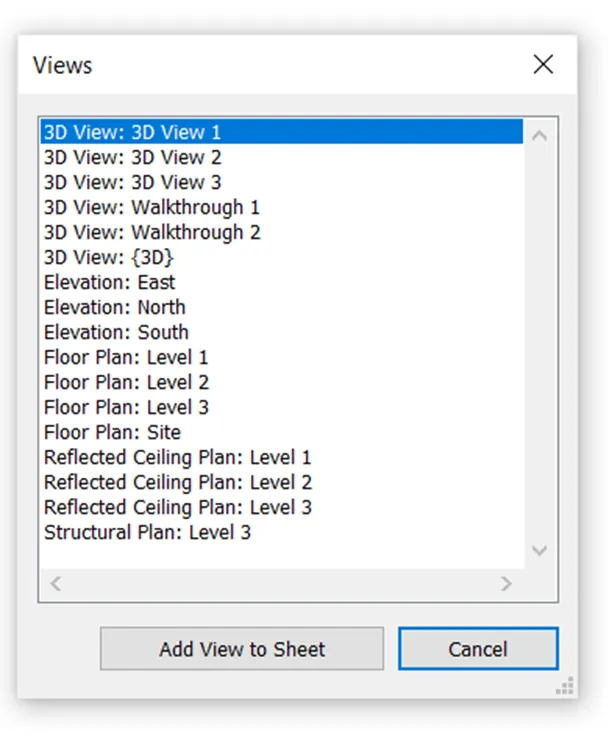

8. Go to view tool bar and select the tab view and insert the required views and click ADD view to sheet

ans 6:-

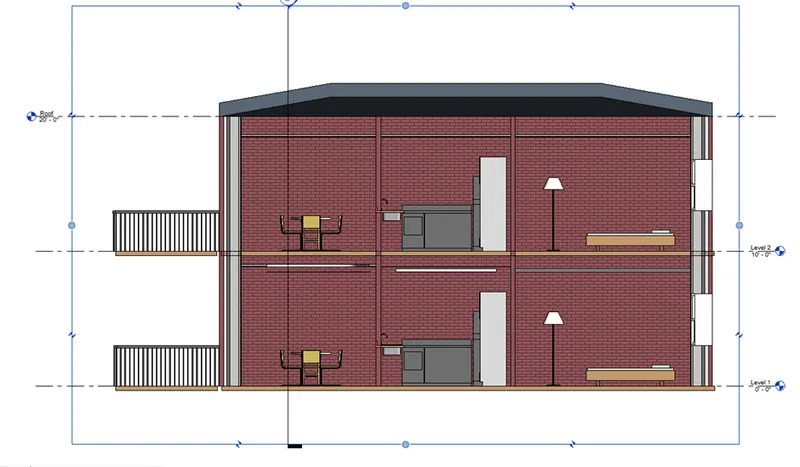

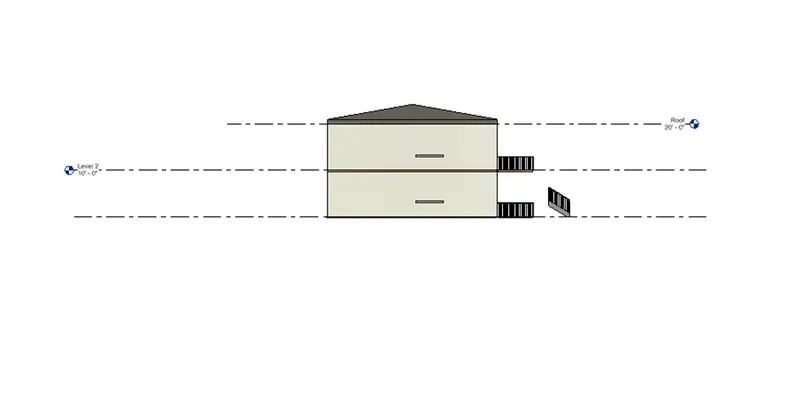

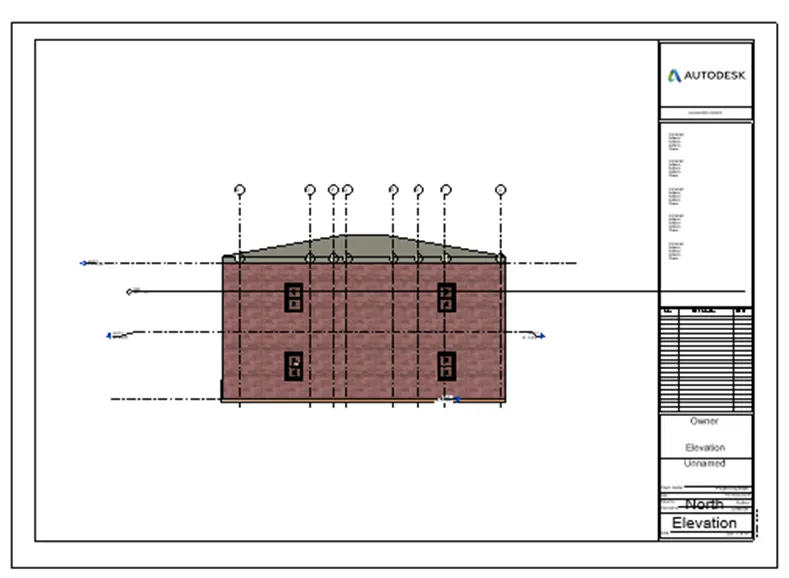

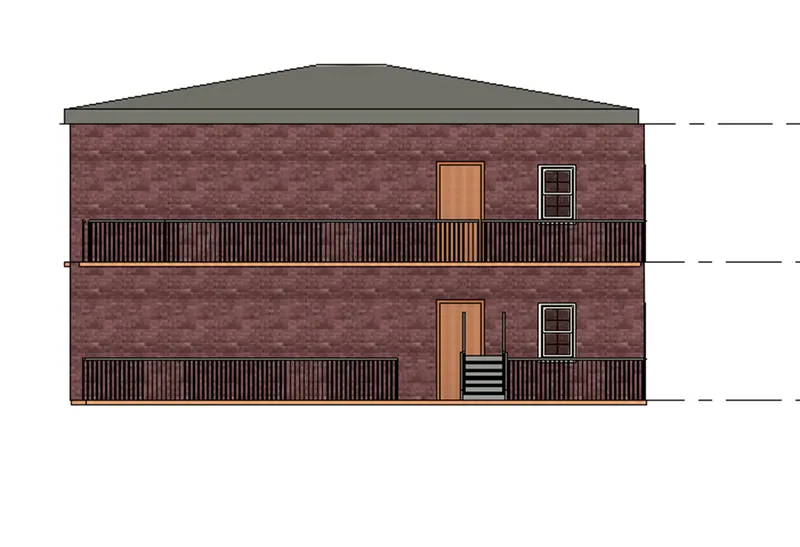

Aim:- To create the elevation views

Commands used:- views. Elevations

Procedure:-

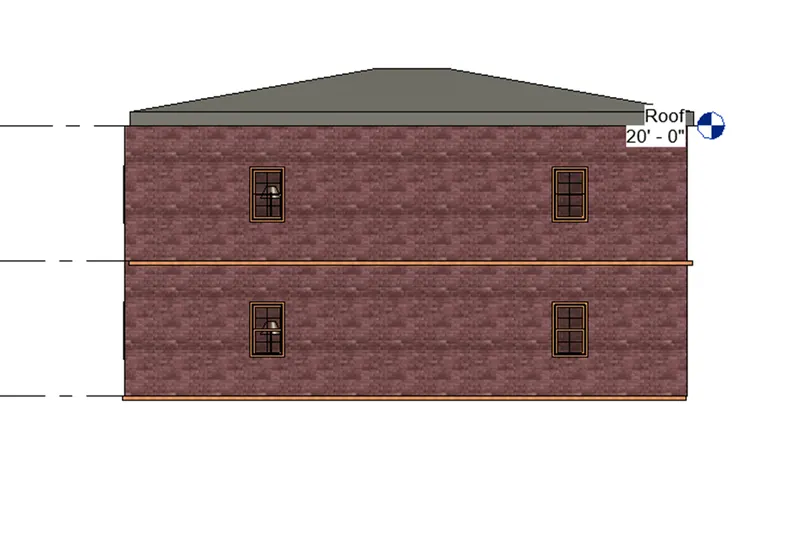

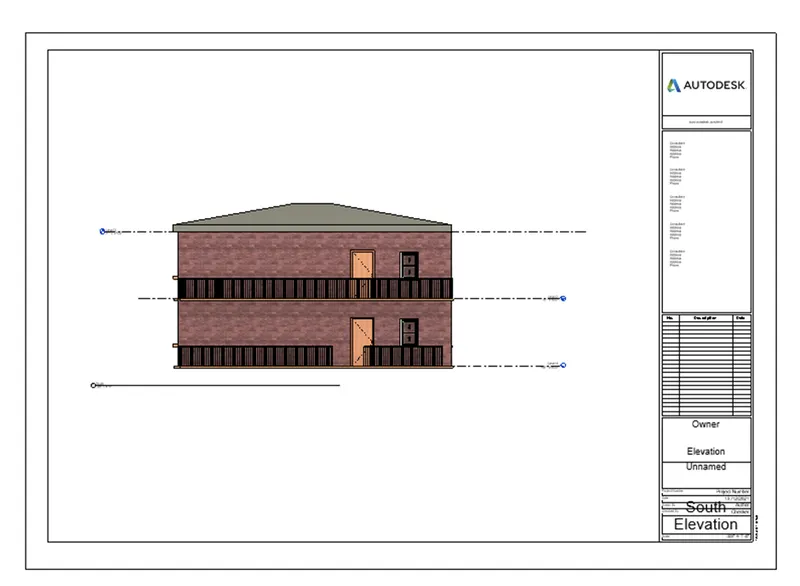

1. Go to view tool bar and click on the elevation

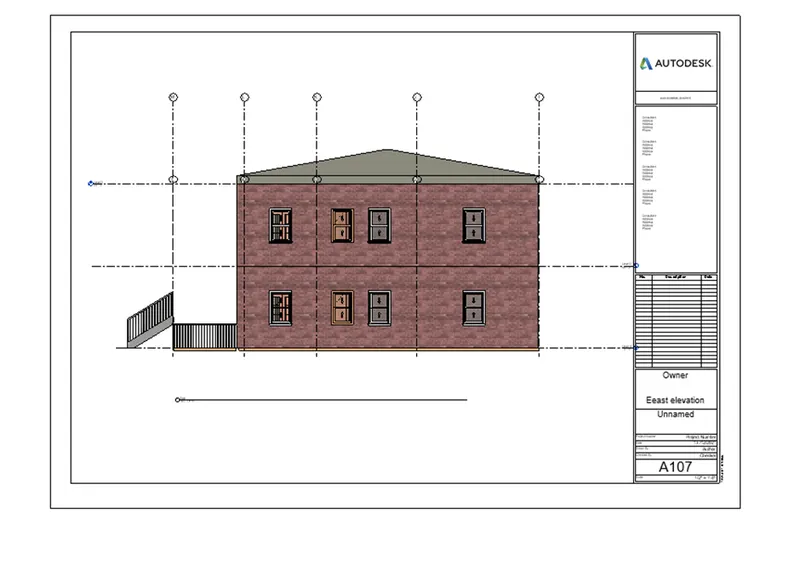

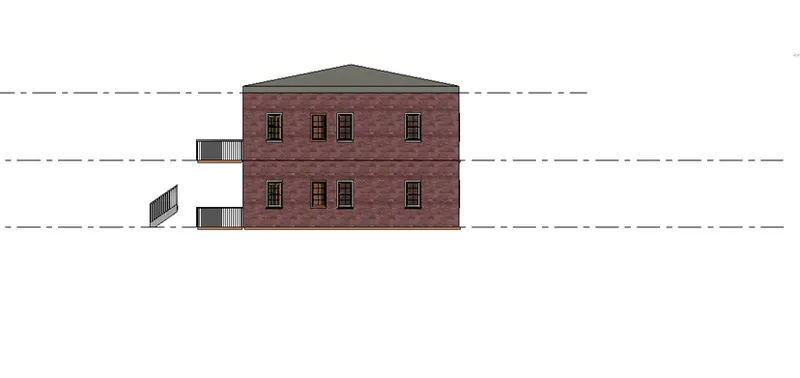

2. East viewWest viewNorth viewSouth View

   Ans 7:

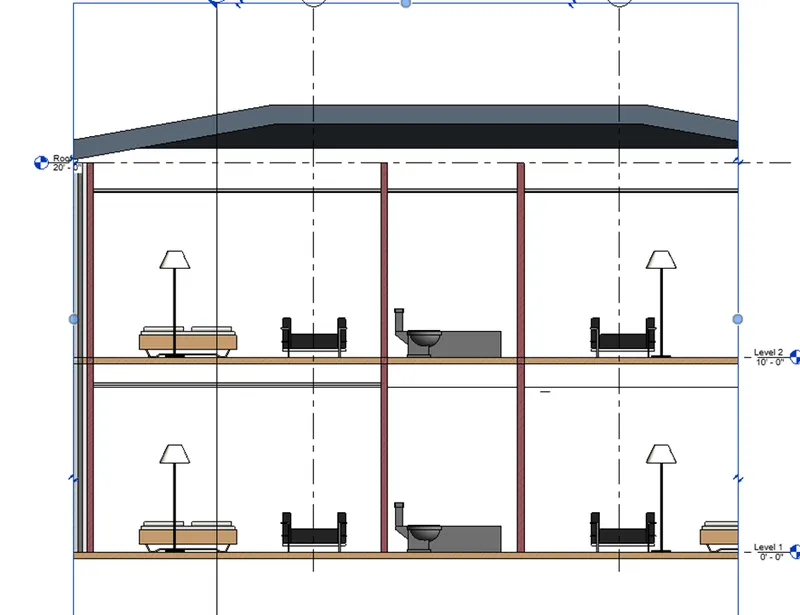

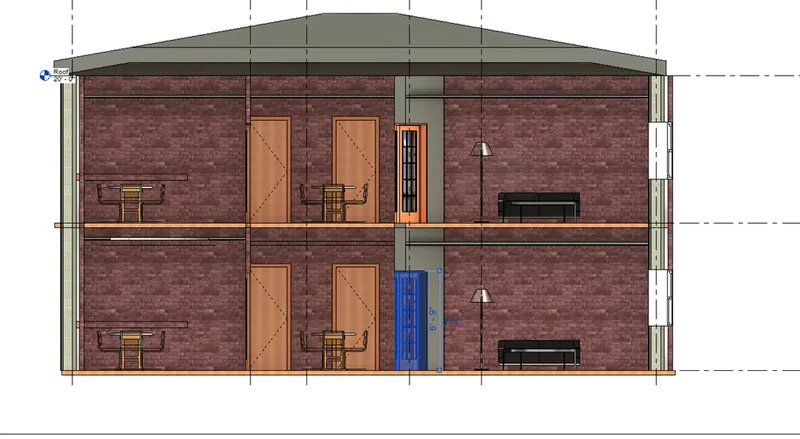

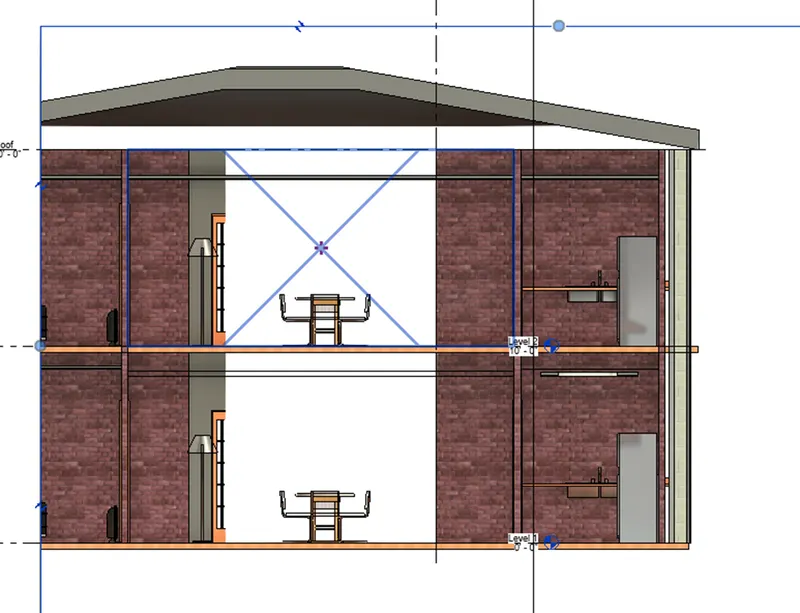

   Aim:- to produce the sectional cuts through each rooms

   Commands used:

   Procedure

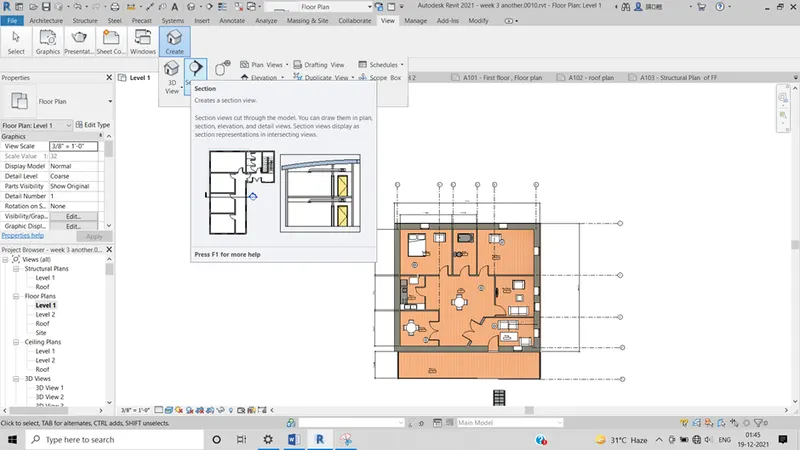

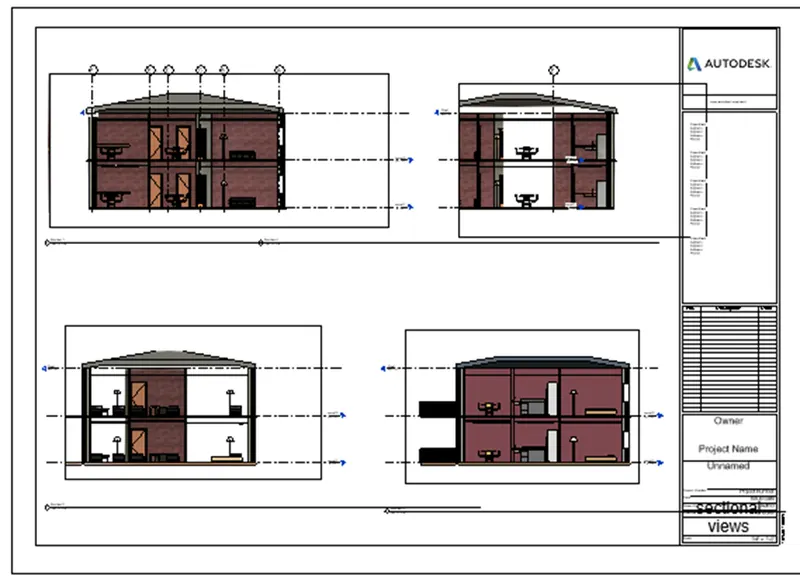

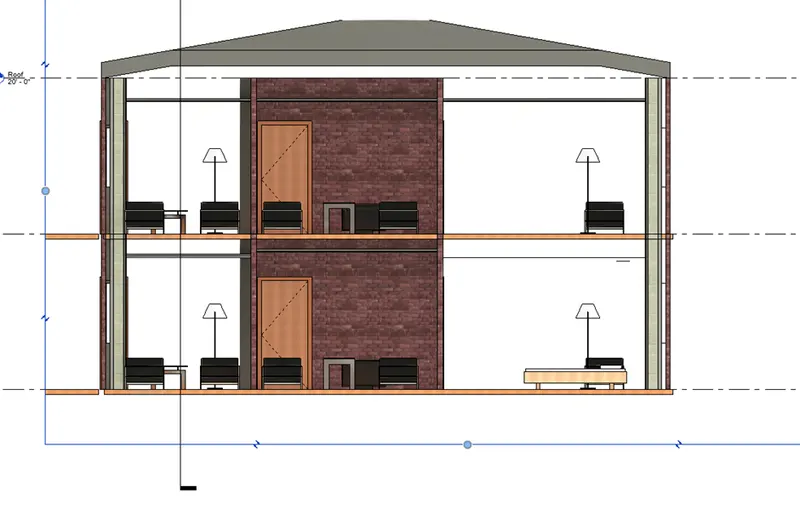

   1. Go to view toolbar and select the sections2. Sections passing through living

      Ans 8:-

      Aim:- To classify the views such as plan views,, section views and elevation views

      Tools used:- Project browser, views and sheet

      1. First we produce all the elevations go to view click on sheets
      And add the elevations

      Ans 9:

      Aim:-To create the multiple sheets

      Procedure:

      1. In the first step go to view toolbar and create the sheets
      2. From the project browser start adding the required views, section/ elevation
      3. Adjust the scale
      4. Click ok

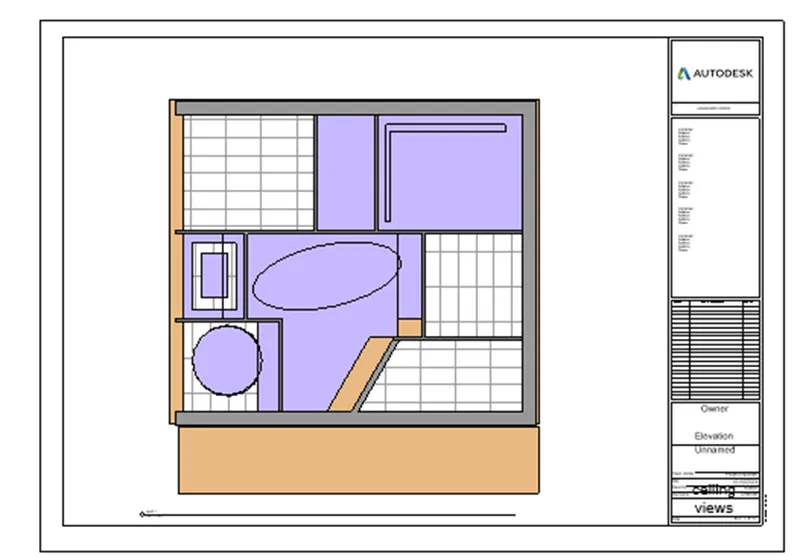

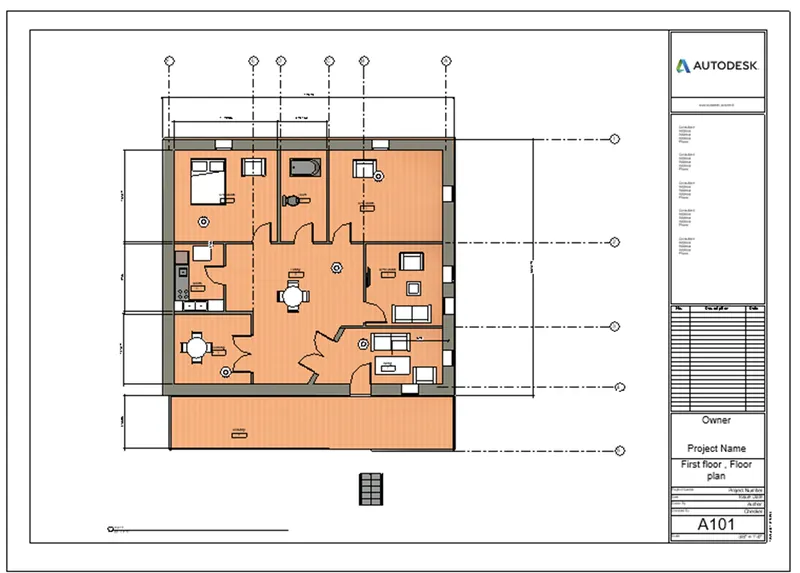

      GF and FF Architecture plan

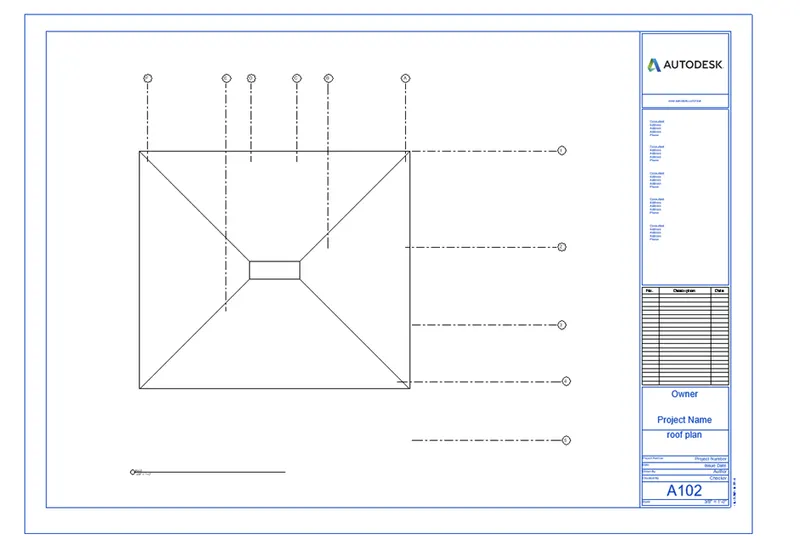

   2. Roof plan
   3.
   4. FF and GF structural plans
   5.
   6. Roof framing plan and elevations

      Ans 10:

      Aim:-to create the 3d images of All the rooms

      Procedure:-

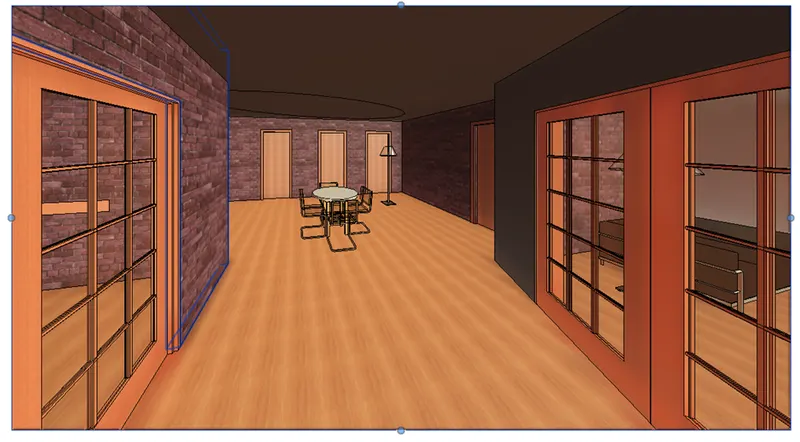

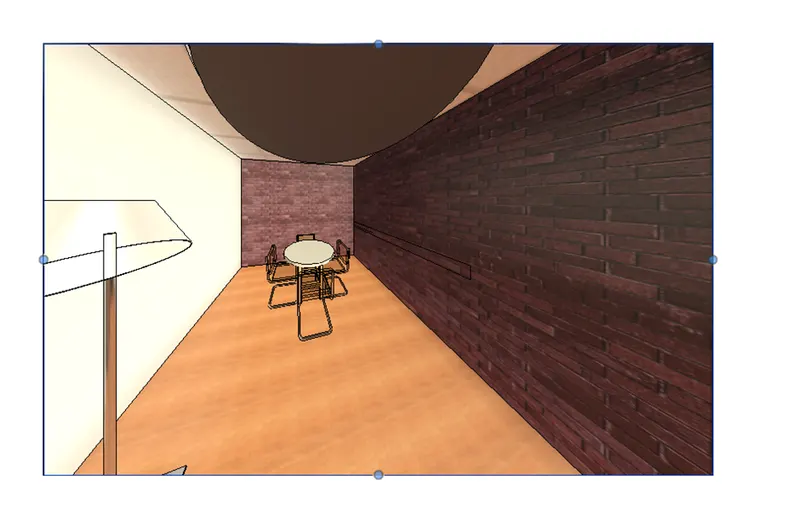

      1. Go to view and click on 3d view and camera
      2. Place the camera at the required location click ok
      3.
