3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level:

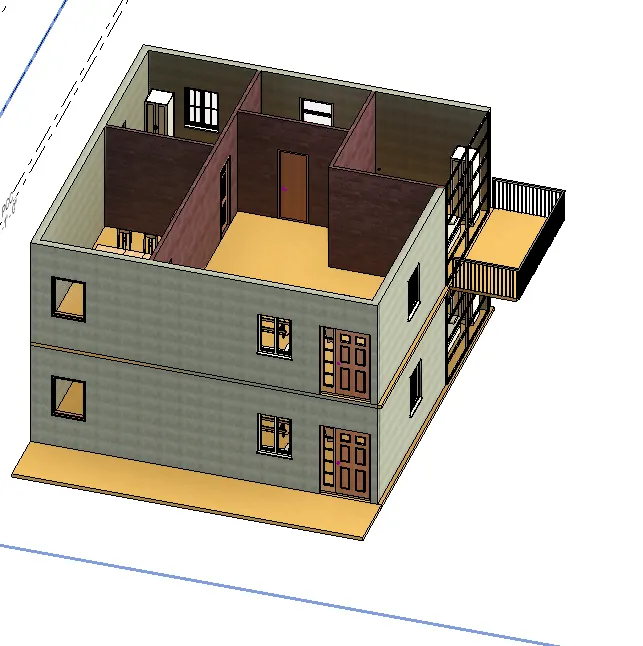

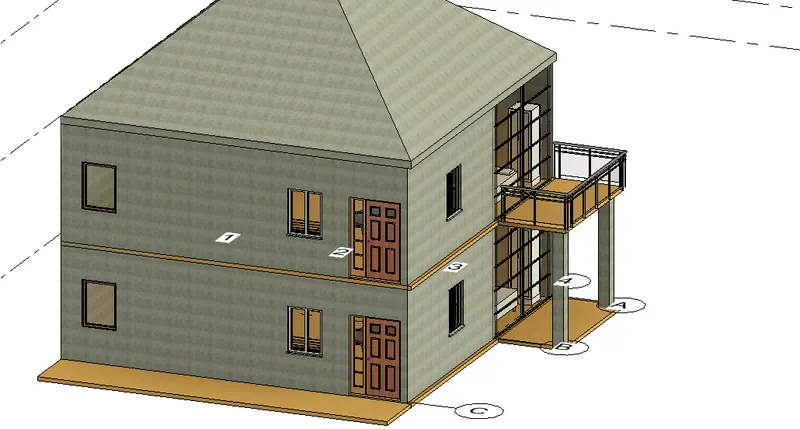

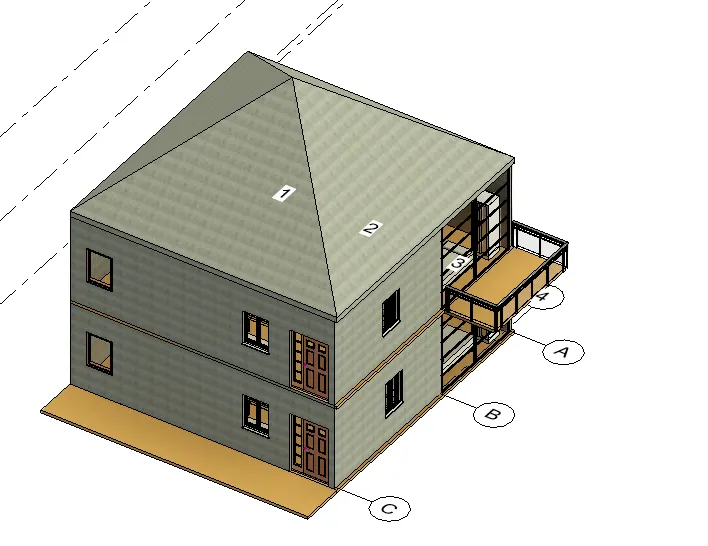

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees:

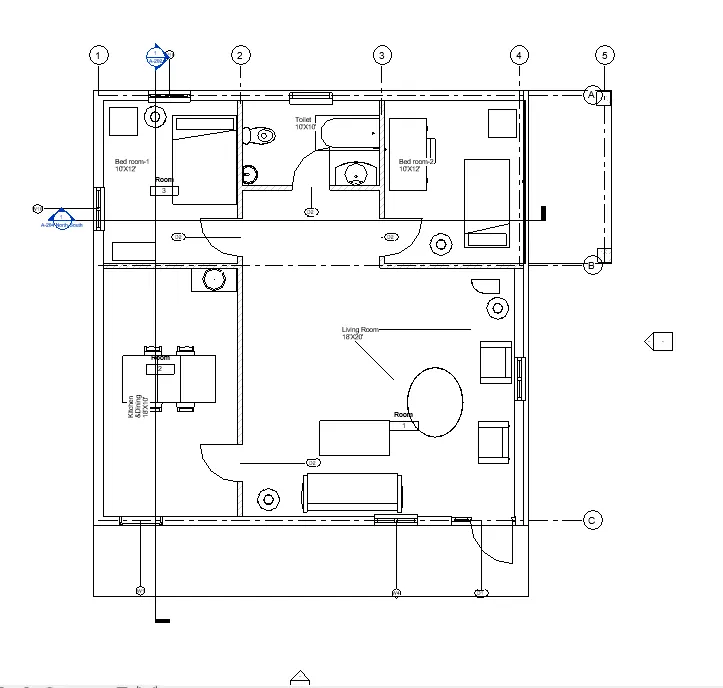

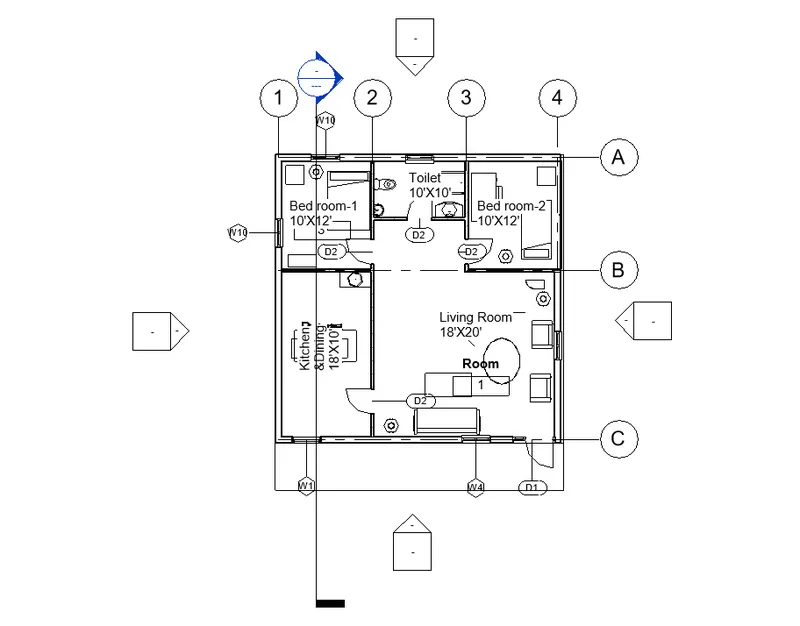

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans:

4)Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file:

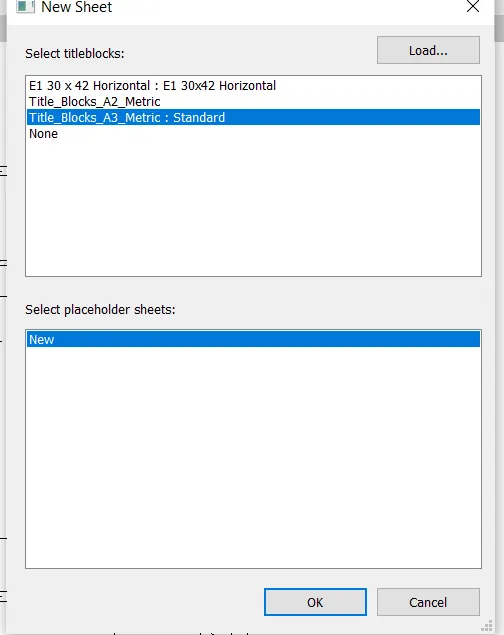

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views:

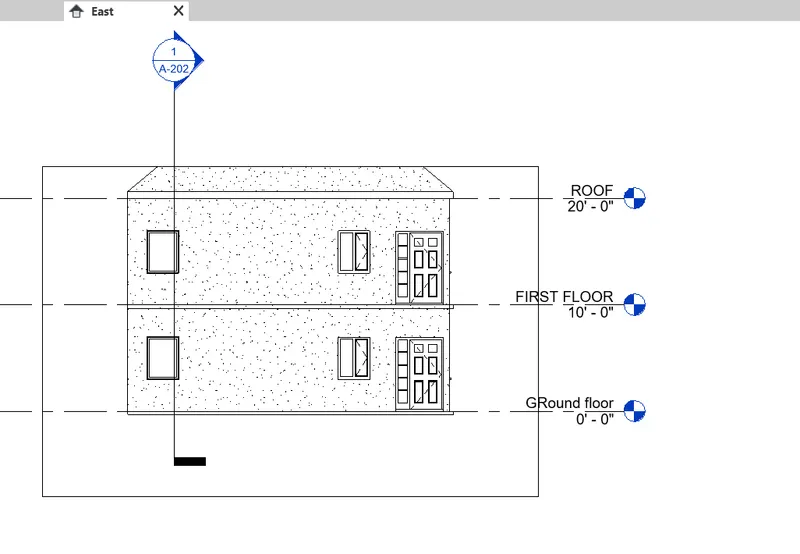

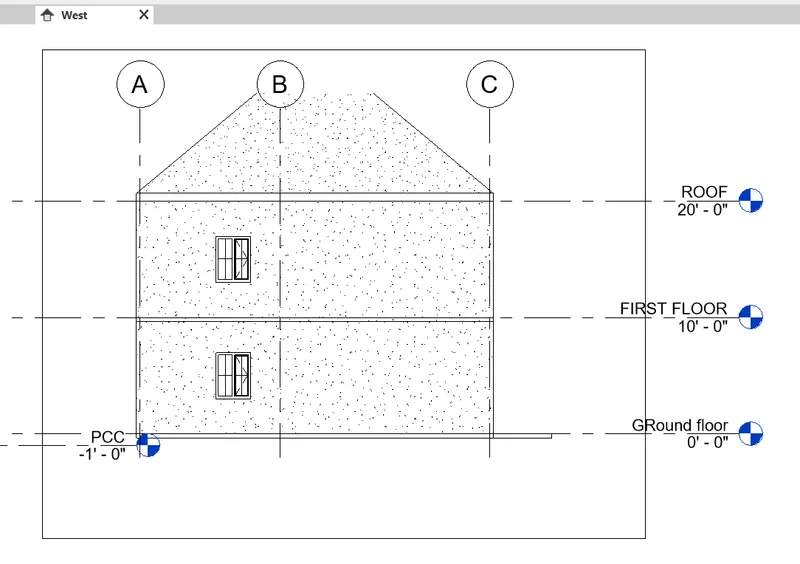

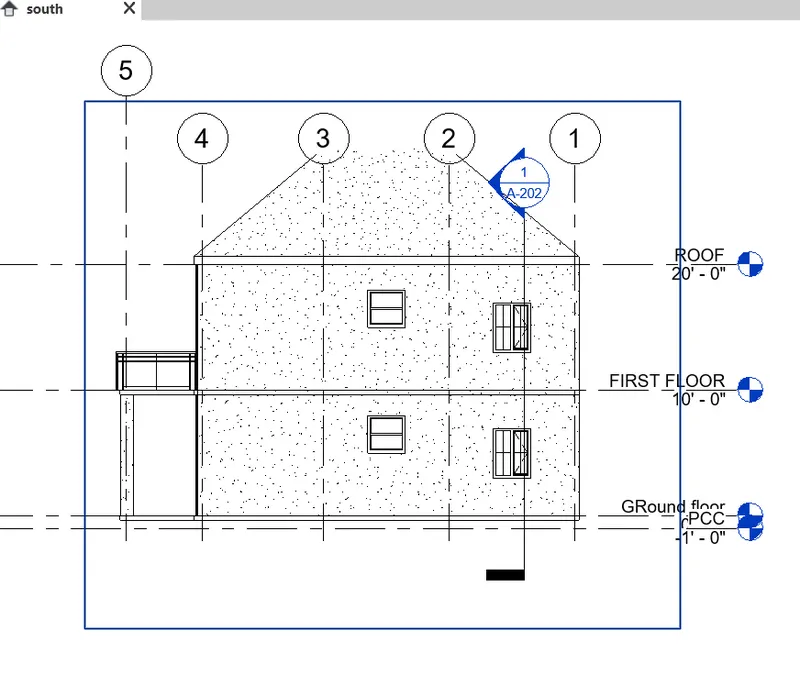

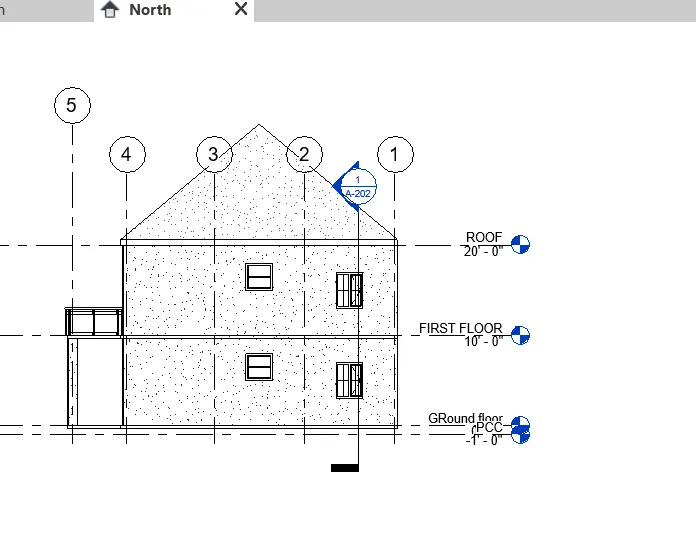

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West:

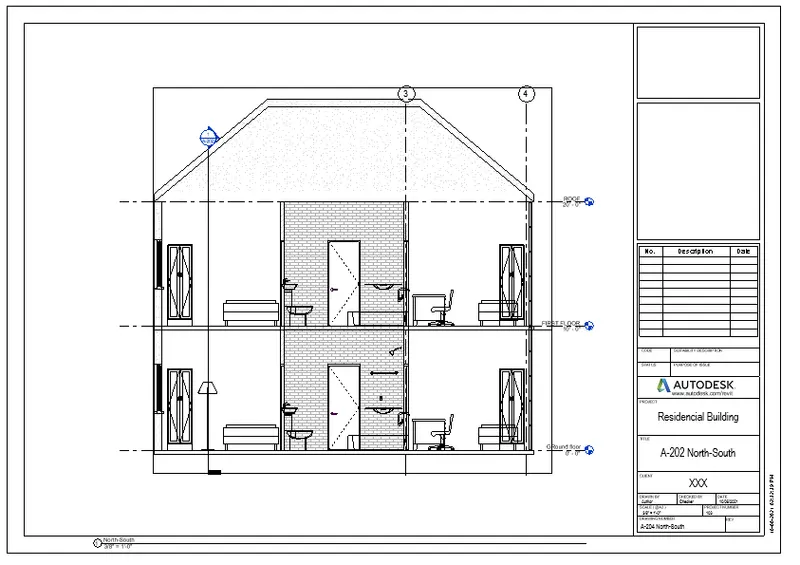

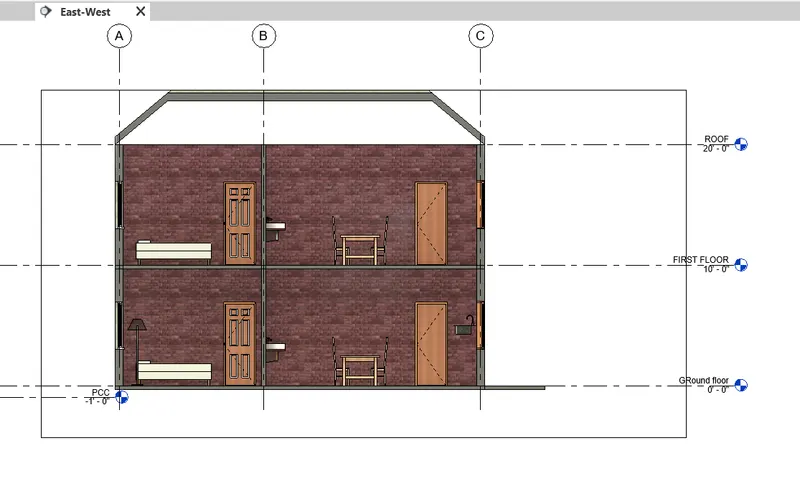

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction:

8&9) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Using the sheet template produced create multiple sheets as follows

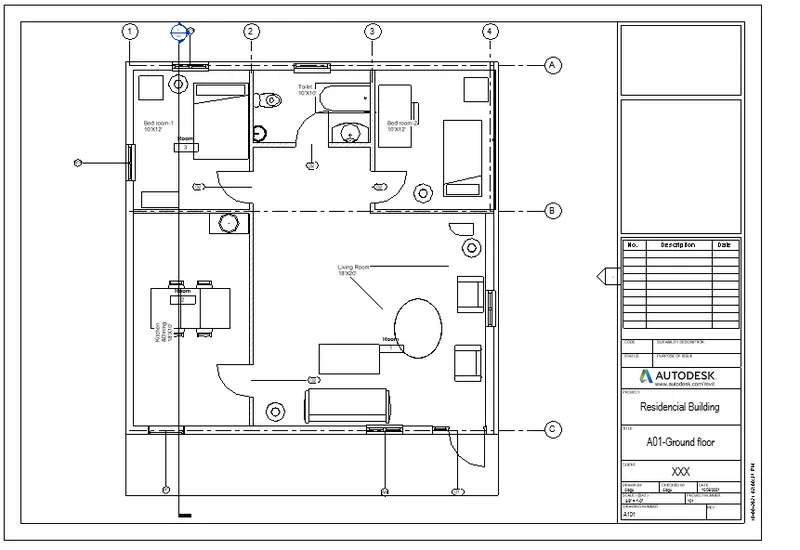

a. A 101- Ground Floor Architecture Plan

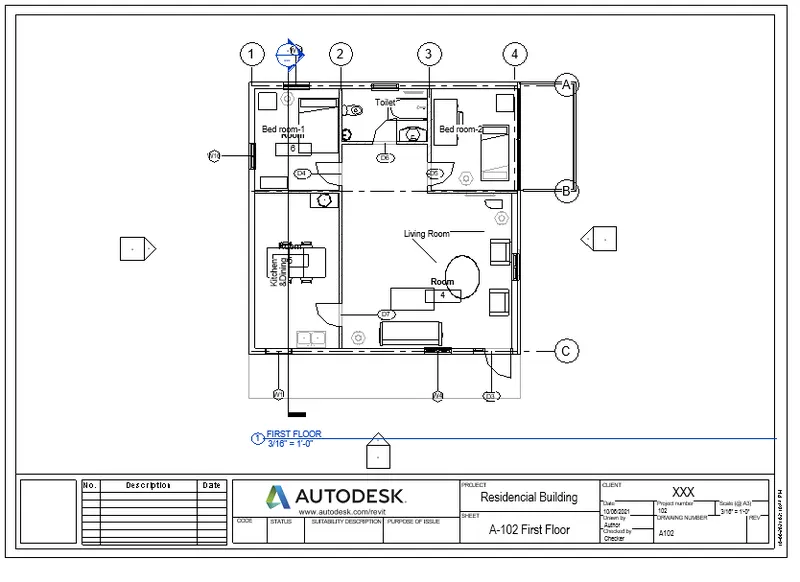

b. A 102- First Floor Architecture Plan

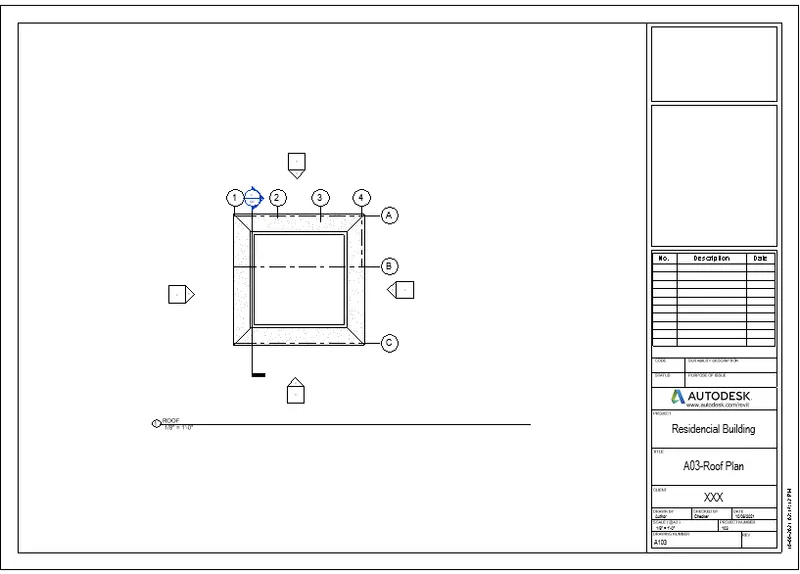

c. A 103- Roof Plan

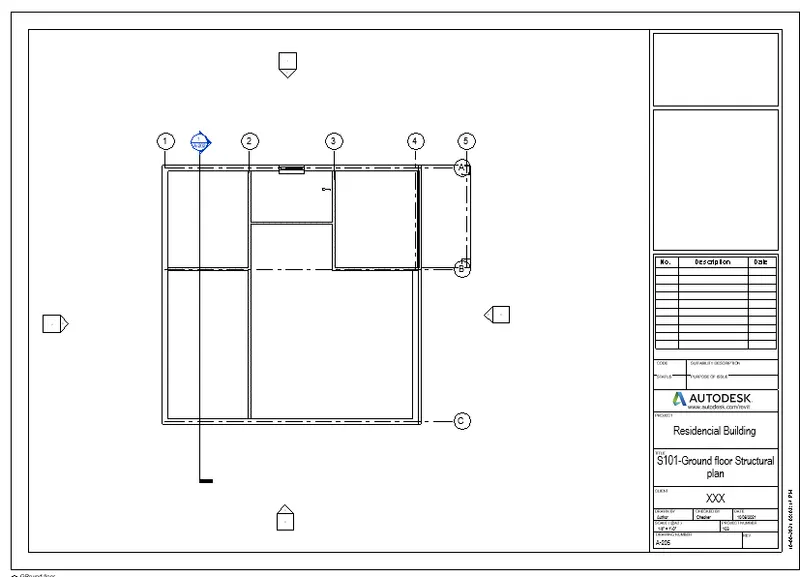

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations

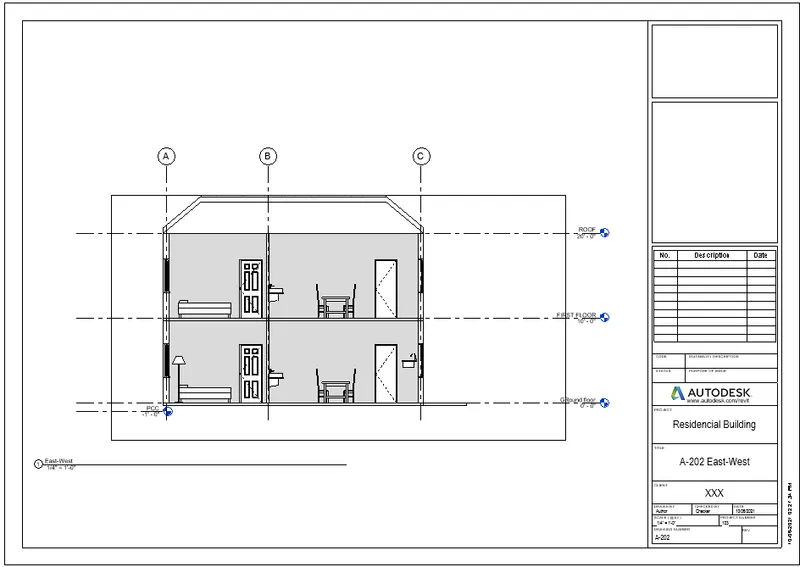

h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

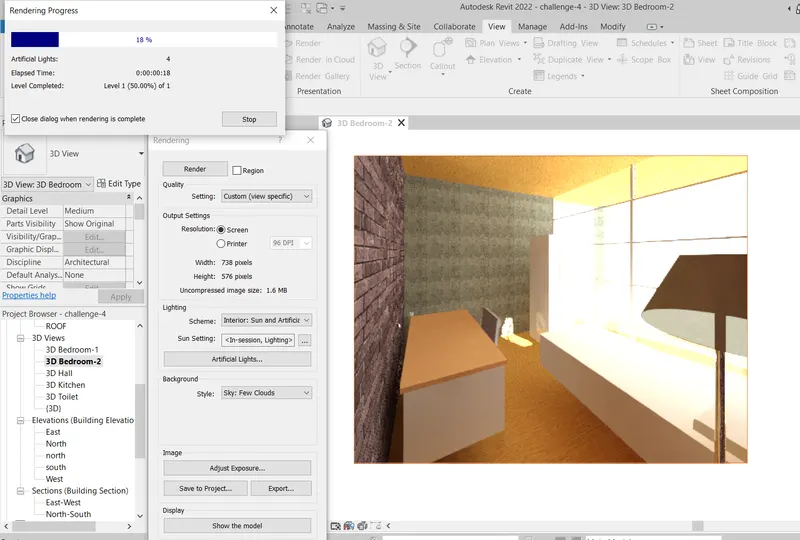

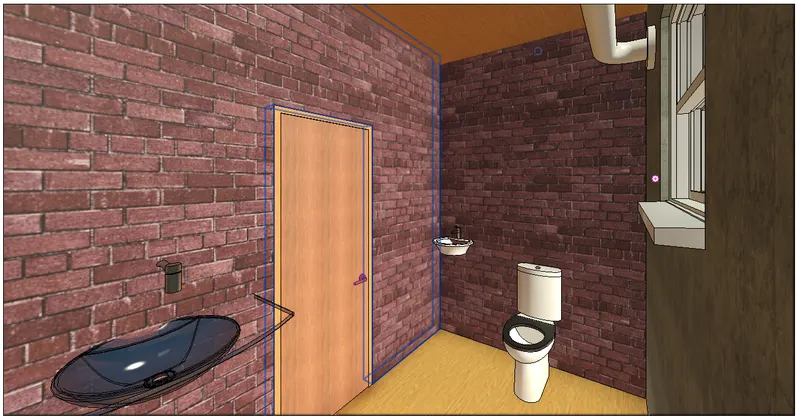

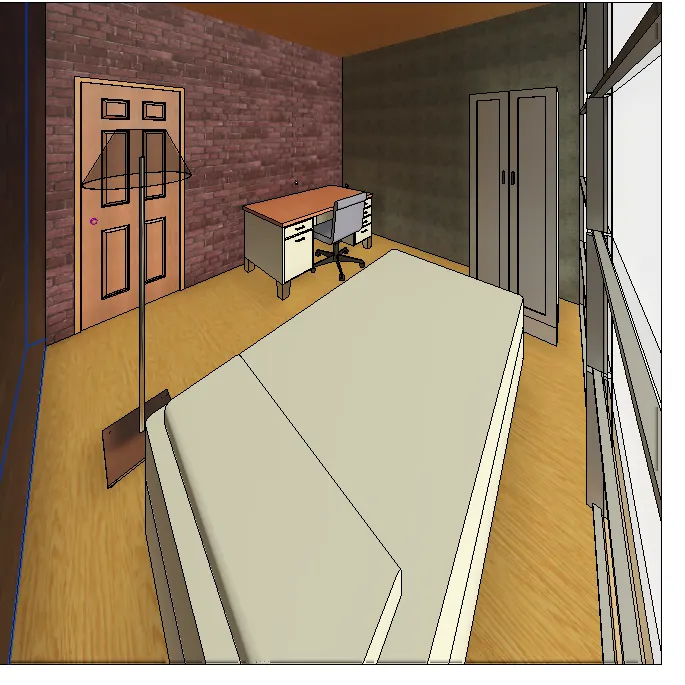

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images.
