3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level
AIM : To model a ceiling to the previously created project with the help of architectural tab above the walls at first floor level.
PROCEDURE :

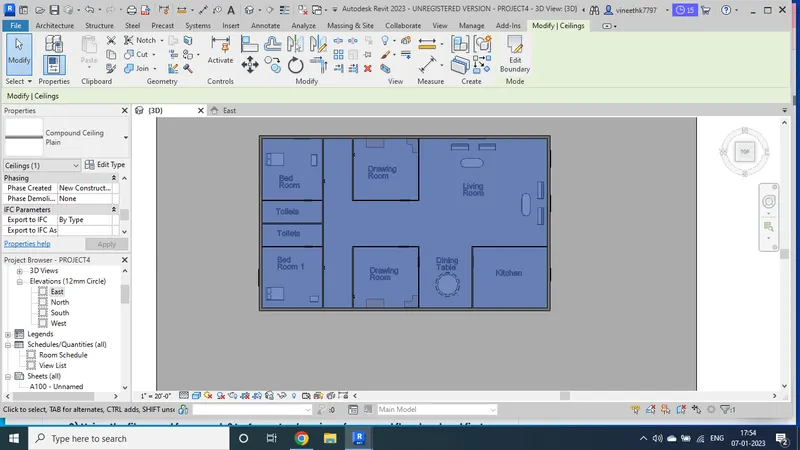

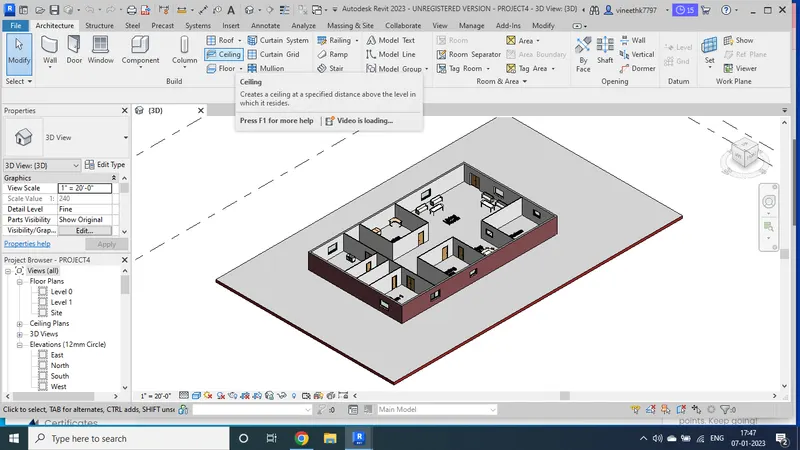

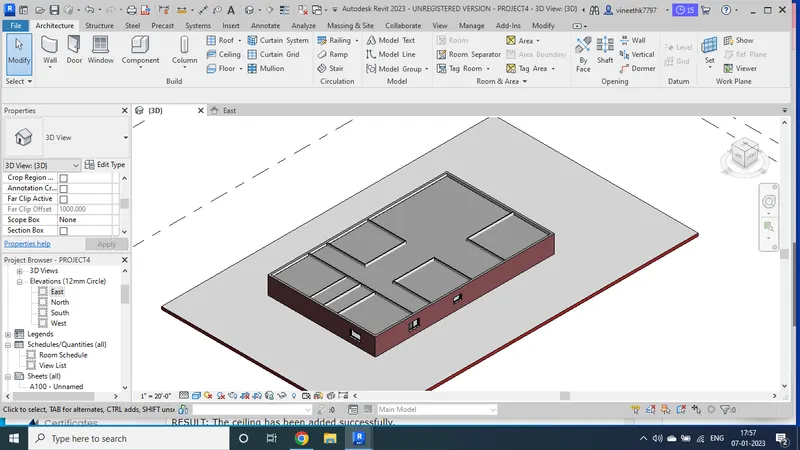

In the project file saved from week 3, click on ceiling tool in architecture menu.
Click on sketch ceiling and boundary by using pick lines option and click on finish edit option.
Set the level upto which we need ceiling
2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees
AIM : To model aroof above the ceiling by selecting the footprints of ceiling and using adjustment tool bars appearing on screen adjust the roof slope to 10 degrees.
PROCEDURE :

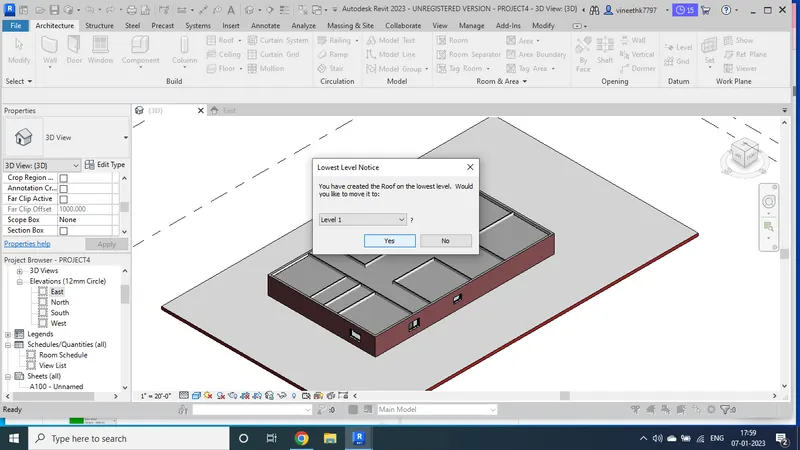

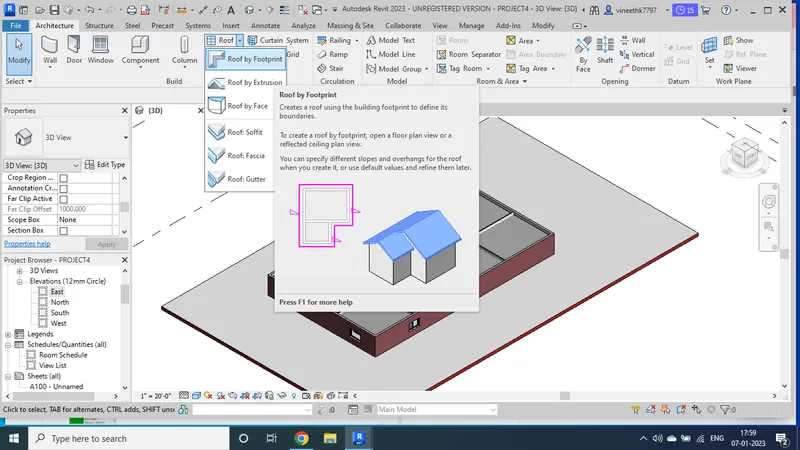

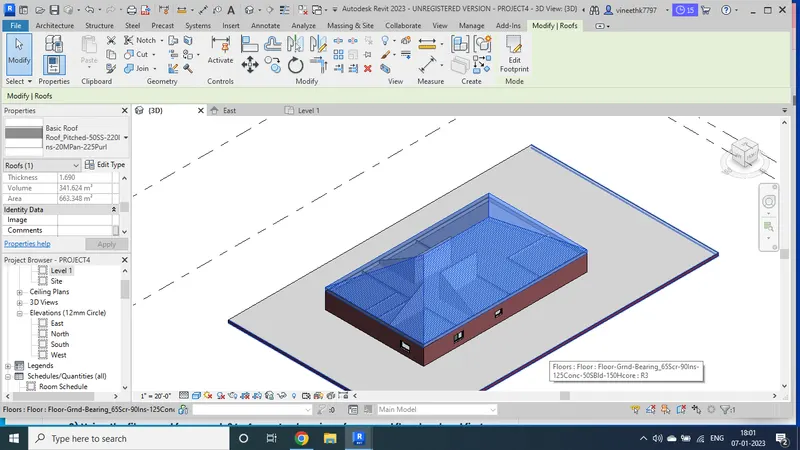

In the architecture tab, click on roof by footprint in roof dropdown.
select the level where you need the roof then click ok

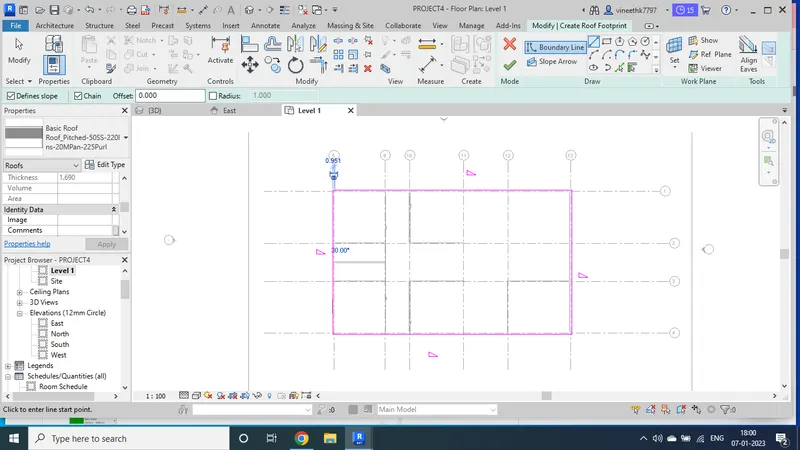

draw the boundary line of the roof where need to assign click ok

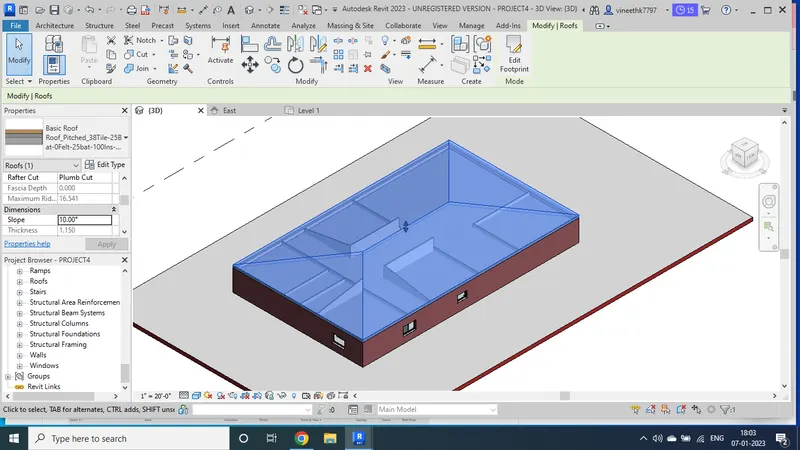

in property broswer edit the degree of roof to 10degree

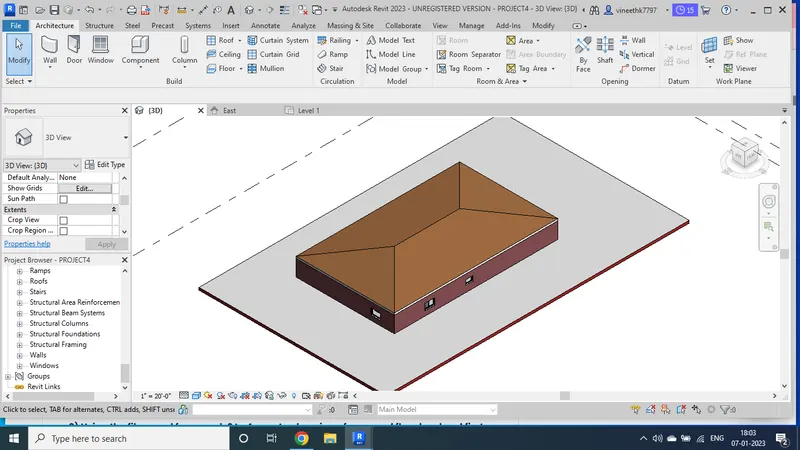

shaded view of the building
3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to architecture and structural plans
a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns
AIM : To create plan view for ground floor level and first floor level including all the walls, floors and components.
PROCEDURE:

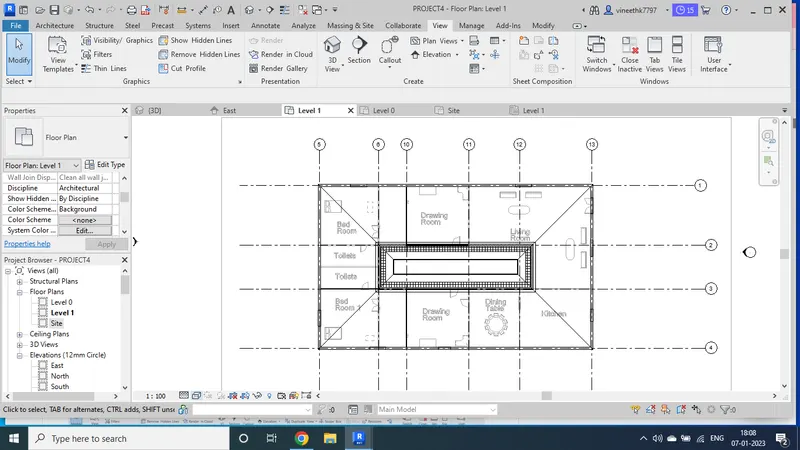

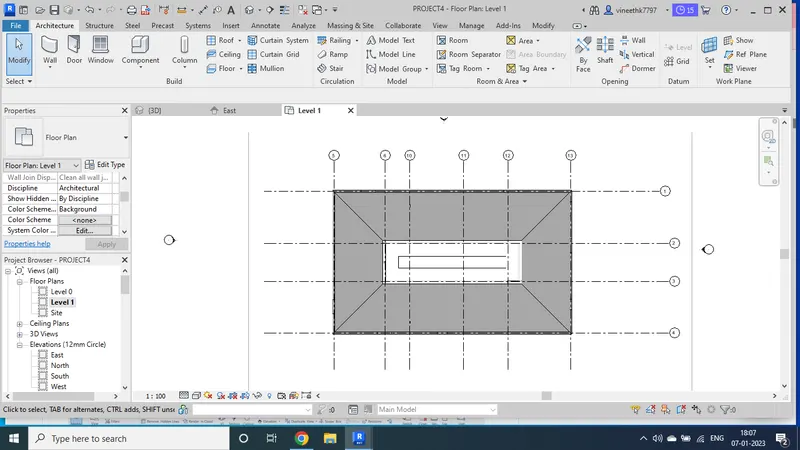

for architectural plan go to property broswer click on floor plan and click on level 1

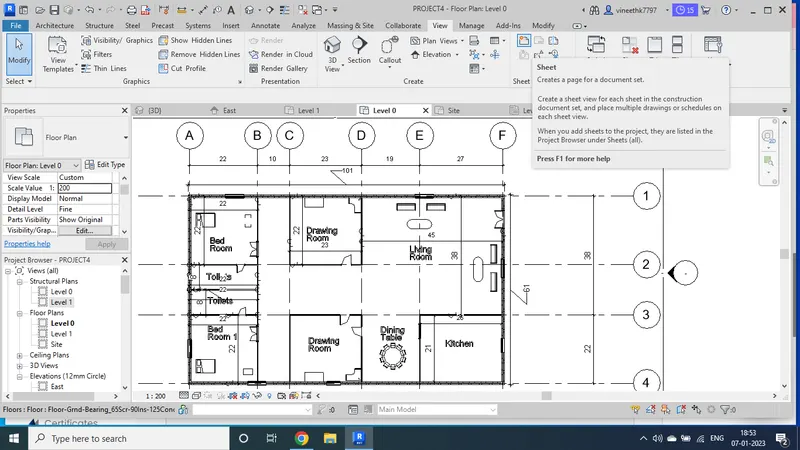

this is the shaded view of archutectural plan

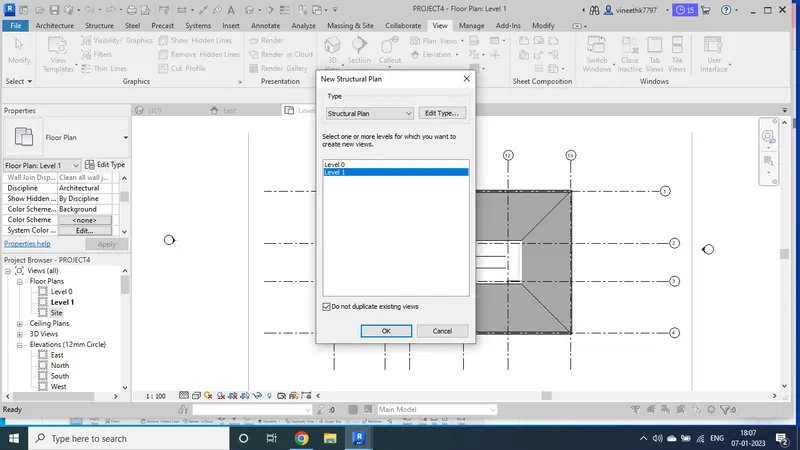

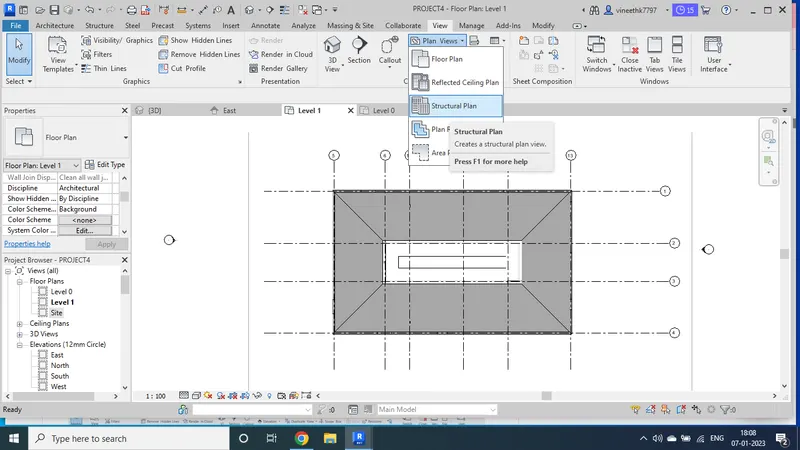

gp to view tab and cloick on plan view and select structural plan
by clicking on it it will ask for which level u need the structural plan and select the level

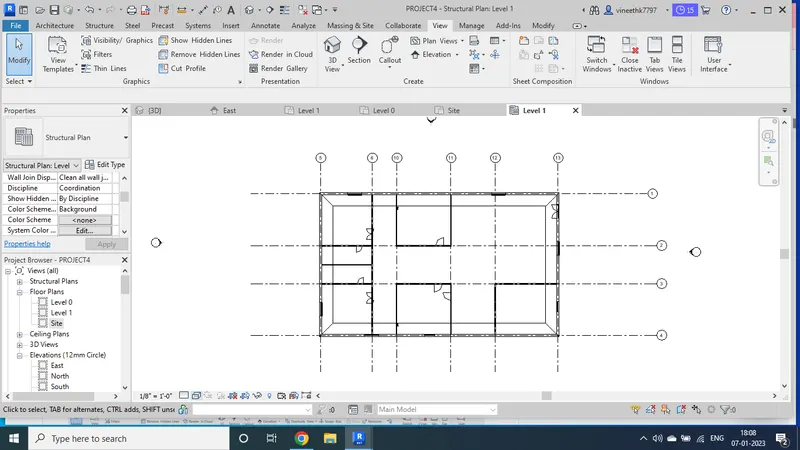

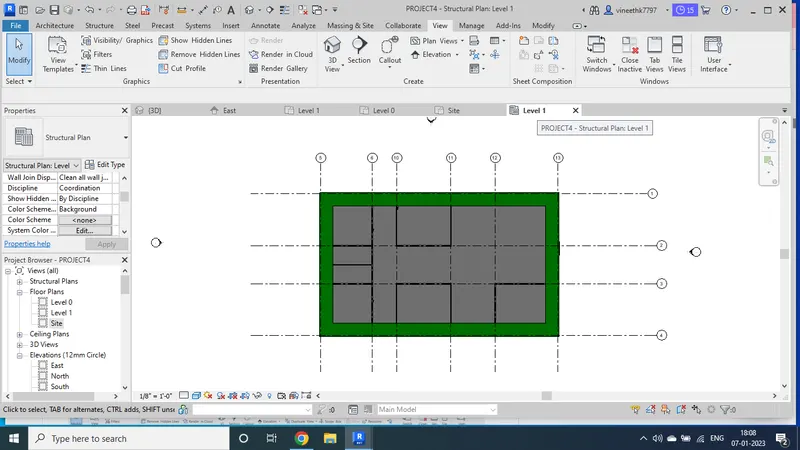

thiz is the shaded view of the structural plan
4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM: Add dimensions to walls and floors with reference to longitudinal and transverse grids created in project file.
PROCEDURE :
In the architectural tab click on grid tool and start drawing grids from left to right and top to bottom.

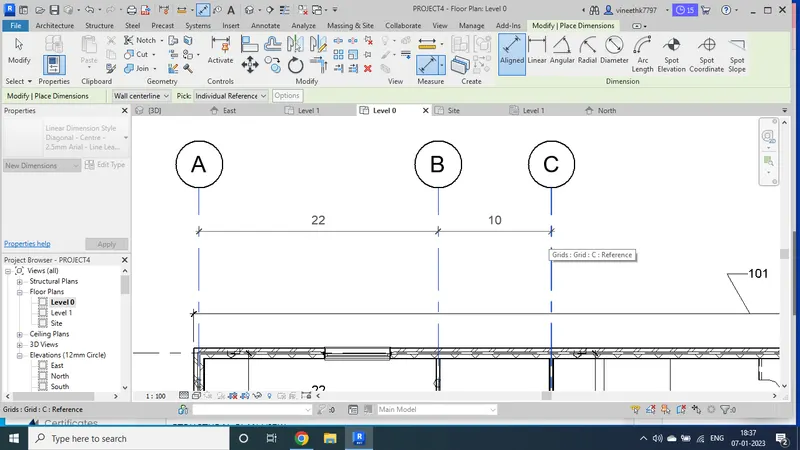

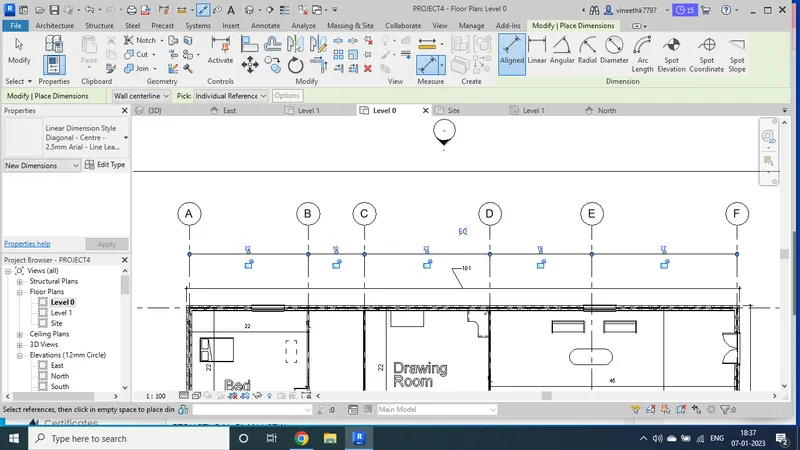

After drawing the grids, go to annotate and choose align option and annotate the distance between the vertical and horizontal grids and also the components in the plan.
In the structural plan view, add grids and annotate the distances between the grid lines.

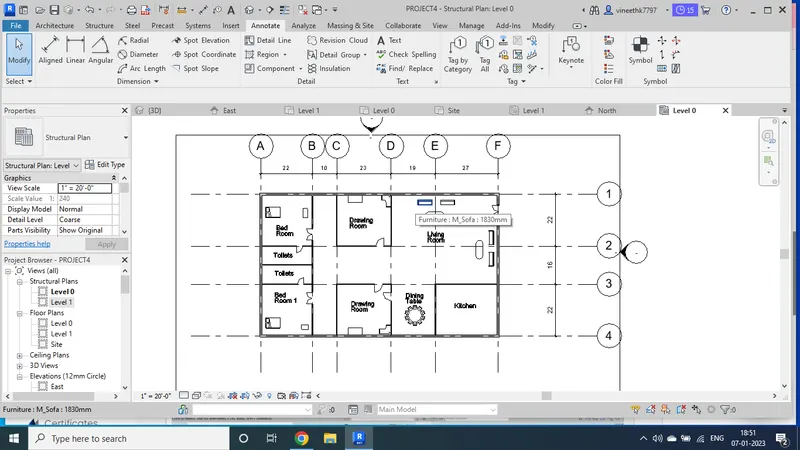

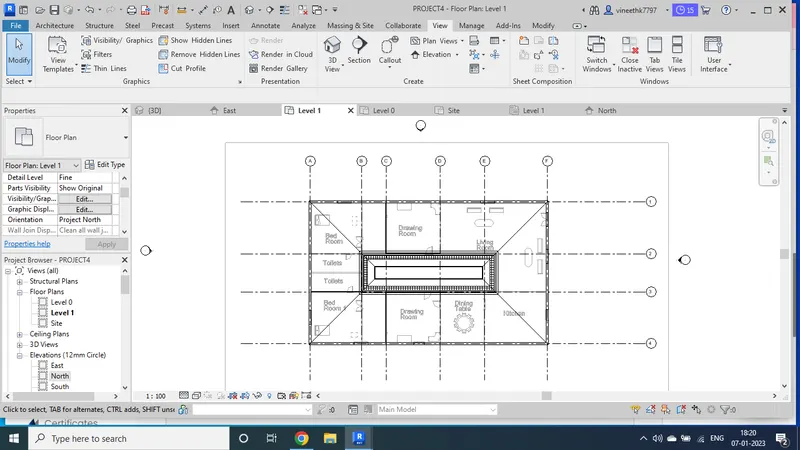

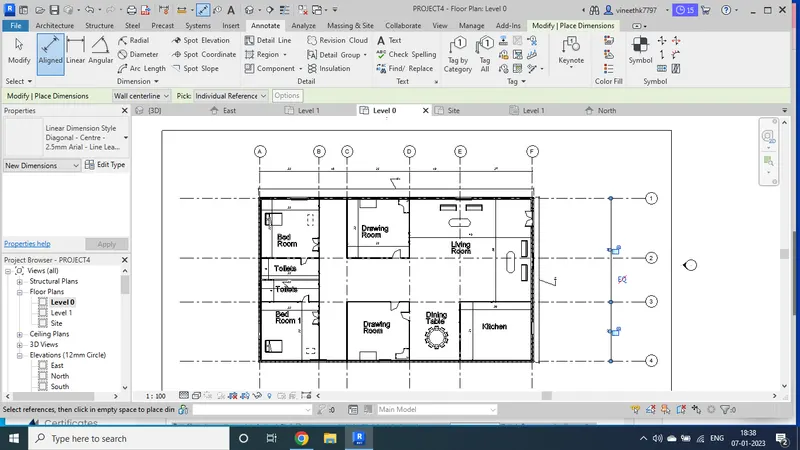

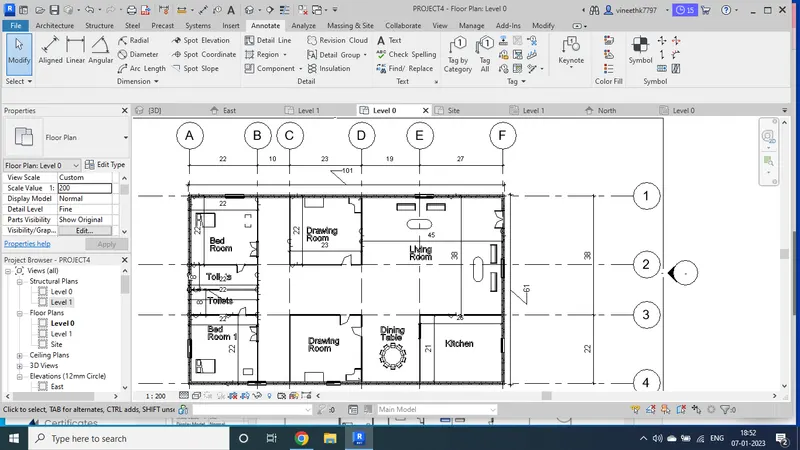

ARCHITECTURAL PLAN VIEW :

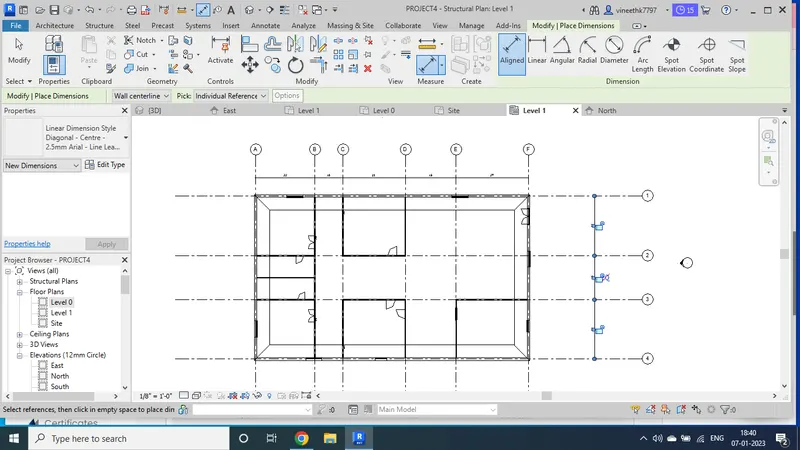

STRUCTURAL PLAN VIEW :
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM : To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE :

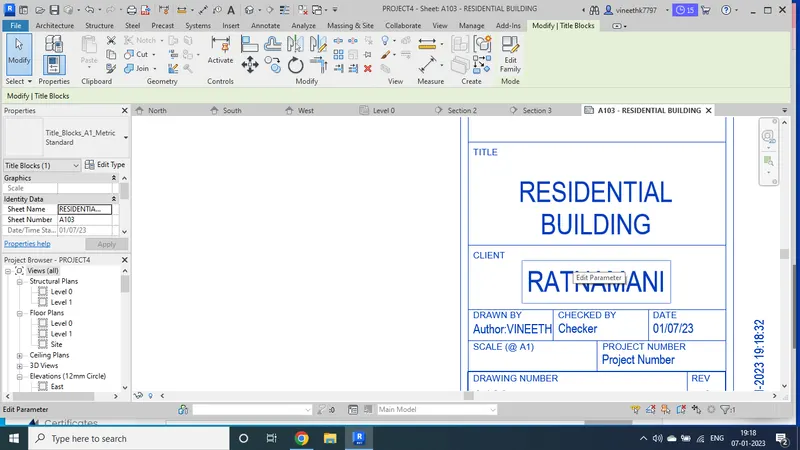

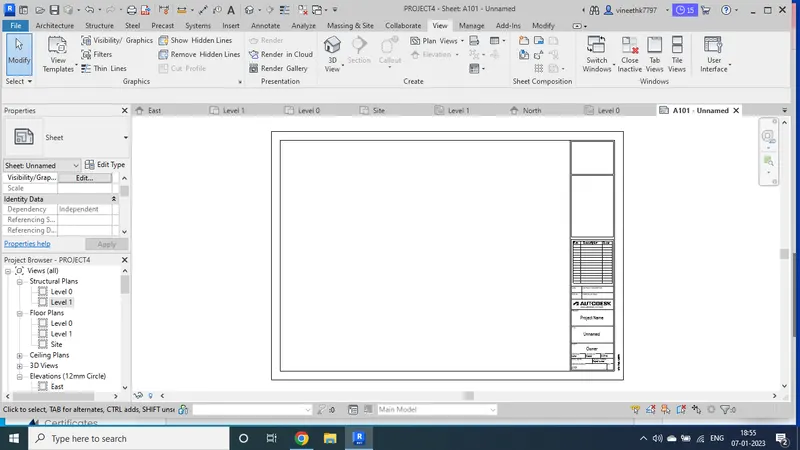

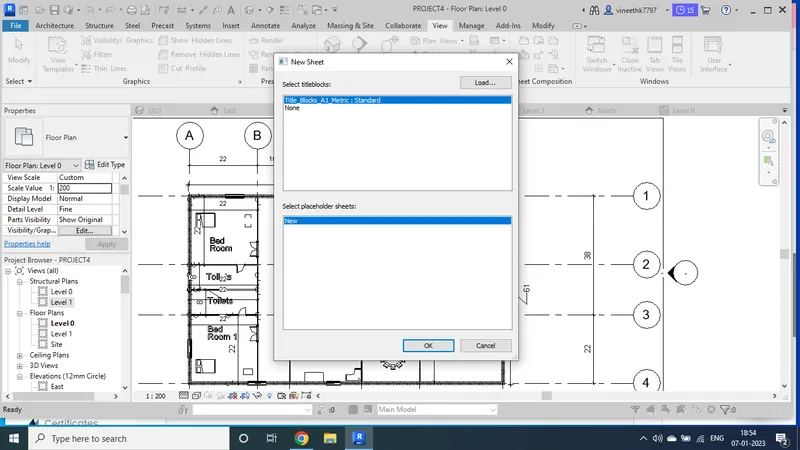

In the view tab, click on sheets and click on A1 METRIC and click ok
Then make required changes to the detail sheet by dobleclicking or using project browser .
6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West
AIM : To use the elevation tab create the elevation views, looking at your building from East, North, South and West
PROCEDURE:
In the view tab, click on elevation tool .
In the view tab click on elevation and it will ask for the which side u need to elevation of the building by setting on any side u can view ur elevation
In the project browser, in elevation view there will be 4 views named north, west, east and south. Double click on the required view to open it.

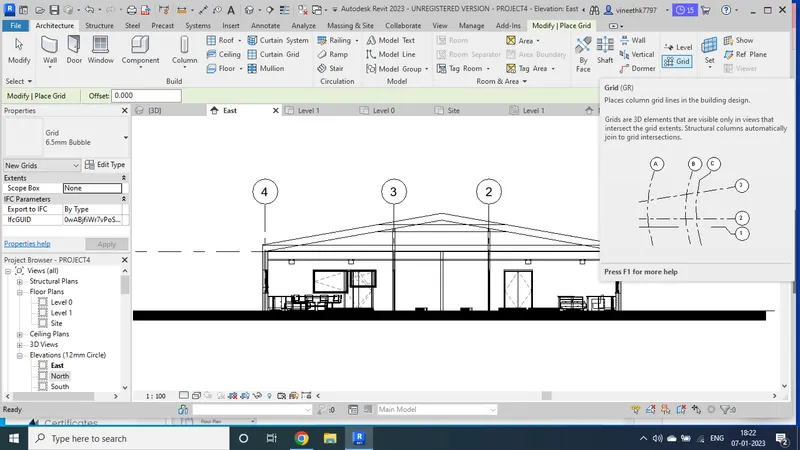

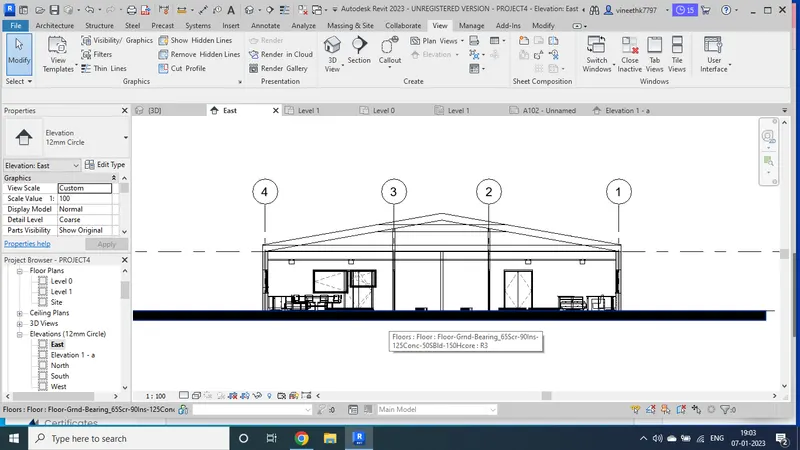

EAST ELEVATION VIEW:

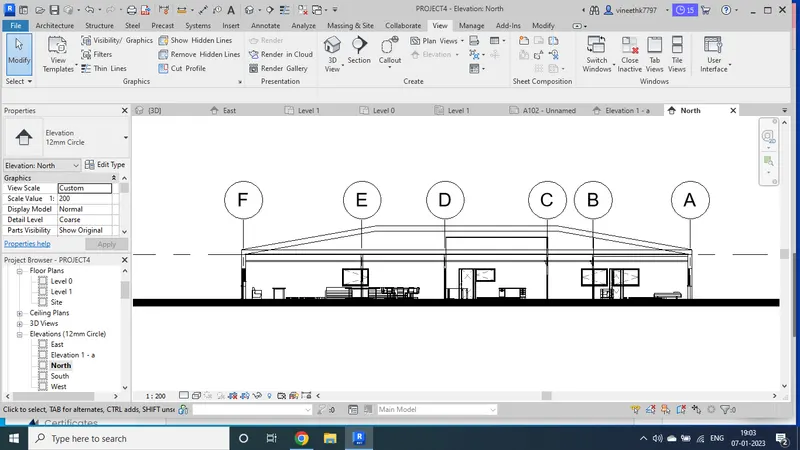

NORTH ELEVATION VIEW :

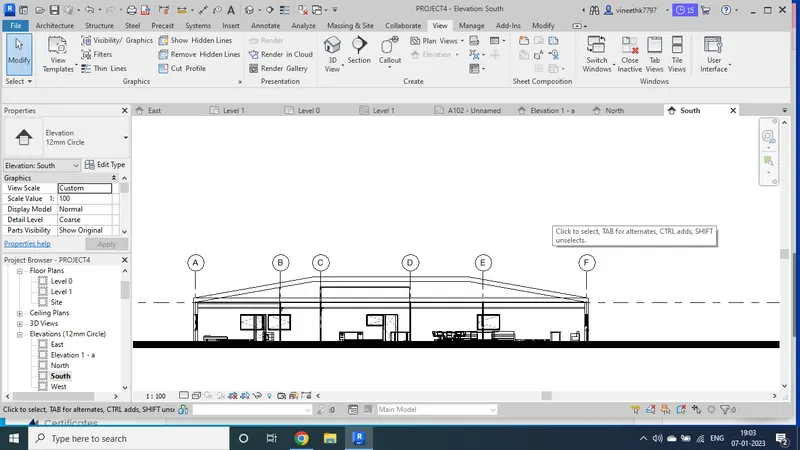

SOUTH ELEVATION VIEW :

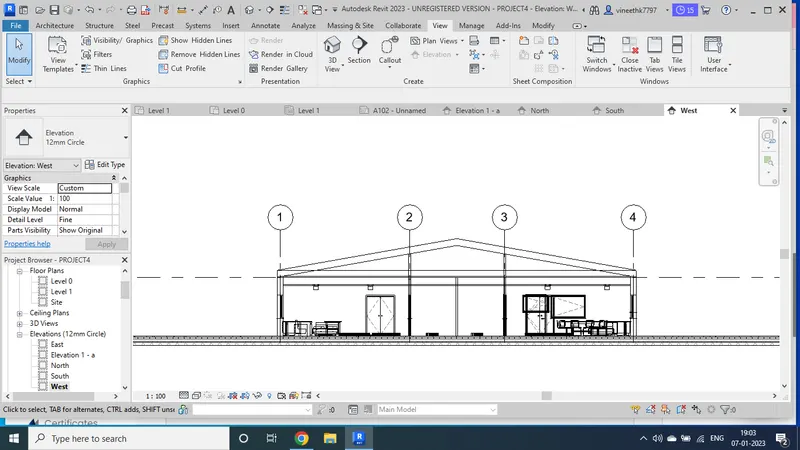

WEST ELEVATION VIEW :
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM : Toproduce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE :

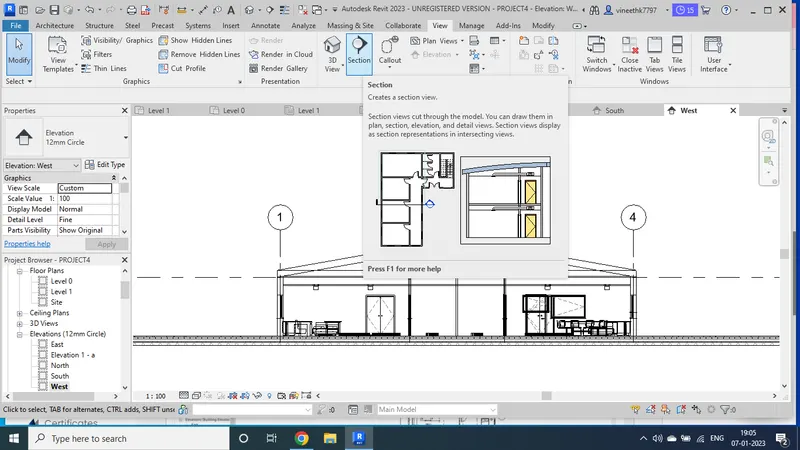

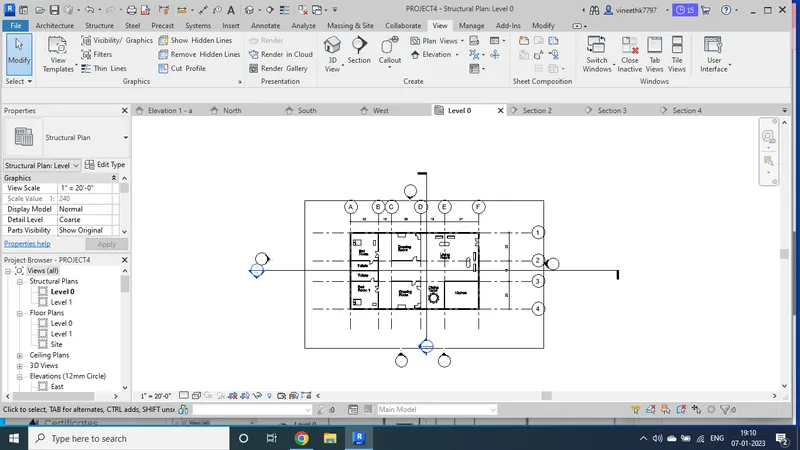

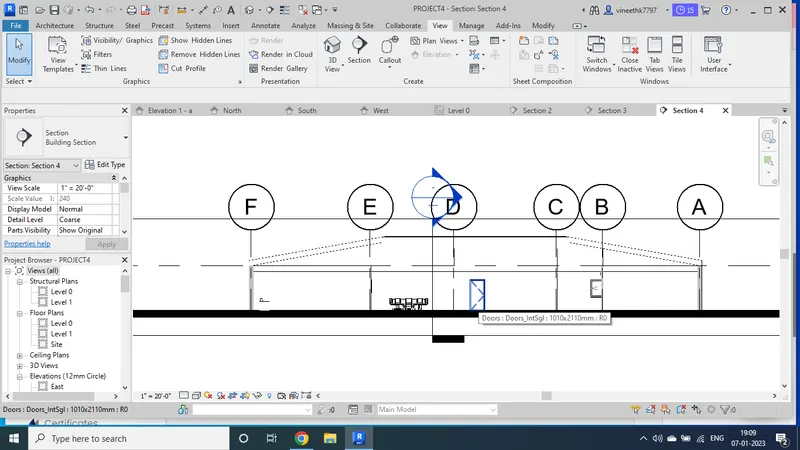

In the view menu, click on section tool.
Draw the sectional line to get the view wherever sectional view is required it is carried out easly in floor plan
In the project browser we find sectional views, double click on the required sectional view to open it.
you can adjust the section by clicking on it

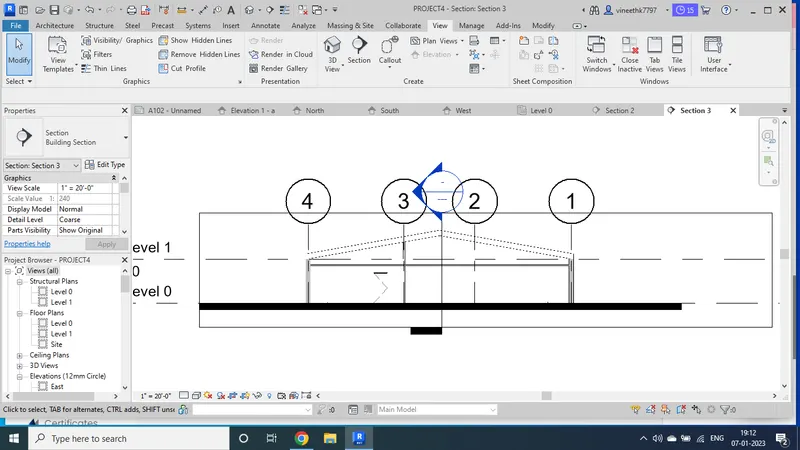

LONGITUDINAL VIEW :
TRANSVERSE VIEW :
8) Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser
VIEW : the point of seeing an oject in any direction.
PLAN VIEW : The plan view is nothing but looking at a building or any other ojective from the top and this view helps us to draw or plan the rooms inside a building.
SECTIONAL VIEW : It is the view we get when a buliding or an object is cut along a line and viewed from one of the sides. This helps us to understand how it looks when it is cut from there.
ELEVATION VIEW : It is the view obtained when we look at something from any of the side, it shows how verticle distance the object is and how it looks from sides.
In the property browser of revit software we have all these views , using which we can clearly design and document a project properly and clearly.
9) Using the sheet template produced create multiple sheets as follows
a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan

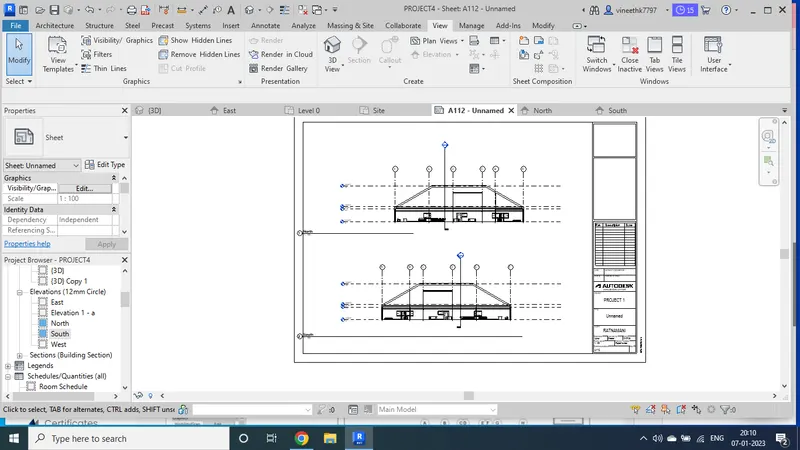

g. A-201 – North South Elevations
h. A-202- East West Elevations
AIM : To create sheet template and create multiple sheets as mentioned.
PROCEDURE :

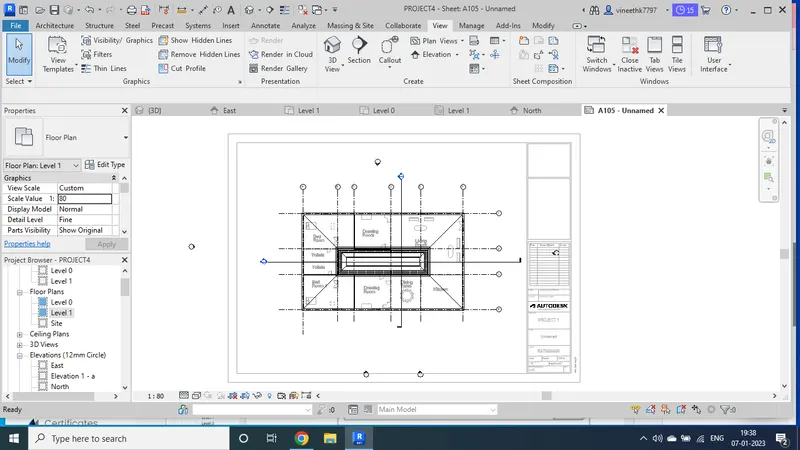

- In the view menu click on sheet tool and select A1 metric sheet and click ok.
- name the sheets as required and go to insert option and click on image option and insert the image on to the sheet or drag the floor plan from property broswer box
name the sheets as required and go to insert option and click on image option and insert the image on to the sheet or drag the floor plan from property broswer box

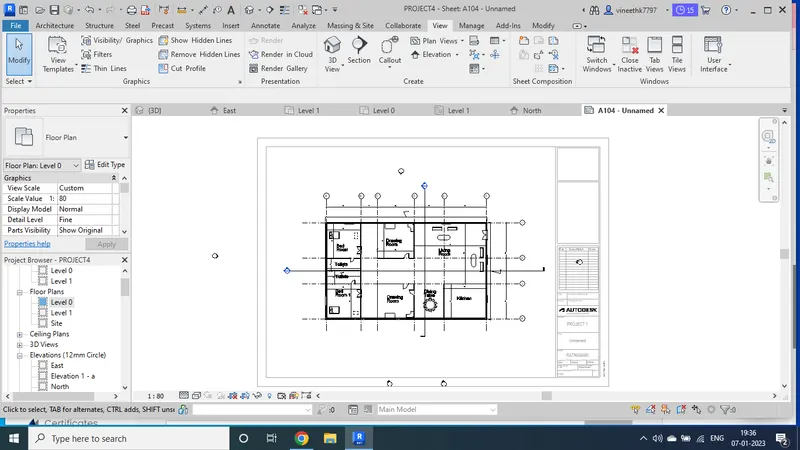

a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

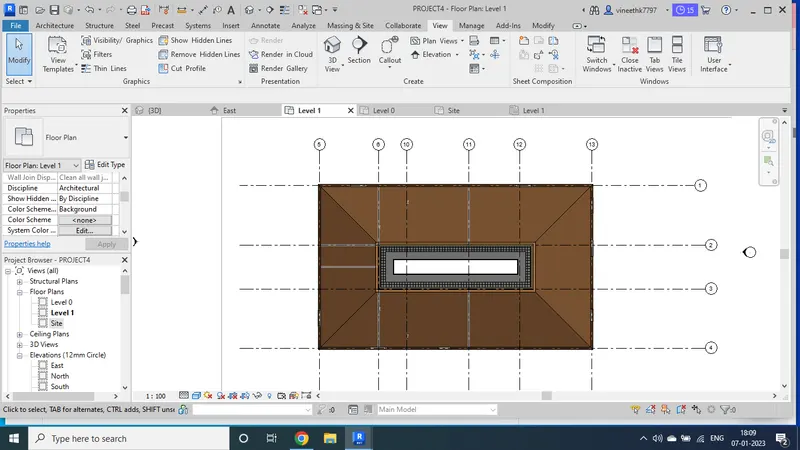

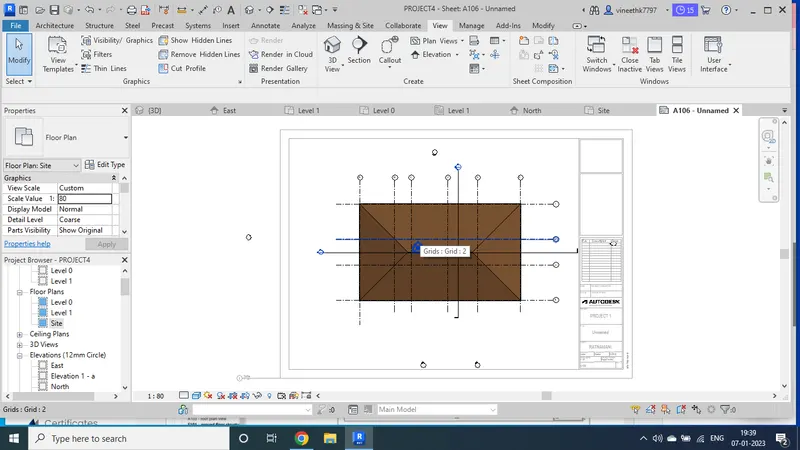

c. A 103- Roof Plan

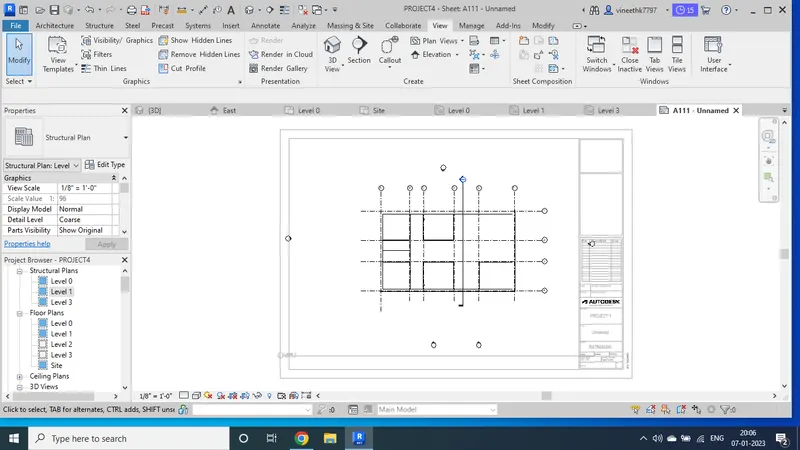

d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan

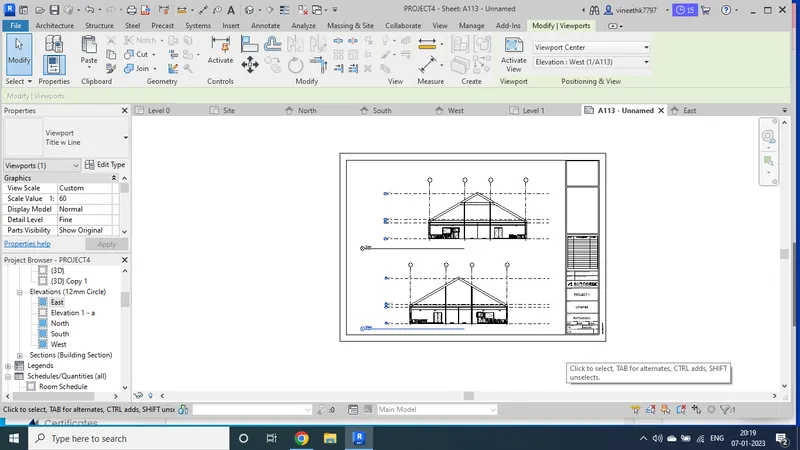

g. A-201 – North South Elevations
h. A-202- East West Elevations
10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.
AIM : To create camera views and create sheets naming A 501 , 502 ETC.
PROCEDURE :

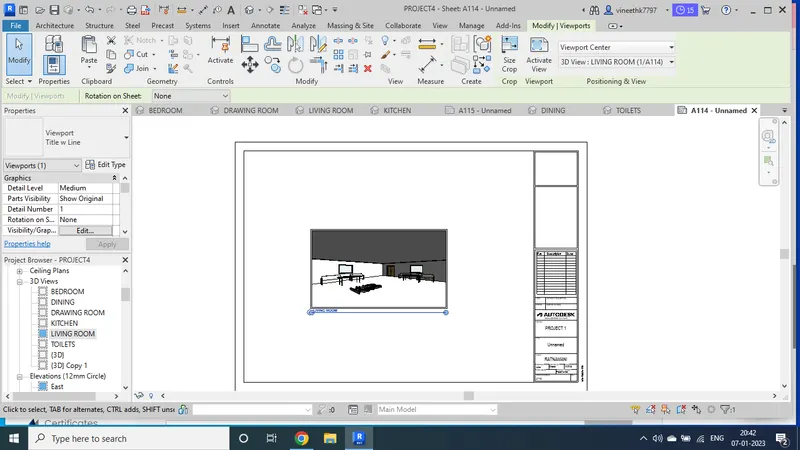

- In the 3D View of view tab, cluick on camera view ans set it as required to see the camera view.

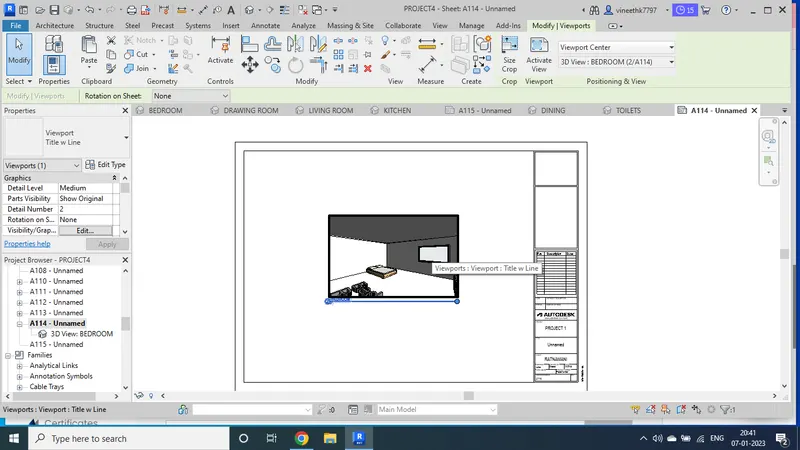

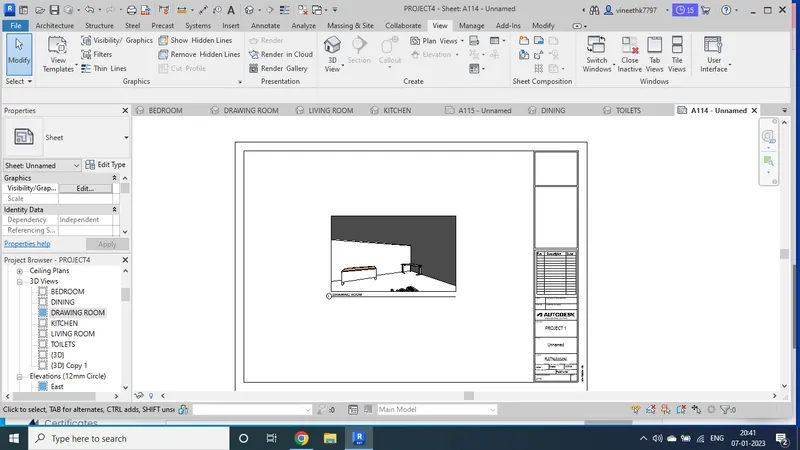

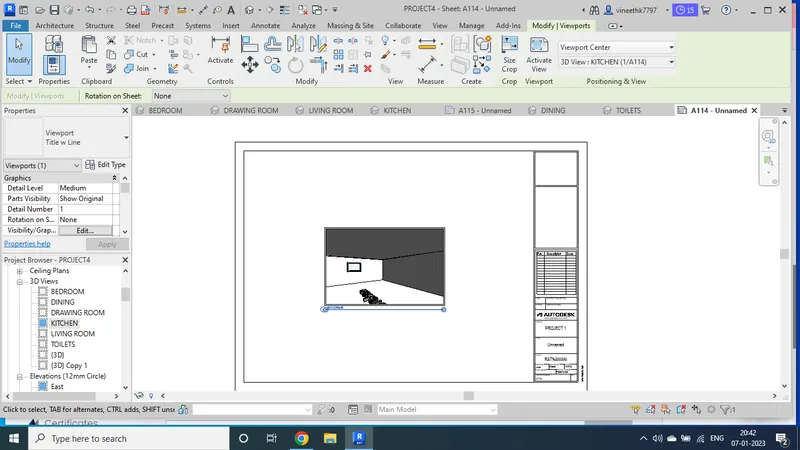

- In the same way as we did above create new sheets and paste the camera views in the sheets.

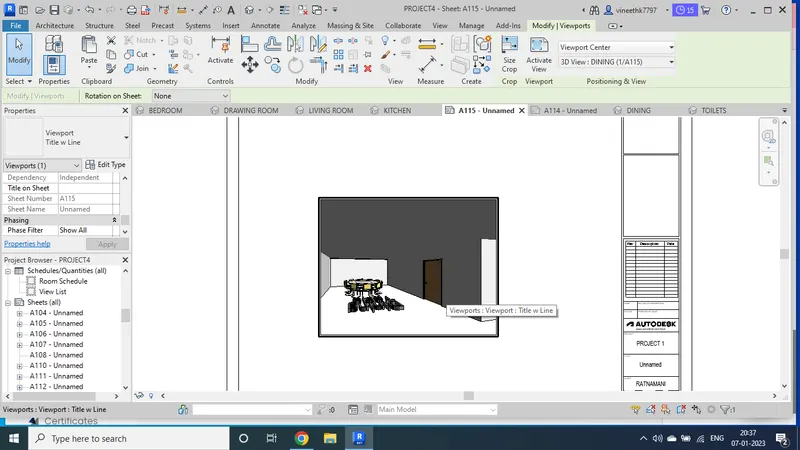

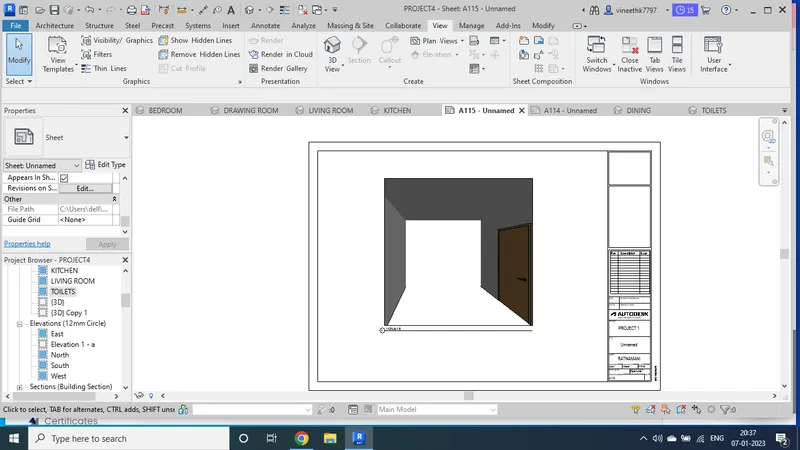

- A 501 - Living area
2.A 502 - drawing room
3.A 503 - Bed room
4.A 504 - Bath room
5.A 505- Kitchen
6.A 506- dining room
