3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

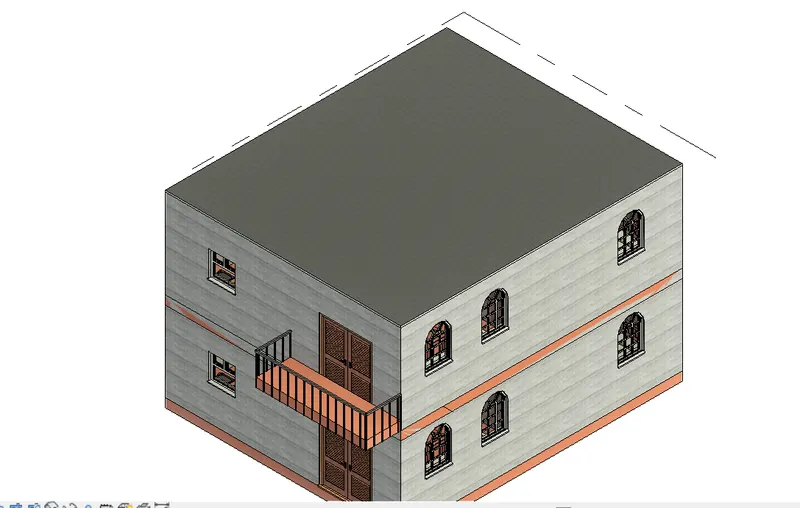

1. Aim - Based on previous project mahe a ceiling

Procedure

Select ceiling option from architectural option then select pick line and mark outer boundary of the layout

2. Aim - Model a roof above ceiling using roof option with 10degree slope

Procedure

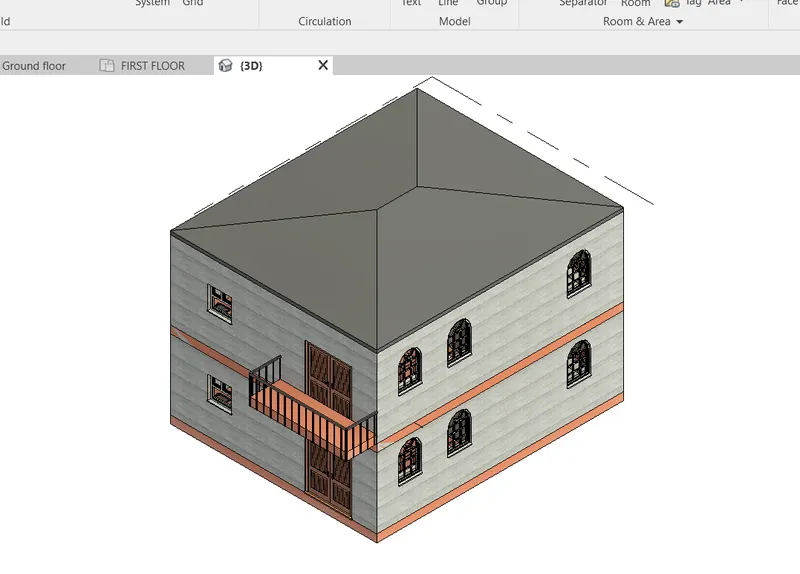

select roof option and select pick line and mark outer boundary of layout and from properties change slope to 10 degree

3 & 4 Aim - Draw a Architectural plan and structural plan and dimension them

Procedure

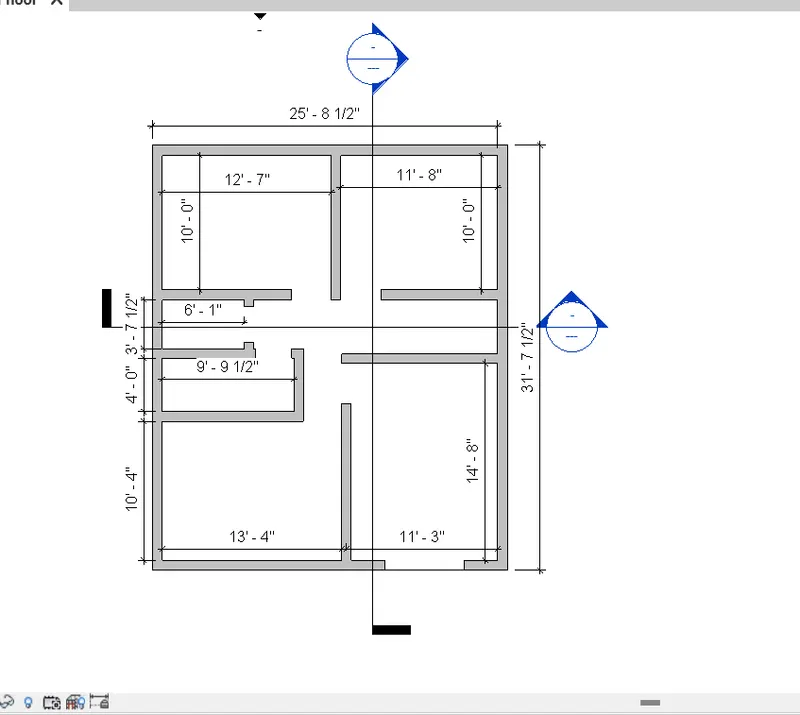

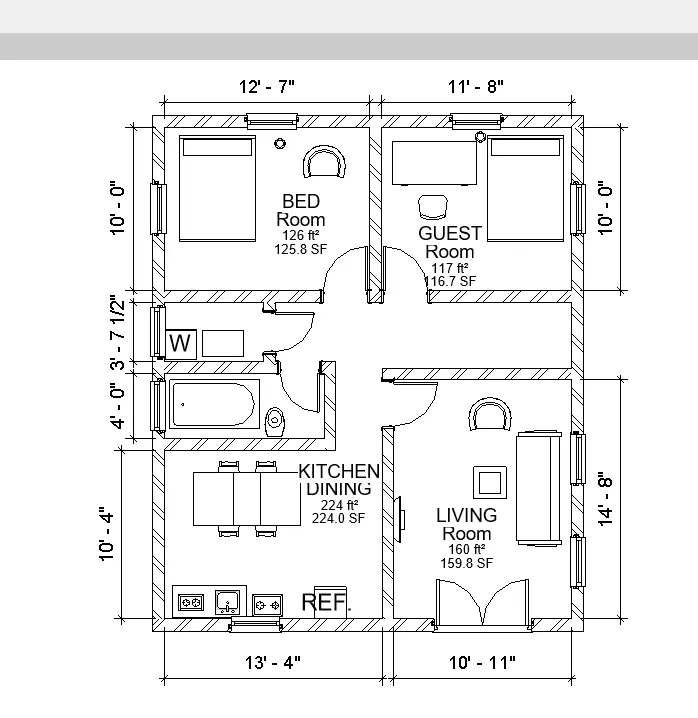

Architectural plan select Plan view and select floor plan select ground floor and ok . using aligned option dimension them

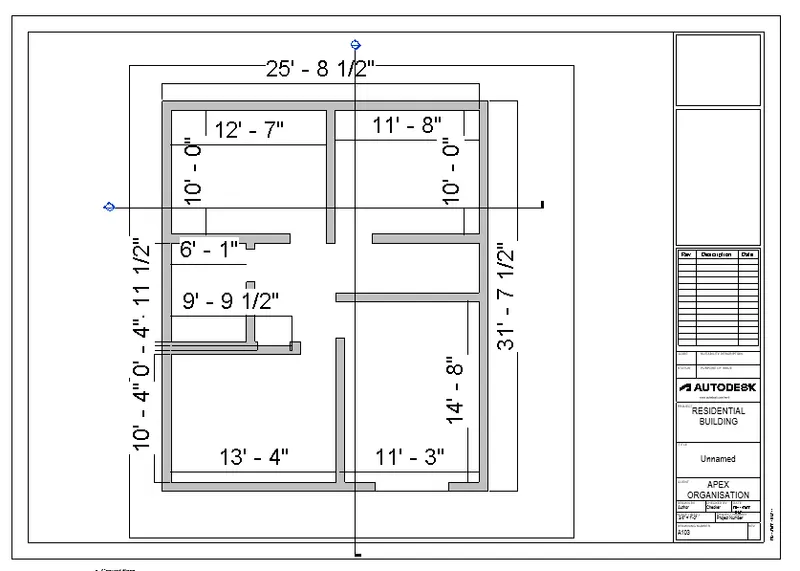

Structural plan select plan view then structural view and ground floor and ok and using aligned option dimension them

5. Aim - Select sheet option and put ground floor layout in it

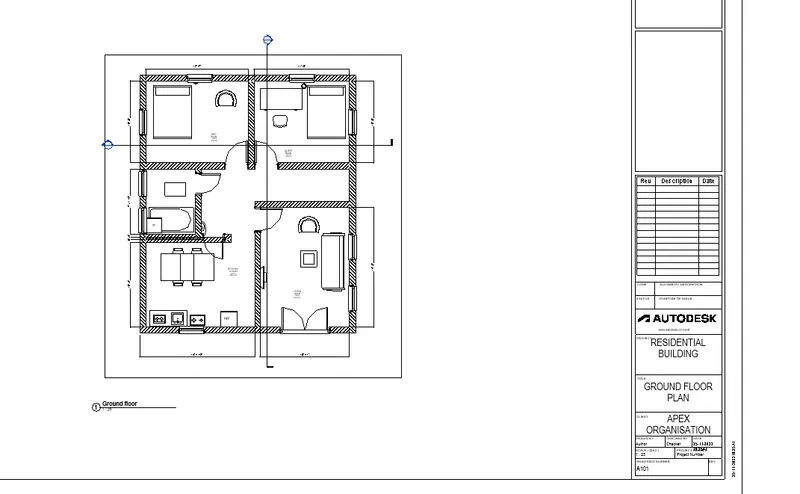

Procedure - select sheet option fromview tab and select A101 meteric then drag ground floor layout in it

6. Aim - Using elevation tab create elevation of all direction

Procedure

Select elevation option from view tab then create each direction elevation by placing pointer in that direction and rename it to east, north , south, west

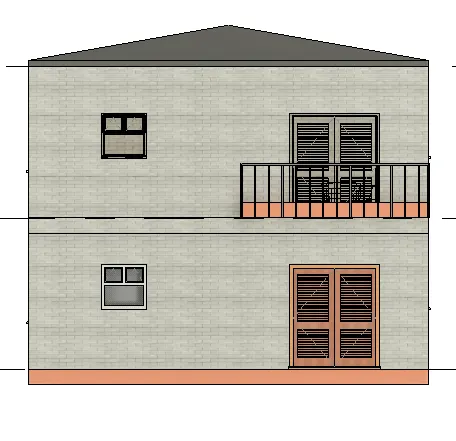

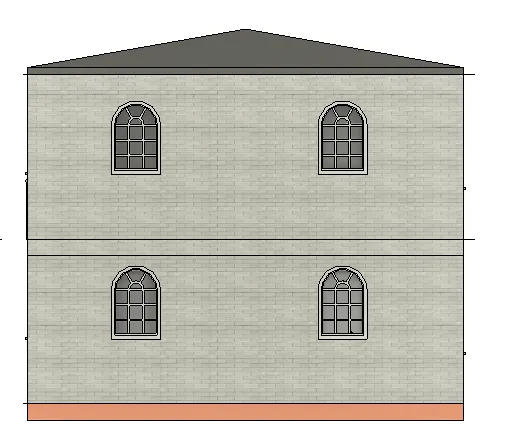

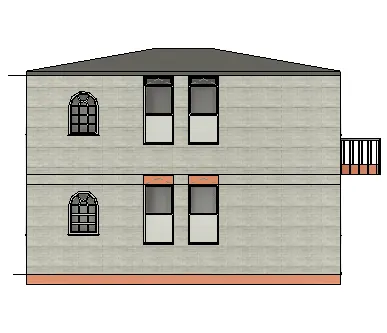

EAST elevation

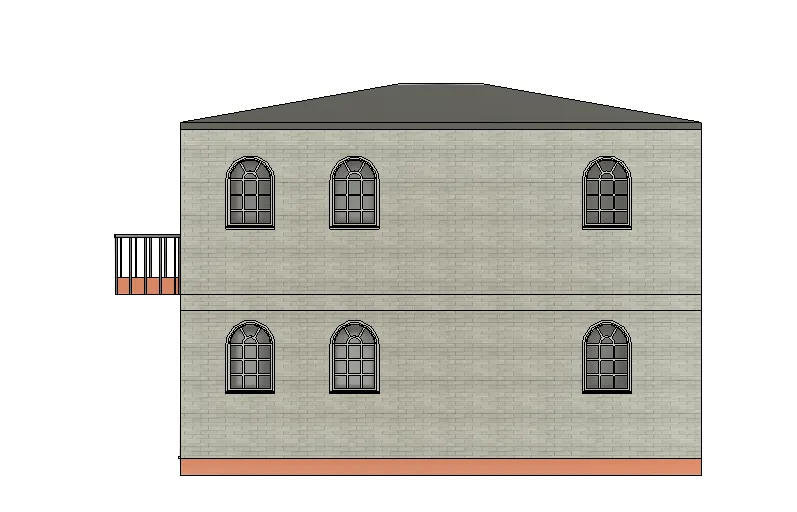

North elevation

South Elevation

West Elevation

7. Aim - Draw a section view through longitudinal and transverse

Procedure -

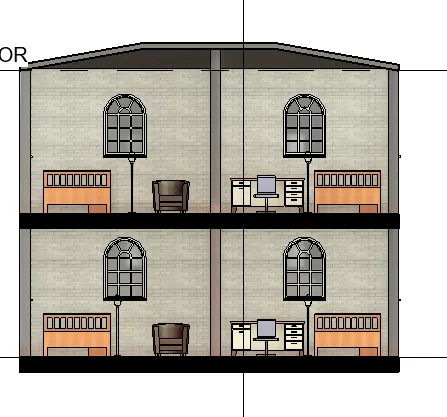

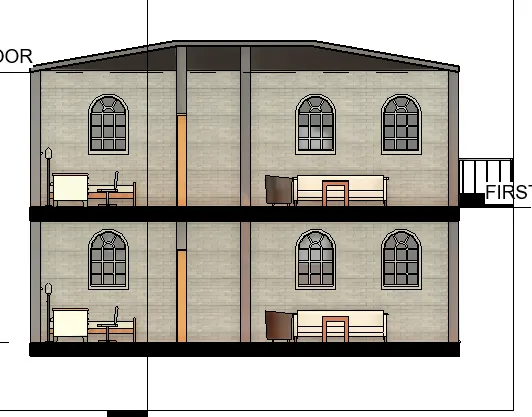

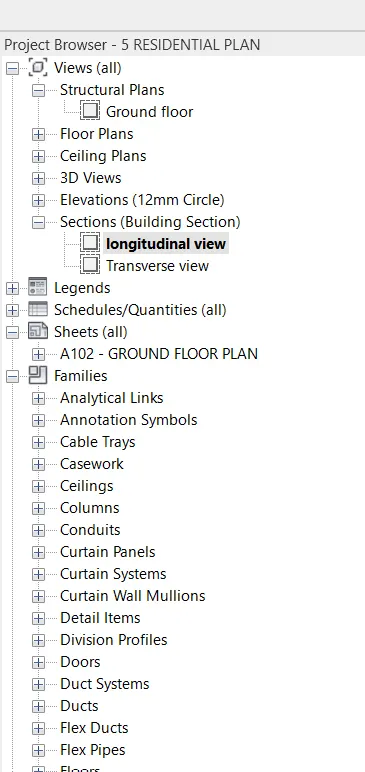

Select section view from View tab then draw section longitudinally and transversally

8. Aim - Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

9. Aim - Using sheet templete draw a sheet

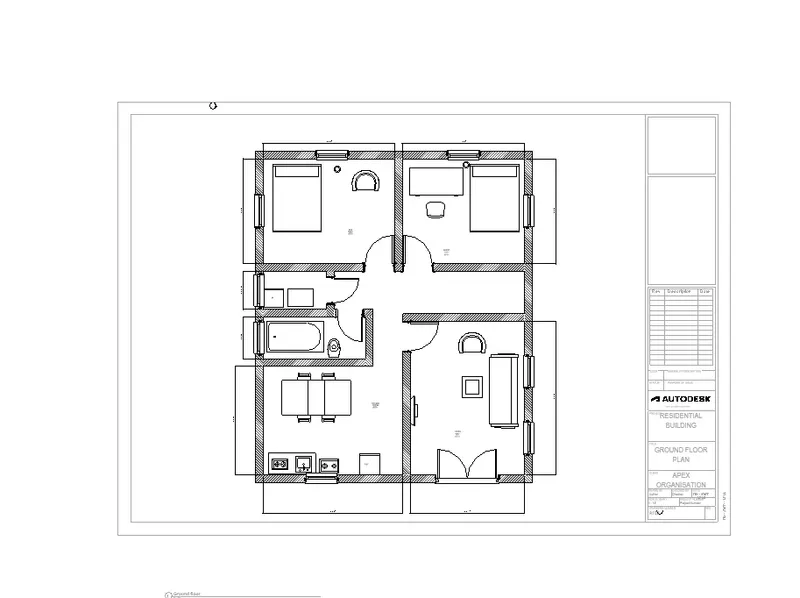

a. A 101- Ground Floor Architecture Plan

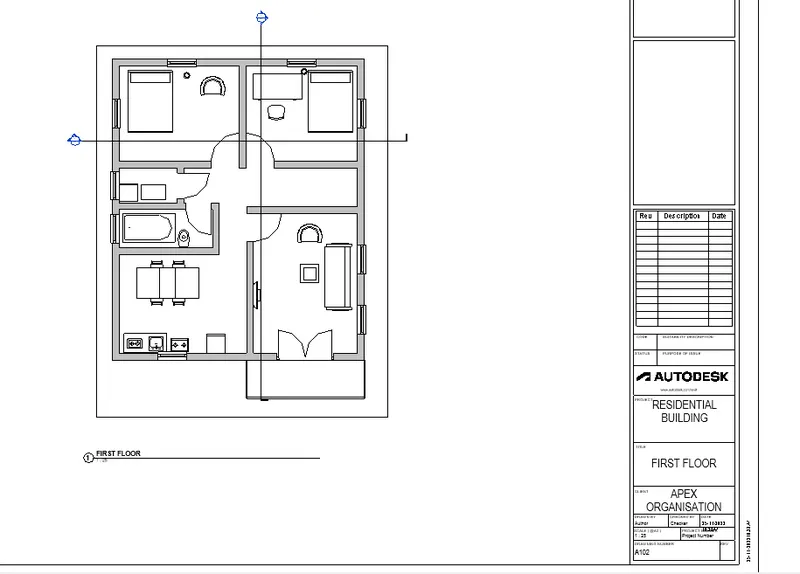

b. A 102- First Floor Architecture Plan

c. S 101- Ground Floor Structural Plan

d.S 102- First Floor Structural Plan

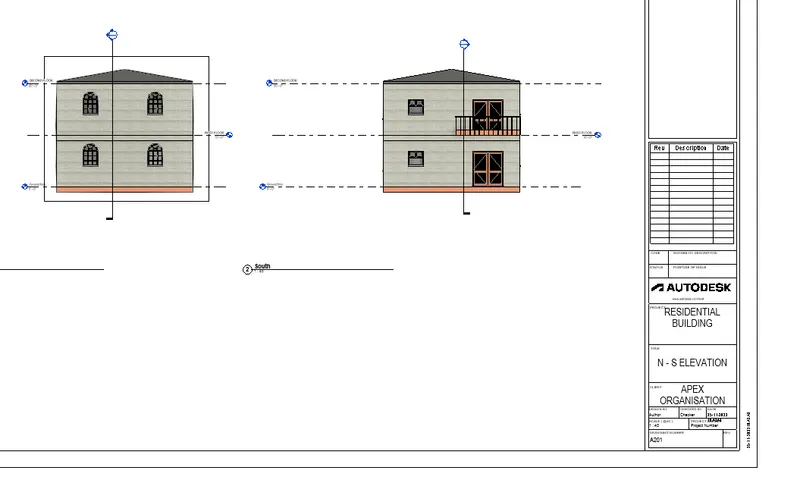

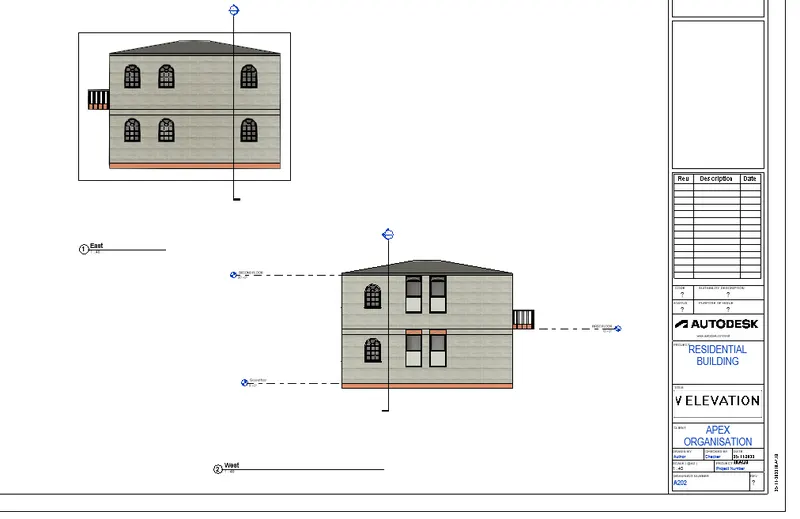

e. A-201- North-South Elevations

f. A-202- East-West Elevations

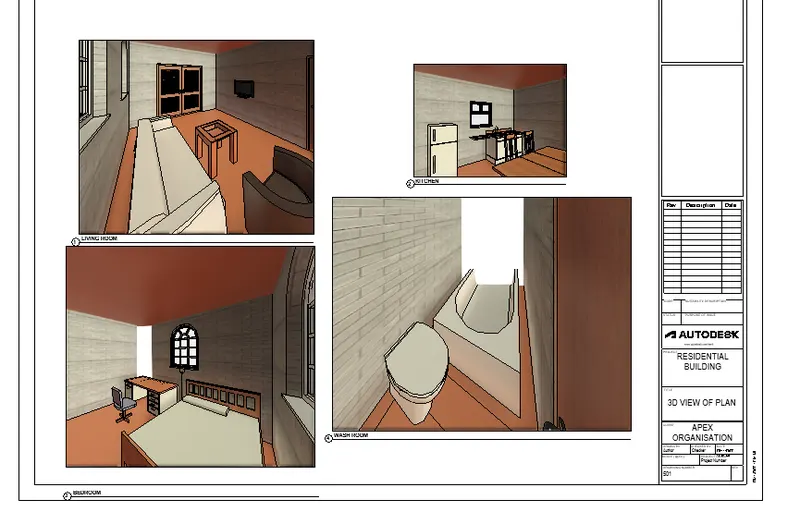

10. Aim - create 3d view of each room on sheet
