3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q1: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

Aim and introduction:To create a ceiling from a architecture tab at first floor

Procedure:

Steps:

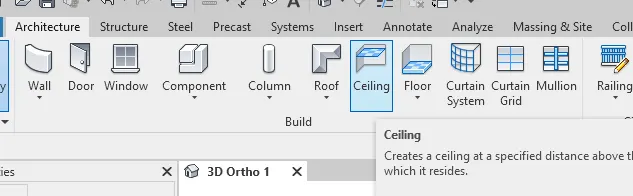

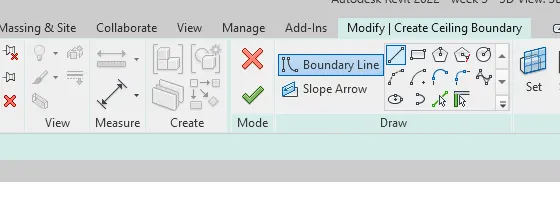

• Go the architecture tab
• Select the ceiling
• Sketch ceiling
• Choose the pick lines option

Results:Creation of ceiling using architecture tab.

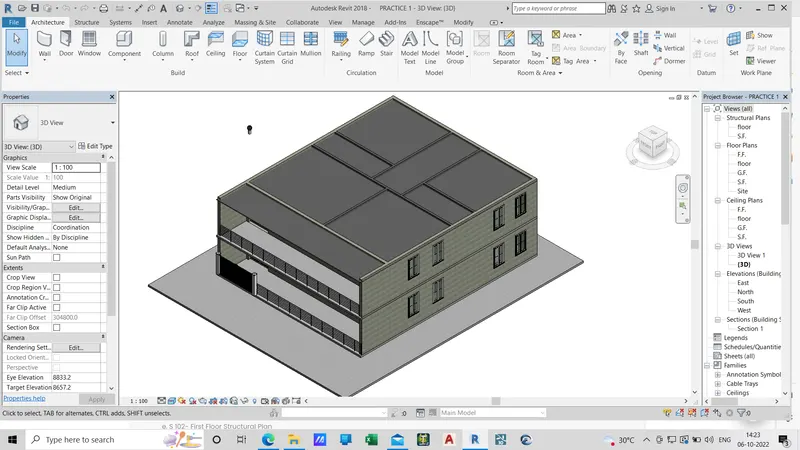

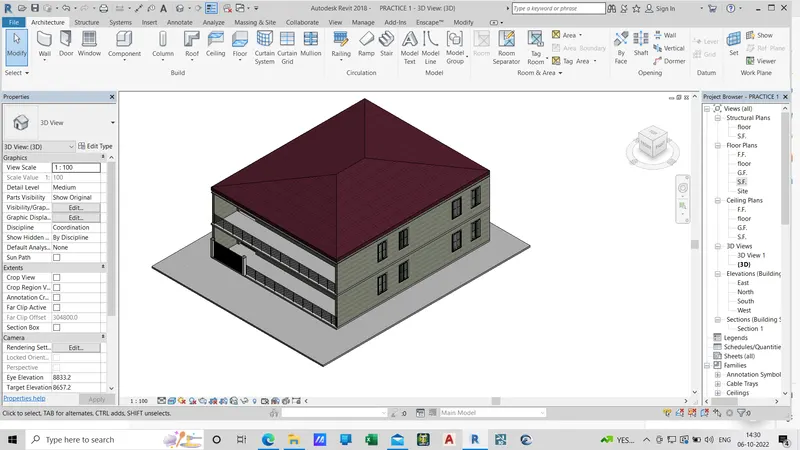

Q2:Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degree

Aim and introduction:To model roof above the ceiling

Procedure:

Steps:

• Go to the Architecture tab
• Roof by footprint
• Select the level of roof

Results:Model a roof above the ceiling by selecting the footprints of the ceiling.

Q3:

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

Aim and introduction:Create plan views for ground floor and first floor level.

Procedure:

Steps:

• Go to the project browser
• Select the floor plans,first floor etc...
• And the in structural plan
• Select the ground floor plan,first floor plan etc....

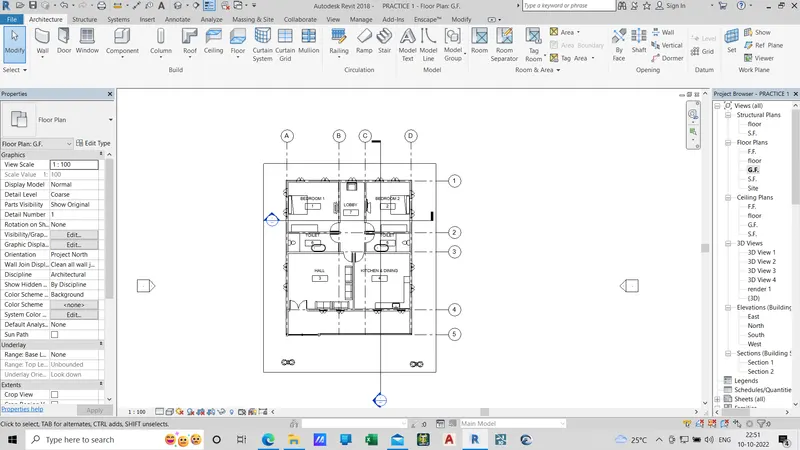

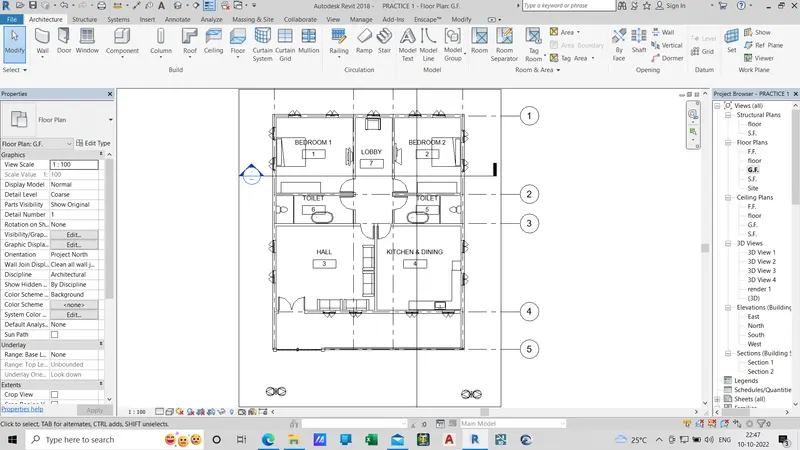

Ground Floor plan:-

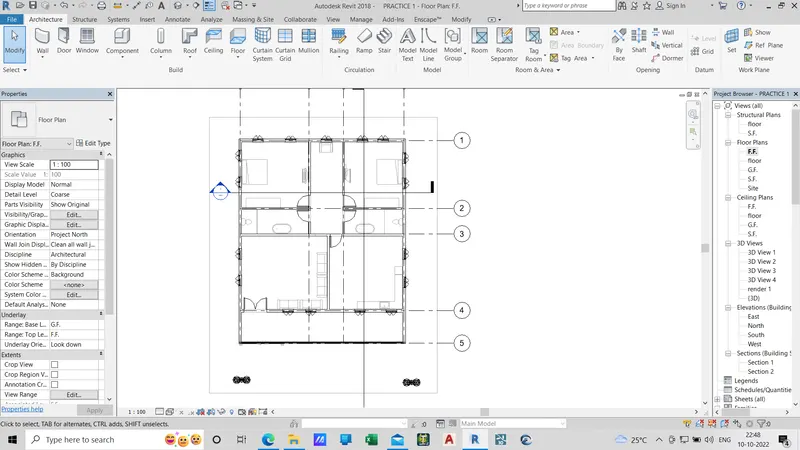

First Floor Plan:-

Results:Creation plan views for ground floor and first floor level.

Q4:Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Aim and introduction:Adding dimesions to architectural and structural plan

Procedure:

Results:Dimensions are added to architectural and structural plan using annotate tab

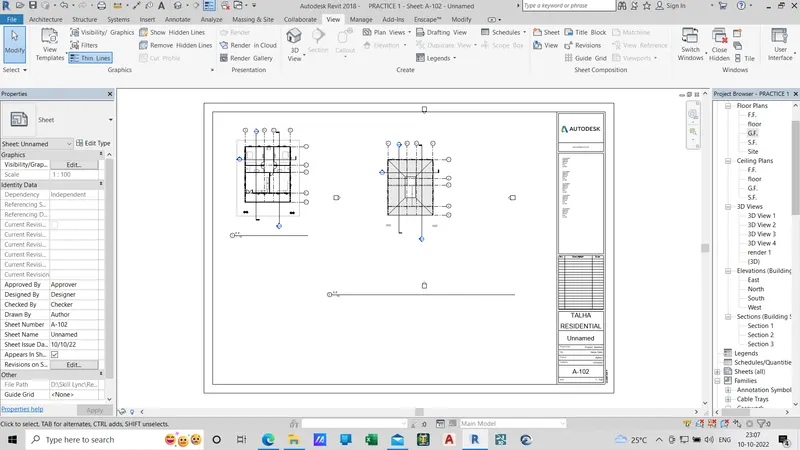

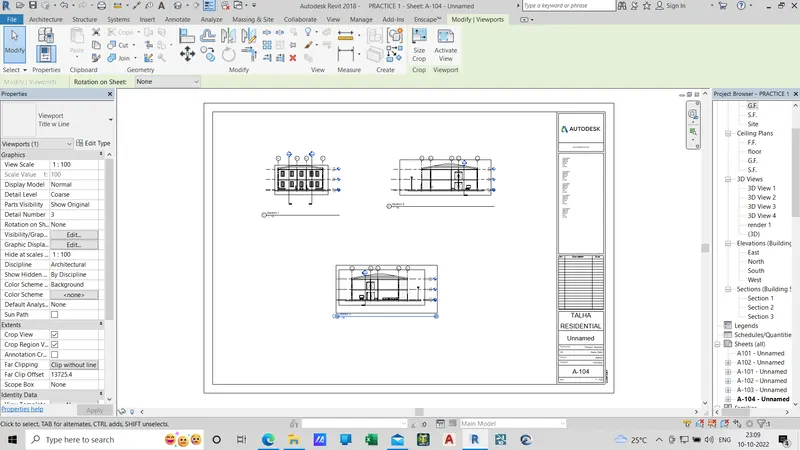

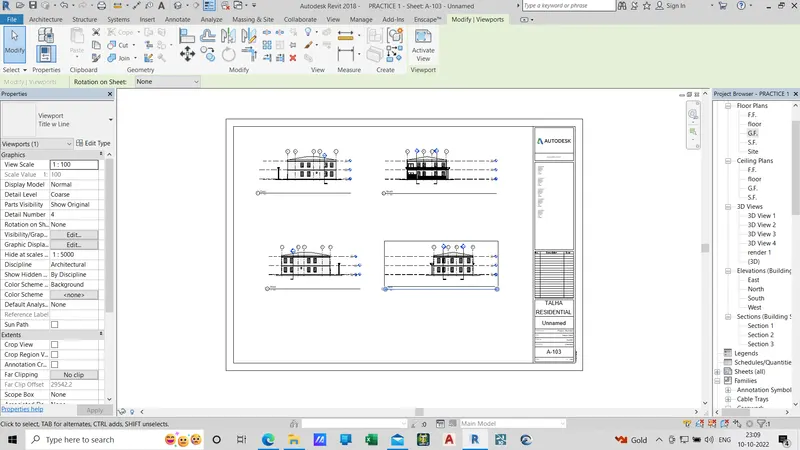

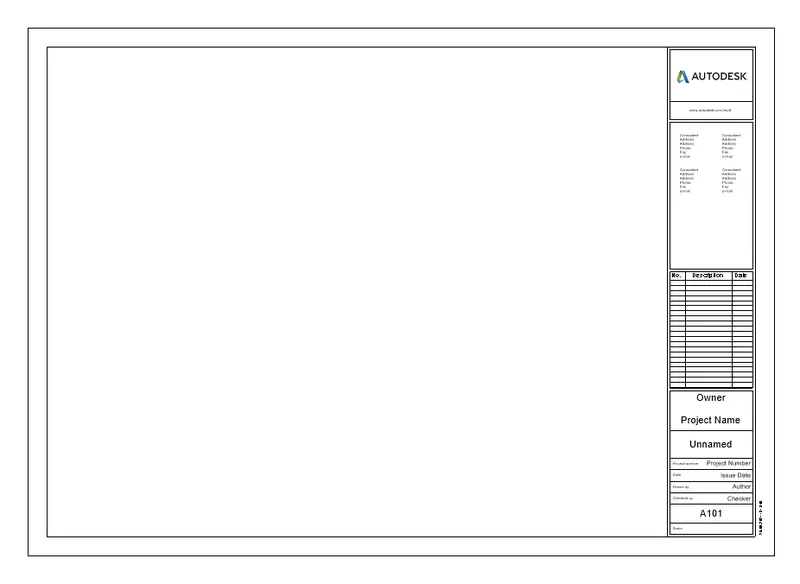

Q5:Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Aim and introduction:Create a sheet template from the view tab

Procedure:

Steps:

Results:Creation of template using view tab

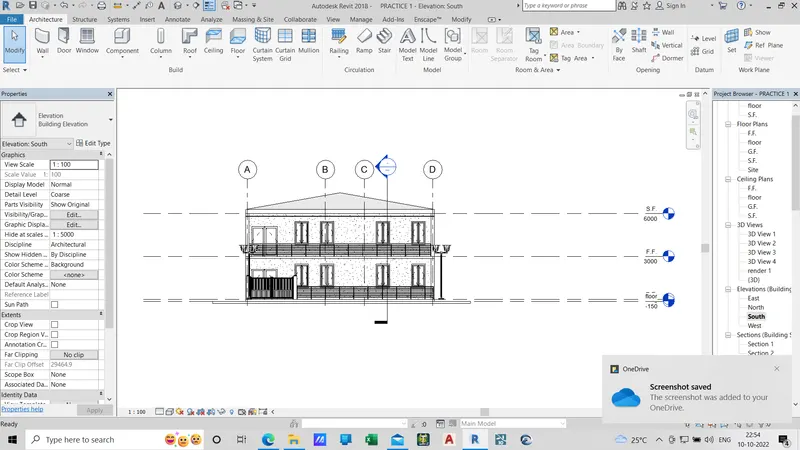

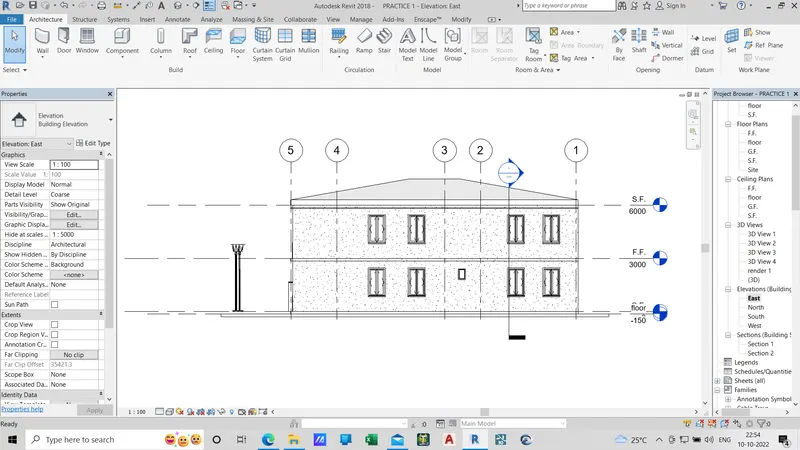

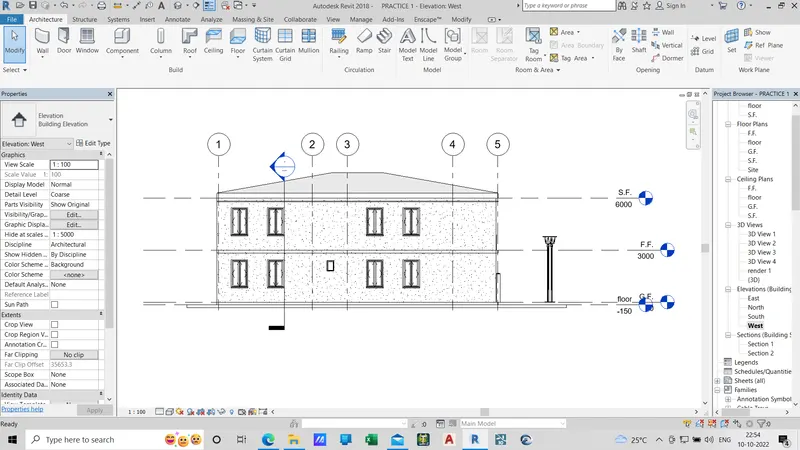

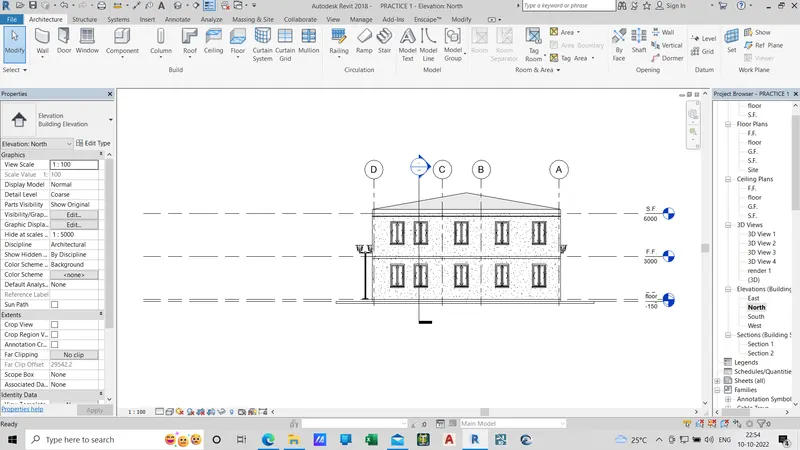

Q6:Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Aim and introduction:To create elevation views.

Procedure:

Steps:

• Go to the view tab
• Go for elevation
• Then we will get elevation in all the directions.

Results:Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

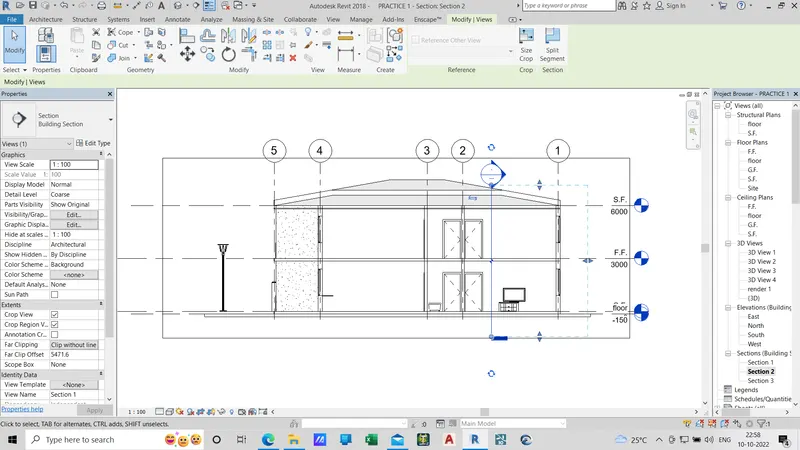

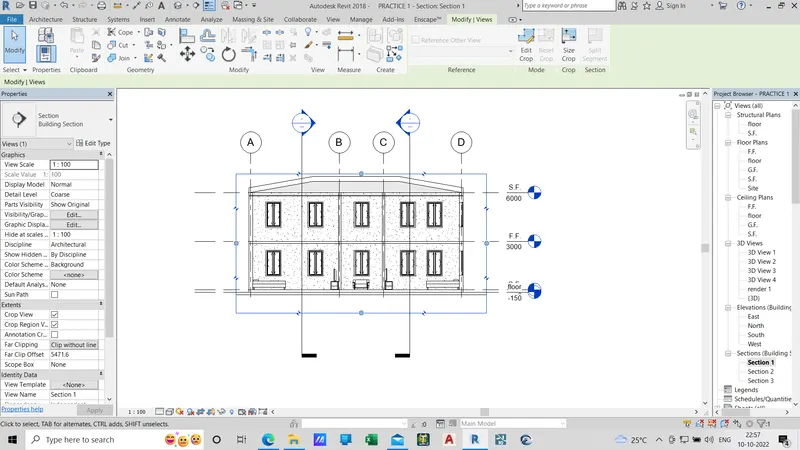

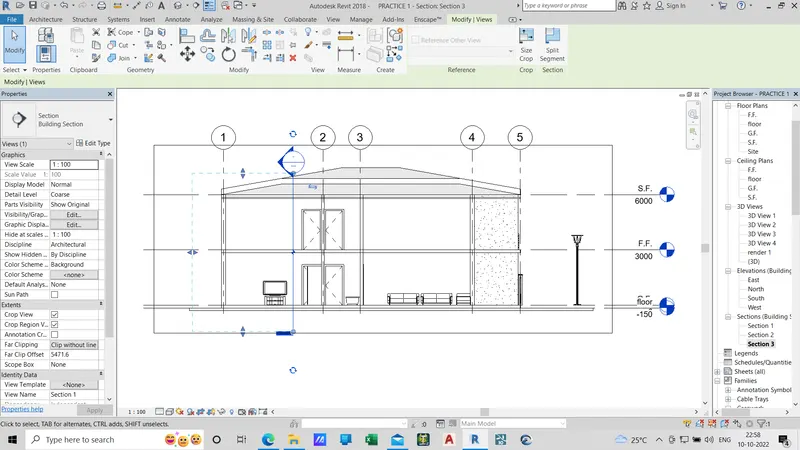

Q7:Produce section cut through each room either cutting across longitudinally or in a transverse direction

Aim and introduction:Create section longitudinally or transverse direction

Procedure:

Steps:

• Go to the view tab
• Select the section
• Mark the section where we have to cut into sections
• Go to the project browser and select the sections

Results:Producing section cutting through each room

Q8:Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Aim and introduction:Classification of views using property browser

Procedure:

Steps:

• Go to the sheets
• selecting the sheet layout
• Select the view
• Add the different views to the sheets.

Results:Classification of views using project browser.

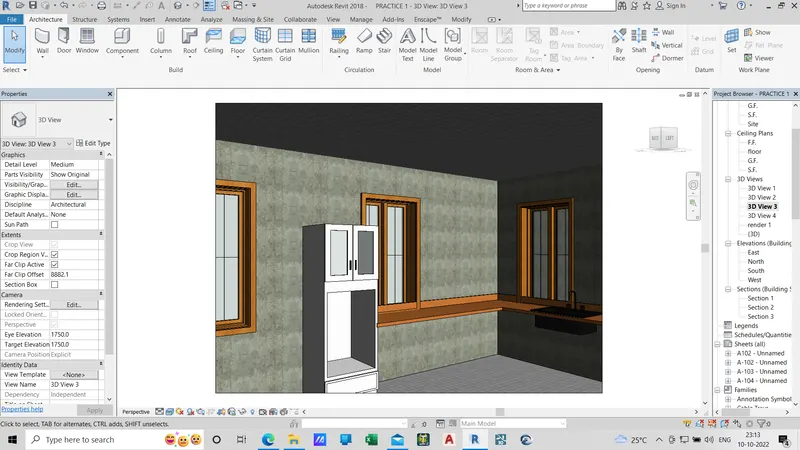

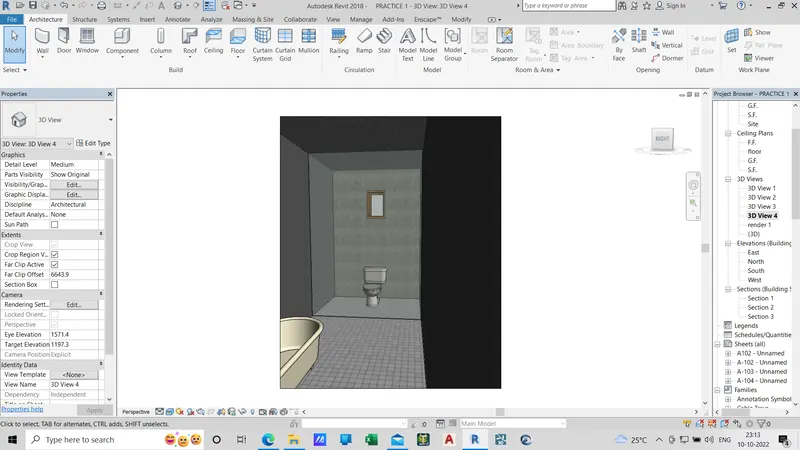

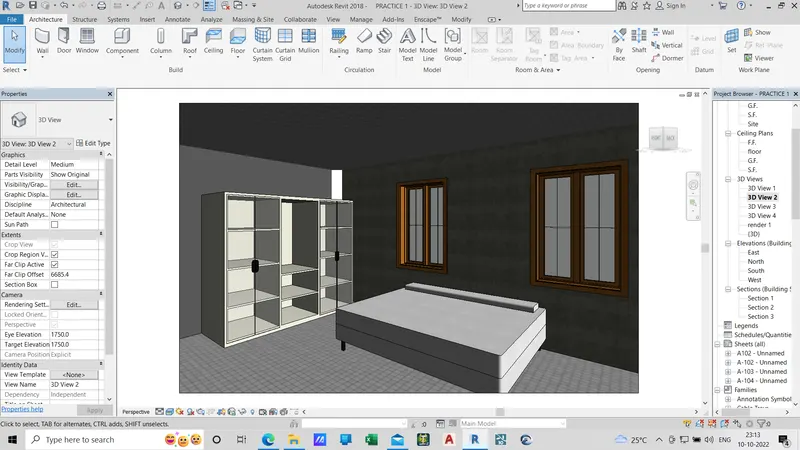

10.Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

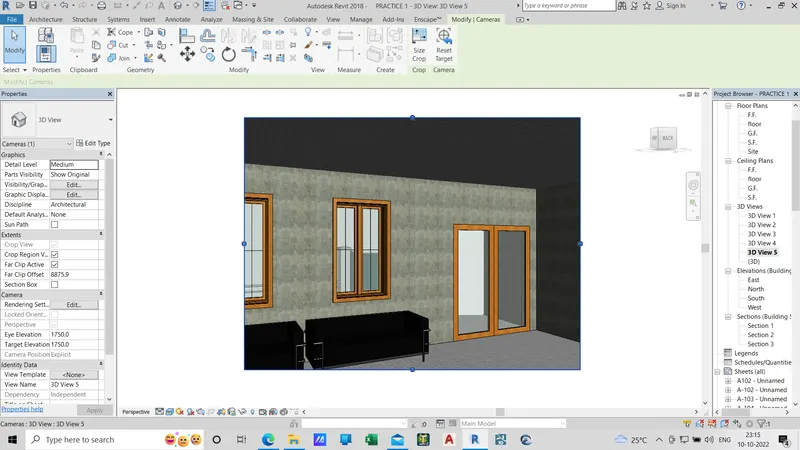

All Interior Views :-

Result :- All vies created.
