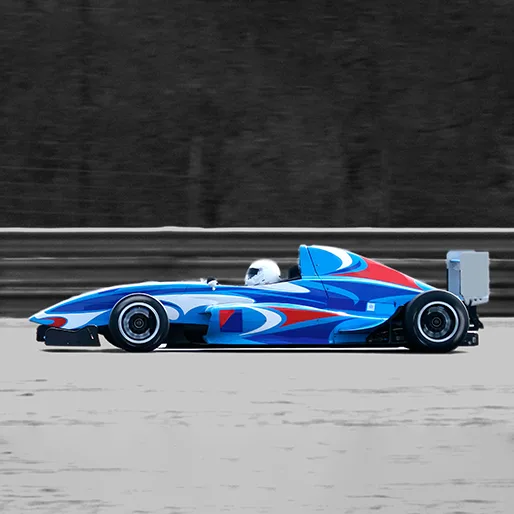

Role of Aerodynamics in Formula 1 Racing: How Technology Has Transformed the Design of Cars

Since its inception in 1968, aerodynamic engineering has evolved to take the sport to the next level. From the early days of competition, aerodynamics has been at the forefront of car design, enabling drivers to achieve faster speeds and greater control. Yet, the role of aerodynamics in Formula 1 racing has evolved significantly over the years. As advances in technology have increased, so has the complexity of aerodynamics, allowing engineers to design cars that are more aerodynamic and efficient than ever before.

This article will discuss the history of F1 car aerodynamics technology and the ways in which it has changed the way racing cars are designed today, and how this technology has helped to shape the future of Formula 1 car design.

Analysing the Evolution of Aerodynamic Technology in Formula 1 Racing

Formula 1 racing has been the pinnacle of motorsport for decades. It is a highly competitive sport that requires teams to stay ahead of the competition by utilising the latest technologies and design approaches. The most important factor in F1 racing is aerodynamics, which is the study of how air interacts with a vehicle's body. Aerodynamics plays a key role in determining the performance and handling of a car, which is why teams spend countless hours in the wind tunnel testing and refining their aerodynamic designs.

The role of aerodynamic technology in Formula 1 has significantly impacted the sport. In the 1950s, the average lap speed of Formula 1 cars was around 70 mph. By the 1990s, that number had risen to more than 190 mph. Today, the average lap speed has risen to more than 220 mph. This increase in speed has been attributed to advancements in aerodynamic technology.

Aerodynamic technology has come a long way since the late 1950s when Formula 1 first began. Back then, the cars were relatively simple, with a low power-to-weight ratio. As technology improved over the years, teams began to utilise more advanced aerodynamic technologies to increase performance. By the late 1990s, teams began to employ advanced computer-aided design (CAD) tools to help them design and analyse their aerodynamic packages.

Today, Formula 1 car aerodynamic technology is more advanced than ever before. Teams use sophisticated wind tunnels and computational fluid dynamics (CFD) software to simulate and analyse the performance of their cars. Advanced materials such as carbon fibre and titanium are used to reduce the weight of the cars, while computer-aided design (CAD) tools are used to optimise the aerodynamic design of the vehicles.

Over the years, aerodynamic technology has seen significant developments in Formula 1 racing. This has resulted in cars becoming faster and more efficient. For example, in the 2020 season, the fastest lap in history was set by Lewis Hamilton with an average speed of 164.286km/h. This was made possible by using advanced aerodynamic technologies such as Drag Reduction Systems (DRS) and Front and Rear Wing Adjustments (FAR).

In addition to making cars faster, aerodynamic technology has also helped to make them safer. The introduction of the Halo system in 2018 has helped to protect drivers from flying debris. This system is designed to deflect any debris that may come into contact with the car's cockpit, thus reducing the risk of injury to the driver.

Understanding the Principles of Aerodynamics for Formula 1 Cars

Aerodynamics has a major impact on the performance of a Formula 1 car. The principles of aerodynamics refer to the forces acting on a car moving through the air and how the car's design affects those forces.

In the following section, we will delve further into the topic:

• Aerodynamics affects the speed of a car, the amount of grip it has, and the amount of downforce that can be generated. In order to achieve maximum speed and performance, the aerodynamics of a Formula 1 car must be carefully designed and optimised.
• The most important aerodynamic elements of a Formula 1 car are the wings, which create downforce, and the diffuser, which increases the amount of airflow under the car. The shape of a Formula 1 car's body is also important, affecting how air moves around the car. The car's design must be such that it minimises drag while also creating downforce.
• The drag on a Formula 1 car is also important, affecting its top speed. Drag is generated by the shape of the car and the air resistance it experiences. The design of a Formula 1 car must minimise drag while also producing enough downforce to allow the car to corner efficiently.

Statistics show that aerodynamic design has a major influence on the performance of a Formula 1 car. In 2020, the Mercedes-AMG PETRONAS F1 team was able to achieve a record lap time of 1:16.845, due in part to their aerodynamic design. This was 0.8 seconds faster than the previous record and was attributed to the team's advanced aerodynamic design techniques.

How Wind Tunnel Testing Revolutionised Formula 1 Design?

Wind Tunnel testing is a process that was developed in Germany during World War II for testing aircraft and has since been adopted by the Formula 1 racing industry. It is used to measure the force of the air moving around an object in motion and assess its aerodynamics in order to design and perfect cars for optimal speed and performance.

Over the last three decades, wind tunnel testing has revolutionised Formula 1 design. It has allowed teams to understand the impact of each design change on the car’s aerodynamic performance and optimise the car to its fullest potential. This has greatly impacted the speed and performance of cars, with teams now able to shave off fractions of a second in lap time with the right design tweaks.

For instance, in the 1990s, nearly all Formula 1 cars used a similar design, with a flat bottom and large rear wings. However, with the introduction of wind tunnel testing, teams began to experiment with different designs, such as curved bottoms and exhaust-mounted wings. These changes have seen lap times drop from an average of 1:30.00 in the early 1990s to 1:17.00 in 2019, with some cars reaching lap times of 1:14.00 or less.

Wind tunnel testing has also allowed teams to create more efficient and aerodynamic cars, with cars now featuring complex shapes and designs that would not be possible without wind tunnel testing. This has seen teams reduce drag levels on their cars, increase downforce and reduce turbulence. For example, the Mercedes F1 W08 featured a complex front wing design with a curved shape and several aerodynamic vortices that improved the car’s performance.

Exploring Tomorrow's Possibilities: A Look at the Future of Formula 1 Car Design

As Formula 1 continues to evolve, so does the design of the cars that make up the grid. From the sport's earliest days to today's cutting-edge technology, car design has come a long way. But what does the future hold for Formula 1 car design?

The possibilities are practically limitless. With rapidly advancing materials and technology, Formula 1 cars of the future could be lighter, faster, and more efficient than ever before. Aircraft-grade composites, 3D-printed parts, and advanced aerodynamic systems could push the limits of speed, while hybrid and electric power trains could revolutionise how cars are powered.

In addition, autonomous and semi-autonomous driving technologies could revolutionise how cars are driven, allowing for greater precision and safety. And with the increasing prevalence of data and analytics, cars could be designed to react to changing track conditions in real-time.

The future of Formula 1 car design is an ever-evolving process that will bring exciting new possibilities to the world of motorsport. It is a future that will surely be filled with innovation, progress, and thrilling new possibilities.

Conclusion

The journey of Formula 1 aerodynamics has been remarkable. Beginning with low drag and high downforce, the sport has seen a major evolution to the advanced aerodynamics of modern F1 cars. This has greatly impacted the design of F1 cars, leading to increased speed and improved performance. This technology is essential to the success of Formula 1 and will stay that way for years.

As the sport progresses, aerodynamic technology will drive the design of F1 cars and deliver better performance.
