Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

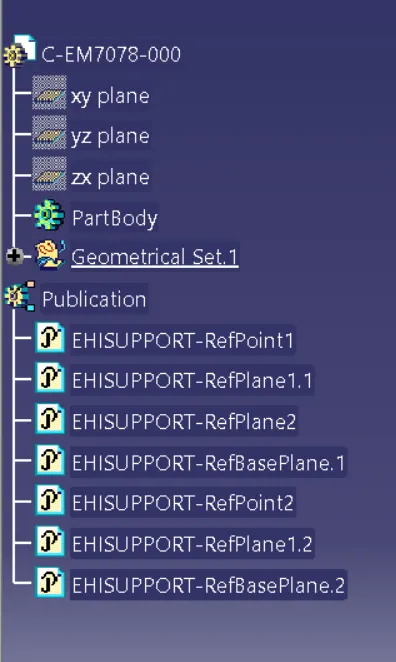

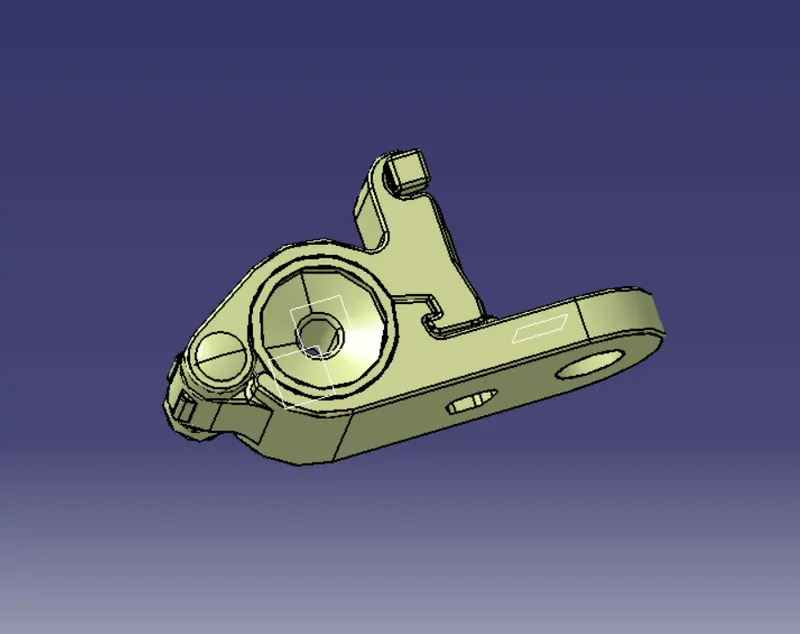

I have downloaded the P clamp file from te.com and EM7078-000 is the p clamp varient. Created the 3 planes which required to define electrical properties. using the electrical part work benck the P clamp is electricaly defined completely.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

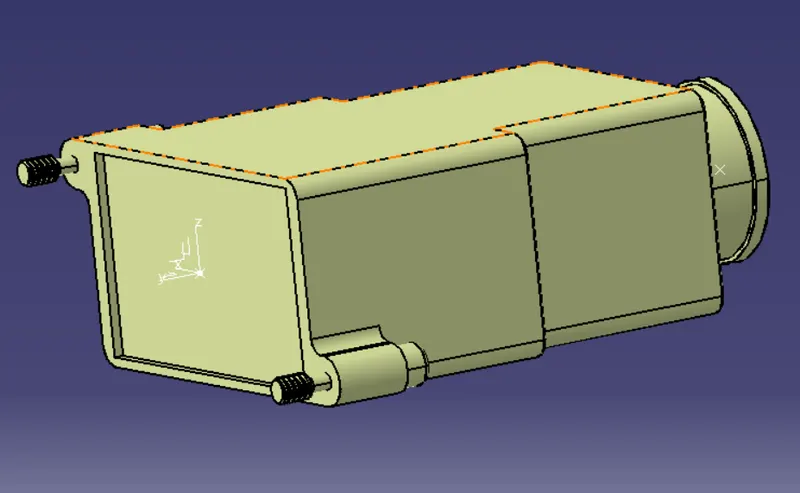

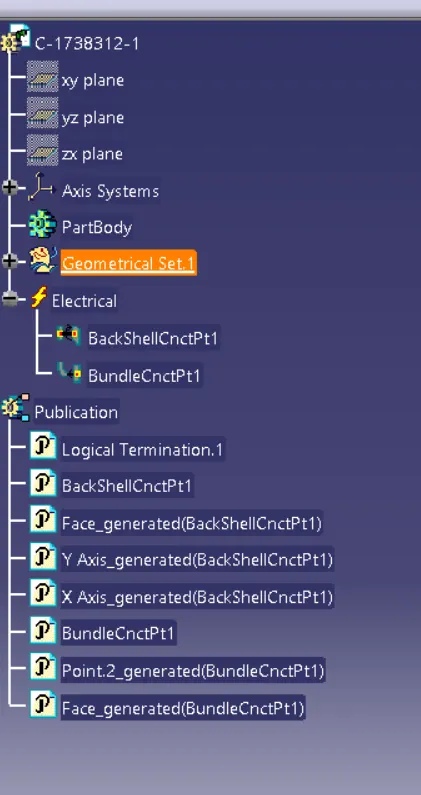

I have downloaded the Tyco 1738312-1 file from te.com. Created the 3 planes which required to define electrical properties. using the electrical part work benck theTyco 1738312-1 is electricaly defined completely.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

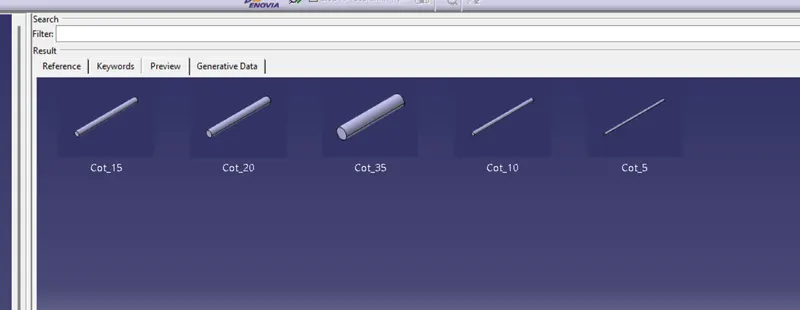

Created the required corrogated tubes using Catia v5 electrical part work bench and added to the catalogue for further referances.
