Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

Objectives

TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

GIVEN:

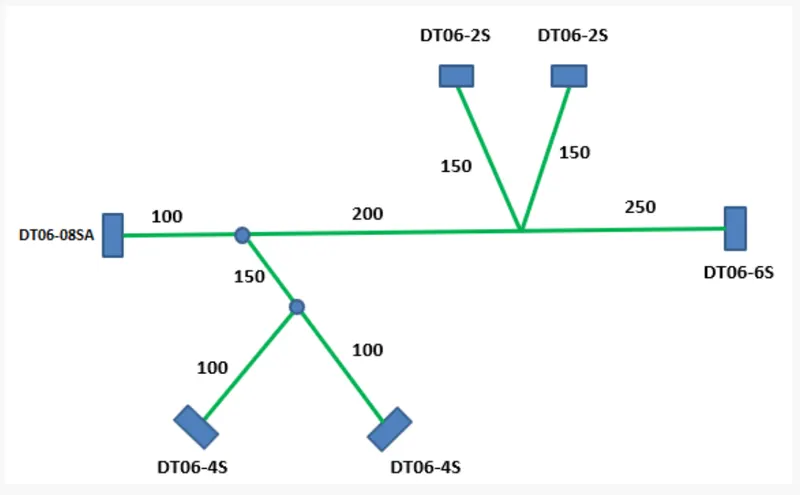

Harness Assemby

Procedures

• GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS.
• USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.

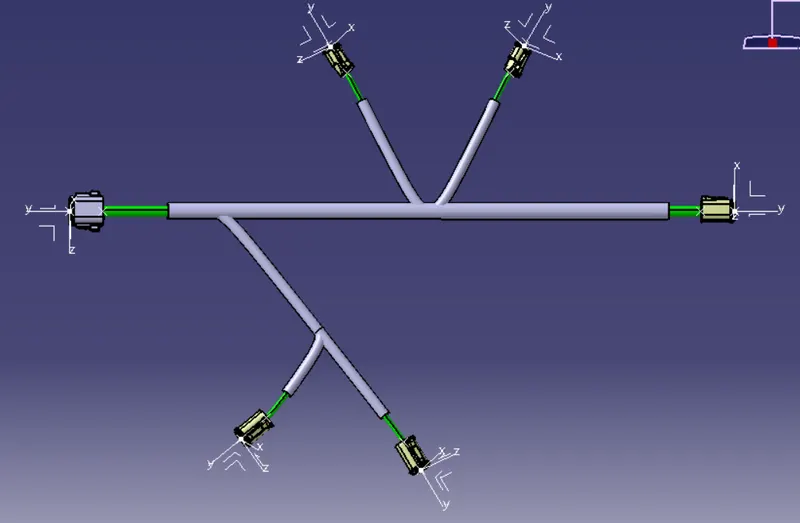

• CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.
• BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES. THE HARNESS ASSEMBLY IS THEN DRAFTED.
• FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

Result

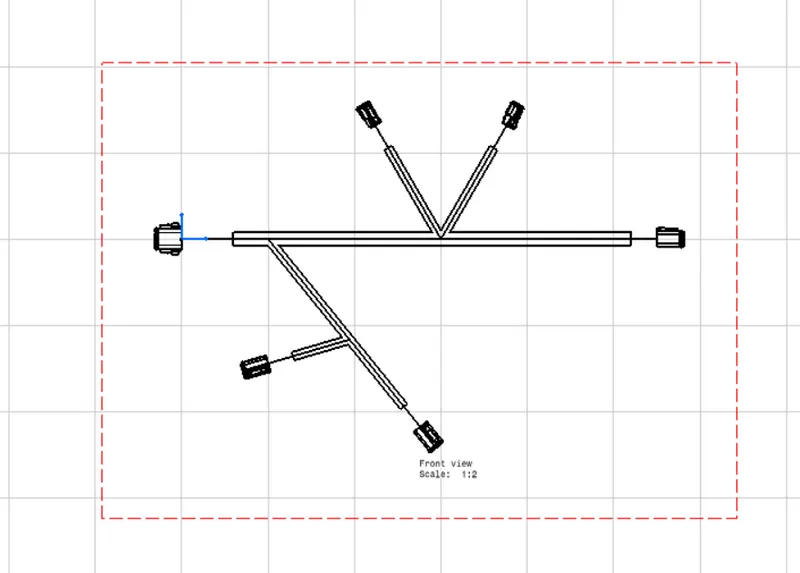

Flatten the given wiring harness and made the drawing using Catia V5
