Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
Aim :
Route the Given harness layout in Electrical workbench & Apply the Conditions.
Ojectives :
- Check the bundle Continuity. Add snap of result in submission
- Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc
- Check for the bundle warning. Add snap.
- Generate CAT.part of harness assembly and convert is in. igs format.
Procedure :
1st Connector of Harness B :

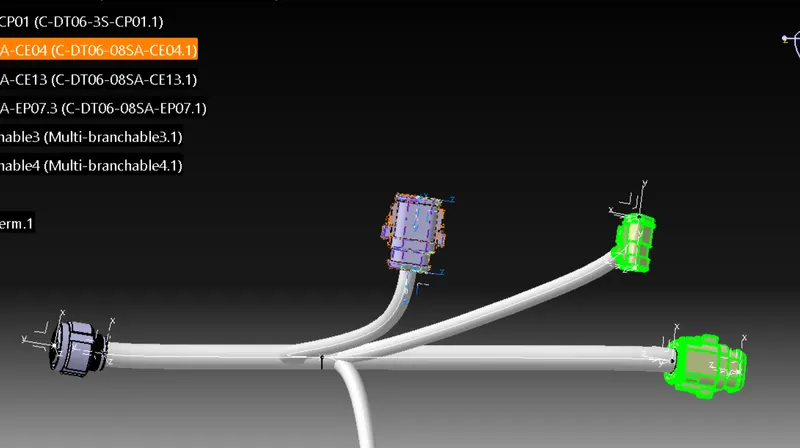

In the Above figure We Have Taken from given source & Merged into Catia V5.

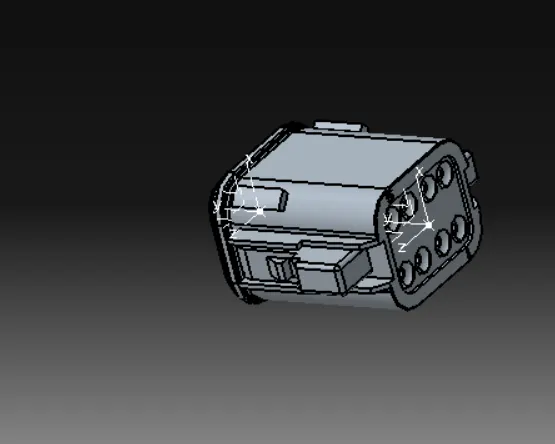

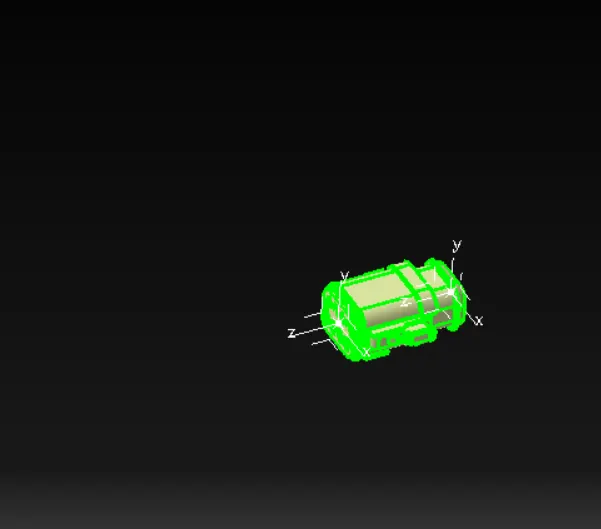

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
2nd Connector of Harness B :

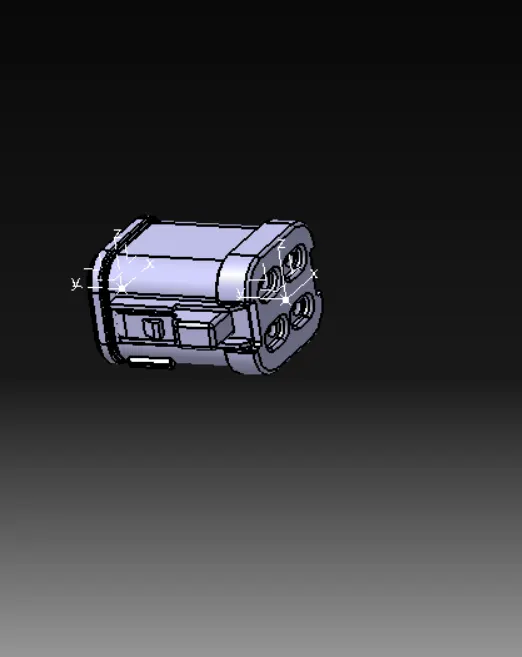

In the Above figure We Have Taken from given source & Merged into Catia V5.

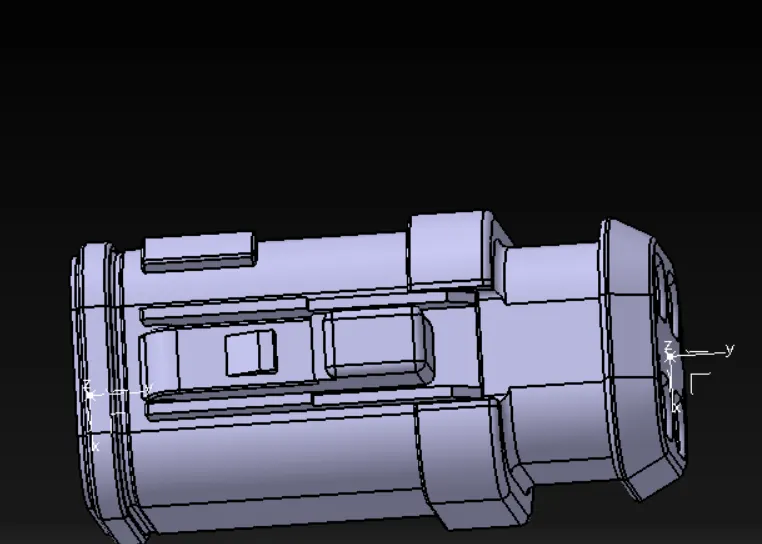

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
3rd Connector of Harness B :
In the Above figure We Have Taken from given source & Merged into Catia V5.

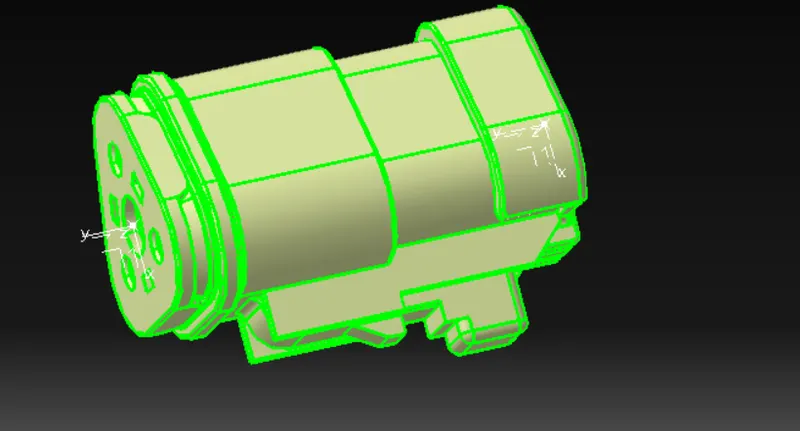

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
4th Connector of Harness B :
In the Above figure We Have Taken from given source & Merged into Catia V5.

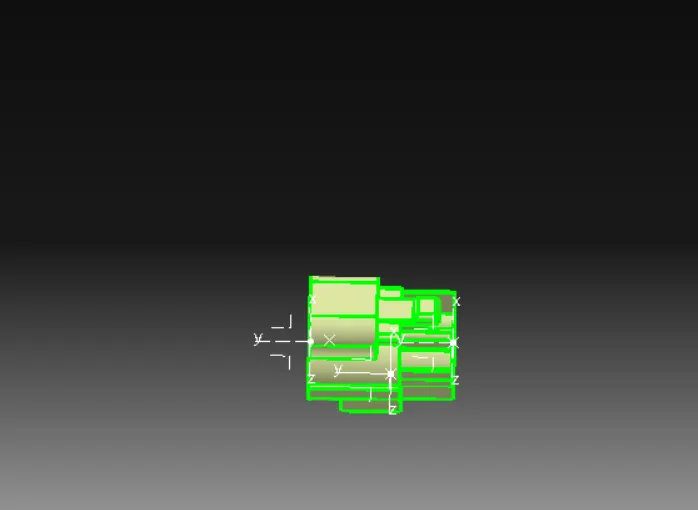

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
6th Connector of Harness A :
In the Above figure We Have Taken from given source & Merged into Catia V5.

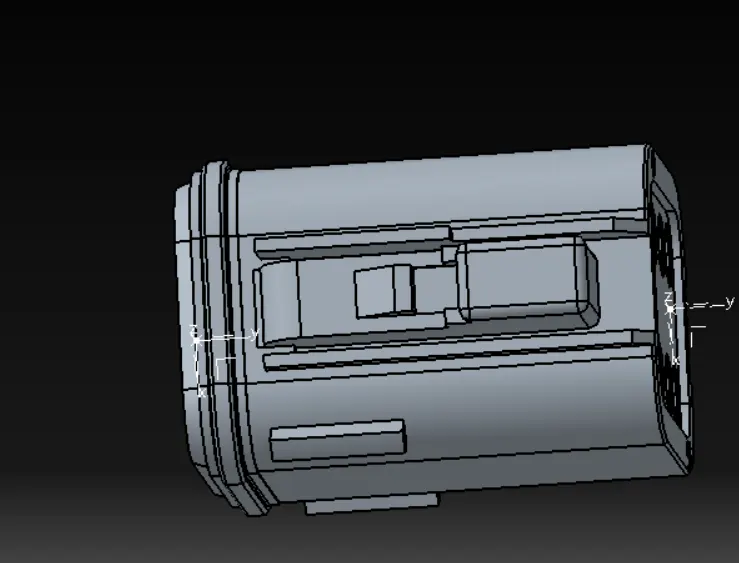

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
7th Connector of Harness A :
In the Above figure We Have Taken from given source & Merged into Catia V5.

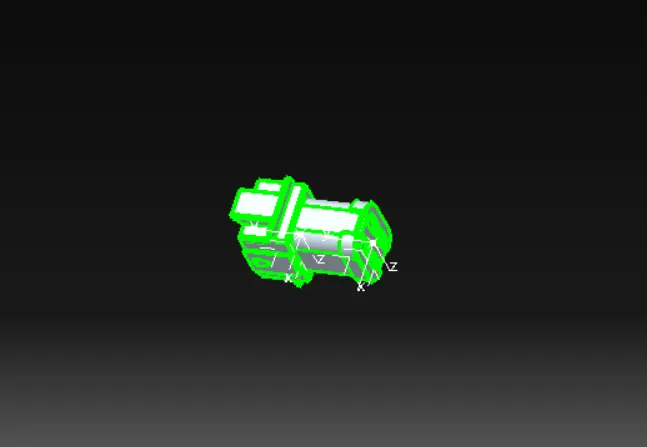

1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
8th Connector of Harness A :
In the Above figure We Have Taken from given source & Merged into Catia V5.
1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
9th Connector of Harness A :
In the Above figure We Have Taken from given source & Merged into Catia V5.
1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
10th Connector of Harness A :
In the Above figure We Have Taken from given source & Merged into Catia V5.
1.Go To the Part design workbench & Taking A middle Point From The Connector Connecting Side As Well As Bundle Connecting Side.
2.Taking the axis Origin of Connector connecting Point.
3.Adusting the y-axis is normal to the face of connector connecting Point & X-axis would be locking side & Z-axis would be Up or down side.
4.Then go to the electrical part design workbench after that defined it as a connector & Add no of terminals it has & defining the connector connection point As well as bundle connection point with respect to their faces & Respresentations.
Electrical harness Assembly A :
Then Go to the electrical harness Assembly Define the product as an geometric bundle.

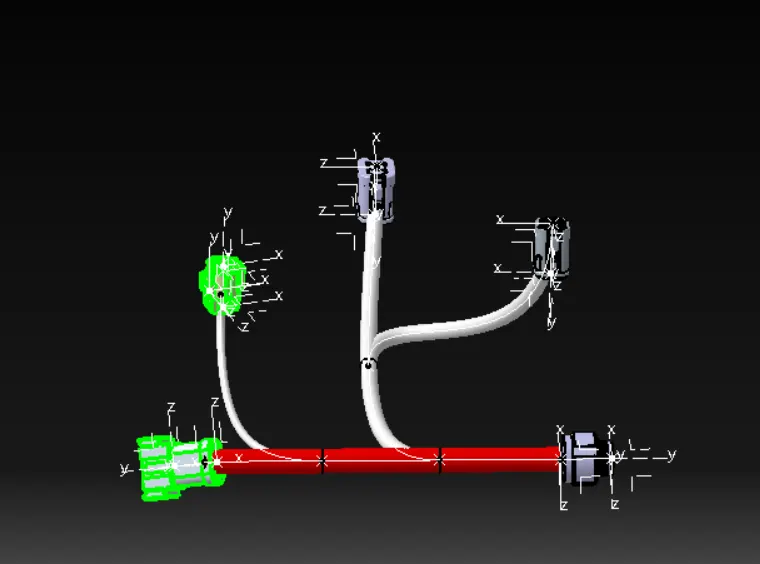

Then go the multibranchable point Route the bundles And suiatable break points with respect to the given Diagram
.
Electrical harness Assembly B:
Then Go to the electrical harness Assembly Define the product as an geometric bundle.
Then go the multibranchable point Route the bundles And suiatable break points with respect to the given Diagram.

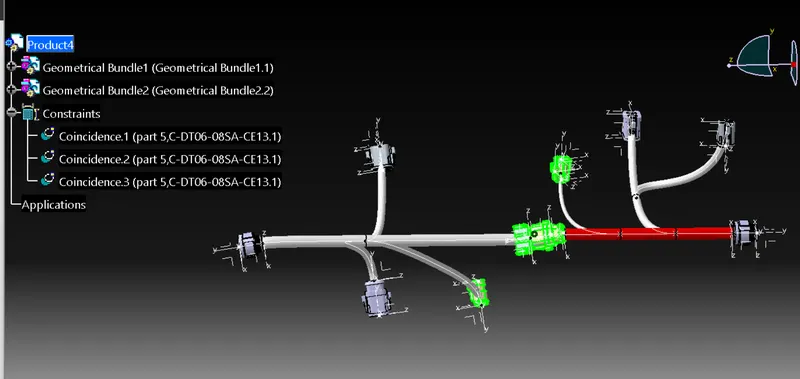

Connecting Electrically :
Intially We load the Harness A & B into the Electrical Assemby Workbench & Try To connect them but it wont connect Properly
After Updating the components it Could be Connected Properly.
Checking The Bundle Continuity :
By Clicking the Ctrl+F Key we go the pop up .

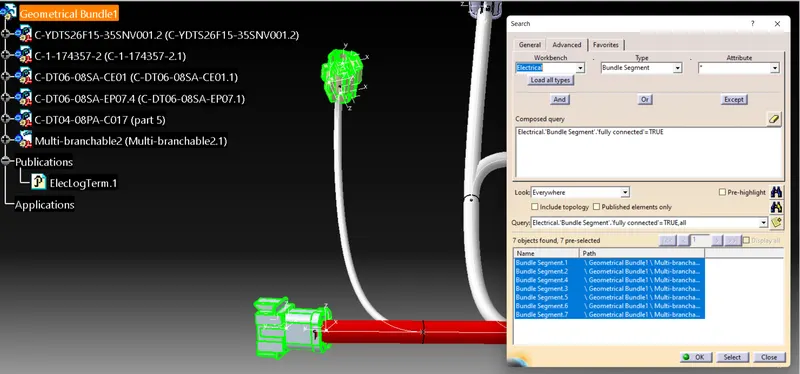

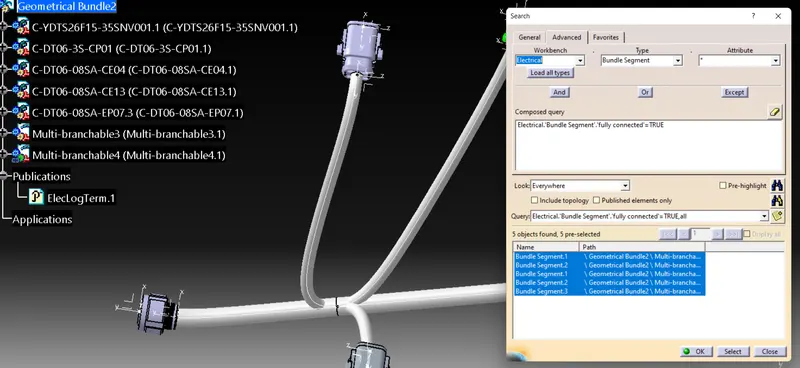

Then Go To The Advanced & Select the Electrical workbench & select the bundle segment on type & go to the attributes select the Fully Connected as shown on above figure.

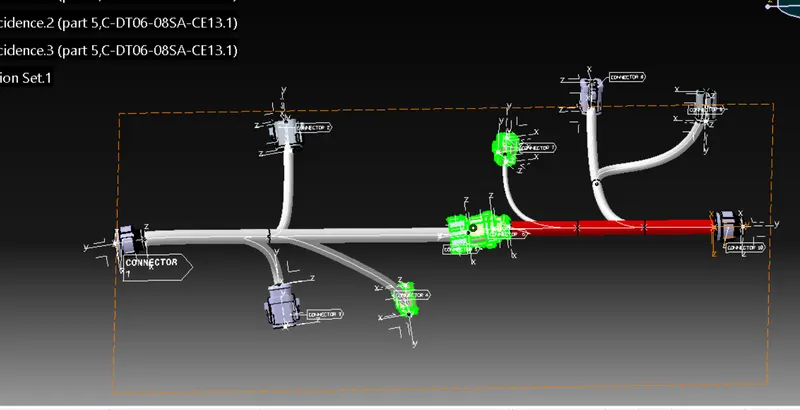

Annotations :
Generating CAT.part of harness Assembly :
In Edit We have an option to genarate cat.part, click ok & Save as the file in igs format.
Conclusion :Sucessfully Routed the given harness layout in Electrical workbench as per given Condtions.
