Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Electrical defnition

step 1; downloading the connectors by the given link

step 2; convert the step files into cat part

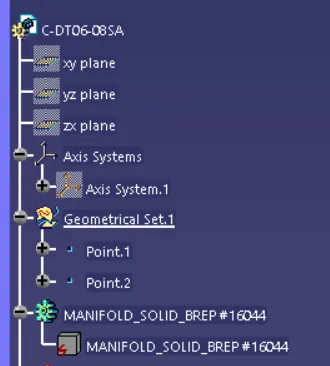

step 3; creation of geometric properties in part design work bench

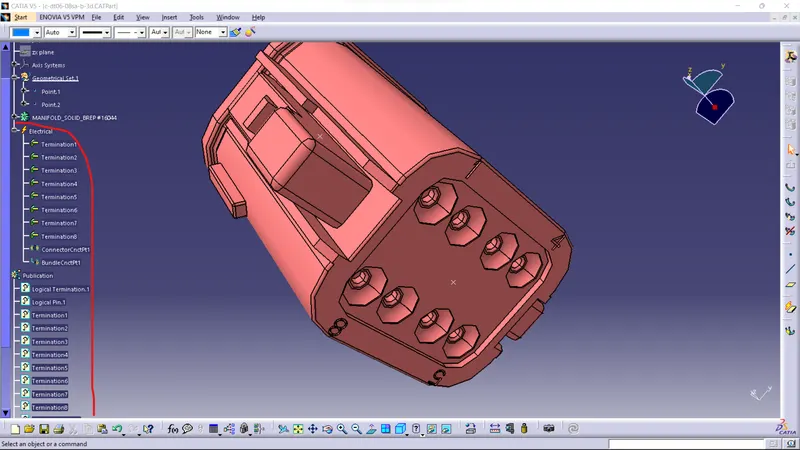

step 4; converting the mechanical part in to electrical part by the electrical part design

step 5; give the required points and connections

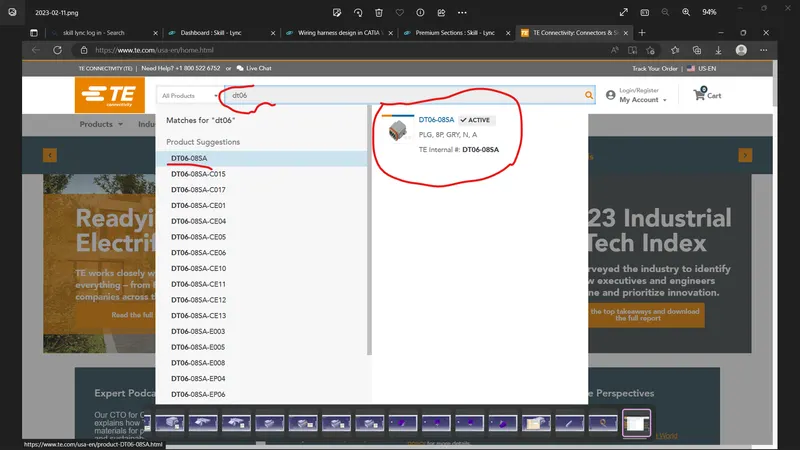

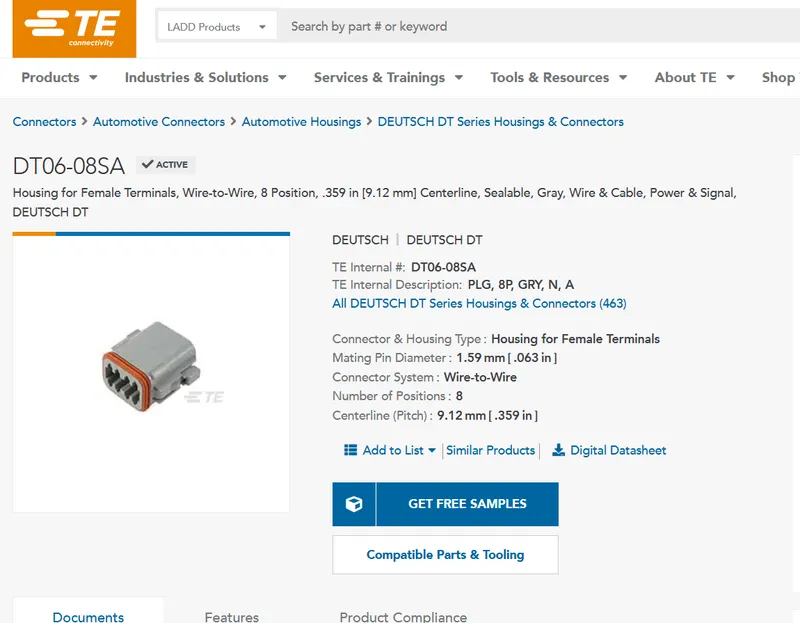

example of the search downloading and electrical defnitions

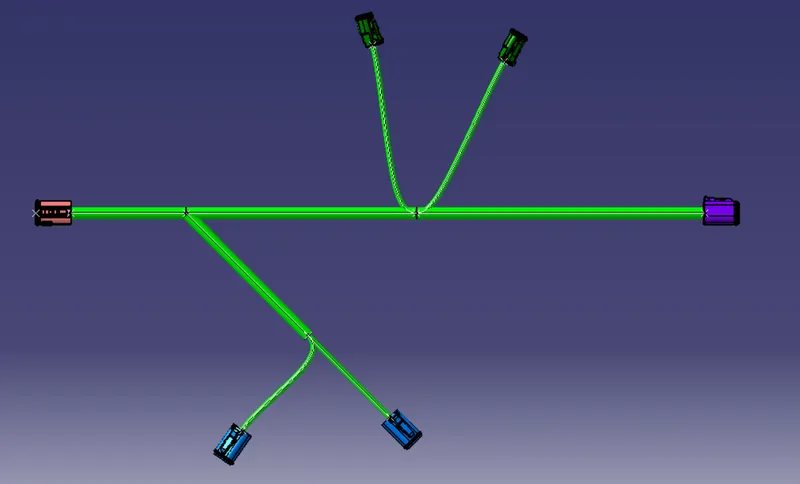

Routing the bundles

step 1; insert the connectors in to the assembly work bench

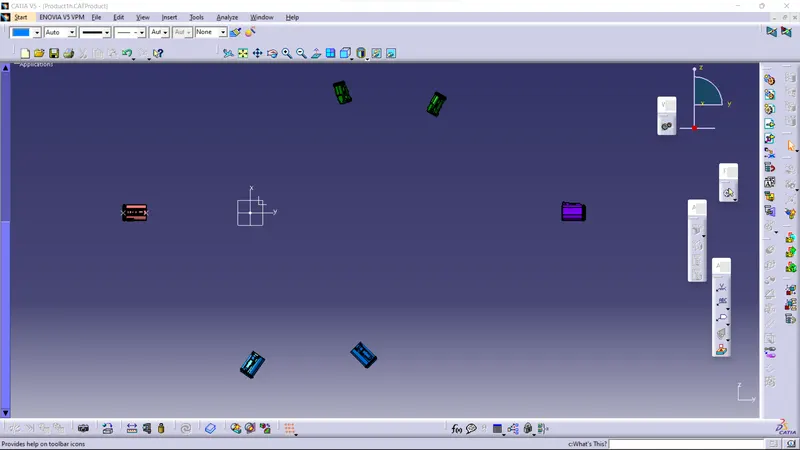

step 2; positioning the connectors in the place as per the given diagram

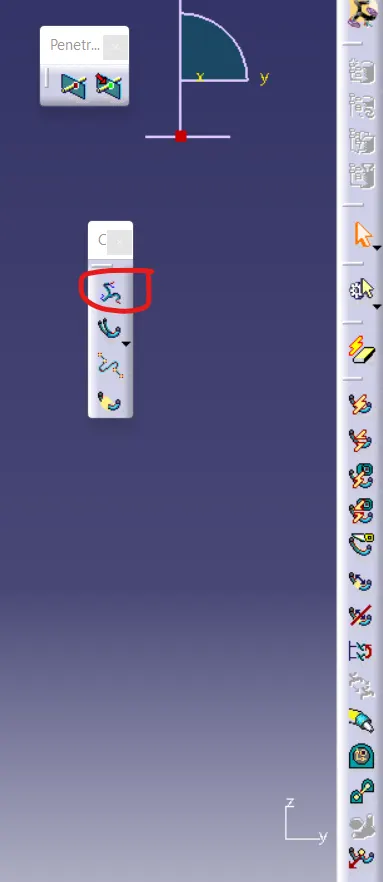

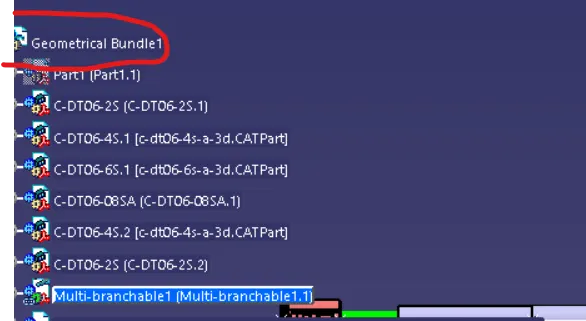

step 3; and switch the work bench into electrical harness assembly and change the products in to geometric bundles by the command

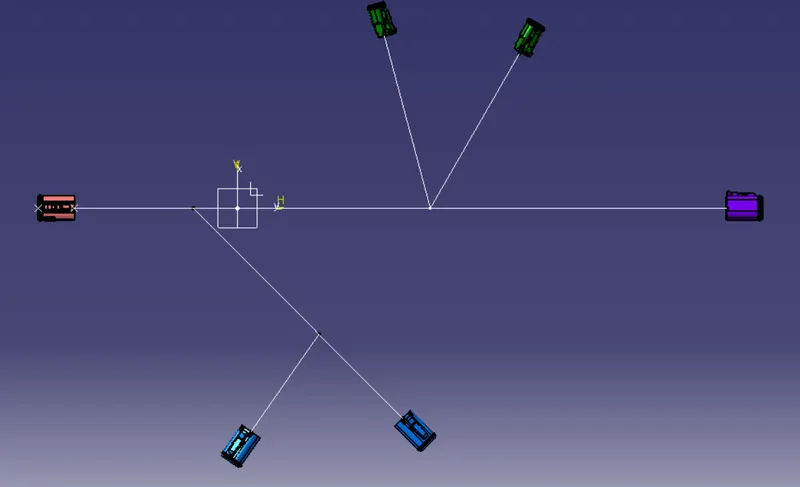

step 4; routing the bundles in the multi brancahable document

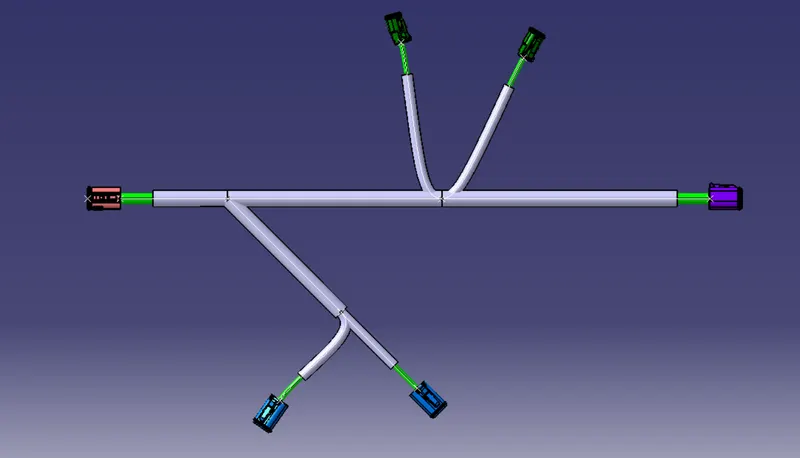

step 5; giving the bundle and route defnitions to creation of bundles

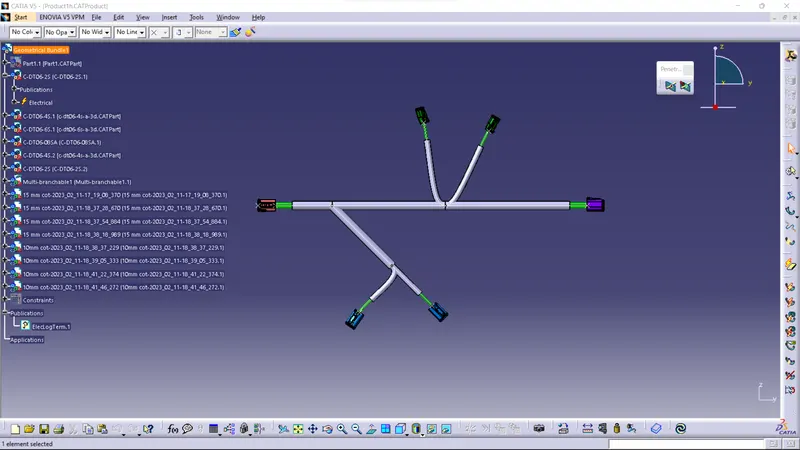

Adding or protecting covers by cot tubes

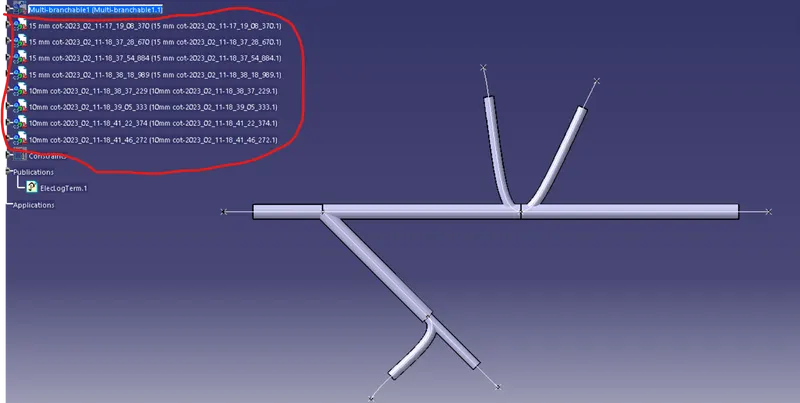

step 1; using the protecting covers to bring a cot tubes

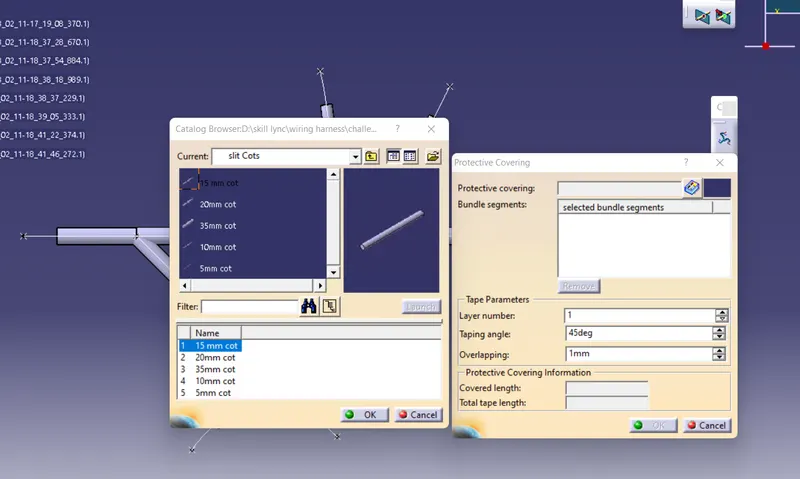

step 2; and then select the cot tubes in the catlogs are previously saved

step 3; select the cot tubes dia similar to the bundle

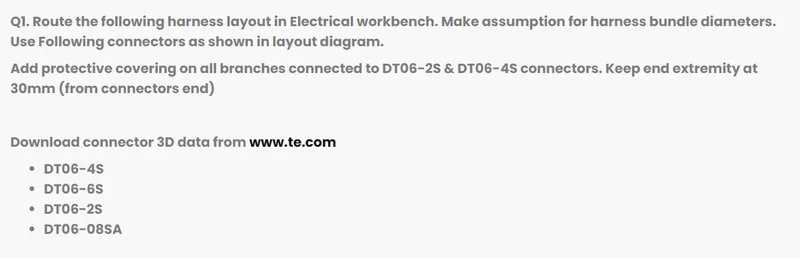

step 4; keeping the distance 30 mm from the connectors required in the question
