Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

• INTRODUCTION TO WIRE HARNESS:
• DEFINIG ELECTRIC PARAMETER FLOW CHART
  • CONNECTOR DEFINATIONS IN CATIA V5

  1. Deutsch DT06 – 08SA

  • Connector connection point

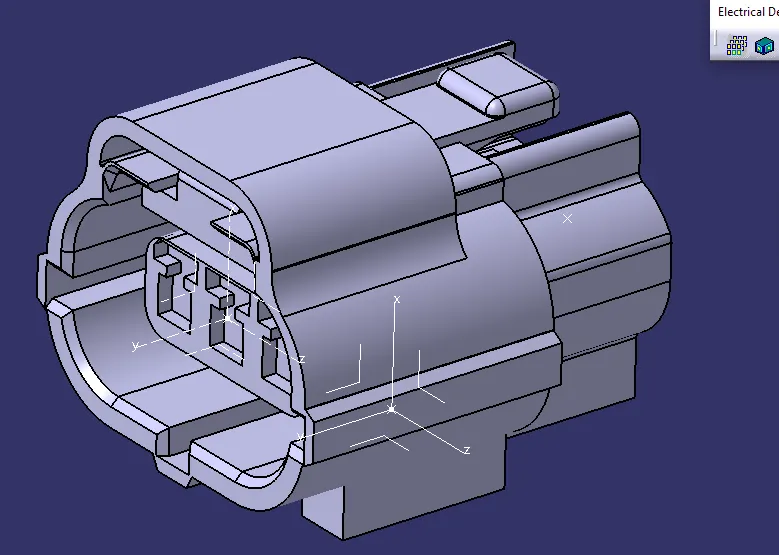

  Create midpoint on the contact face which will be normal to wire bunddle insertion.


• Craete Axis System with respect to the point which we have created and defining the axis direction as shown below

• Bundle connection point:

Switch to 'Electric Part Design'

• Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

• Define Bundle connection point

• Define connector connection point

2.Tyco 174357-2 :

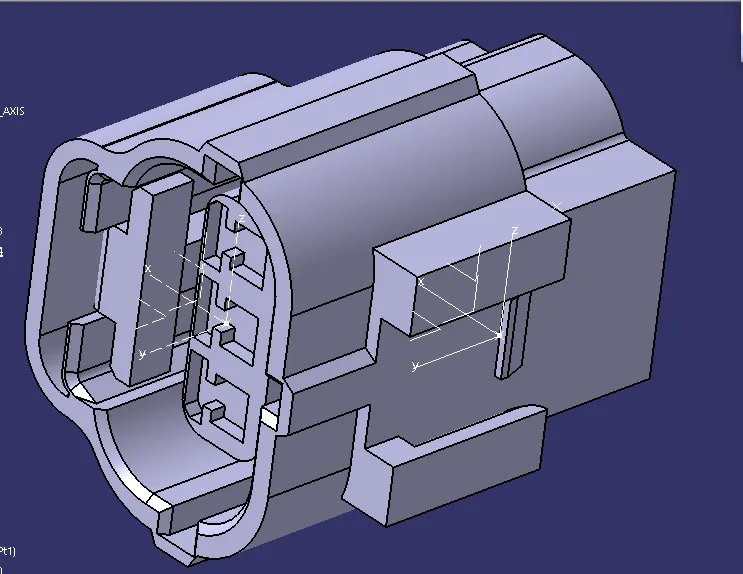

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

3. Tyco 85229-1 :

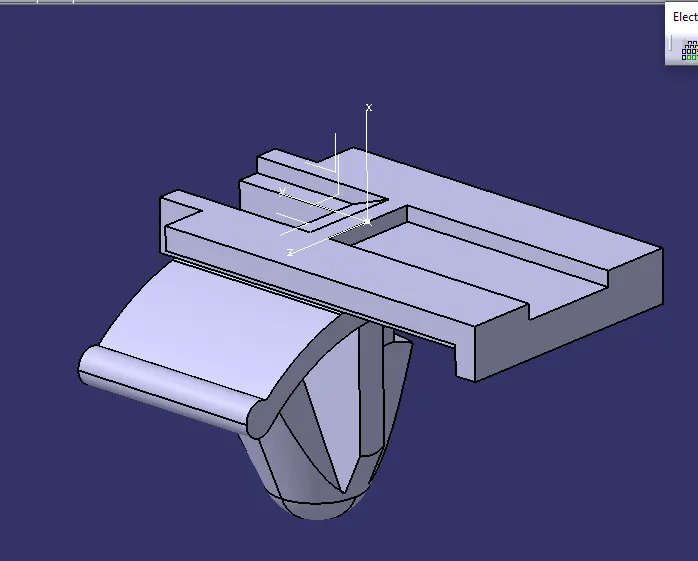

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

Elctric Assembly Design:

• Import Connector and cavity / mounting clip.

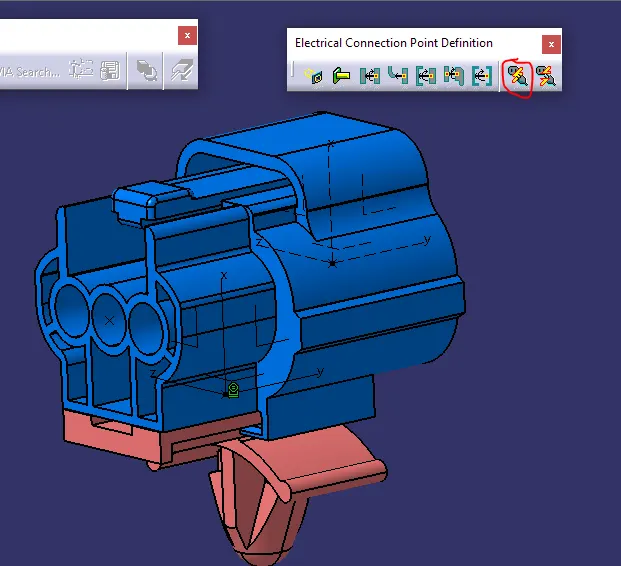

• Select Defing Eelectric connection
• select cavity and then connector.
