Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

ELECTRICAL DEFNITION AND CATLOGUE CREATION

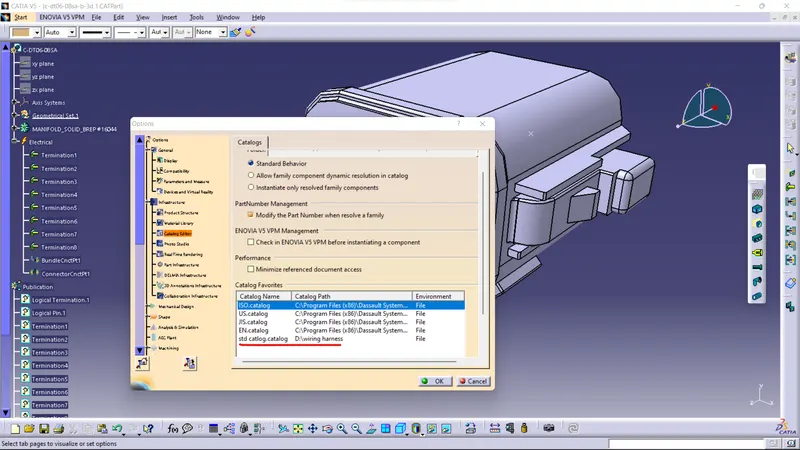

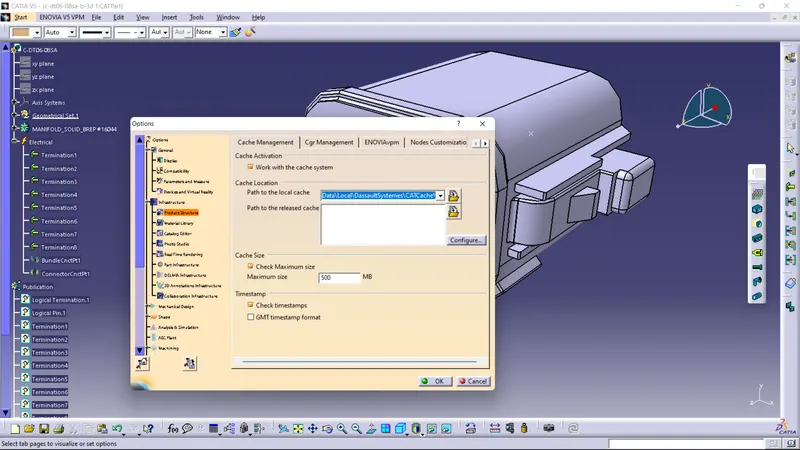

CACHE MANAGEMENT SETTINGS

CATLOG CREATION FOR STANDARD PARTS IN CATLOG EDITOR

CATLOG CREATION OF ELECTRICAL PARTS

DOWNLOAD THE CONNECTORS CAD PARTS

CREATING THE CONNECTOR FILE

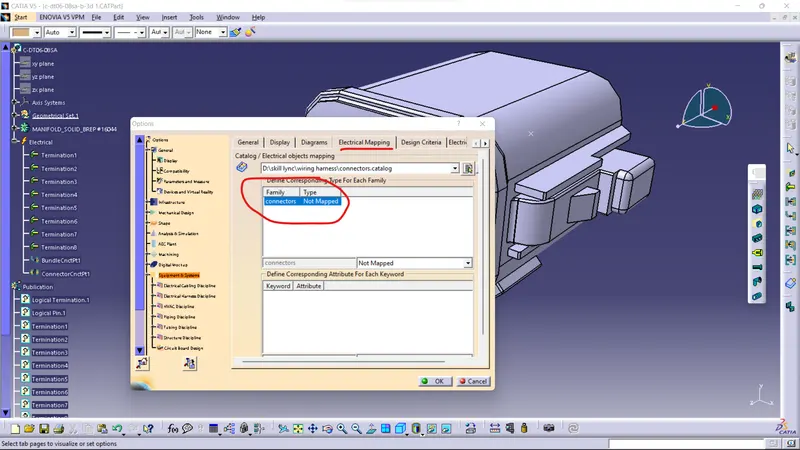

AND UPLOAD IN TO THE CONNECTOR CATLOGS IN THE ELECTRICAL MAPPING

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

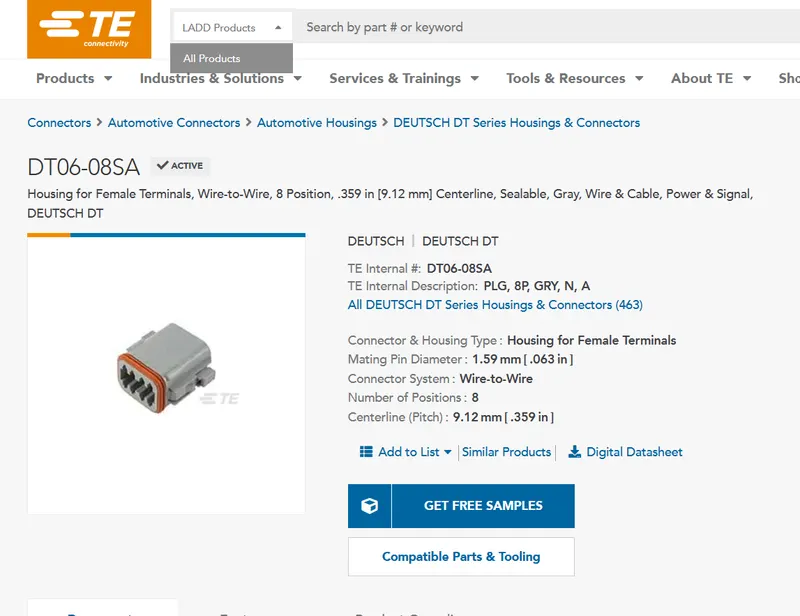

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

ELCETRICAL DEFNITION

creating the reuired geomertical parameters by part design workbench such as points and axis sysytem

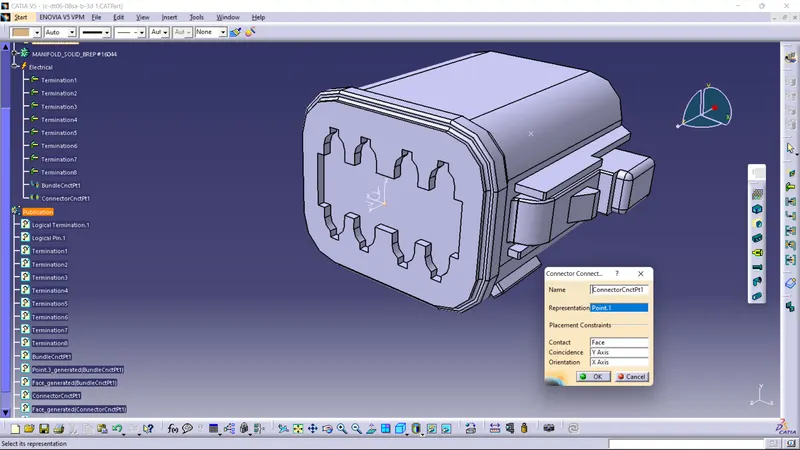

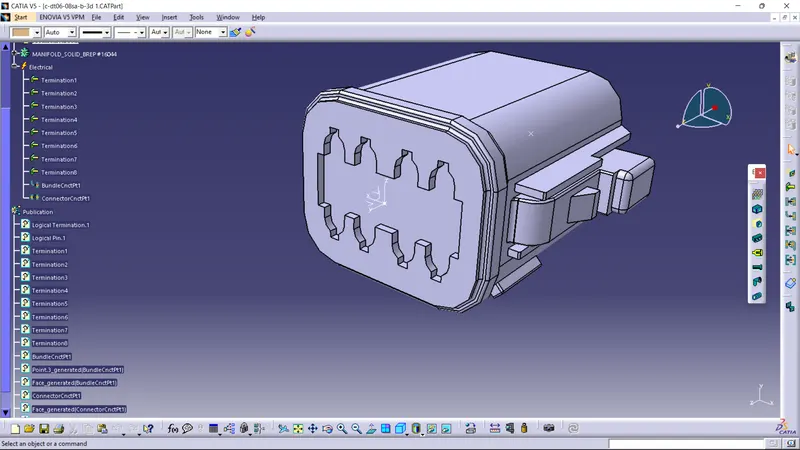

and define the part as connector by electrical part design work bench in this connector it has 8 termination points

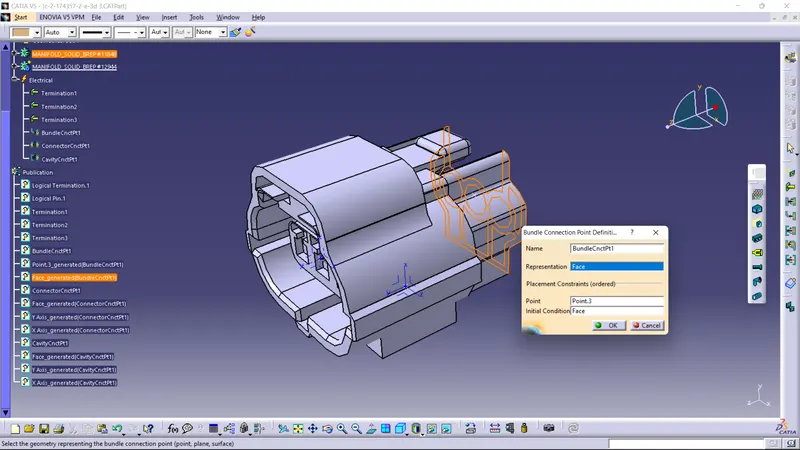

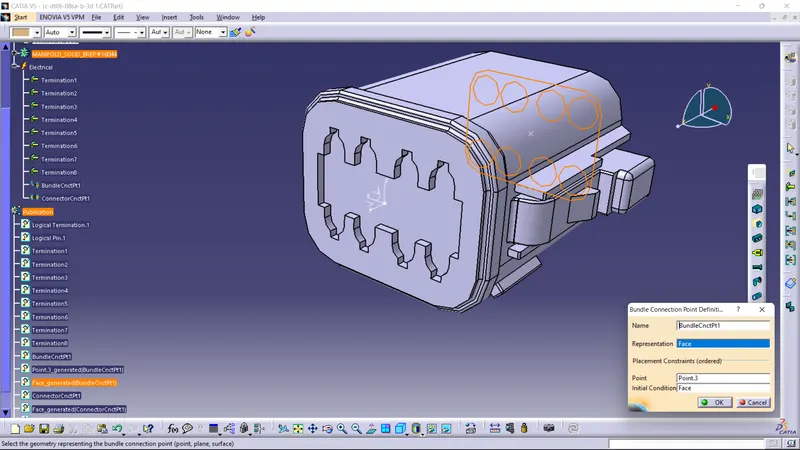

Bundle connecting point

connector connecting point

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

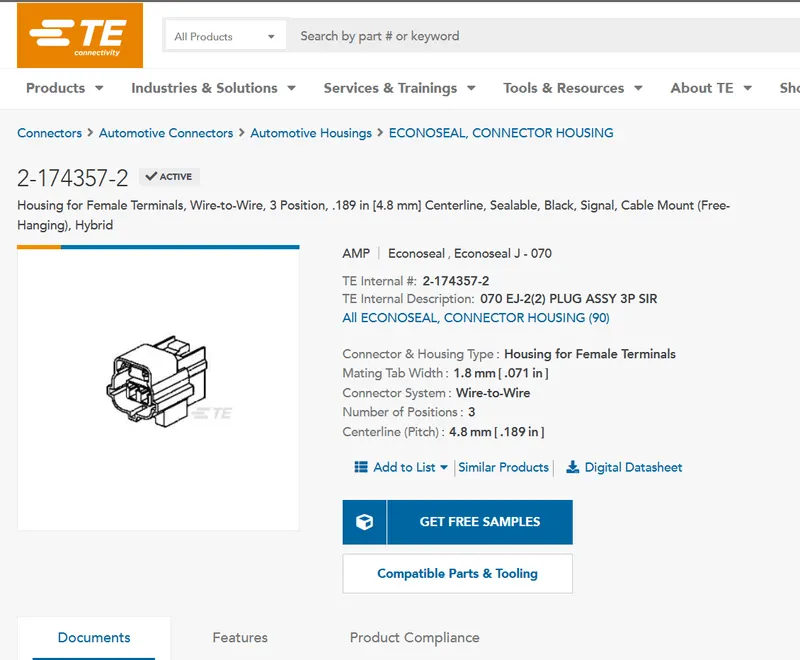

Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

ELCETRICAL DEFNITION

creating the reuired geomertical parameters by part design workbench such as points and axis sysytem

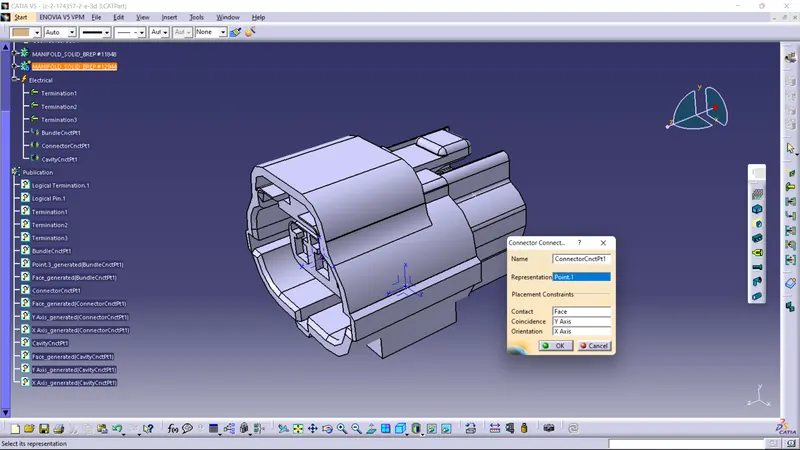

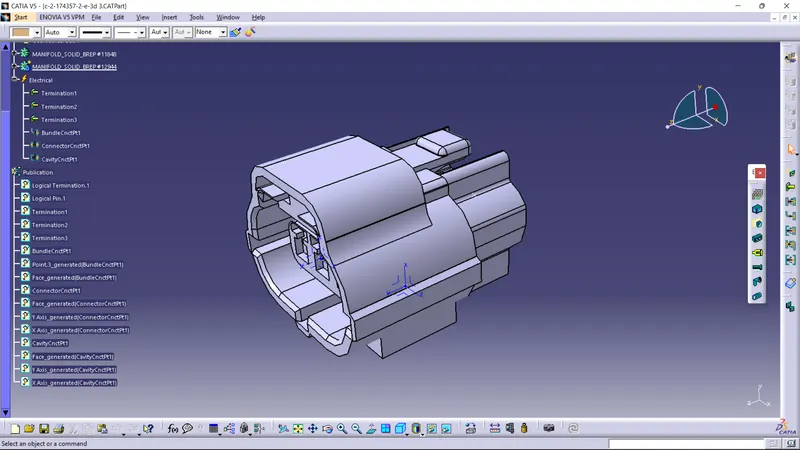

and define the part as connector by electrical part design work bench. in this connector it has 3 termination points

Bundle connecting point

connector connecting point

cavity connection point

-----------------------------------------------------------------------------------------------------------------------------------------------------------------

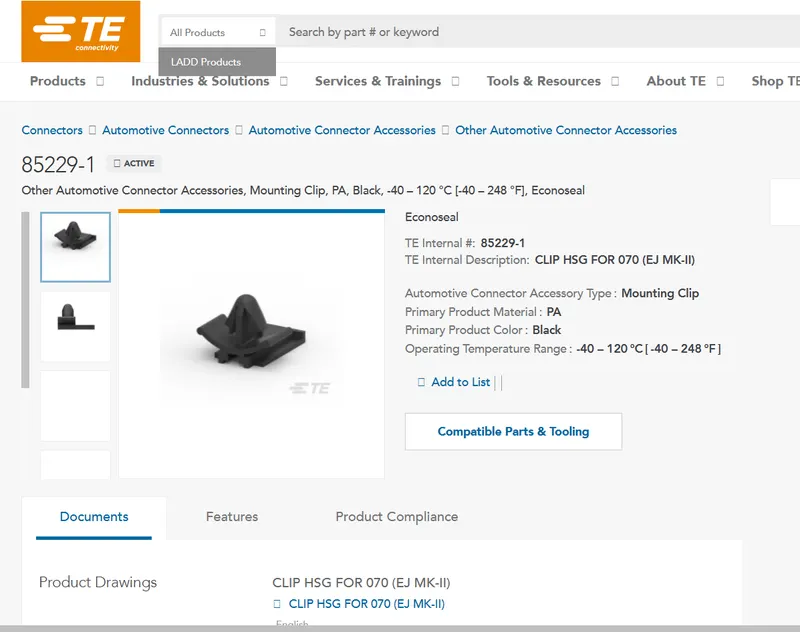

Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

ELCETRICAL DEFNITION

creating the reuired geomertical parameters by part design workbench such as points and axis sysytem

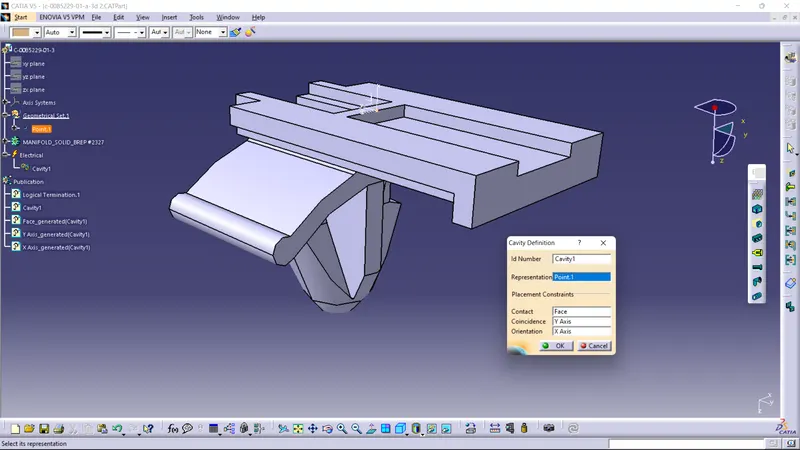

and define the part as mounting connector by electrical part design work bench. it is the mounting clip

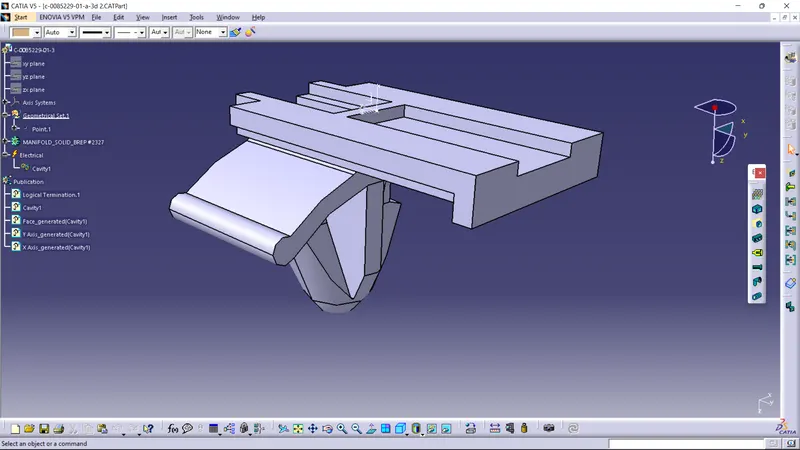

defining the cavity

--------------------------------------------------------------------------------------------------------------------------------------------

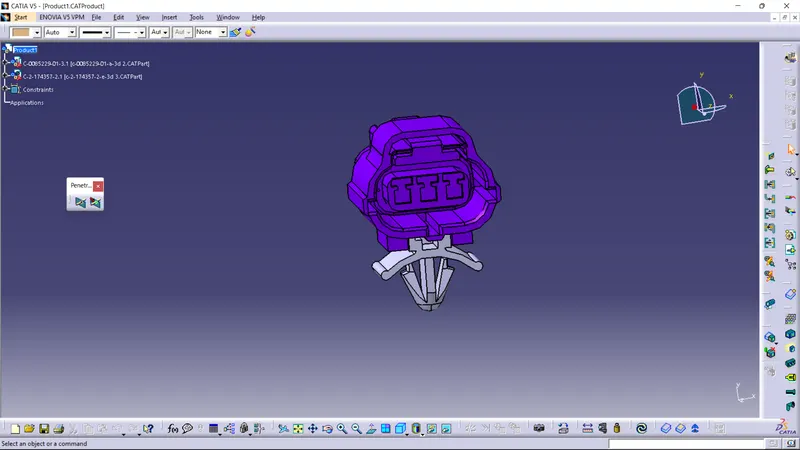

Assembly of connector with mounting clips

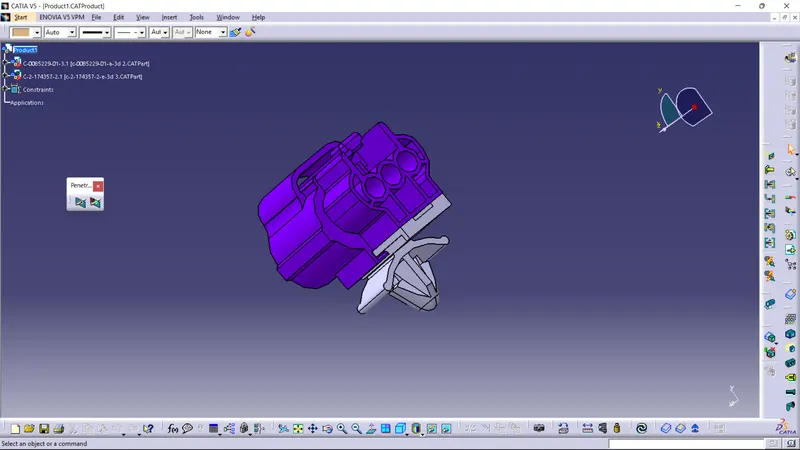

Importing the connector and mounting clip in to the electrical assembly work bench

and constraint the connectors by the connect electrical devices command

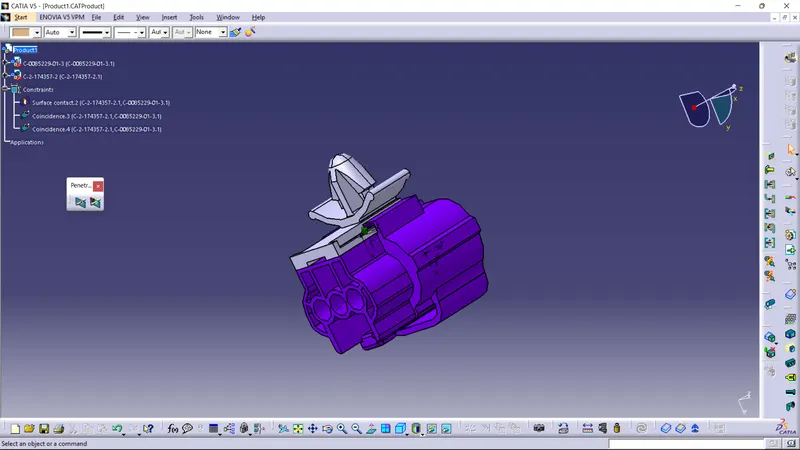

Assembly constraints
