Week 9 Tension and Torsion test challenge
Obejective : To simulate tension and torsion test of a steel specimen in Ansys Explicit dynamics:

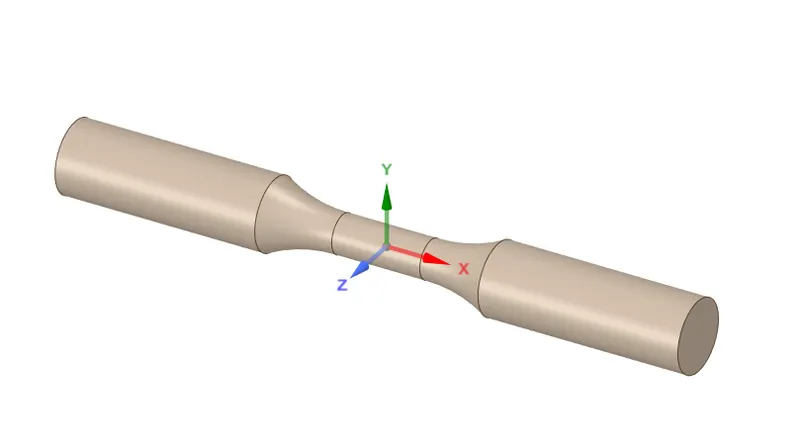

Model:
Material: Steel 1006
Mesh:
- Method : Tetrahedrons
- Sizing 1 : Sphere of influence with 3mm mesh(left end)
- Sizing 2 : Sphere of influence with 3mm mesh(right end)
- Sizing 3 : Sphere of influence with 2mm mesh (middle)

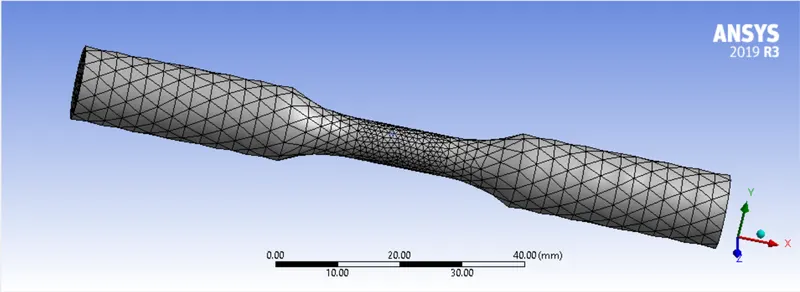

Meshed Model:
Procedure and Boundary conditions:
End time : 1e-3 seconds
Fixed support : Left end of the specimen.
Displacement (case 1) : 18mm on right end of the specimen.
Results :
Case 1- tension test
https://drive.google.com/file/d/1UkZX_nMixTEuQsmxNFwjmcKcKzkXriZw/view?usp=sharing
Case 2- torsion test
https://drive.google.com/file/d/17Sud8HgivuwfFLuuyNk9g67nAOXo4RG-/view?usp=sharing
Simulation snapshots:
Case 1

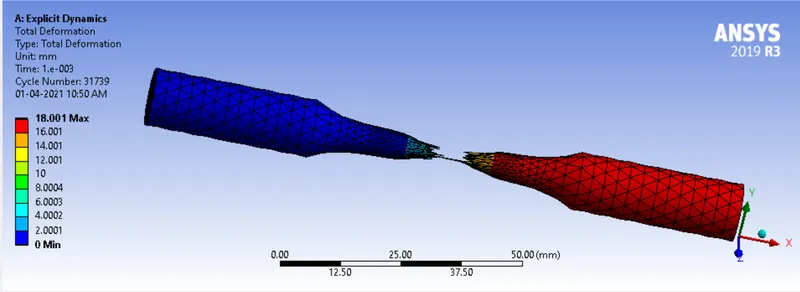

Total Deformation:

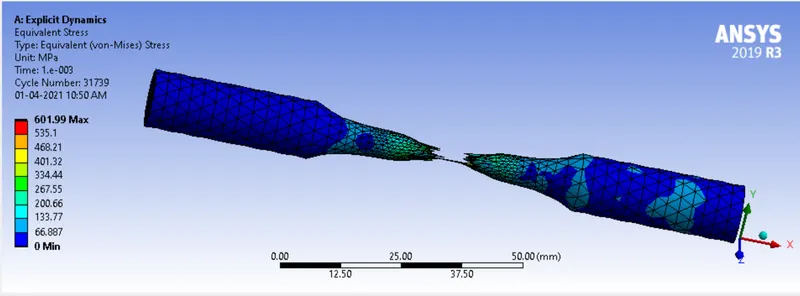

Von mises stress:

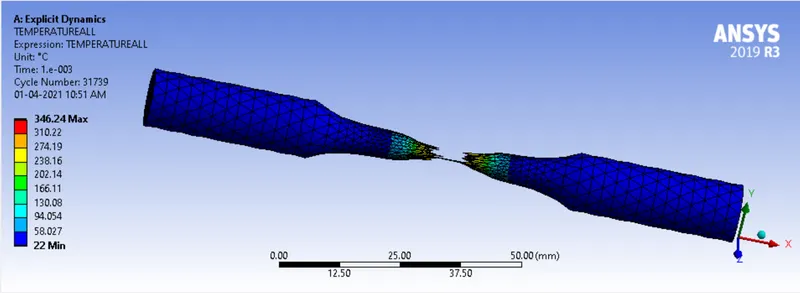

Temperature:
Case 2

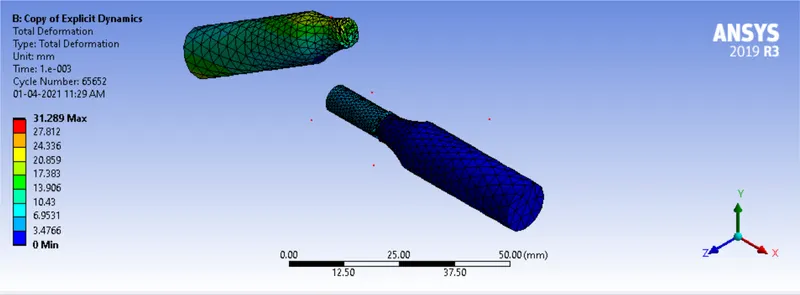

Total Deformation:

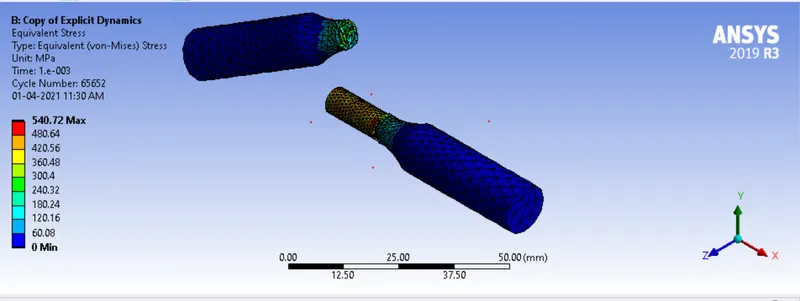

Von mises stress:
Temperature:
Inference : Both the tests were sucessfully simulated in Ansys Workbench.
