Week 9 - Project - A pillar Design with Master Section

MASTER SECTIION

                   REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

CLASS A SURFACE

                 check the surface quality

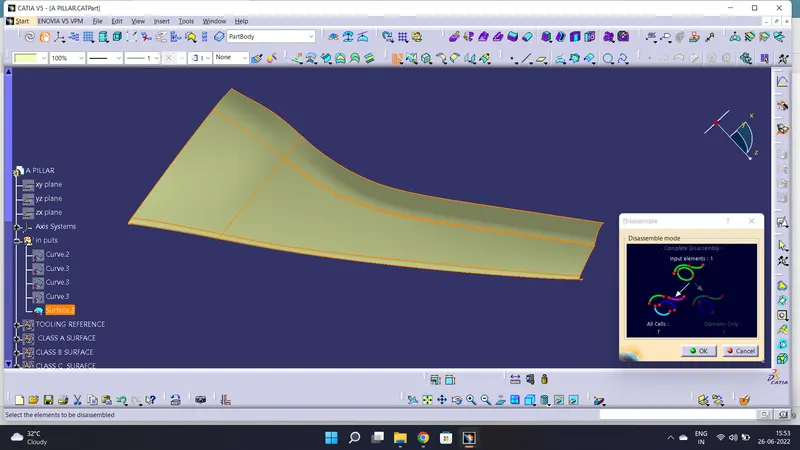

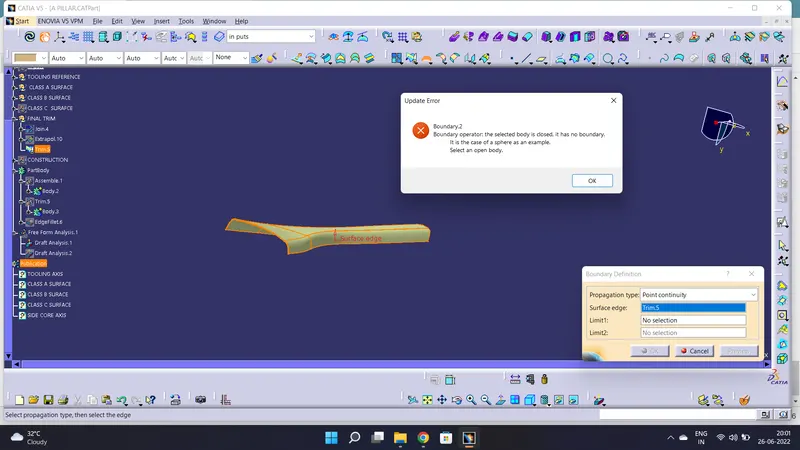

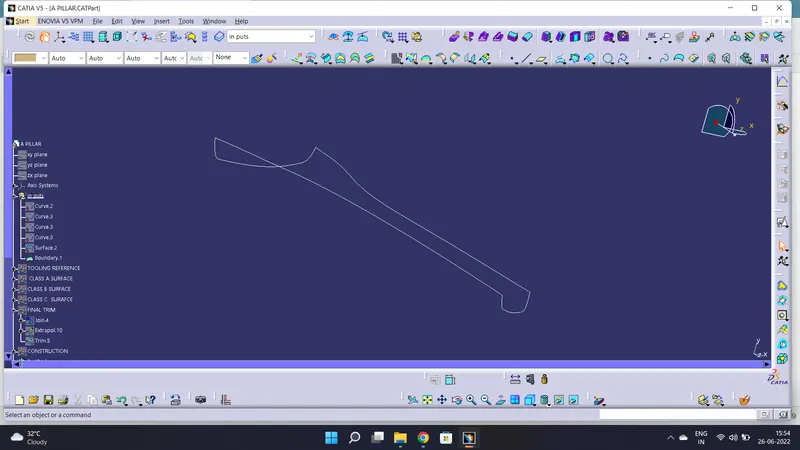

            check the any patches available in surface with boundary

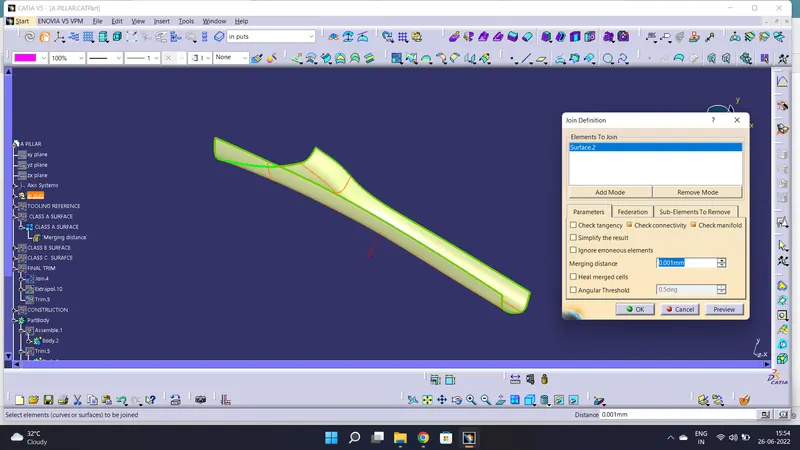

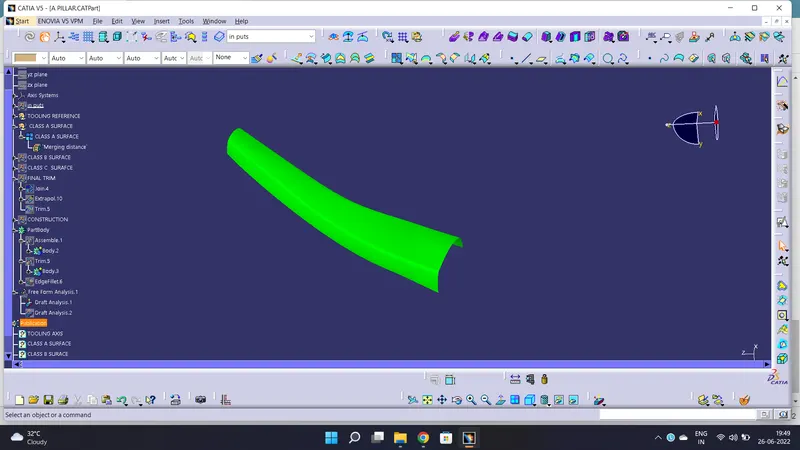

       let's join the surface

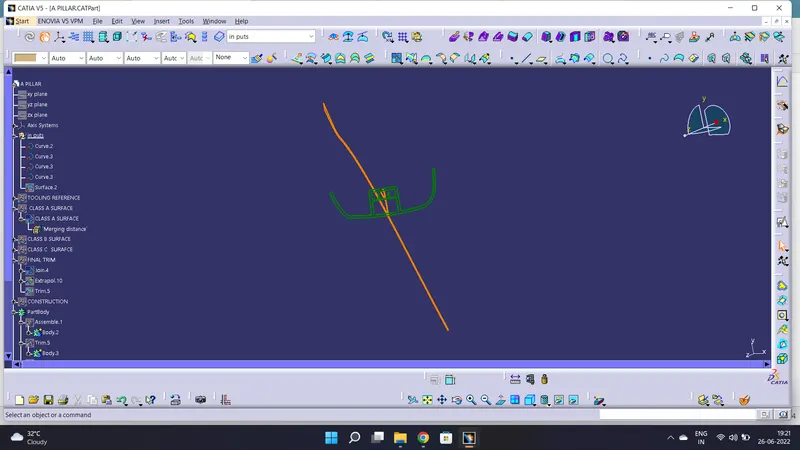

TOOLING AXIS

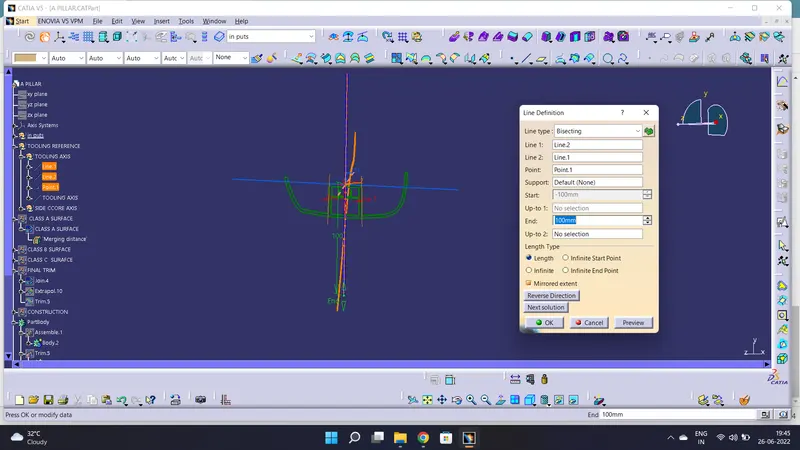

        create the two lines with the master section, bisecting the line & create the tooling axis.

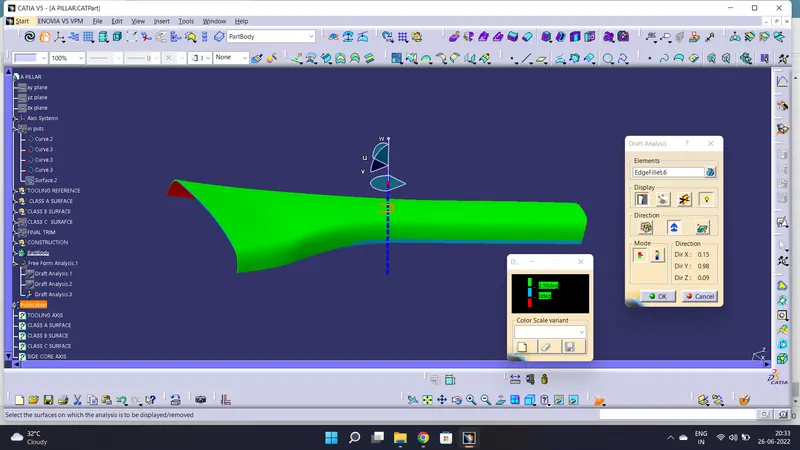

DRAFT ANALAYSIS

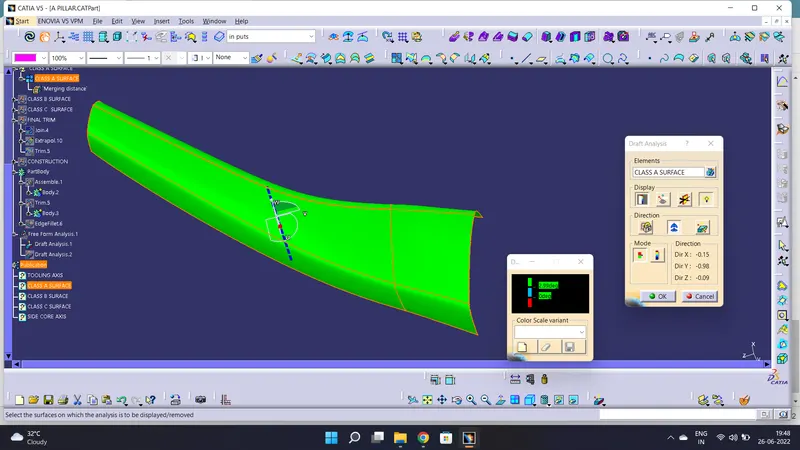

        Draft analysis for class A surface

CLASS B SURFACE

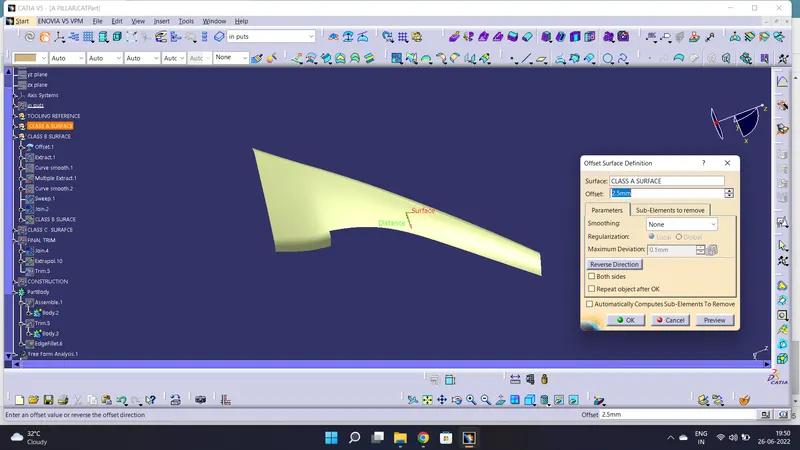

 Create B surface offset form the class A surface as per master section.

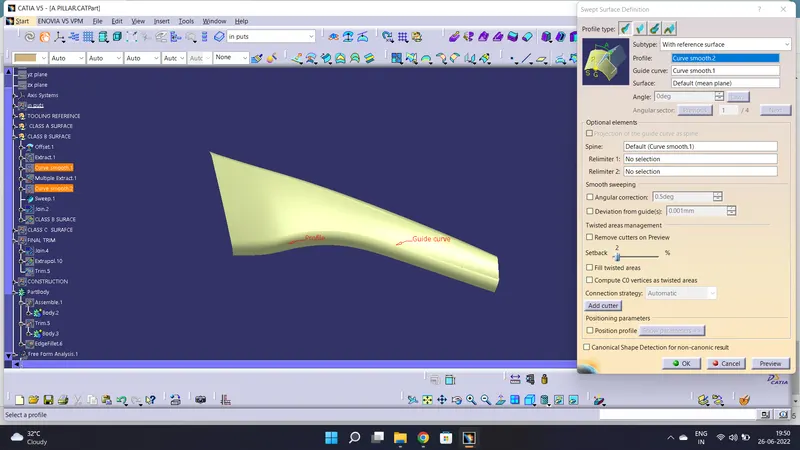

missing surfaces create with swept surface.

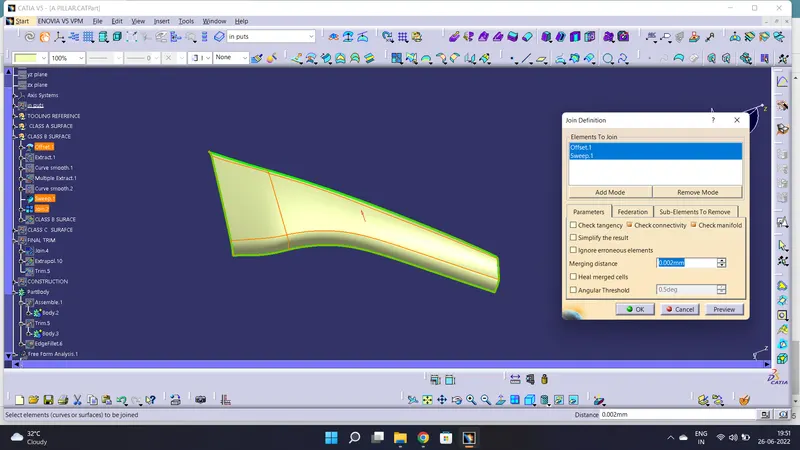

let's join the surfaces & create the class B surface.

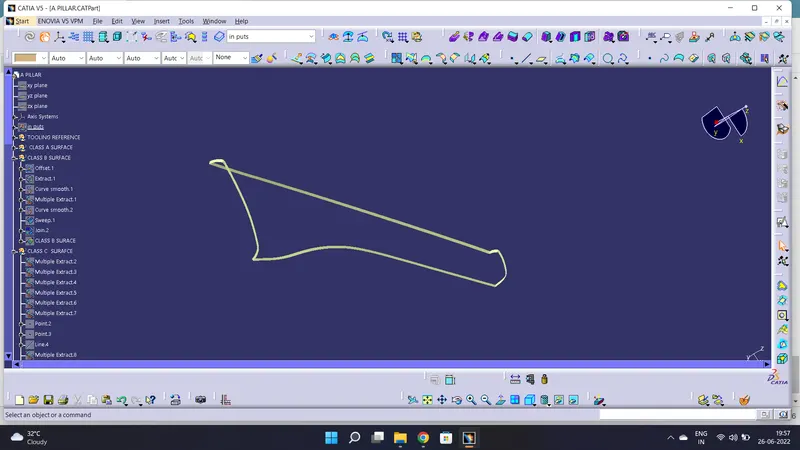

CLASS C SURFACE

 create the surface with swept & multi section surfaces.

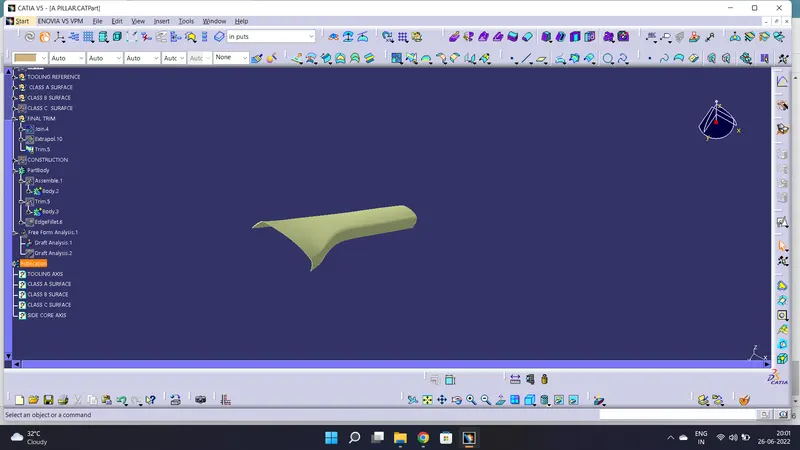

FINAL SURFACE

Join the surfaces without any boundary.

SIDE CORE AXIS

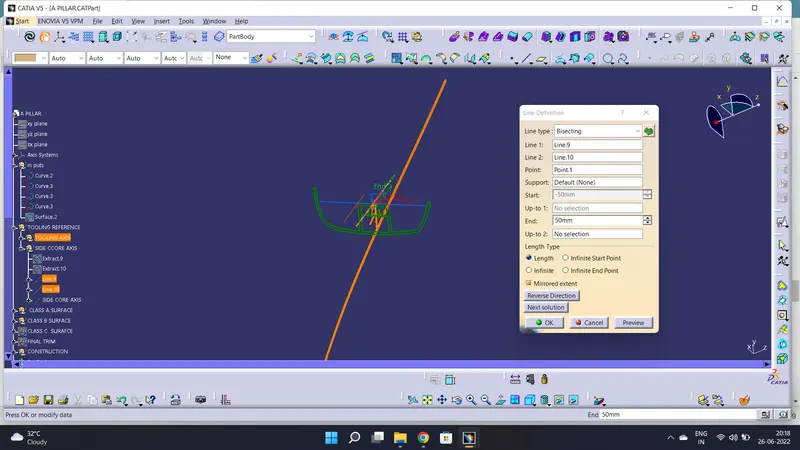

      create side core axis using master section.

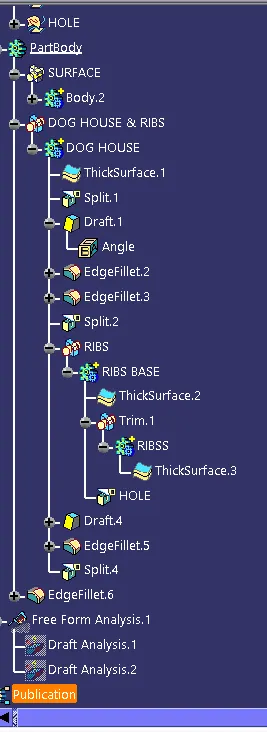

DOG HOUSE & RIBS

  Create the dog house & ribs as per master section.

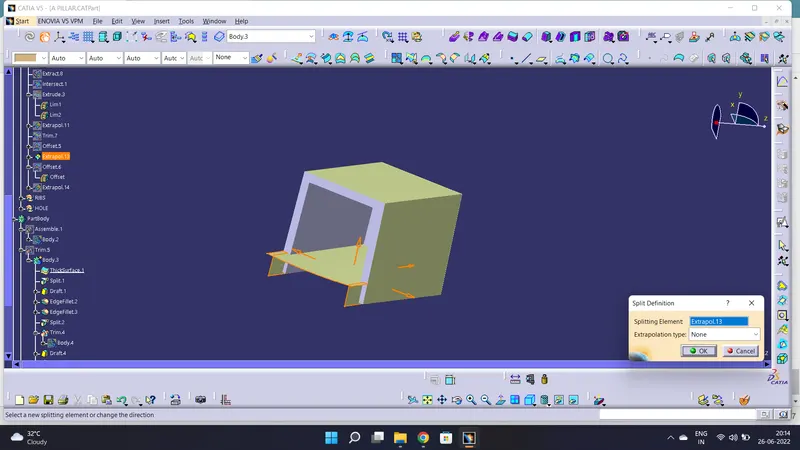

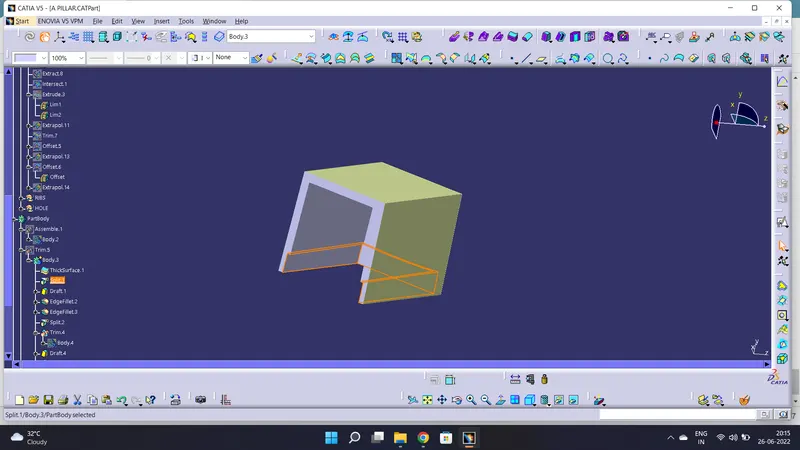

DOG HOUSE

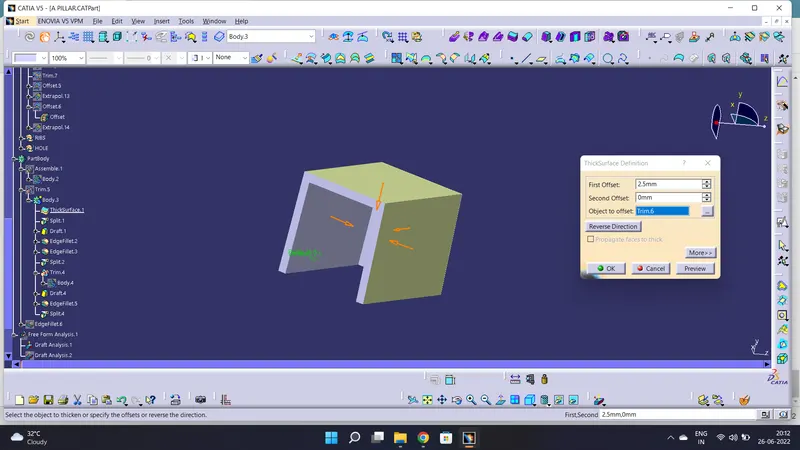

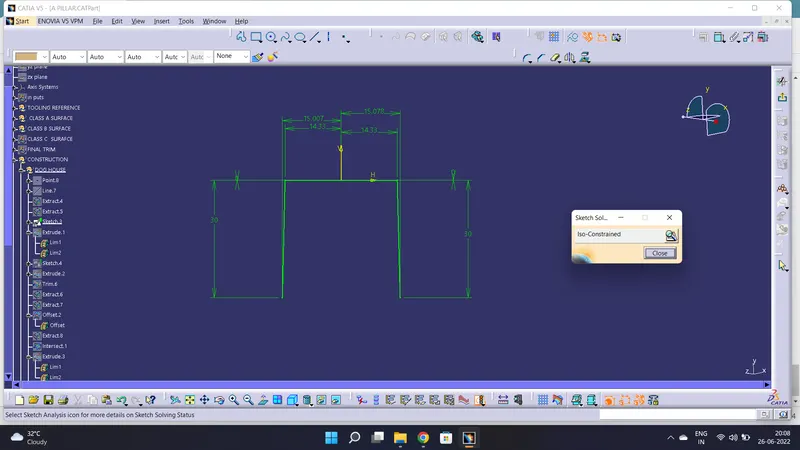

Extrude the sketch convert to sloid.

to reduce the sink marks.

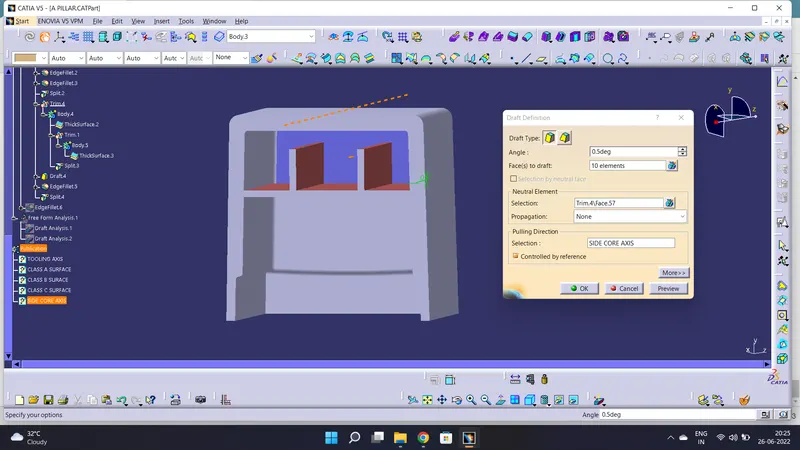

draft to the dog house using side core axis.

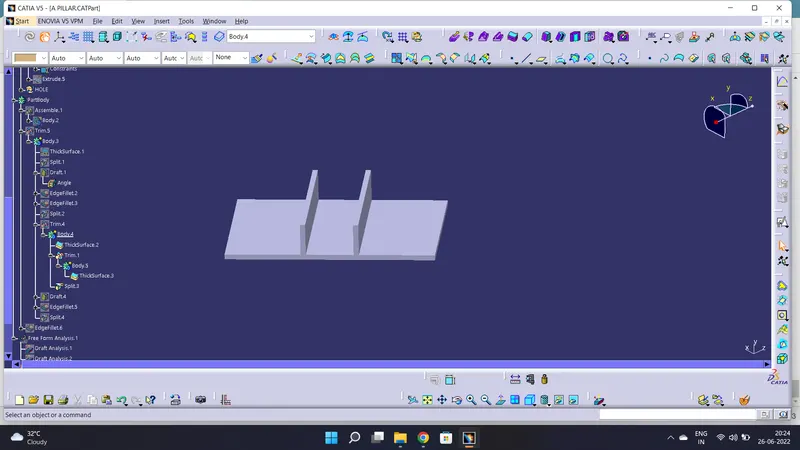

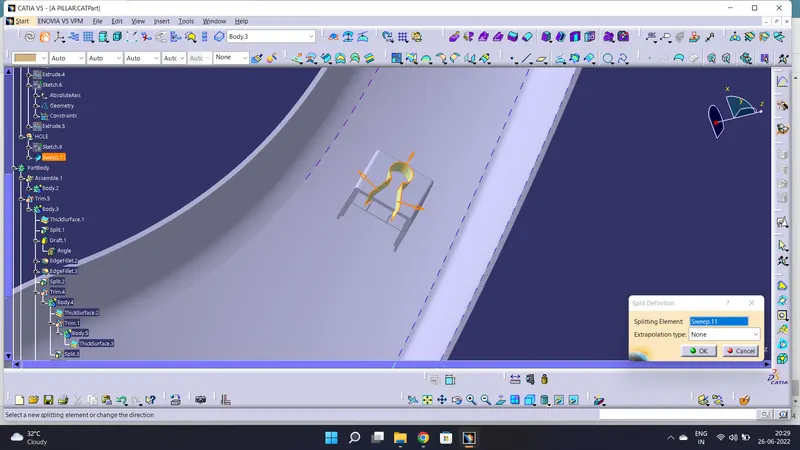

RIBS

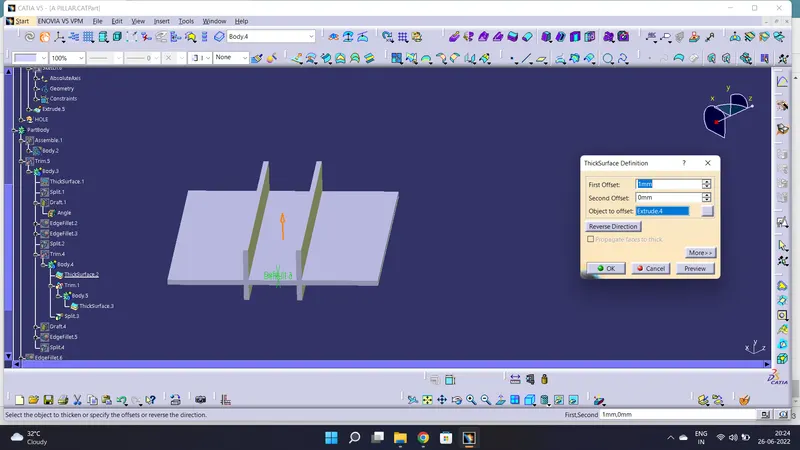

Extrude the sketch convert to sloid.

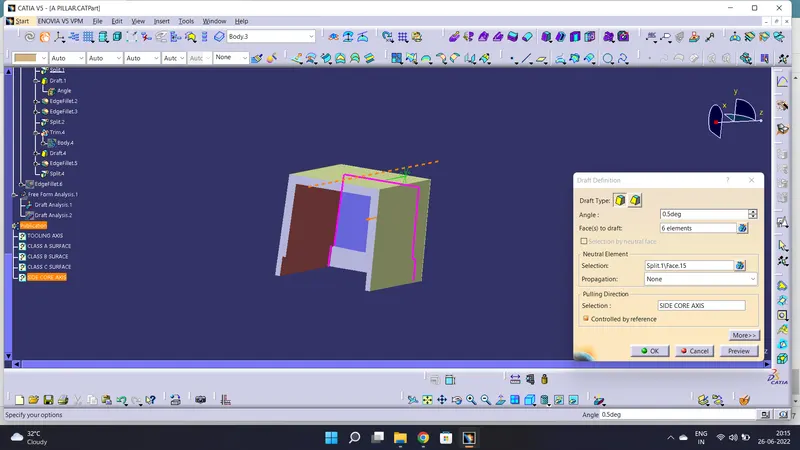

 DRAFT TO RIBS USING SIDE CORE AXIS

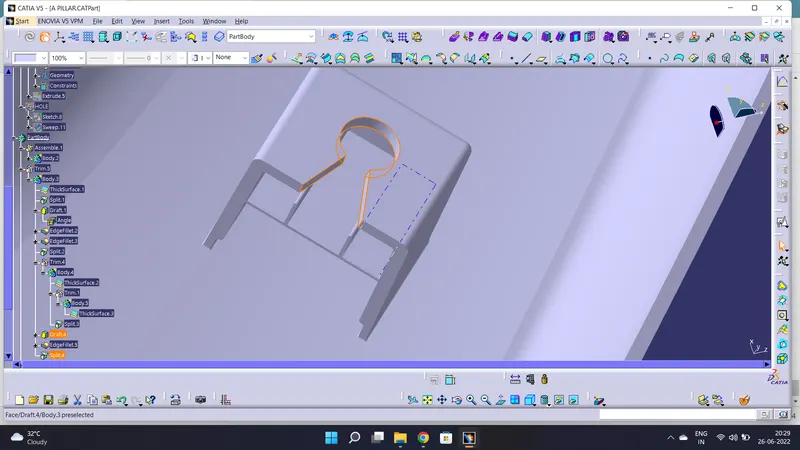

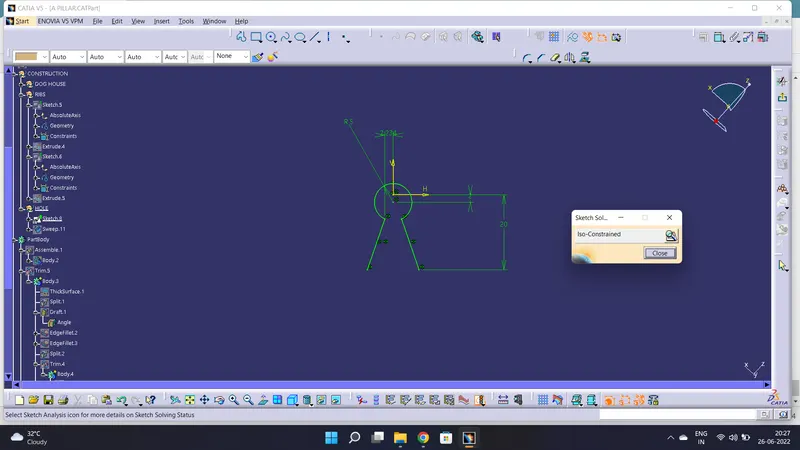

DOG HOUSE TOP PROFILE

GIVEN FILLETS TO THE DOG HOUSE & RIBS AS PER MASTER SECTION.

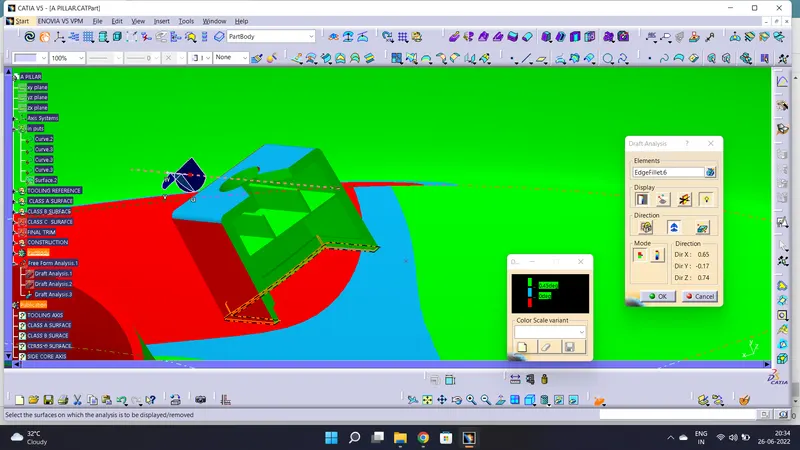

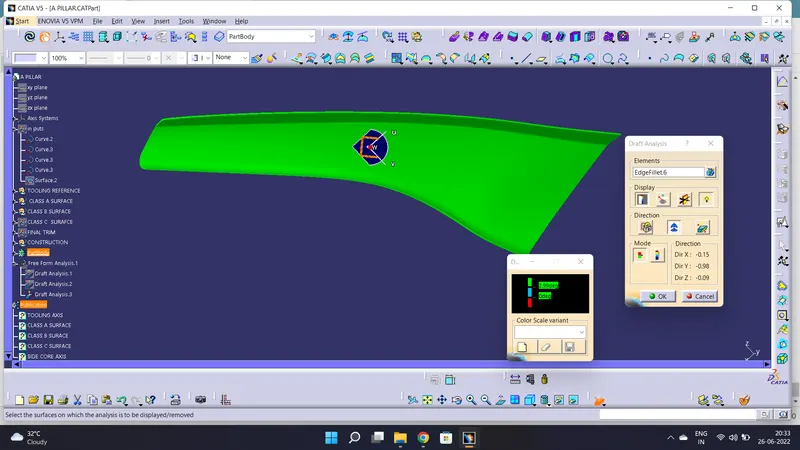

DRAFT ANALYSIS FOR SOLID SURFACE

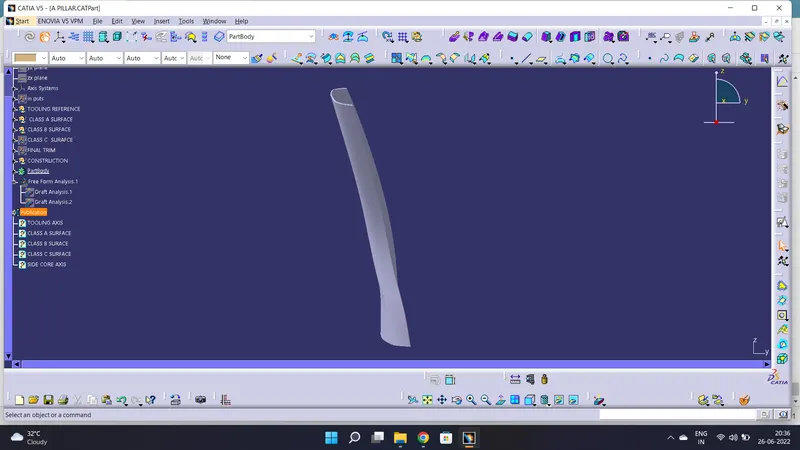

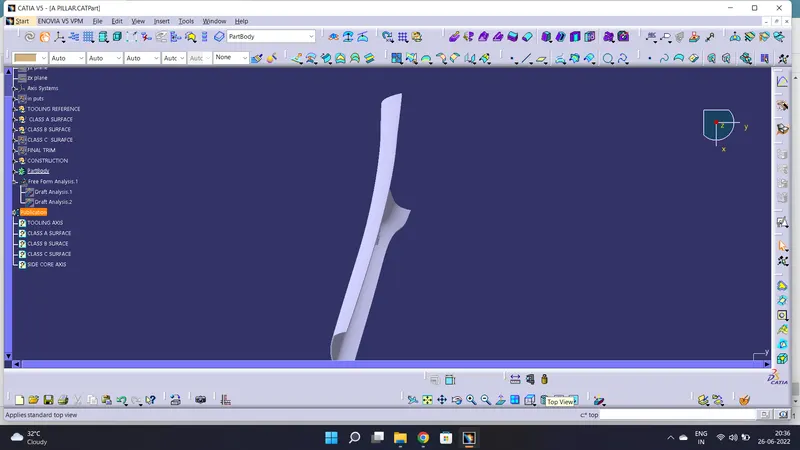

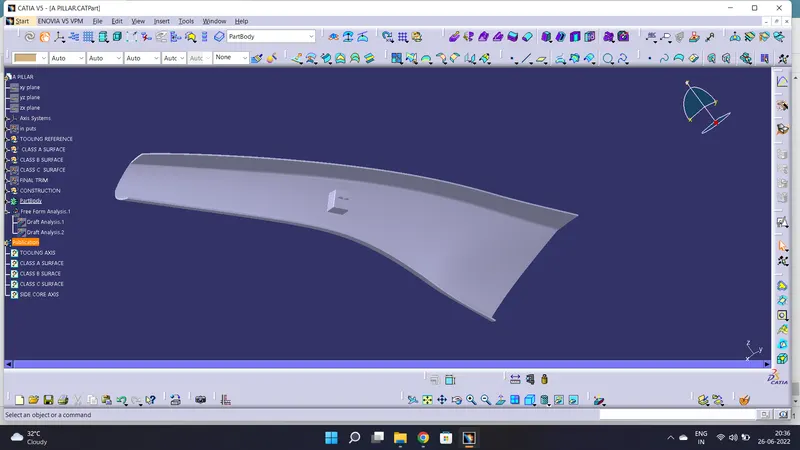

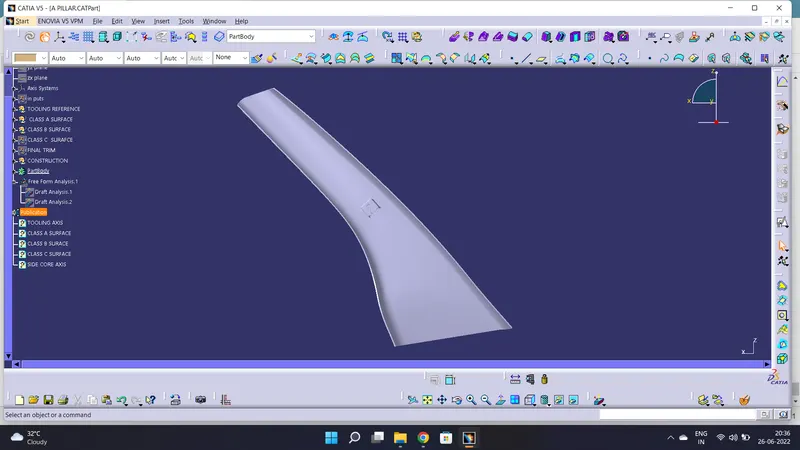

VIEWS
