Week 9 - Project - A pillar Design with Master Section

DESIGNING A PILLAR USING MASTER SECTION

OBJECTIVES

To improvise the Class A surface by resolving bad patches and adding flanges to it.
To create A pillar solid model with the help of improvised class A surface.

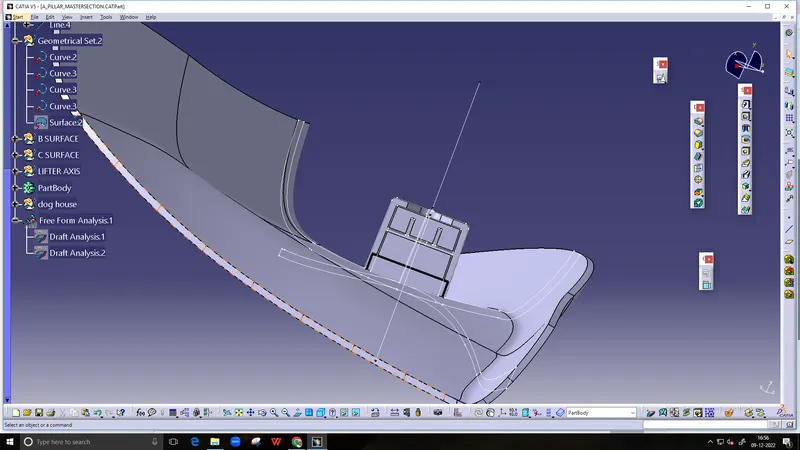

To create B side features for the A Pillar using the master section given to us as an input.
To create main and side core tooling axis for A pillar and its B side features.
To do the draft analysis of the overall model of the A pillar i.e including B side features.

INTRODUCTION

MASTER SECTION: Master sections development takes place during feasibility check and concept validation stages of the product life cycle. These are typically the guides for design requirements and which decides the component packaging after the development of the concept design, i.e class A surfaces.

Master section helps us to decide the feasibility of the concept design, the clearances, the packaging and the fixation strategy of a component before converting the concept design into a solid 3D engineering design.

During the period of vehicle concept design the evaluation of the master section performance depends mainly on the reference vehicle data and experience of structure design engineer.

DESIGNING METHODOLOGY:

IMPROVING THE CLASS A SURFACE

The given class A surface is not a proper surface because it is lacking the side flanges so first thing that we have to do is to create the flanges on both the sides of the class A surface.

For creating flanges we will first extract the side edges of A surface and the surfaces touching these edges.

Finally we'll apply the sweep command using the "with reference to the surface" option and join the resulting edges with A surface using trim command.

Make sure that the resulting flanges are properly oriented according to the master section

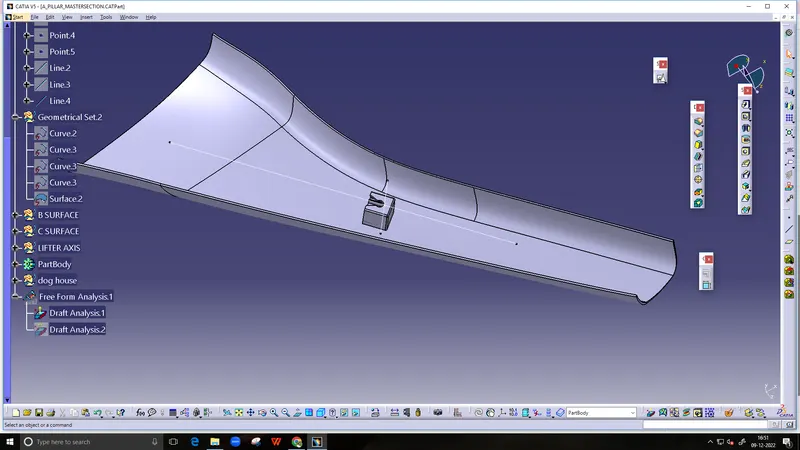

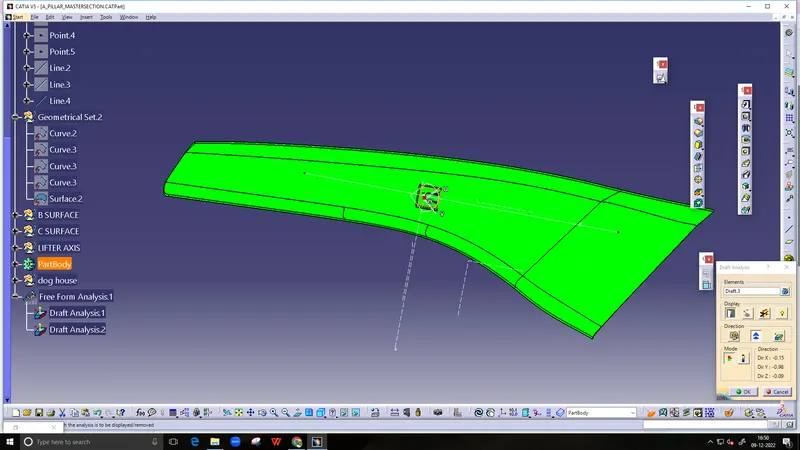

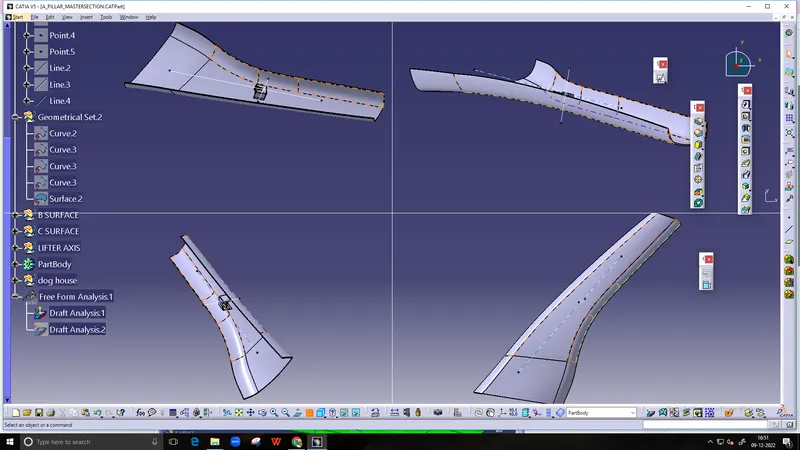

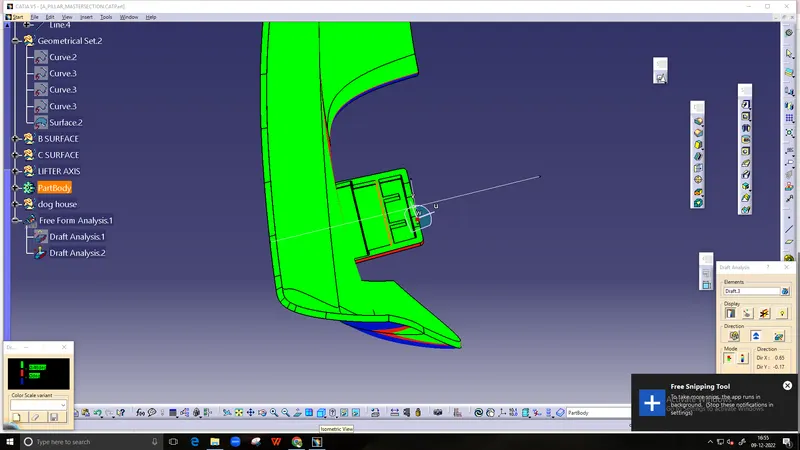

draft for both the main tooling axis and lifter axis
