Week 9 Machining with Planer Challenge

Objective :

To perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body.

Procedure :

• At first upload the model .
• Now assign the material for the materials for the geometry.
• After assigning the materilas mesh the model as per the required criteria.
• Now strart giving the boundary conditions for the model.
• After giving the proper boundary condition solve the model.
• Now save the model.

CASE 1:

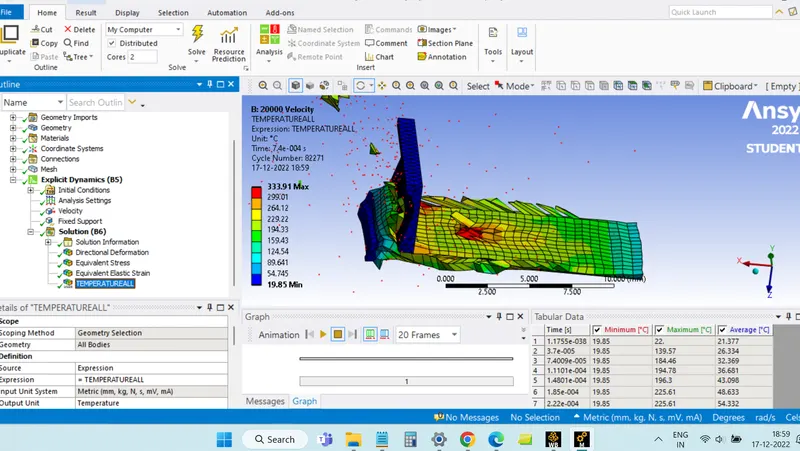

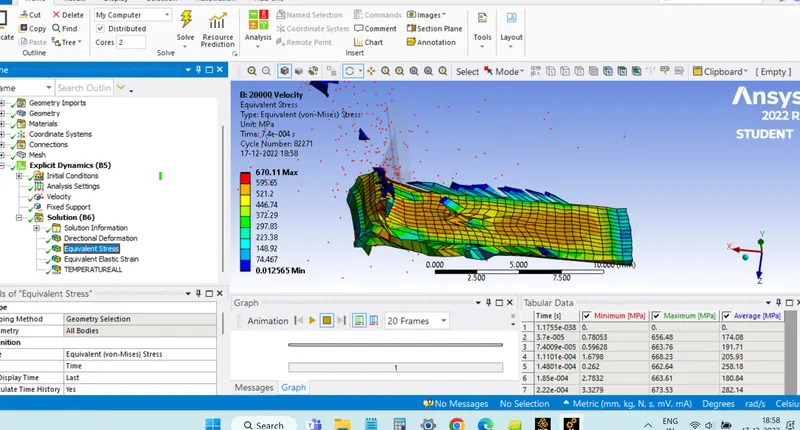

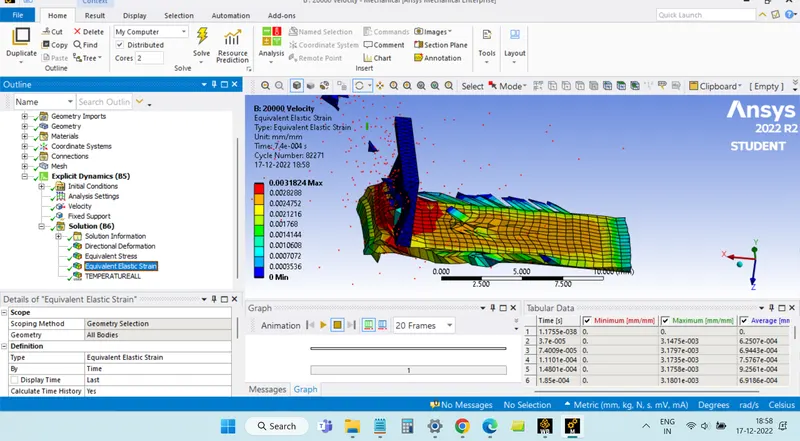

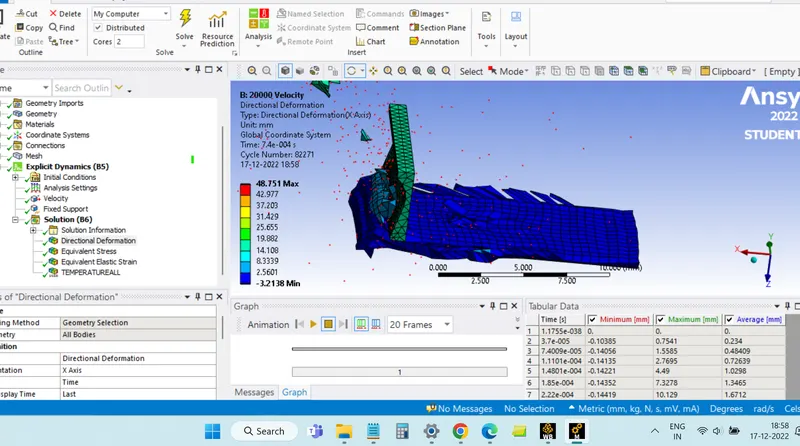

• Give the velocity value as 20000 mm/s.
• Now solve the model and save the model.
•
•

CASE 2:

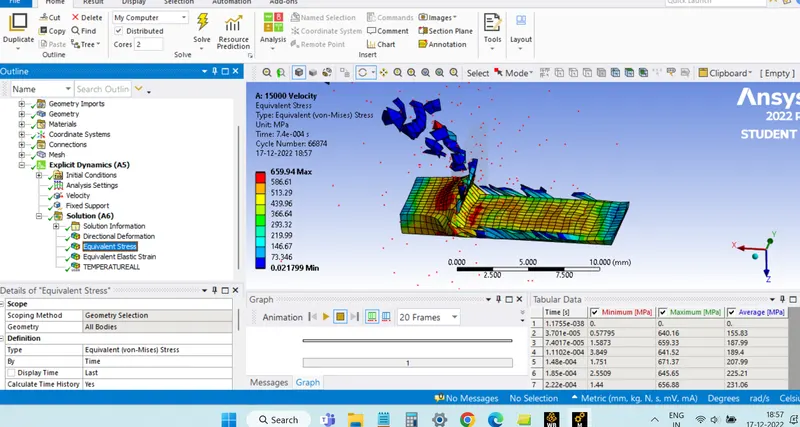

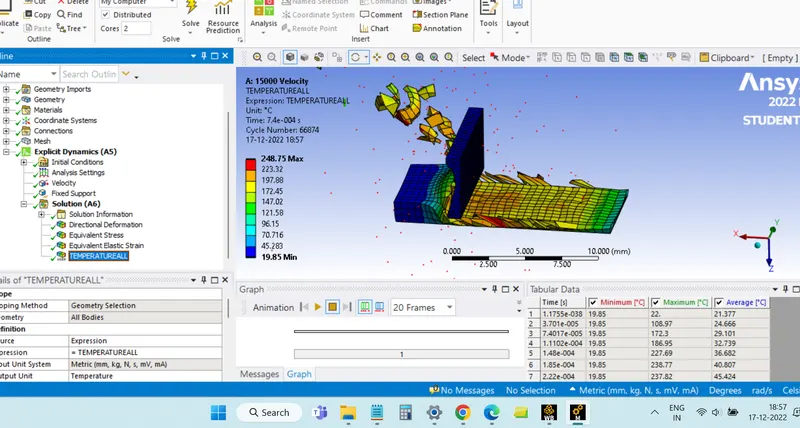

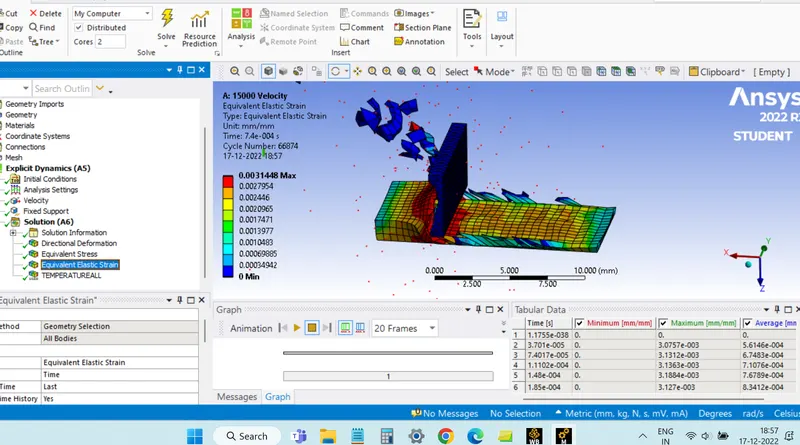

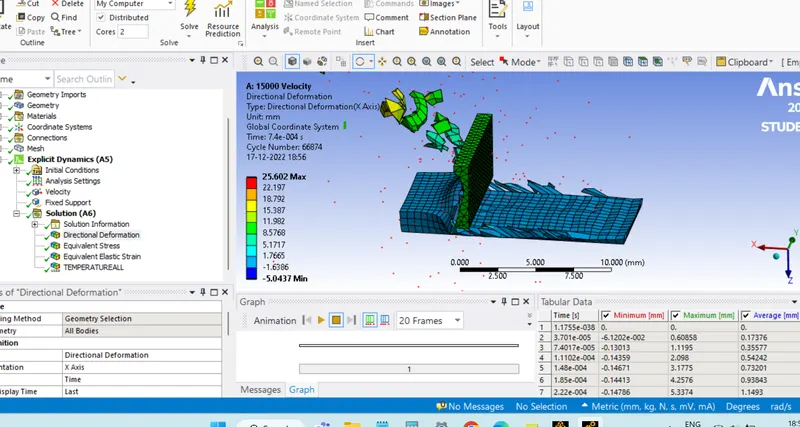

• Give the velocity value as 15000 mm/s.
• Now solve the model and save the model.
•

Conclusion:

The explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body is performed .
