Week 9 - Challenge 1 - Base Bracket Design

Objective:

To perform Draft analysis on the given Class A Surface.

To create the required Class B and Class C surfaces.

To obtain a solid body from the surface using Close Surface feature.

Class A surface:

Class A surfaces are those surfaces which are curvature continuous while providing the simplest mathematical representation needed for the desired shape and does not have any undesirable waviness.

The Class A surface is the used to begin the design of a product.

All the further intricacies of the component are created based on the Class A surface.

Crating of class b:

The Class B surface is created from the Class A surface , keeping the thickness of the component in check.

The Class B surface resembles an offsetted surface from the Class A.

Class c :

The Class C surface is used to bind the Class A and Class B surface together inorder to form a closed surface

Tooling axis:

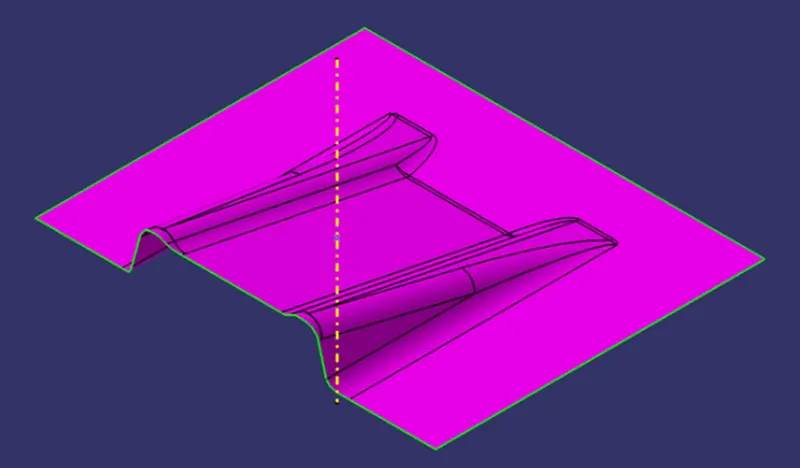

Initially the given Class-A surface was imported and checked for any discrepencies in the boundary.

A dummy Tooling axis was created using a reference point created on a hole of the given surface.

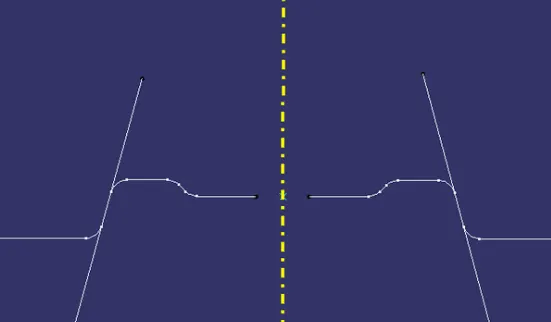

The lines which might cause trouble during the operation were identified and a reference line was created for each of the identified lines

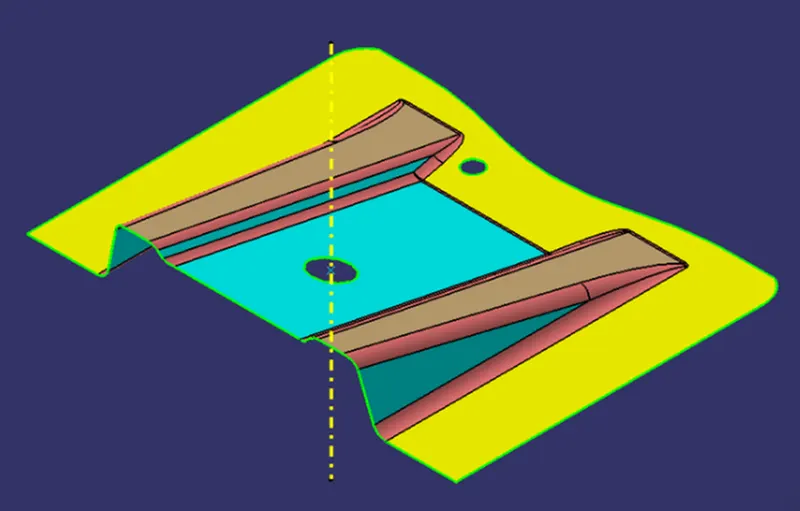

Draft analysis:

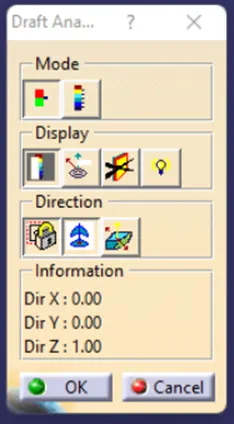

The Drafting analysis was performed using the Feature Draft Analysis command.

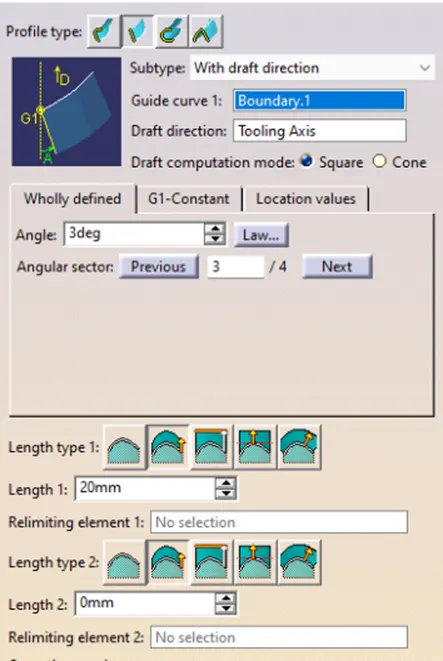

Using this command the compass was set on the main tooling axis and the Draft angle was changed to 3 degree.

Crating class b surface:

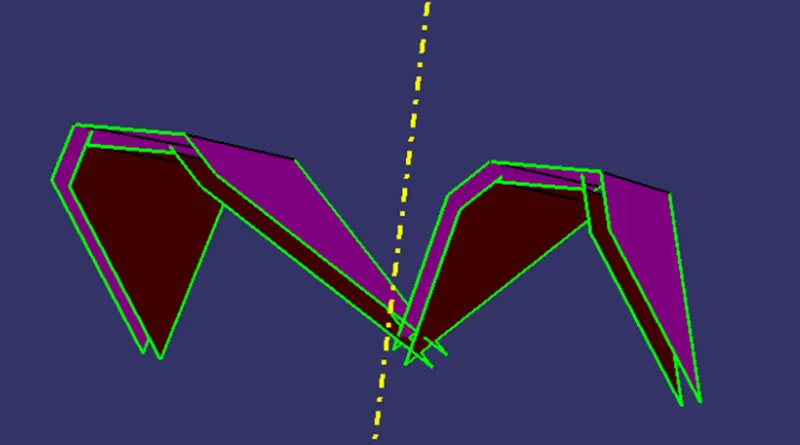

At first, the Class A surface was used to construct the ribs.

With the Extract command, the necessary surfaces were extracted from the Class A surface.

The commands Untrim and Extrapolate were used to enlarge these surfaces even further.

With the Trim command, the protruding surfaces were cut off, and a suitable continuous surface was produced.

The opposite side also underwent the same process.

According to the component's necessary thickness, these surfaces were offset.

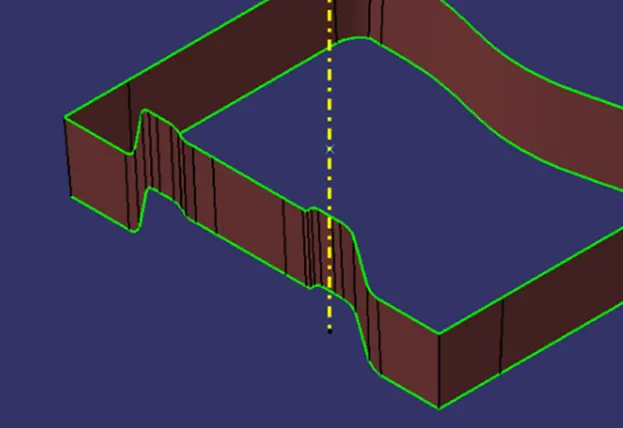

Crarting c surface:

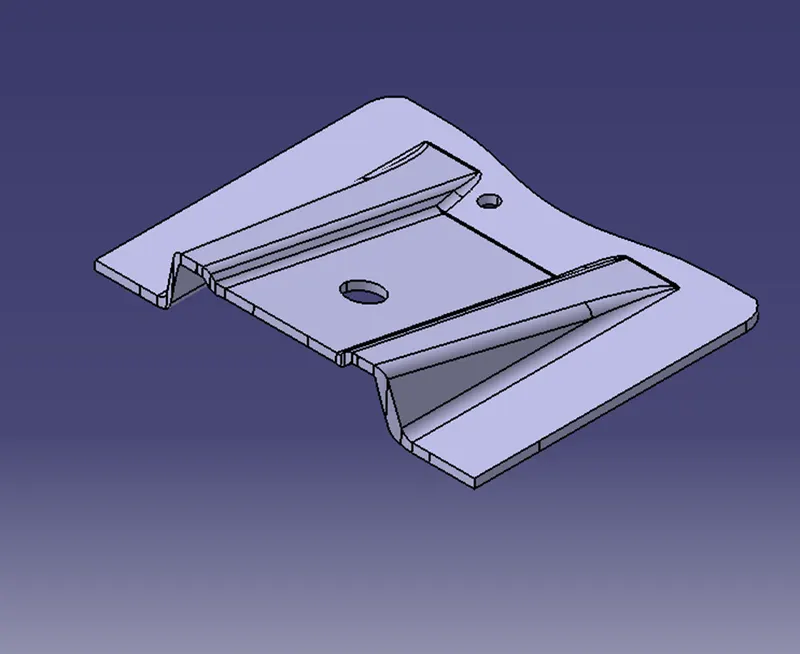

Final all 3 surfaces :

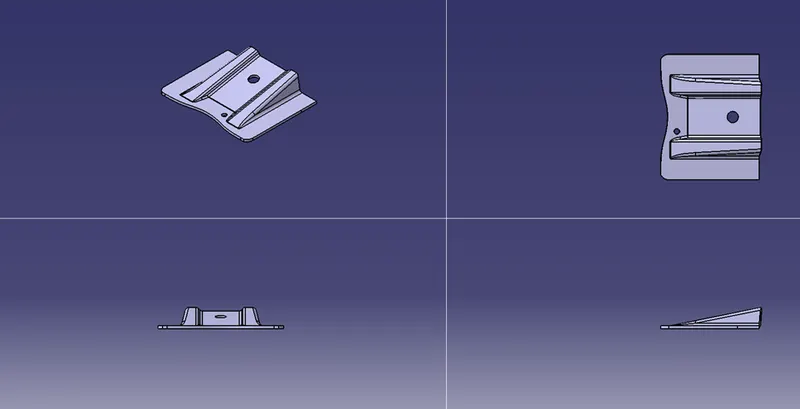

The final views of the geometry is

Conclusion:

The creation of tooling axis & drafting analysis are performed

Screenshots are attached
