Week 9 - Attachment Feature Creation - Challenge 2

DETAILED REPORT OF DRAFT ANALYSIS.

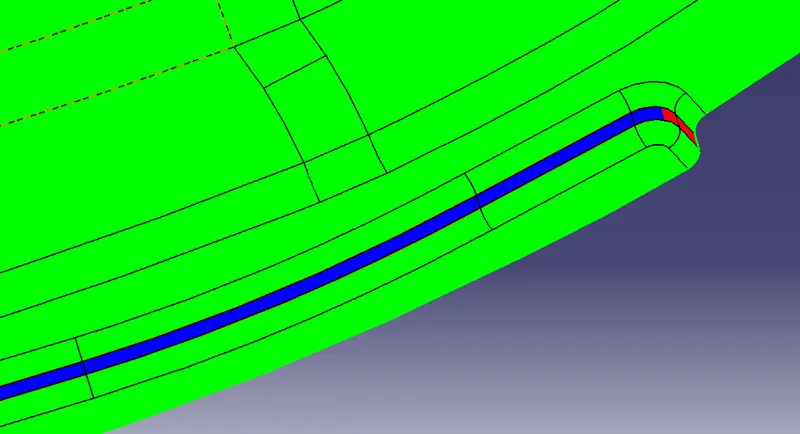

Draft analysis on A surface

Done the draft anlysis on the given class A surface and find that in some areas the draft angle is zero and in some small region the draft angel is negative. So the given class A is not that much feasible.

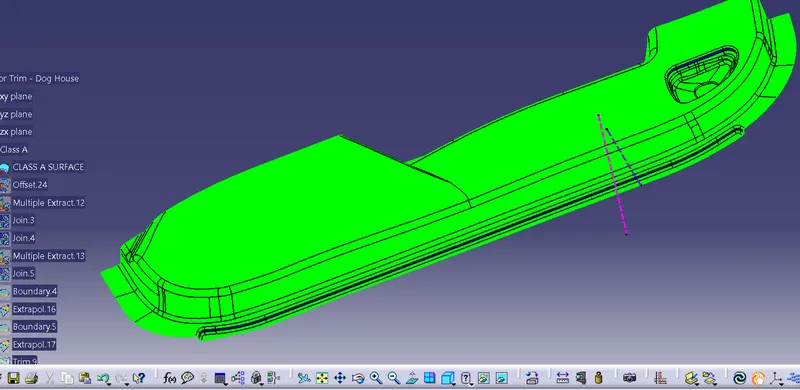

Draft analysis on B suface

Performed draft analysis in the produced B surface. In some small region the draft angle is negative and all the other surface is perfectly fine.

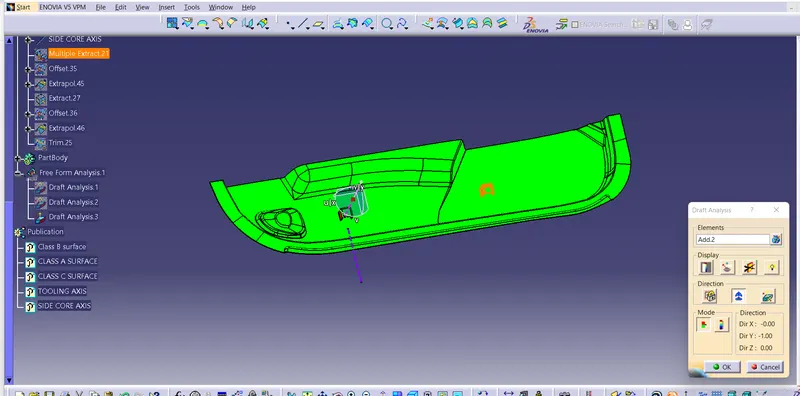

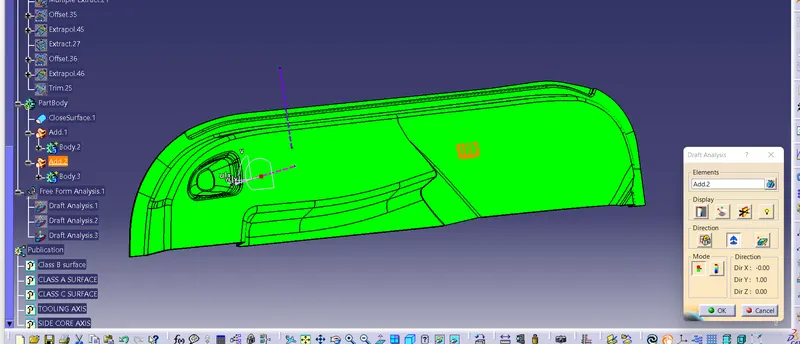

Draft analysis on Dog House

Made the draft analysis in the dog house using side core axis. Also cheched it using the main tooling axis.

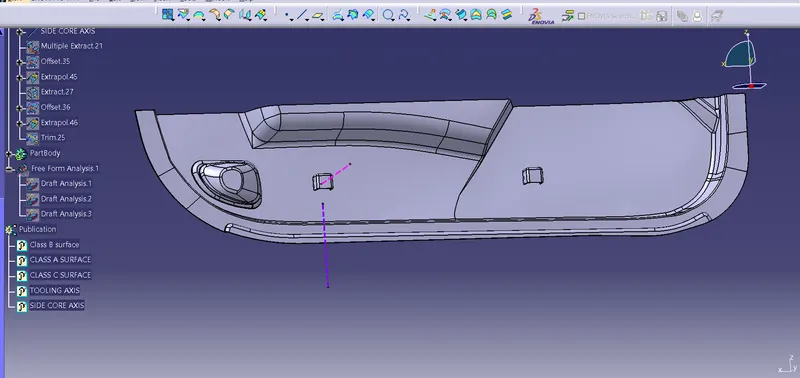

Tooling Axis

Tooling axis is made on the Y direction because it is clear for the drafting and made a side core axis to perform draft analysis in the dog house part
