Week 8 - Challenge 1 - Base Bracket Design

OBJECTIVE

To create base bracket plastic component from the given class- A surface.

To create the tooling axis for the plastic component

To perform draft analysis over the plastic component

BASE BRACKET DESIGN PROCEDURE

CLASS-B SURFACE

RIB CREATION

1. Bringing in the class-A surface.
2. Extracting the rib surface.
3. Un-trim the extracted surface.
4. Extrapolate the un-trimmed surface.
5. Trim the surface as per required shape.
6. Repeat step 2, 3 and 4 for the next rib surface.
7. Offset the created rib surfaces for 2.5mm. ( CLASS-B SURFACE)

MIDDLE FLAT RIBS CONNECTING SURFACE

8. Extract the middle flat connecting surface from class-A.
9. Un-trim the extracted surface.
10. Extrapolate the un-trimmed surface.
11. Offset the extrapolated untrimmed surface for 2.5mm.
12. Trim the surfaces. (CLASS-B SURFACE)

CREATION OF BASE SURFACE

13. Extract the base surface from class-A surface.
14. Un-trim the base surface.
15. Extrapolate the base surface.
16. Offset he base surface for 2.5mm
17. Trim the base surface from the middle surface which is already created.

JOIN

18. Join all the class-B surfaces to make as one unit.

FILLET

19. Since the class-B surface is 2.5mm downwards to the class-A surface need to add this offset distance with the filleting radius observed from the class-A surface.

CLASS-C SURFACE

This the connecting surface of class-A and class-B surfaces.

20. Create the boundary of class-A surface using boundary command.
21. Use sweep command to generate class-C surface along the draft direction with 3 degrees drafting angle with respect to the tooling axis.
22. Extrapolate the hole features from class-A surface and trim them.

CLOSED SURFACE

23. Publish class-A, class-B, class-C surfaces and tooling axis.
24. Join all the surface together.
25. Create closed surface

CLASS B SURFACE

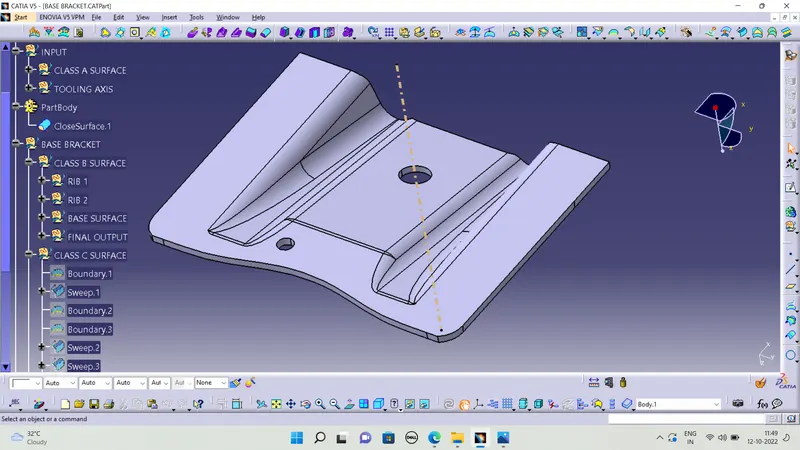

ISOMATRIC VIEW

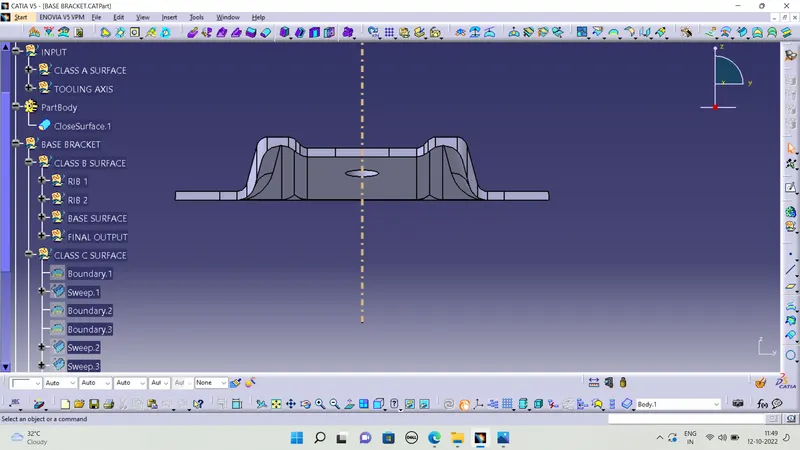

FRONT VIEW

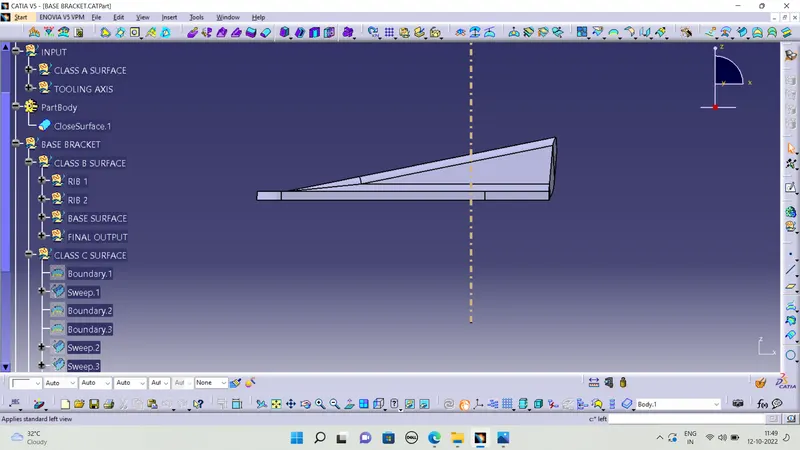

SIDE VIEW

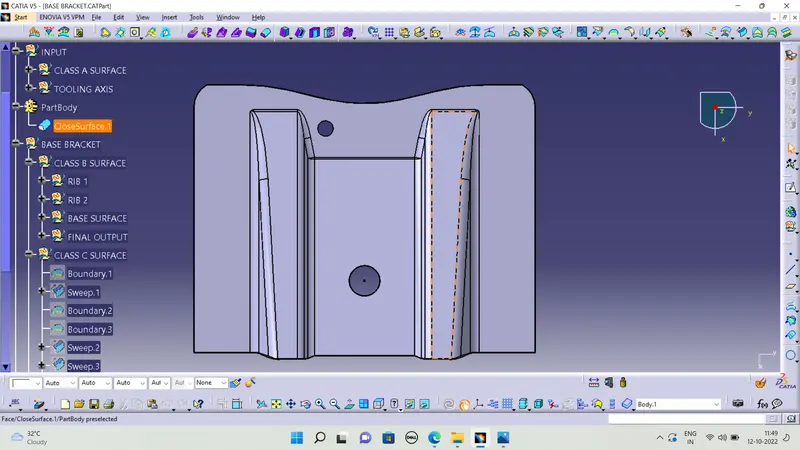

TOP VIEW

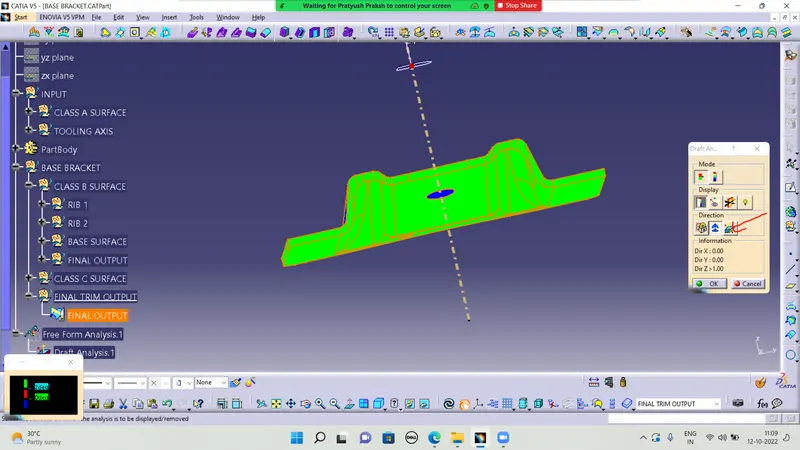

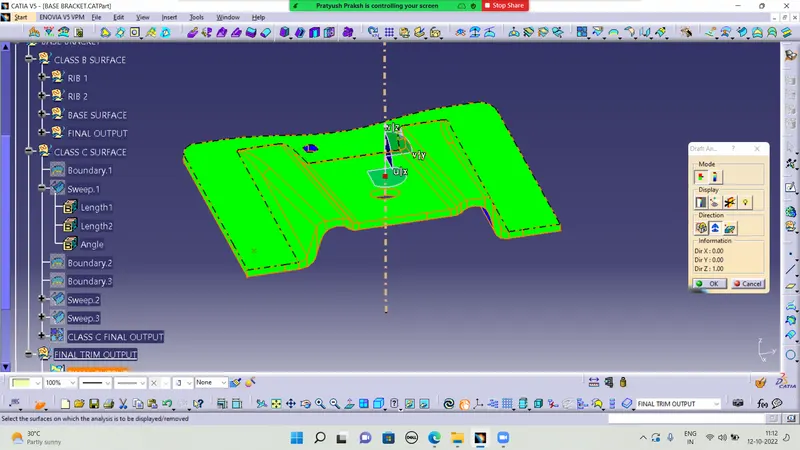

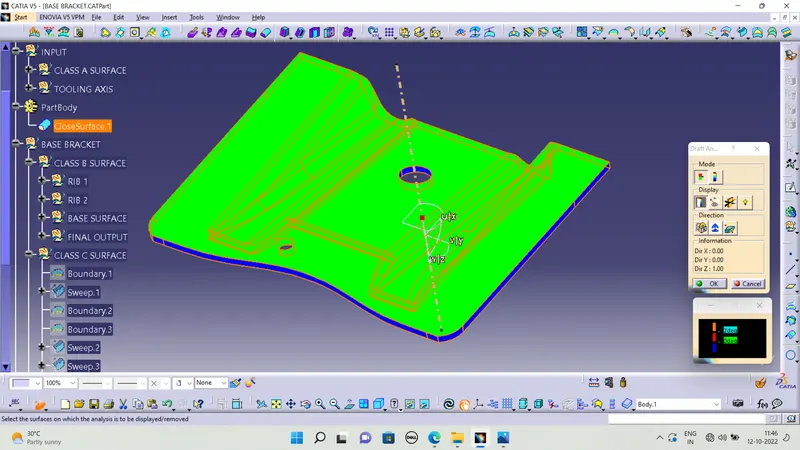

DRAFT ANALYSIS

CONCLUSION

Hence the plastic component is created from class-A surface and draft analysis is done
