Week 8:- 3D Finishing Challenge 2

AIM:

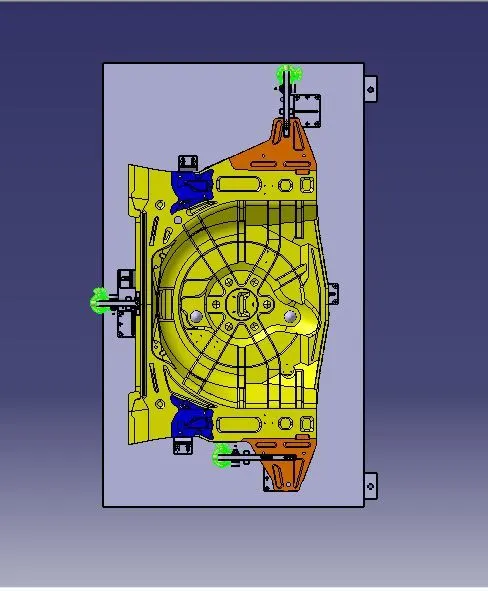

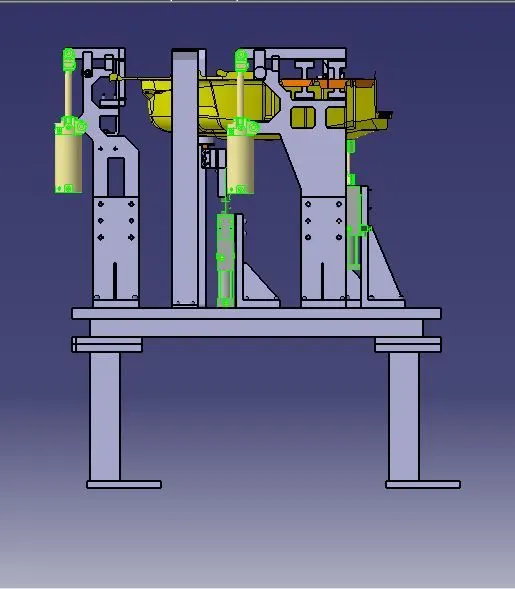

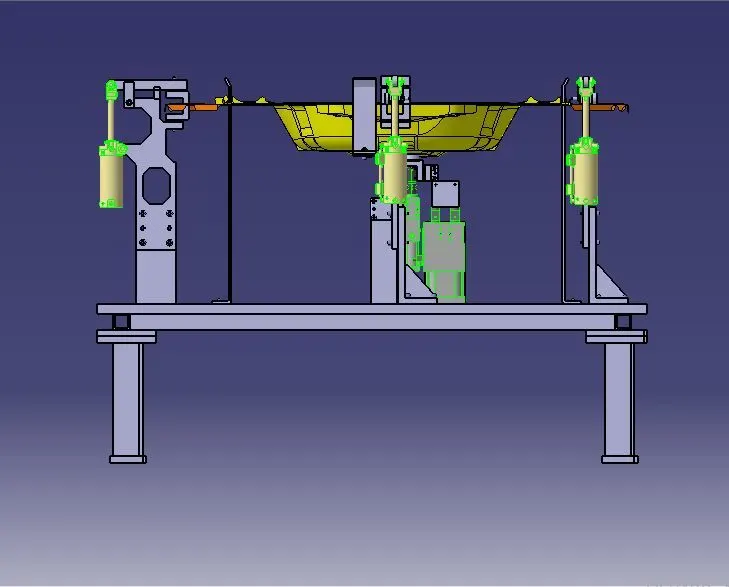

• Perform 3D finish for all units of Assembly design.
• Create Rough locators for Assembly.

What Is 3D Finish-

3D-FINISHING:

3d Finish is a process where the design is being completely finish and to be ready for final simulation and 2d detailing.

• While finishing the design the nominality is checked which ensures the easy assembly of all the units.
• The hole concentricity and holes sizes are checked which ensures the assembly of different parts.
• The gaps between the different units are checked to ensure the proper individual working of different units.
• Design the rough locators, which helps to loading a panel in correction orientation.
• Design the pneumatic lay outing for pneumatic connection.
• Gun study is major and most important part in 3d finishing.
• Selection of sensors, Solenoid valves as per the requirement and implementing in design.
• Fasteners are implemented as per the hole size and the standard colour codes as per the customer requirement are applied to differentiate the type of hole whether its dowel hole, Threaded hole or clearance hole.
• Renaming of the assembly and the part is done to give every part a different identity so everyone can identify in which assembly this part is going to be fit.
• After doing all these things the model is sent for simulation and 2d detailing.

Points Need to Be Taken Care of While Finishing the Design:

The following are the points taken into consideration while finishing the design.

1. Hole Concentricity and Hole Sizes:

All part holes concentricity and hole sizes are checked for easy assembly while finishing the parts.

2. Machining Area:

The machining area in every part should be defined and the machining area should be highlighted by using standard colour code. Machining is to be done on parts to properly Mount with mating parts. Machining only on desired faces reduces cost and save time. And also Machining increases accuracy of dimension. So before going to simulation or detailing machining area should be defined.

3. Nominality:

All unit’s dimension should be maintained nominal to facilitate easy assembly of the unit.

4. Holes Colouring Standard:

In a 3D finish hole colouring should be done because it helps to identify what type of hole it is. It depends on customer standards. Customer specific colour like:

Dowel hole should be given blue colour.

Threaded hole should be coloured with yellow.

Counter bore, open hole should be given cyan blue colour.

5. Pneumatic Lay outing:

Pneumatic lay outing is collection of different pneumatic pipes which work as a inlet to the pneumatic cylinder. It should be done properly for proper functioning of the units.

6. Gaps Checking:

The gaps between the different units are checked to ensure the proper individual working of different units.

7. Fasteners Implementation:

Fast should be implemented in all the units as per the requirement and load on the part.

8. Avoiding Clash Between Different Parts:

Proper gap should be maintained between units to avoid the clashes between the different units.

9. Mylar Splitting as Per Panel Profile:

Mylar splitting as for panel profile should be confirmed while finishing the design.

10. Proper Renaming of Parts or Assemblies as Per the Standards:

Proper renaming of parts and assembly should be done while finishing the design and hence we can identify each and every part easily with Unique Identification.

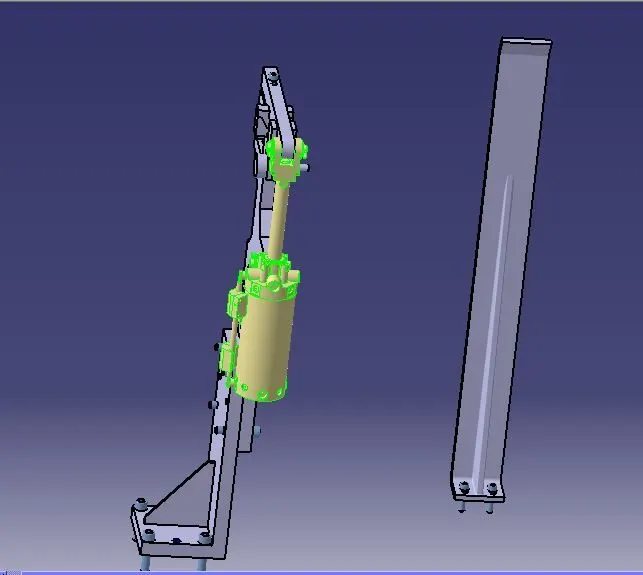

ROUGH LOCATORS:

• A rough locator is a part designed to guide the panel, to locate the car panel on to the pins accordingly. A rough locator can be of standard part or a make part.
• Rough locators also work as Poka yoke. Poka yoke is a Japanese concept used for mistake proofing.
• Rough locators are also used to help to locate the work pieces in the automation process. Locating refers to the desired location where you want the workpiece to be when it is getting worked on either by a person or a team or a robot.
• The accuracy of the locating components directly affects the consistency and how the final product will come out. This is why these components are essential to our setup.
• It can be also called as fool proofing method. Because without rough locator the part cannot be loaded in correct position.
• The rough locators are set accordingly to the angle of the respective panel and hence the part can be loaded in a defined direction and orientation only.

Points Needed to Consider While Designing A Rough Locator:

The following are the points needed to be considered while designing the rough locator.

• Rough locator should be placed at the edges of the car panel, which it has to guide.
• Applicator has to be placed in the same angle of the car part edge with a minimum distance of 2-5 mm from the edge of the car part.
• Prof locator should guide the panel in pin arresting direction.
• Rough locator should start guiding the panel before 10 to 15mm to the start of the pin engagement.
• Applicator should be designed with entry angle for the car panel. Generally, it ranges between 30-45 degree.
• Rough locator should be designed with two slots to mount the easy adjustment.
• The slot should be in the direction of car part guiding.
