Week 7 - Simulation of a 1D Supersonic nozzle flow simulation using Macormack Method

Challenge - Week 7 - Simulation of a 1D Supersonic nozzle flow simulation using Macormack Method

THEORY :-

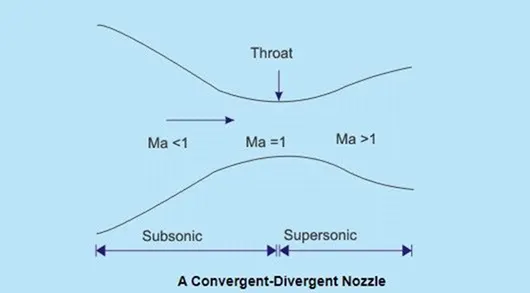

A nozzle is a device designed to control the direction or characteristics of a fluid flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe. A nozzle is often a pipe or tube of varying cross-sectional area, and it can be used to direct or modify the flow of a fluid (liquid or gas). Nozzles are frequently used to control the rate of flow, speed, direction, mass, shape, and/or the pressure of the stream that emerges from them.

There are different types of nozzles but here in our project we use a Convergent Divergent nozzle. This nozzle is used to obtain a supersonic stream starting from low speeds at the inlet. Then the Mach number should increase from Ma=0 near the inlet to Ma>1 at the exit. It is clear that the nozzle must converge in the subsonic portion and diverge in the supersonic portion. Such a nozzle is called a convergent-divergent nozzle.

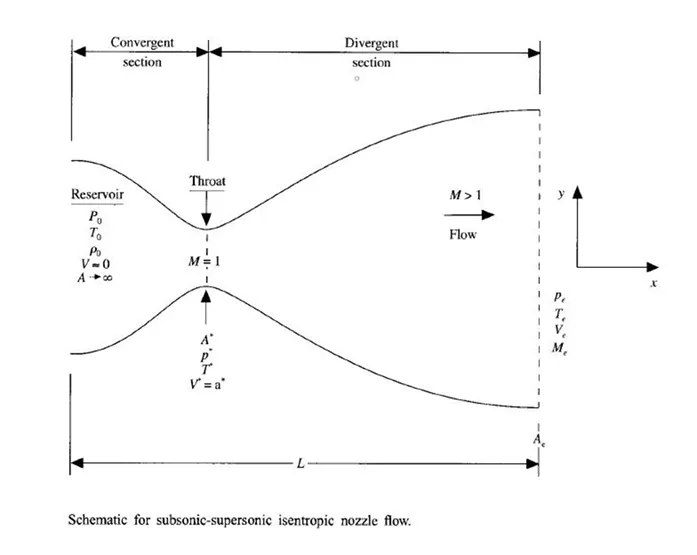

Here we are considering the steady, isentropic flow through a convergent-divergent nozzle as given below, The flow at the inlet to the nozzle comes from a reservoir where the pressure and temperature are denoted by P0andT0P0andT0 . The cross -sectional area of the reservoir is large (A = ∞∞), and hence the velocity is very small (V=0). Thus, P0andT0P0andT0 are the stagnation values, or total pressure and total temperature, respectively. The flow expands isentropically to supersonic speeds at the nozzle exit, where the exit pressure, temperature, velocity and Mach number are denoted by Pe,Te,VeandMePe,Te,VeandMe . The flow is locally subsonic in the convergent section of the nozzle, sonic at the throat and supersonic at the divergent section. The sonic flow (M=1) at the throat means that the local velocity at this location is equal to the local speed of sound. We denote the pressure, temperature, velocity and area as P*,T*, V* (Which is equal to V* = a* (speed of sound)), and A*.

We assume that at a given section, where the cross-sectional area is A the flow properties are uniform across the section. Hence the area of the section changes as a function of distance along the nozzle x and therefore in reality the flow field is 2-dimensional, we make the assumption that the flow properties vary only with x, this is equal to assuming uniform flow properties across any given cross section. Such flow is defined as quasi-one-dimensional flow.

Setup followed to solve the 1D Super-sonic nozzle flow simulation using Macormack Method :-

1) The governing flow equations will be couched in terms of partial differential equation suitable for the time marching solution of quasi-one-dimensional flow

2) The finite-difference expressions pertaining to MacCormack's technique as applied to this problem will be set up.

3) Other details for the numerical solution (such as calculation of timestep and the treatment of boundary condition) will be formulated.

Code and Explanation :-

Main Code:-

close all

clear all

clc

%input

n=input('Number of grid points :-');

nt=input('Number of time step:-');

% Non Conservative form

[rho,v,t,P,M,rho_t,v_t,t_t,P_t,M_t,x,a]=non_conservative(n,nt);

% Conservative form

[rho_c,v_c,t_c,P_c,M_c,rho_t_c,v_t_c,t_t_c,P_t_c,M_t_c,x,a]=conservative(n,nt)

% Plots for Non Conservative, Mach number , pressure and temperature Vs distance at 1400 time step

figure()

plot(x,M)

title_text=sprintf('Non conservative \n Mach number vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Mach number')

figure()

plot(x,P)

title_text=sprintf('Non conservative \n Pressure vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Pressure')

figure()

plot(x,rho)

title_text=sprintf('Non conservative \n Density vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Density')

figure()

plot(x,t)

title_text=sprintf('Non conservative \n Temperature vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Temperature')

% Plots for Conservative, Mach number , pressure and temperature Vs distance at 1400 time step

figure()

plot(x,M_c)

title_text=sprintf('Conservative \n Mach number vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Mach number')

figure()

plot(x,P_c)

title_text=sprintf('Conservative \n Pressure vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Pressure')

figure()

plot(x,rho_c)

title_text=sprintf('Conservative \n Density vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Density')

figure()

plot(x,t_c)

title_text=sprintf('Conservative \n Temperature vs Distance (No. of Timestep=%d)',nt);

title(title_text)

xlabel('Distance')

ylabel('Temperature')

% Plots for Non Conservative, Mach number , pressure and temperature Vs distance at Throat area

nt=(1:1400);

figure()

plot(nt,M_t)

title_text=sprintf('Non conservative \n Mach number vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Mach number')

figure()

plot(nt,P_t);

title_text=sprintf('Non conservative \n Pressure vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Pressure')

figure()

plot(nt,rho_t)

title_text=sprintf('Non conservative \n Density vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Density')

figure()

plot(nt,t_t)

title_text=sprintf('Non conservative \n Temperature vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Temperature')

% Plots for Conservative, Mach number , pressure and temperature Vs distance at Throat area

figure()

plot(nt,M_t_c)

title_text=sprintf('Conservative \n Mach number vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Mach number')

figure()

plot(nt,P_t_c);

title_text=sprintf('Conservative \n Pressure vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Pressure')

figure()

plot(nt,rho_t_c)

title_text=sprintf('Conservative \n Density vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Density')

figure()

plot(nt,t_t_c)

title_text=sprintf('Conservative \n Temperature vs Distance at Throat');

title(title_text)

xlabel('Distance')

ylabel('Temperature')

% Mass flow rate distribution inside the nozzle

figure()

m=rho.*a.*v;

m_c=rho_c.*a.*v_c;

plot(x,m)

hold on

plot(x,m_c)

line([0 3],[0.579 0.579],'color','g')

title_text=sprintf('Mass Flow rate vs Distance');

title(title_text)

% axis([0 3 .578 .596])

xlabel('Distance')

ylabel('Mass Flow Rate')

legend('Non Conservative Form','Conservative form','Analytical form')

Explanation :-

1) Here I have given code to input the number of grid points and number of timesteps, So that we can change the values as we want.

2) Then I have given functions for Non-conservative form and Conservative Form

3) After that I have given codes to plot the graphs.

Function Code For Non Conservative :-

function [rho,v,t,P,M,rho_t,v_t,t_t,P_t,M_t,x,a]=non_conservative(input1,input2)

%inputs

n=input1;

x= linspace(0,3,n);

dx=x(2)-x(1);

%Calculating initial profile

rho=1-0.3146*x; %density

t=1-0.2314*x; %temperature

v=(0.1+1.09*x).*t.^(1/2); %velocity

a=1+(2.2*(x-1.5).^2); %area

gamma=1.4;

% no. of timestep

nt=input2;

% time step

delta_t=0.5*(dx./((sqrt(t)+v)));

dt=min(delta_t);

% Time marching

for k=1:nt

rho_old=rho;

v_old=v;

t_old=t;

%Predictor Method

for i=2:n-1

dvdx=(v(i+1)-v(i))/dx;

drhodx=(rho(i+1)-rho(i))/dx;

dtdx=(t(i+1)-t(i))/dx;

dlogadx=(log(a(i+1))-log(a(i)))/dx;

%drho_dt_p(i)= -rho(i)*(v(i+1)-v(i))/dx-rho(i)*v(i)*(log(a(i+1))-log(a(i)))/dx-v(i)*(rho(i+1)-rho(i))/dx;

%Continuity Equation

drhodt_p(i)= -rho(i)*dvdx-rho(i)*v(i)*dlogadx-v(i)*drhodx;

%Momentum Equation

dvdt_p(i)= -v(i)*dvdx-(1/gamma)*(dtdx+(t(i)/rho(i))*drhodx);

%Energy Equation

dtdt_p(i)= -v(i)*dtdx-(gamma-1)*t(i)*(dvdx+v(i)*dlogadx);

%Solution update

rho(i)=rho(i)+drhodt_p(i)*dt;

v(i)=v(i)+dvdt_p(i)*dt;

t(i)=t(i)+dtdt_p(i)*dt;

end

%Corrector Method

for j=2:n-1

dvdx=(v(j)-v(j-1))/dx;

drhodx=(rho(j)-rho(j-1))/dx;

dtdx=(t(j)-t(j-1))/dx;

dlogadx=(log(a(j))-log(a(j-1)))/dx;

%Continuity Equation

drhodt_c(j)= -rho(j)*dvdx-rho(j)*v(j)*dlogadx-v(j)*drhodx;

%Momentum Equation

dvdt_c(j)= -v(j)*dvdx-(1/gamma)*(dtdx+(t(j)/rho(j))*drhodx);

%Energy Equation

dtdt_c(j)= -v(j)*dtdx-(gamma-1)*t(j)*(dvdx+v(j)*dlogadx);

end

%Average Time derivatives

rho_avg=0.5*(drhodt_p+drhodt_c);

v_avg=0.5*(dvdt_p+dvdt_c);

t_avg=0.5*(dtdt_p+dtdt_c);

%Solution Updates

for m=2:n-1

rho(m)=rho_old(m)+rho_avg(m)*dt;

v(m)=v_old(m)+v_avg(m)*dt;

t(m)=t_old(m)+t_avg(m)*dt;

end

% Applying boundary condition

%inlet

v(1)=2*v(2)-v(3);

%outlet

v(n)=2*v(n-1)-v(n-2);

rho(n)=2*rho(n-1)-rho(n-2);

t(n)=2*t(n-1)-t(n-2);

%Mach Number

M=(v./sqrt(t));

%Pressure

P=rho.*t;

% Throat datas

throat= find(a==1);

rho_t(k)=rho(throat);

t_t(k)=t(throat);

v_t(k)=v(throat);

P_t(k)=P(throat);

M_t(k)=M(throat);

% mass flow rate

mass = rho.*v.*a;

%if else condition to plot the variation of non dimensional mass flow rate at specific time steps and plot the same

if k == 50

%plotting of mass flow rate at time step 50

figure(20)

plot(x,mass,'Linewidth', 2)

hold on

elseif k == 100

%plotting of mass flow rate at time step 100

plot (x,mass,'Linewidth', 2)

elseif k==150

%plotting of mass flow rate at time step 150

plot(x,mass,'Linewidth', 2)

elseif k==200

%plotting of mass flow rate at time step 200

plot (x,mass,'Linewidth', 2)

elseif k==700

%plotting of mass flow rate at time step 700

plot (x,mass,'Linewidth', 2)

title ('Plot of mass flow rate at different time steps Non conservative form')

xlabel('Distance')

ylabel('Non-dimensional Mass flow rate')

legend ('50','100','150','200','700')

end

end

end

1) In the funtion we have inputed the number of timestep and number of grid points.

2) with these values the initial condition is calculated

3) Then using MacCormack's Technique we will find the predictor and corrector values

4) We get the new solution

5) Apply the Boundary conditions for calculating the next timestep

6) Then the for loop will goes on til the given value.

Function Code For Conservative :-

function [rho_c,v_c,t_c,P_c,M_c,rho_t_c,v_t_c,t_t_c,P_t_c,M_t_c,x,a]=conservative(input1,input2)

%inputs

n=input1;

x= linspace(0,3,n);

dx=x(2)-x(1);

%Calculating initial profile

%Desity and Temperature with respect to x

for i=1:length(x)

if (x(i)<=3.5)

rho= 0.634-0.3879*(x-1.5); % density

t=0.833-0.3507*(x-1.5); % Temperature

end

end

for i=1:length(x)

if (x(i)<=1.5)

rho(i)=1.0-0.366*(x(i)-0.5) % density

t(i)=1.0-0.167*(x(i)-0.5) % Temperature

end

end

for i=1:length(x)

if (x(i)<=0.5)

rho(i)=1.0 % density

t(i)=1.0 % Temperature

end

end

a=1+(2.2*(x-1.5).^2); % area

v=(.59)./(rho.*a); % velocity

gamma=1.4;

% no. of timestep

nt=input2;

% time step

delta_t=0.5*(dx./((sqrt(t)+v)));

dt=min(delta_t);

% Solution Vector

U1=rho.*a;

U2=rho.*a.*v;

U3=rho.*((t./(gamma-1))+(gamma/2).*v.^2).*a;

for k=1:nt

U1_old=U1;

U2_old=U2;

U3_old=U3;

%Flux Vector

F1=U2;

F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-(gamma/2)*(((U2).^2)./U1));

F3=(((gamma)*(U2.*U3))./U1)-(((gamma*(gamma-1))/2)*((U2.^3)./U1.^2));

%Predictor Step

for j=2:n-1

J2(j)=(1/gamma)*rho(j)*t(j)*((a(j+1)-a(j))/dx);

dU1dt_p(j)=-((F1(j+1)-F1(j))/dx);

dU2dt_p(j)=-((F2(j+1)-F2(j))/dx)+J2(j);

dU3dt_p(j)=-((F3(j+1)-F3(j))/dx);

U1(j)=U1_old(j)+(dU1dt_p(j))*dt;

U2(j)=U2_old(j)+(dU2dt_p(j))*dt;

U3(j)=U3_old(j)+(dU3dt_p(j))*dt;

end

%Solution Update

rho=(U1./a);

v=(U2./U1);

t= (gamma-1)*((U3./U1)-(gamma/2)*(v).^2);

%Updating F1,F2,F3

%Flux Vector

F1=U2;

F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-(gamma/2)*(((U2).^2)./U1));

F3=(((gamma)*(U2.*U3))./U1)-(((gamma*(gamma-1))/2)*((U2.^3)./U1.^2));

%Corrector Step

for m=2:n-1

J2(m)=(1/gamma)*rho(m)*t(m)*((a(m)-a(m-1))/dx);

dU1dt_c(m)=-((F1(m)-F1(m-1))/dx);

dU2dt_c(m)=-((F2(m)-F2(m-1))/dx)+J2(m);

dU3dt_c(m)=-((F3(m)-F3(m-1))/dx);

end

% Average Time derivatives

dU1dt_avg=(1/2)*(dU1dt_p+dU1dt_c);

dU2dt_avg=(1/2)*(dU2dt_p+dU2dt_c);

dU3dt_avg=(1/2)*(dU3dt_p+dU3dt_c);

for i=2:n-1

U1(i)=U1_old(i)+(dU1dt_avg(i)*dt);

U2(i)=U2_old(i)+(dU2dt_avg(i)*dt);

U3(i)=U3_old(i)+(dU3dt_avg(i)*dt);

end

%Solution Update

rho_c=U1./a;

v_c=(U2./U1);

t_c=(gamma-1)*((U3./U1)-(gamma/2)*(U2./U1).^2);

%Defining Inletflow Boundary conditions

U1(1)=rho_c(1)*a(1);

U2(1) = 2*U2(2)-U2(3);

v(1)=U2(1)/U1(1);

U3(1) = U1(1)*(t(1)/(gamma-1)+(gamma/2)*v(1)^2);

%Defining outflow Boundary conditions

U1(n)=2*U1(n-1)-U1(n-2);

U2(n)=2*U2(n-1)-U2(n-2);

U3(n)=2*U3(n-1)-U3(n-2);

%Mach Number

M_c=(v_c./sqrt(t));

%Pressure

P_c=rho_c.*t_c;

% Throat datas

throat= find(a==1);

rho_t_c(k)=rho_c(throat);

t_t_c(k)=t_c(throat);

v_t_c(k)=v_c(throat);

P_t_c(k)=P_c(throat);

M_t_c(k)=M_c(throat);

% mass flow rate

mass = rho.*v.*a;

%if else condition to plot the variation of non dimensional mass flow rate at specific time steps and plot the same

if k == 50

%plotting of mass flow rate at time step 50

figure(21)

plot(x,mass,'Linewidth', 2)

hold on

elseif k == 100

%plotting of mass flow rate at time step 100

plot (x,mass,'Linewidth', 2)

elseif k==150

%plotting of mass flow rate at time step 150

plot(x,mass,'Linewidth', 2)

elseif k==200

%plotting of mass flow rate at time step 200

plot (x,mass,'Linewidth', 2)

elseif k==700

%plotting of mass flow rate at time step 700

plot (x,mass,'Linewidth', 2)

title ('Plot of mass flow rate at different time steps Conservative form')

xlabel('Distance')

ylabel('Non-dimensional Mass flow rate')

legend ('50','100','150','200','700')

end

end

end

1) The convective funtion will also be the same as non-convective function.

2)We have inputed the number of timestep and number of grid points.

3) With these values the initial condition is calculated

4) Then using MacCormack's Technique we will find the predictor and corrector values

5) We get the new solution

6) Apply the Boundary conditions for calculating the next timestep

7) Then the for loop will goes on til the given value.

Result :-

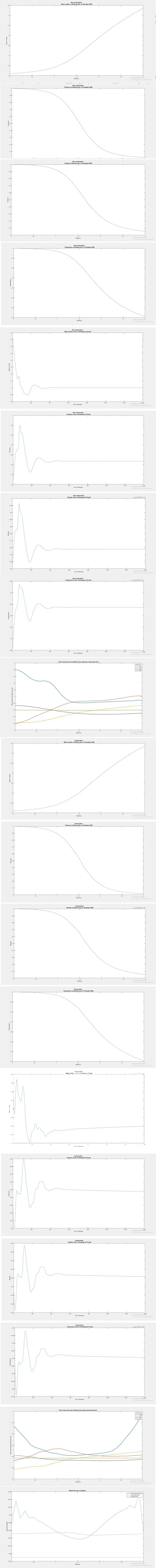

Non Conservative :-

Grid independence test :-

		31 grid points (n=16)	31 grid points (n=16)	61 grid points (n=31)	61 grid points (n=31)
Flow Variables at Throat	Analytical Solution	Conservative Form	Non-Conservative Form	Conservative Form	Non-Conservative Form
Density	0.634	0.6515	0.6387	0.6389	0.6377
Temperature	0.833	0.8406	0.8365	0.8354	0.8354
Pressure	0.528	0.5476	0.5342	0.5337	0.5327
Mach Number	1.000	.9797	.9994	0.9982	0.9998

Above are the values for Density, Temperature, Pressure and Mach Number at the throat in analytical form, conservative and non-conservative forms. While going through the values we can see that the non-conservation form results are really closer to the exact values (That are obtained from the analytical solution). Also, we can see that conservation form when doubling the number of grid points, the steady state numerical results are slightly closer to the exact analytical values, but still not close as the non-conservation form results.

Observations: -

1) When we go through the graphs of Distribution of primitive variables inside the nozzle, we can see that as we move from the inlet to outlet the Mach number goes on increasing. At the inlet Mach number will be less than 1, at the throat the Mach number will be equal to 1 and at the outlet the Mach number will be greater than 1. At the converging section the velocity will be less but velocity above Mach number equal to 1 increase as the pipe cross section increases. Energy is created from the heat and pressure of the fluid, as velocity increases the temperature and pressure decreases. As the pressure decreases the density also decreases.

2) Looking at pressure, density , temperature and Mach number at the nozzle throat plotted verse the number of time steps we can see that the largest changes take place at the early times after which the final, steady state value is approached. At early times, the time derivatives are large and they oscillate in value. These oscillations are associated with various unsteady compression and expansion waves which propagate through the nozzle during the transient process. Later the time derivatives rapidly grow small over a finite number of timesteps.

3)While comparing the steady state variation of the mass flow obtained with the non-conservation and conservation form of the governing equation, we can see that conservation form of the equation is much more satisfactory than that obtained from the non-conservation form. The conservation form gives a distribution that is much closer to being a constant. But the non-conservation results have a sizeable variation, with some false oscillations at the both the inflow and outflow boundaries. Also, the conservation form is much closer to the exact analytical solution.

Conclusion: -

1) Better mass flow distribution is done in conservation form.

2) Non-conservation form is better for programming convenience because they are solved in term of primitive variables and their values are obtained directly. But in conservation form equation are expressed in terms of flux variables and first solve solution vector then the primitive variables which makes things complex.

3) For accuracy also non-conservative is better due to the direct calculation of primitive variables. While in conservation form primitive variables are calculated indirectly from flux variables. Increased number of calculations will lead to more errors. This is the case when we take primitive valuables. But if we are taking Flux variables conservation form is better.

4) In non-conservation form behaviour of the residuals are good as compare to conservation form. The residuals decays faster in non-conservation form when compared to conservation form. The amount by which the residual decay is often used as an index 'quality' of the numerical algorithm. so, the non-conservation form is better.

5) The primitive variables converge to a numerical steady-state faster when using the non-conservation form. Because the dependent variables are primitive in non-conservation forms but not in conservation form, this might be the cause for that. Thus, simulation time for the non-conservation form is shorter than the conservation form.
