Week 7 Challenge - Assembly Workbench

SSuhel Khan21 Jan 2024

In this week’s assignment, I have to created 2 assemblies according to the content covered in the course videos provided with 2D diagrams of the components and i first created the individual part files and then created a complete assembly of those part files in the assembly workbench. After creating the assembly i used the drafting tool to create a 2D drawing.

  • All Sketeches Are Iso Constrained
  • All Dimention are in mm

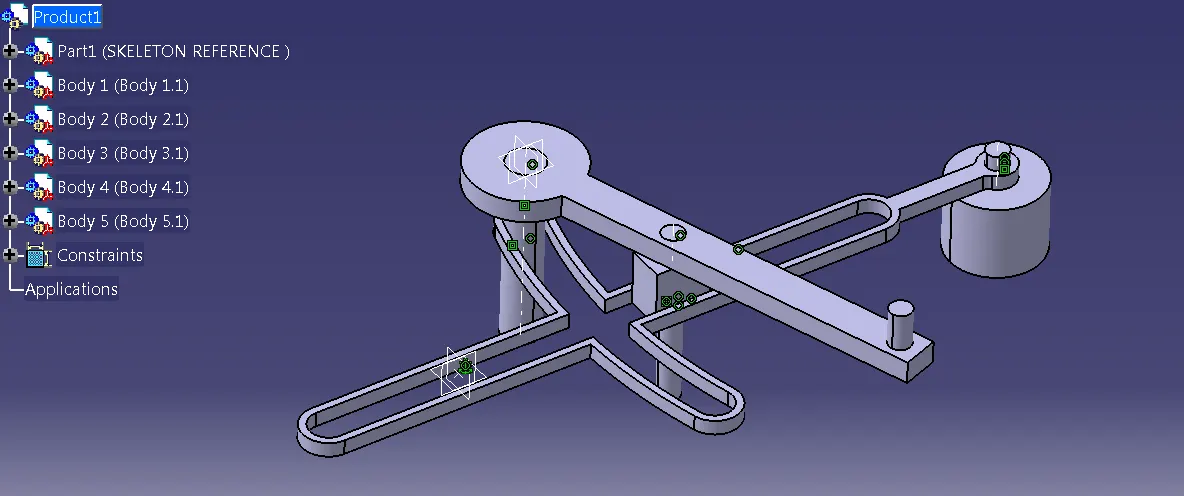

Linkage Mechanism

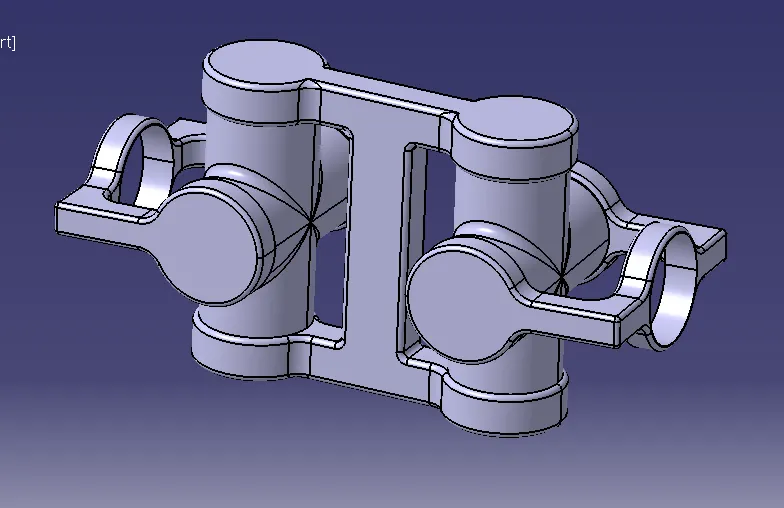

Universal Joint

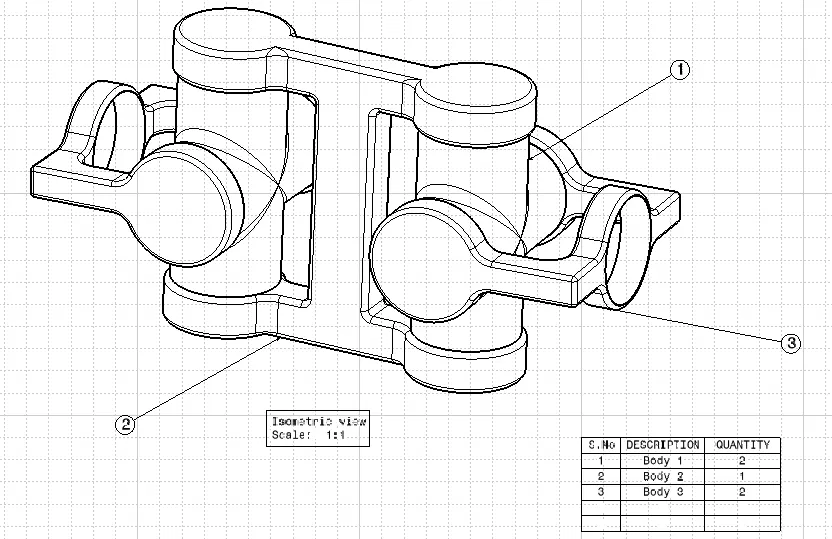

Universal Joint Drawing

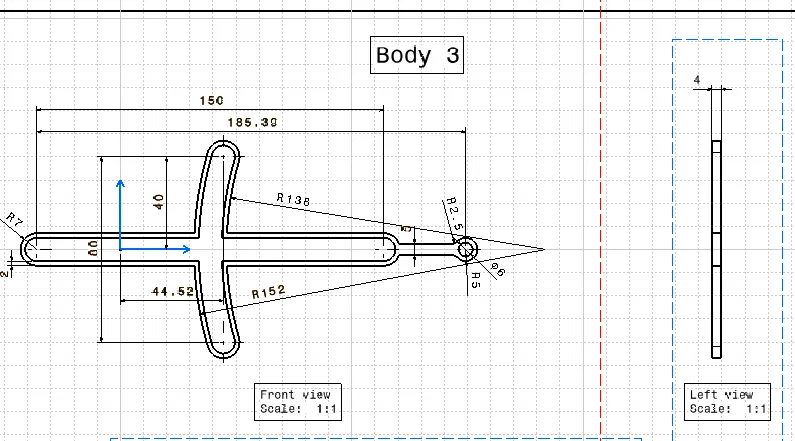

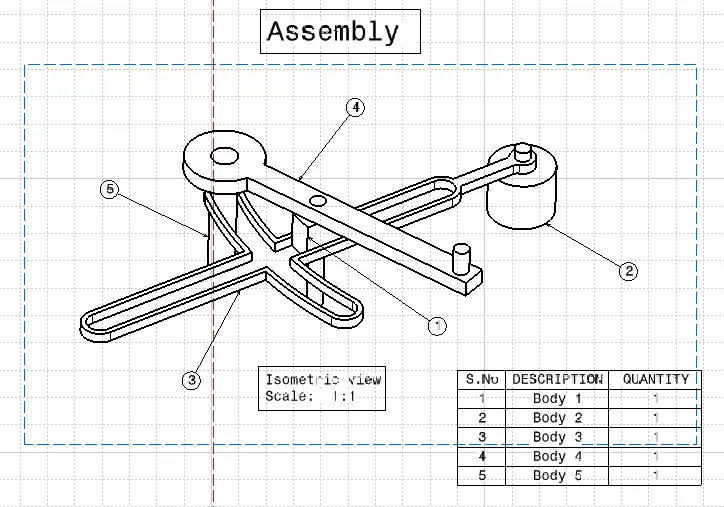

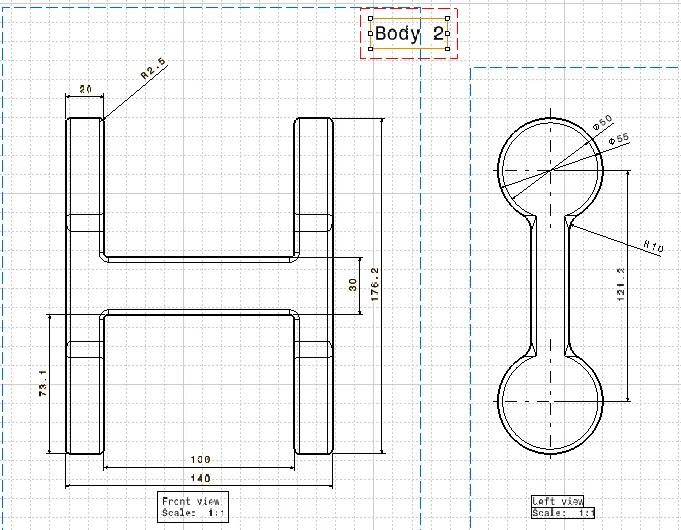

Linkage Mechanism Drawing
