Week 7 Challenge
Mold Design Report: Door Bezel -
1. Introduction This report outlines the process
followed to create two sliders for the door bezel mold, addressing the
undercuts present in the model. This task builds upon the mold blocks designed
in the Week 6 assignment and ensures proper mold functionality for part
ejection.
2. Review of the Existing Mold Design
- The door bezel mold was reviewed to identify the undercuts that require sliding mechanisms.

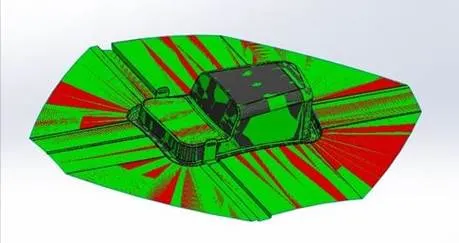

- A thorough draft analysis was conducted to confirm the necessity of sliders.
3. Identifying the Undercuts
- Two undercuts were identified that would prevent direct ejection of the part from the mold.
- These areas required sliders to enable proper demolding without damaging the part.
4. Slider Design Process
Step 1: Determining Slider Directions
- The direction of movement for each slider was defined based on the undercut locations and mold opening direction.
- Clearance was provided to ensure smooth movement without interference.
Step 2: Designing the Slider Components

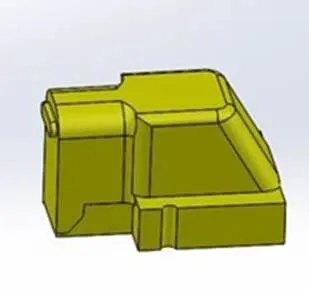

- Each slider was designed with an appropriate draft angle to allow easy part ejection.

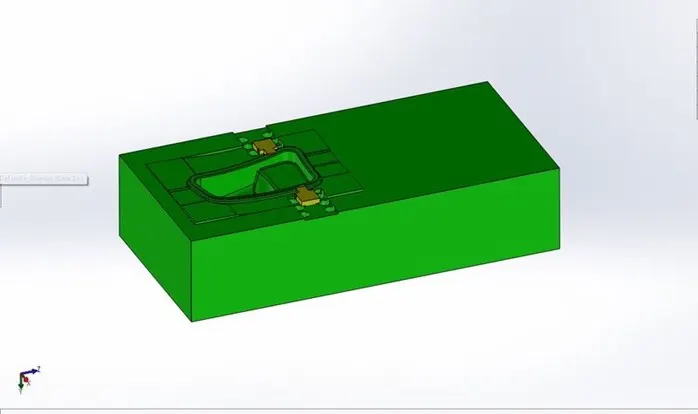

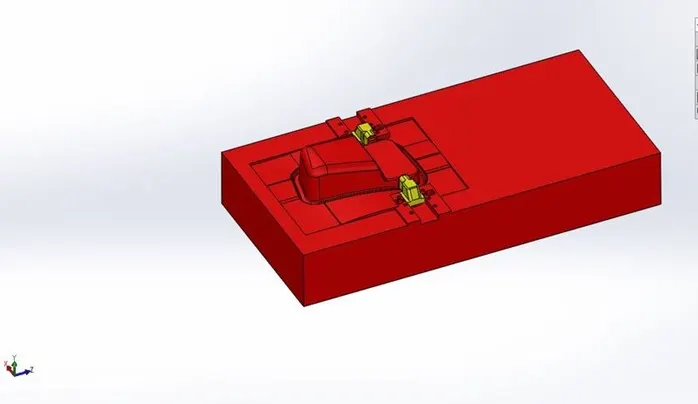

- Slider blocks were added to house the sliders within the mold base.
- Hardened steel was selected for the sliders to ensure durability and wear resistance.
Step 3: Incorporating the Slider Mechanism
- Guide rails and stop blocks were introduced to maintain alignment and control movement.
- A return spring mechanism was integrated to reposition the sliders after ejection.
Step 4: Adding Locking Features
- Locking wedges were included to hold the sliders in place during injection.
- Proper tolerances were maintained to prevent excessive movement.
Step 5: Clearance and Cooling Considerations
- Sufficient clearance was provided between the sliders and mold cavity to prevent binding.
- Cooling channels were adjusted to account for the new slider components.
5. Simulation and Validation
- A mold flow analysis was conducted to ensure proper filling and packing of the part.
- Ejection was simulated to confirm that the sliders function correctly and do not cause defects.
- Necessary modifications were made to optimize performan
6. Conclusion The two sliders were successfully designed and integrated into the door bezel mold. This addition ensures smooth ejection of the part without defects, enhancing the overall mold performance.
