Week 6-Meshing of Hood Challenge

AIM:- Model The Hood component by extracting Mid surface & specified in the reqirement.

Procedure that has followed during this challenge:-

1. Model that has assigned to model.

Entire are divided into sub parts.

i) Part 1

ii) part 2

iii) part 3

iv) part 4

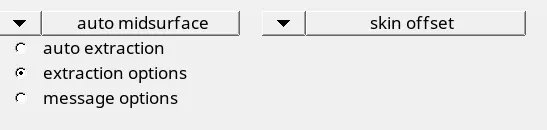

a) For all components extracted mid surface by using auto mid surface extraction method by using Skin offset.

After extracting mid surface toggled unnessary lines at which are failling minimum quality criteria.

for part 2 & 1 ectracted mid surface & defeatured component the next step 2d Mesh.

finally reflected Surfaces & mesh after clering the all quality criteria issues .

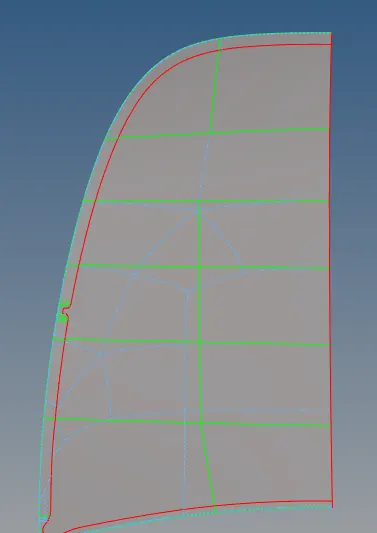

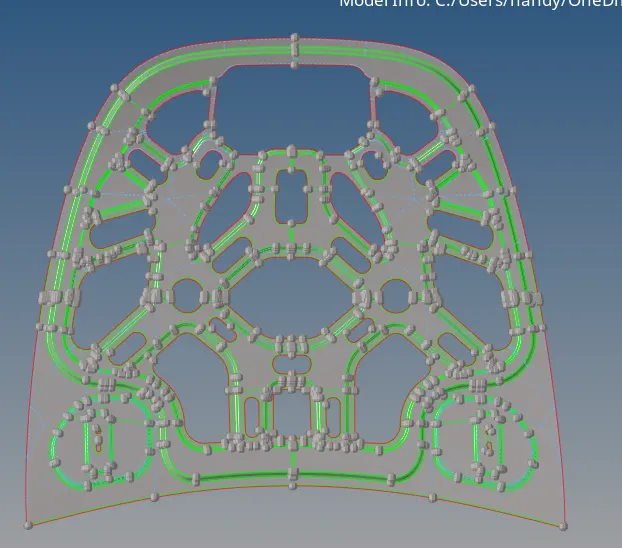

Part 2 half mid surface shown in below capture part.

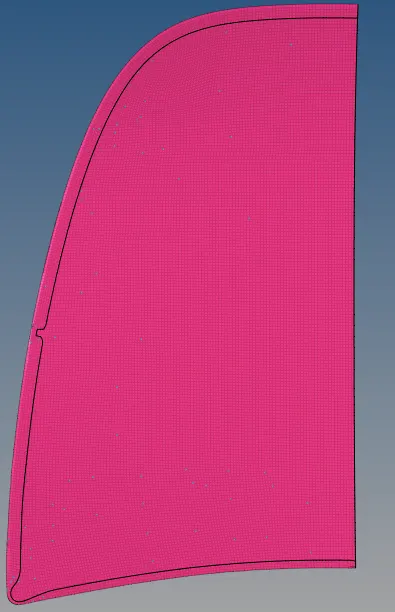

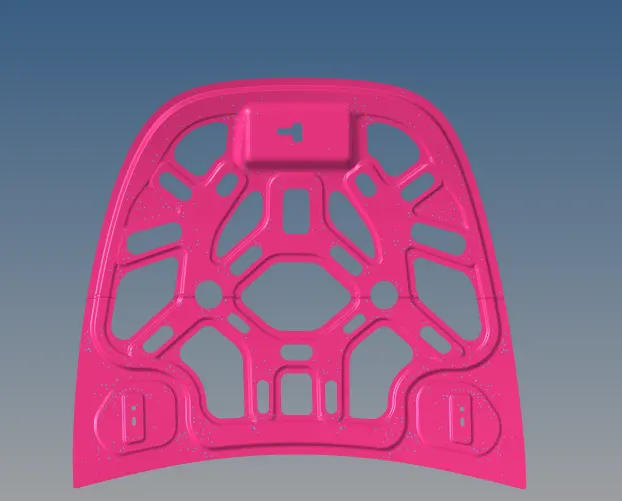

Part 2 mesh represented below capture.

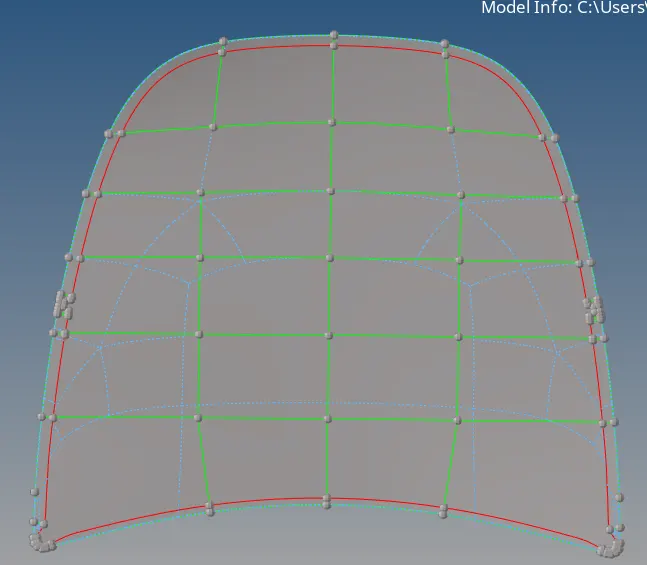

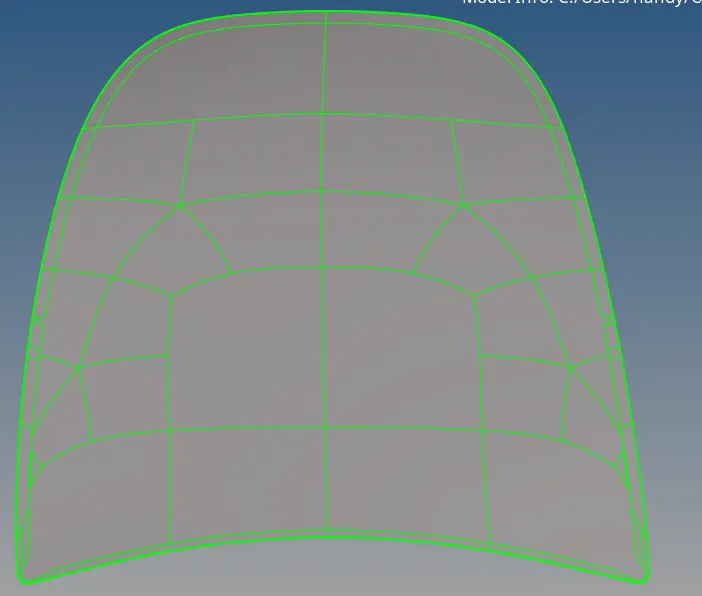

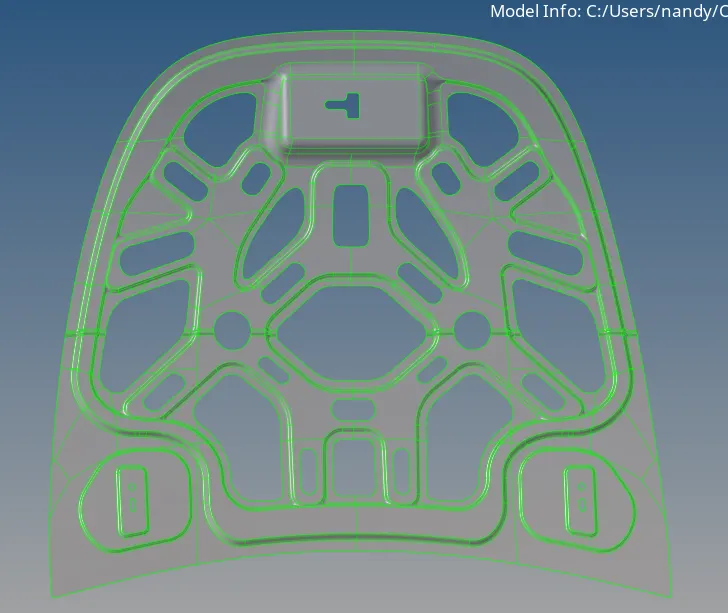

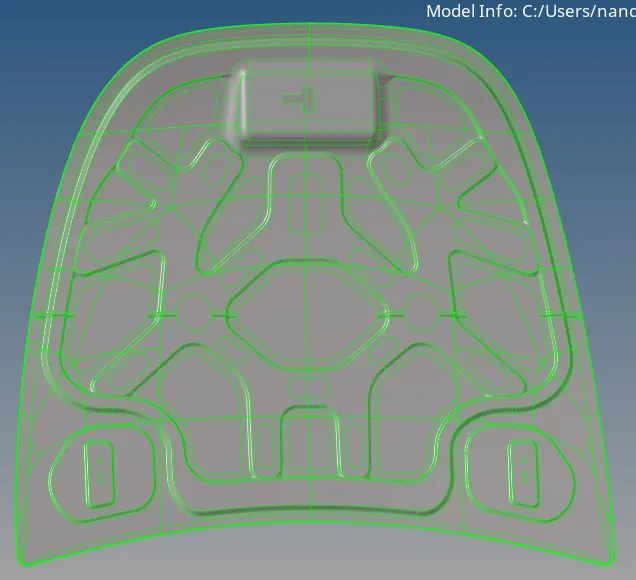

The below two captures represents the total mesh & surface for part 2 after reflecting.

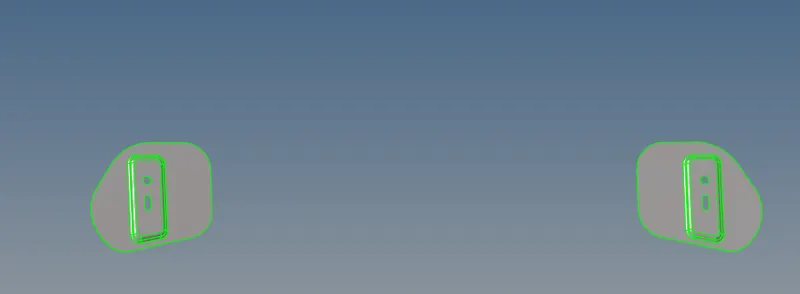

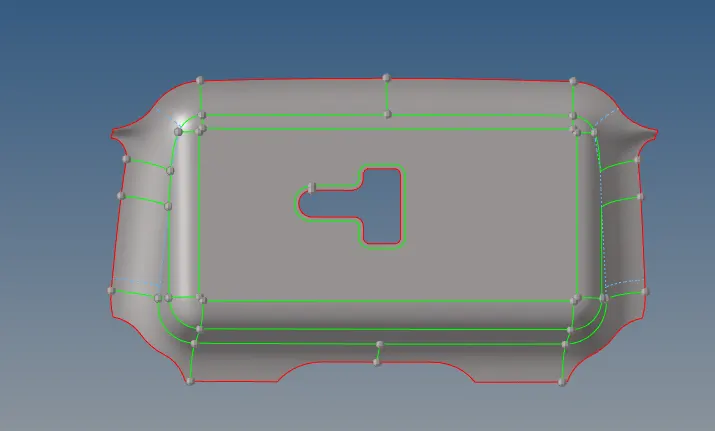

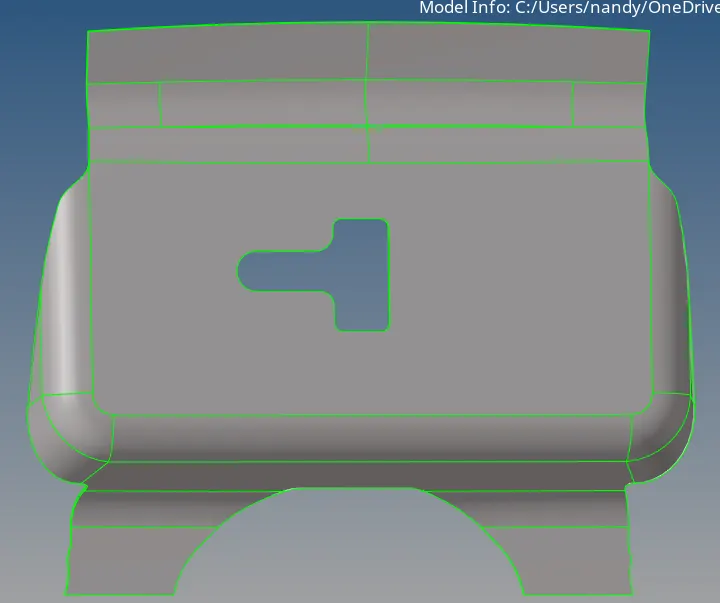

part 4 mid surface extracted from parent component without utilizing default component.

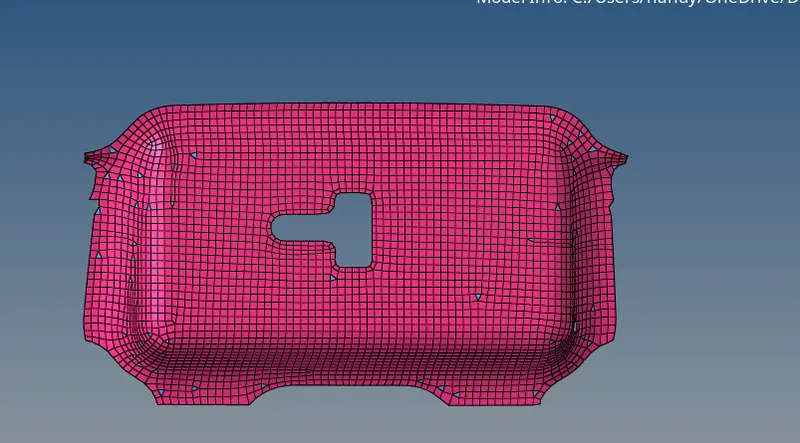

Mesh that has created for the latch component.

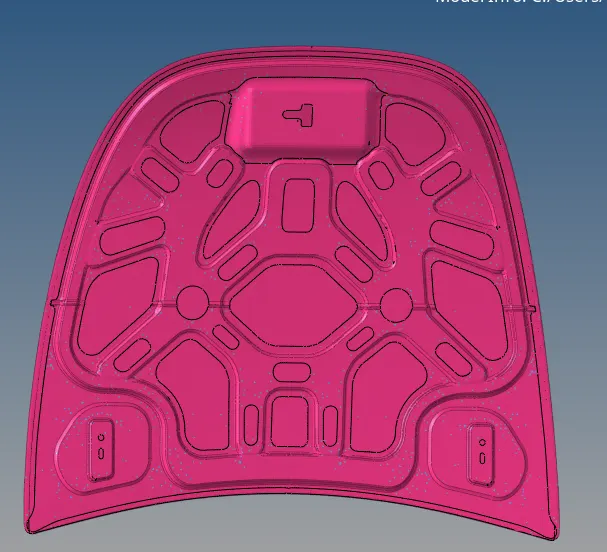

The below capture represents combine mesh for part 2 & part 4.

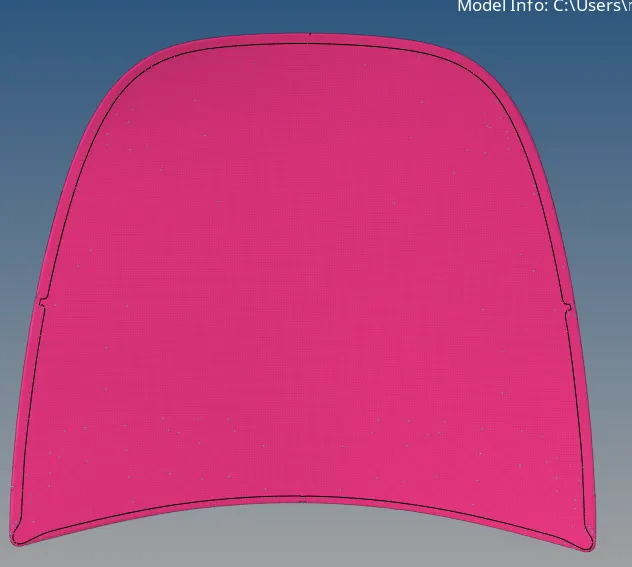

For the entire component mesh is created as shown below.

Familar tools that has used to created edit the surfaces .

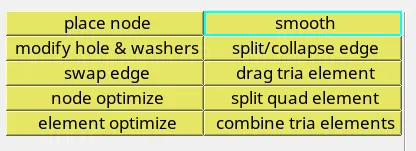

For mesh editing.

Conclusion:-

Hence the model has modelled & generated mesh as specified in the reqirement.
