Week 6-Meshing of Hood Challenge

AIM: Prepare a post-processing analysis for the given hood model.

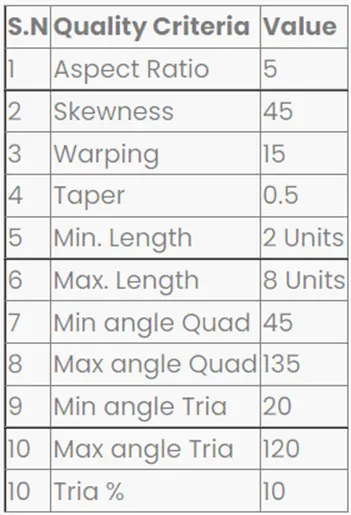

OBJECTIVE: Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

PROCEDURE:

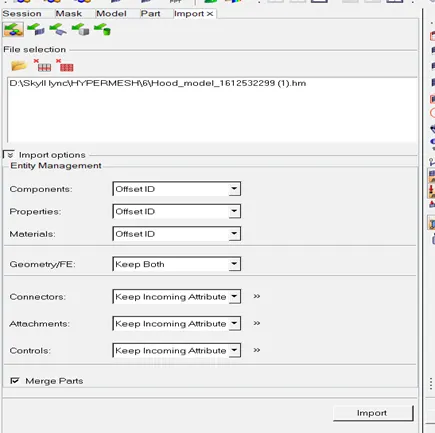

• Firstly we need to import the geometry

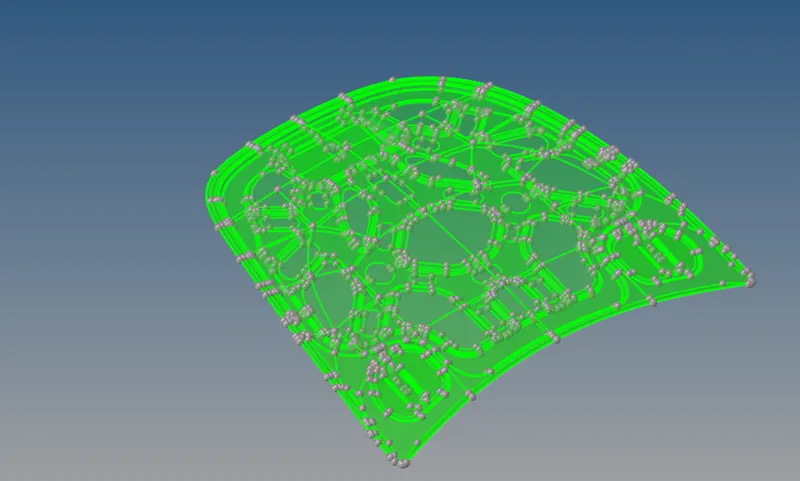

• After importing the geometry we need to delete the solids.

Delete > solids > displayed > delete entity

• Now we need to create mid-surface for every component separately.

Geometry > mid surface > select skin offset > select displayed component > extract.

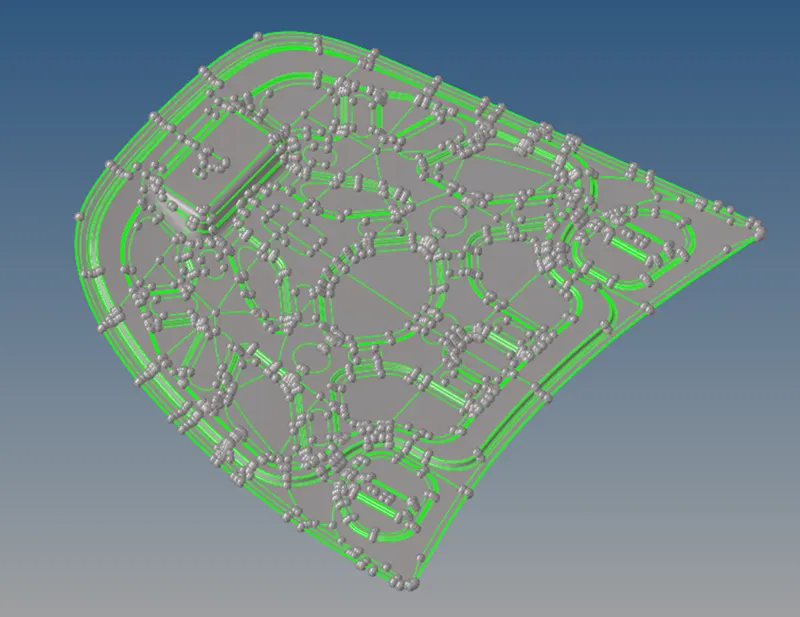

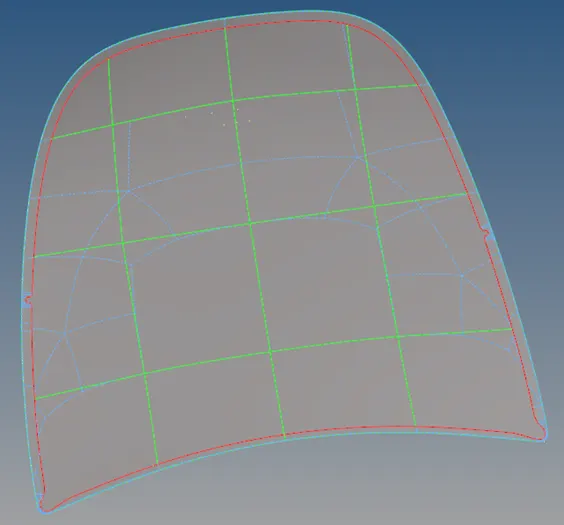

Then we need to perform auto clean up and then we need to improve the construction line for better mesh flow.

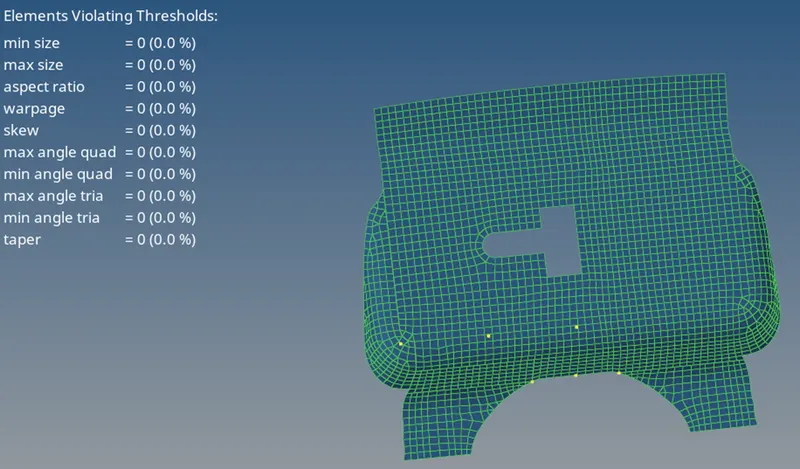

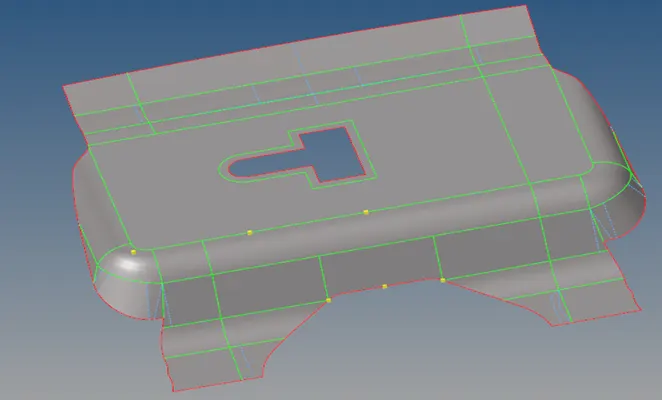

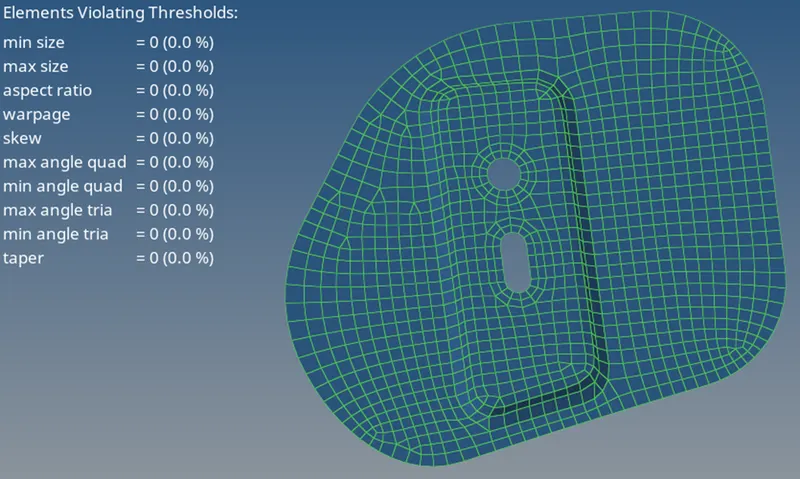

LATCH

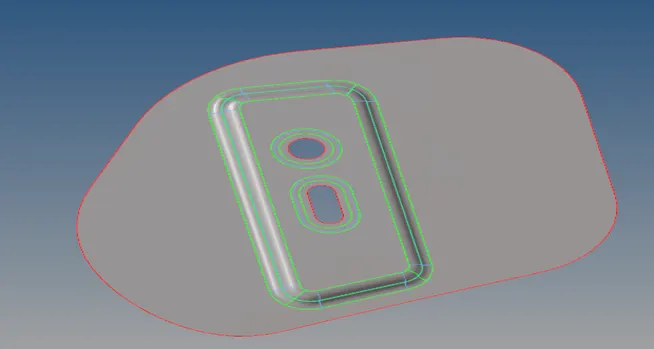

HINGE

INNER EXTRACT

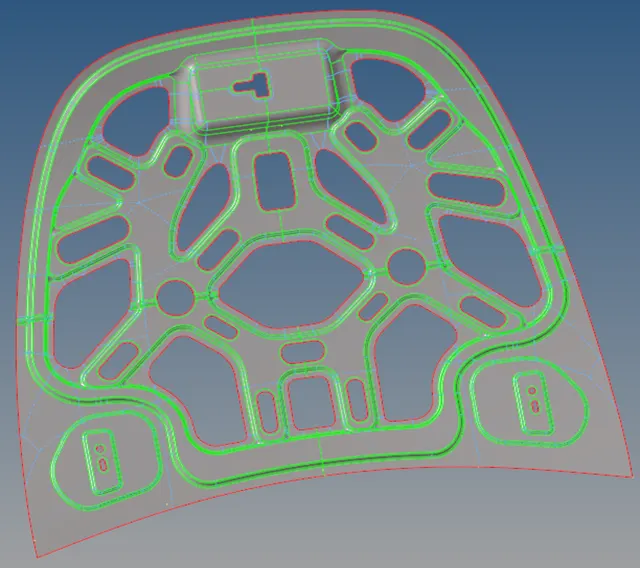

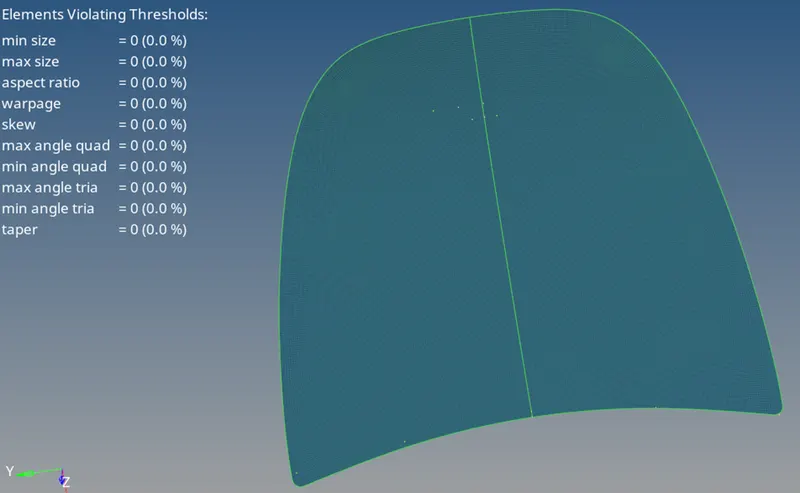

OUTER EXTRACT

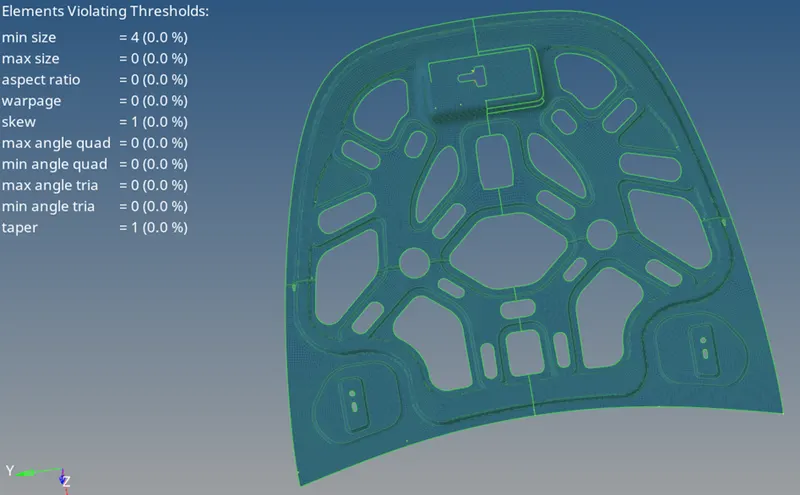

• After improving the construction line we need to create a auto mesh and change all quality parameter according to the question.

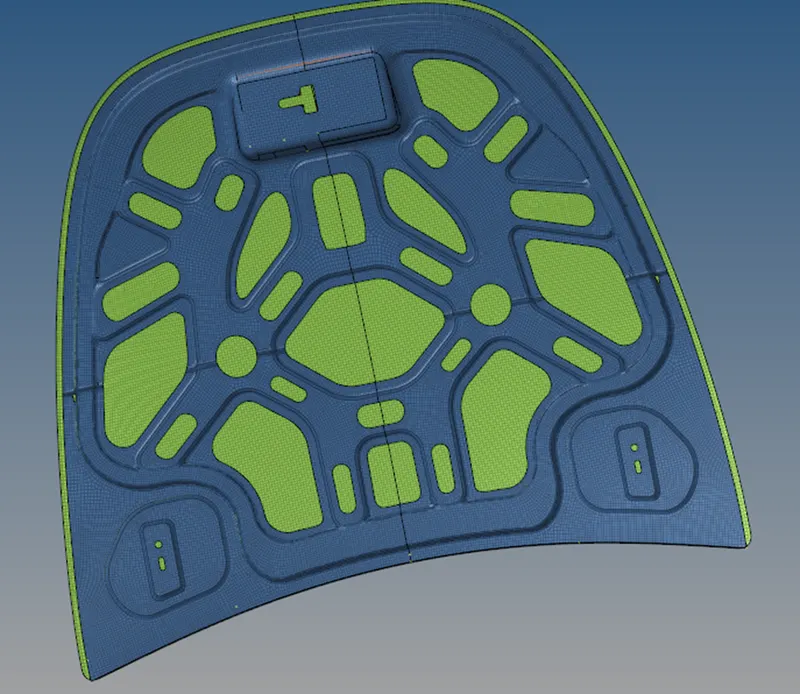

After all this thing we need to improve the mesh flow and check the quality of the mesh.
