Week 6-Meshing of Hood Challenge
AIM:- Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:
Target Element Length = 5mm
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2mm |
| 6 | Max. Length | 8mm |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 11 | Tria % | 10 |
Steps:-1

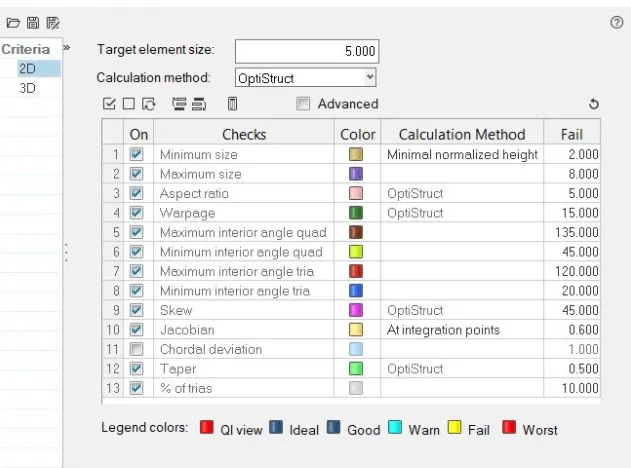

- Before working on the model first create a new parameter and criteria with the target element size of 5mm and quality criteria as discussed in the objective section. Enable mid surface extraction to auto-extract the mid surface of the components.

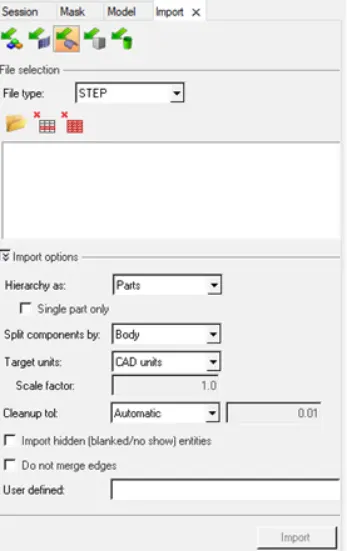

- Imoprt the geometry by clicking on the import option and select import geometry.
- Select the file type to STEP.
- Brows and select the file to be imported.
- Click the import button.

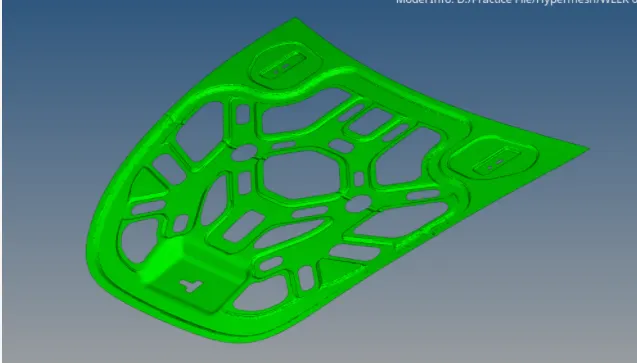

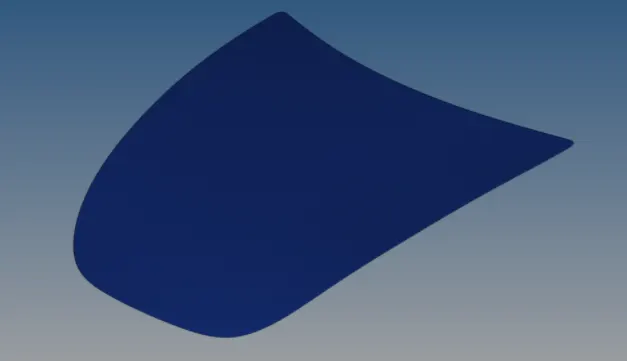

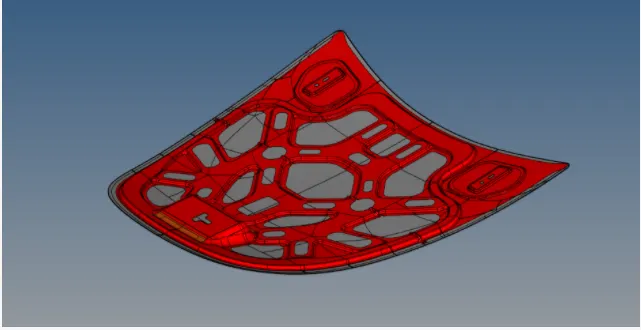

The model is imported in the hypermesh and make it fit to the graphical area using "F" key.
As the model consist of the various components we should extract the midsurface for the each components and do the topology clean up.
There are five components in the model
Inner_extract_body
Outer_extract_body
Hinge_reinforcement_extract_body1
Hinge_reinforcement_extract_body2
Latch_reinforcement_extract_body

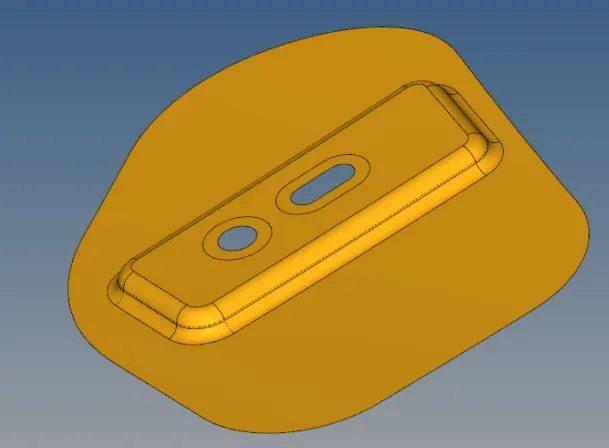

Midsurface Extract
- For the above five model the midsurface to be extracted and arrange them according.

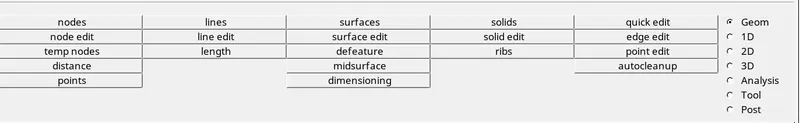

- The midsurface is extracted for the each component using the midsurface option from the geometry menu.

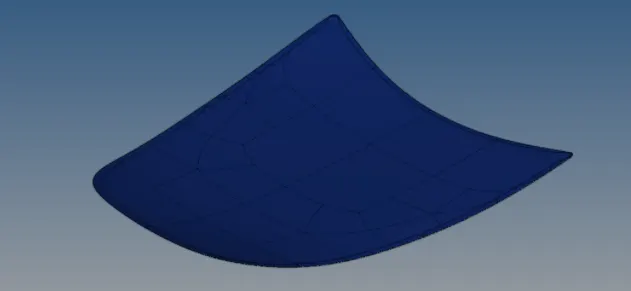

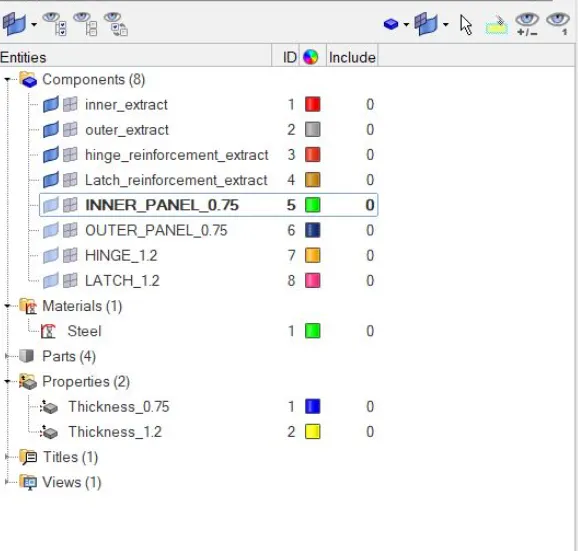

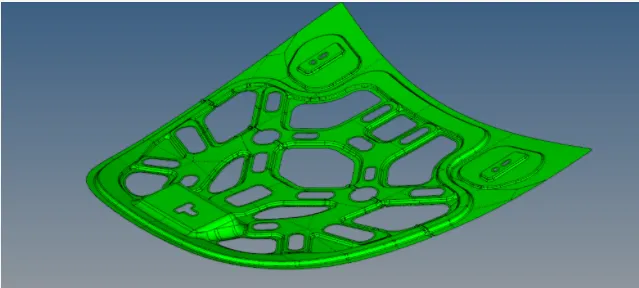

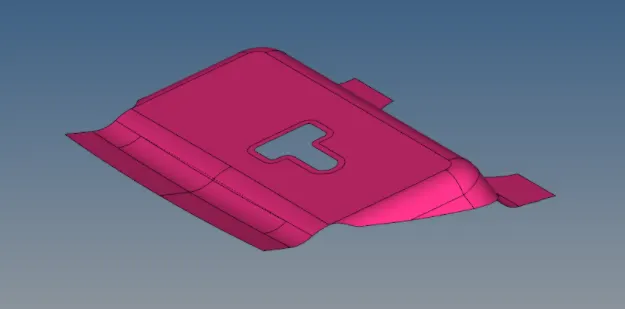

Now the midsurface as been extracted and renamed and given colour for each component as shown below-
Cleanup component
- Now the cleanup has to be performed in the midsurface of the each component by checking for any defect in the midsurface by changing the geometry topology mode.
- Toggle the unnecessary lines by using toggle edge tool & create lines where is nececessary by using the split surf node & split surf line tool.
Meshing

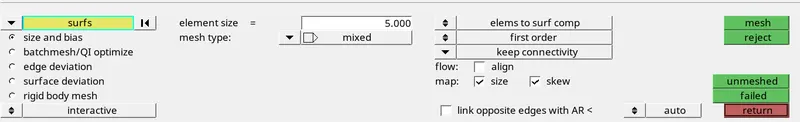

- After the autocleanup go to 2D mesh and select automesh option, change the element size to 5, element type to mixed and select the midsurface and click mesh to generate the mesh.

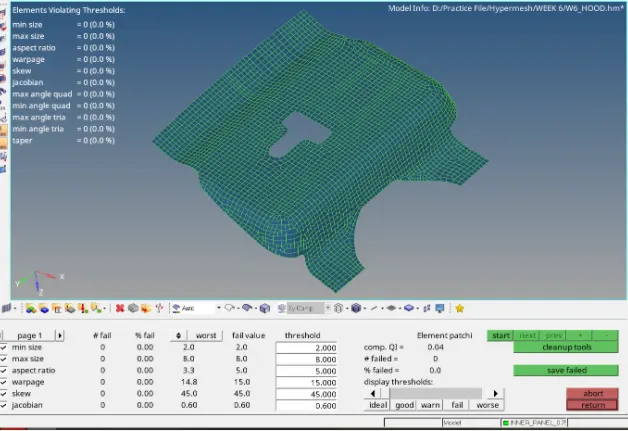

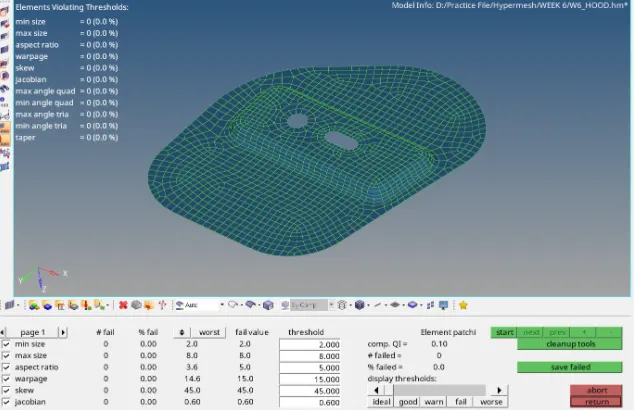

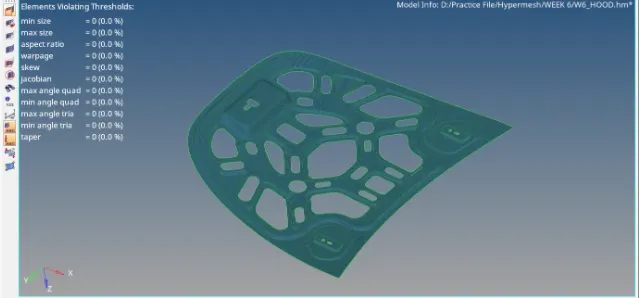

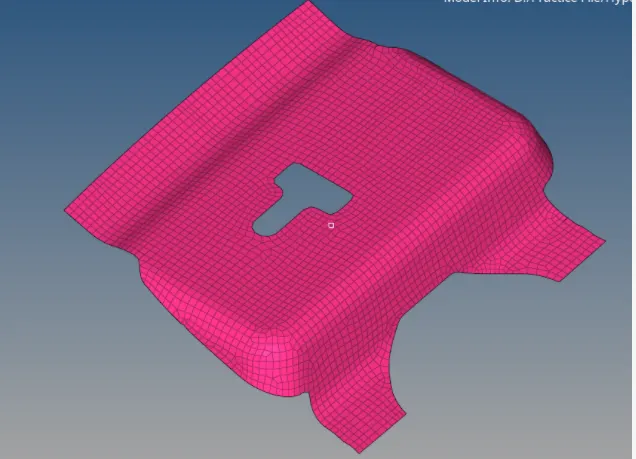

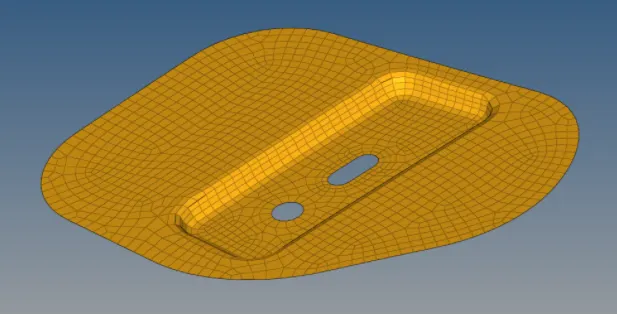

- Now the mesh as been generated for the components as shown below-

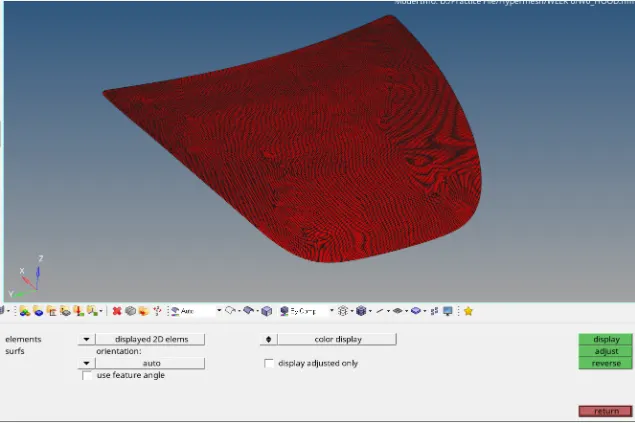

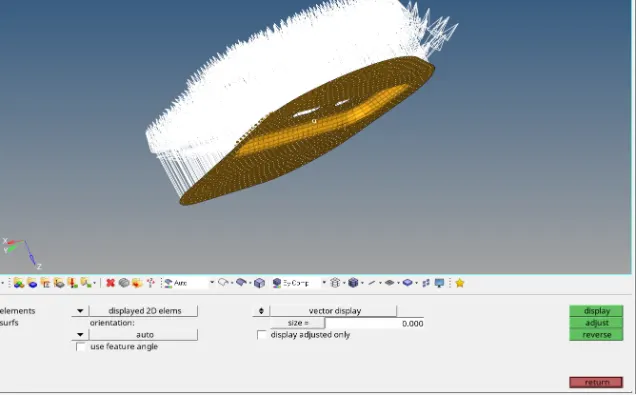

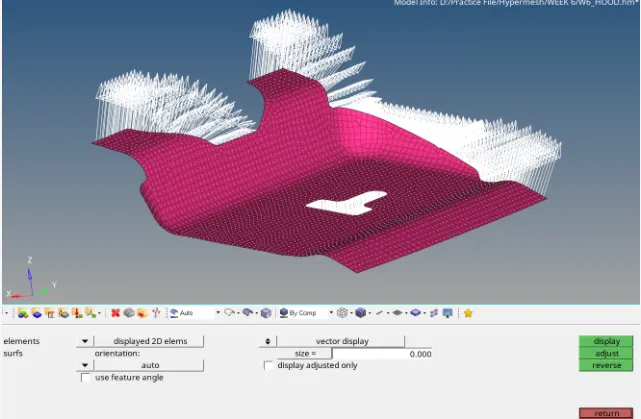

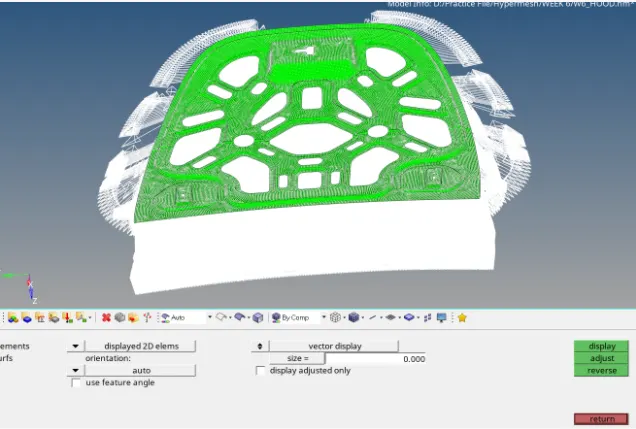

Check normal

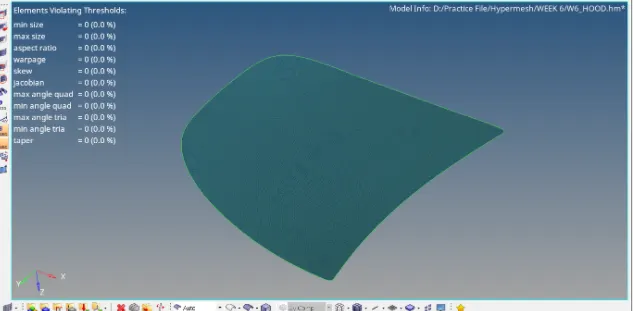

Result:- The given hood assembly is successfully meshed according to the mesh qulity provided and quality checked.
Conclusion:- In this challenge, we learn how to mesh the hood component.
