Week 5

TITLE: TETRA MESHING OF A REAR VIEW MIRROR

OBJECTIVE: To mesh a rear view mirror of a vehicle using tetra mesh.

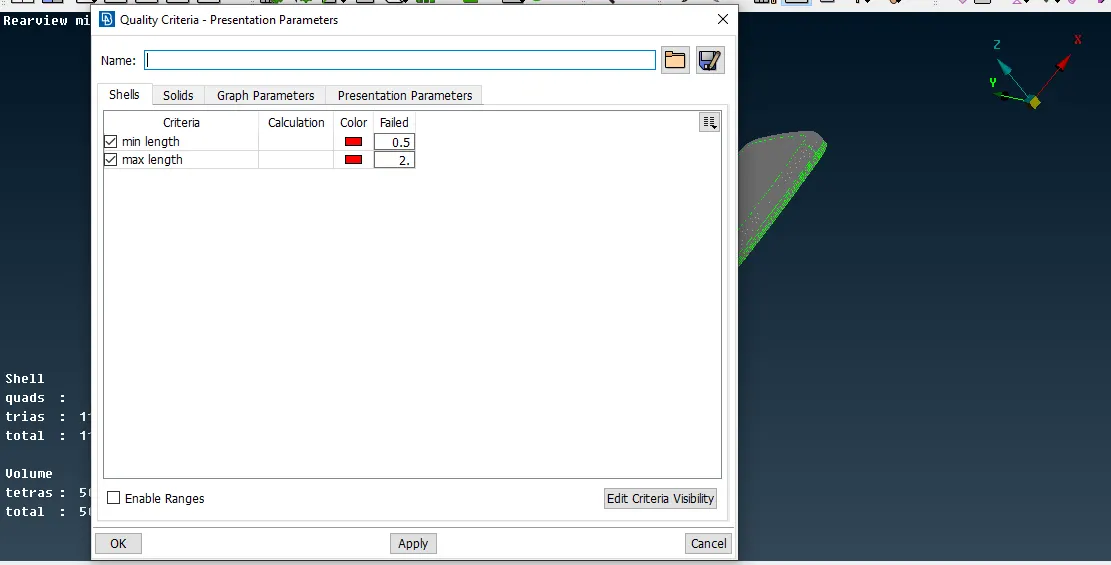

Given Quality Criteria.

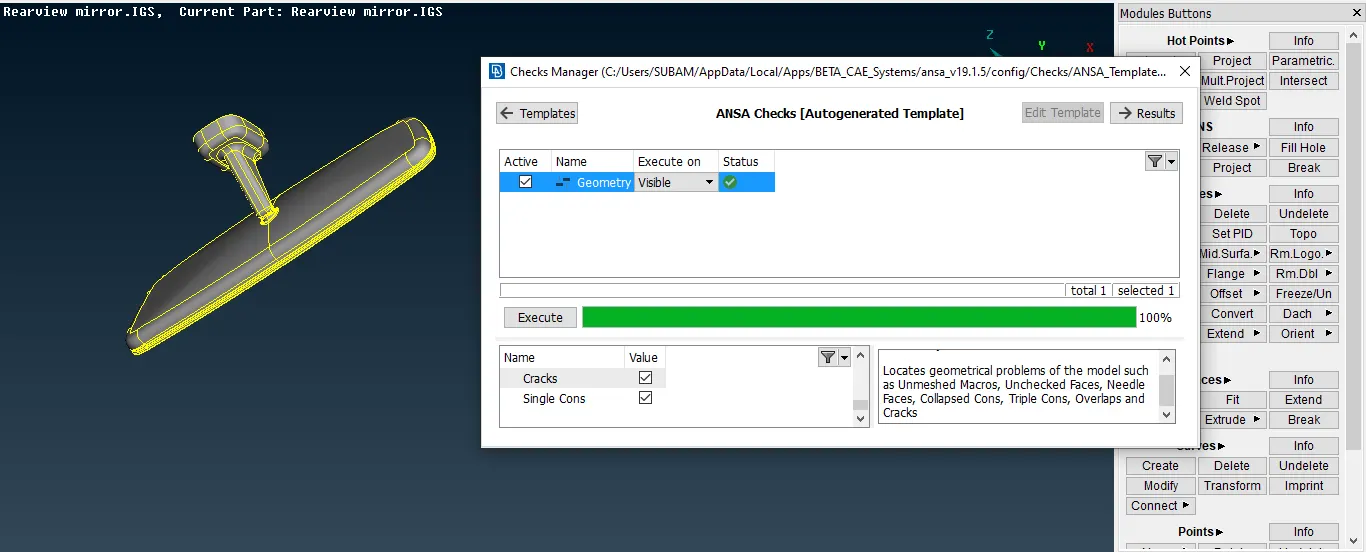

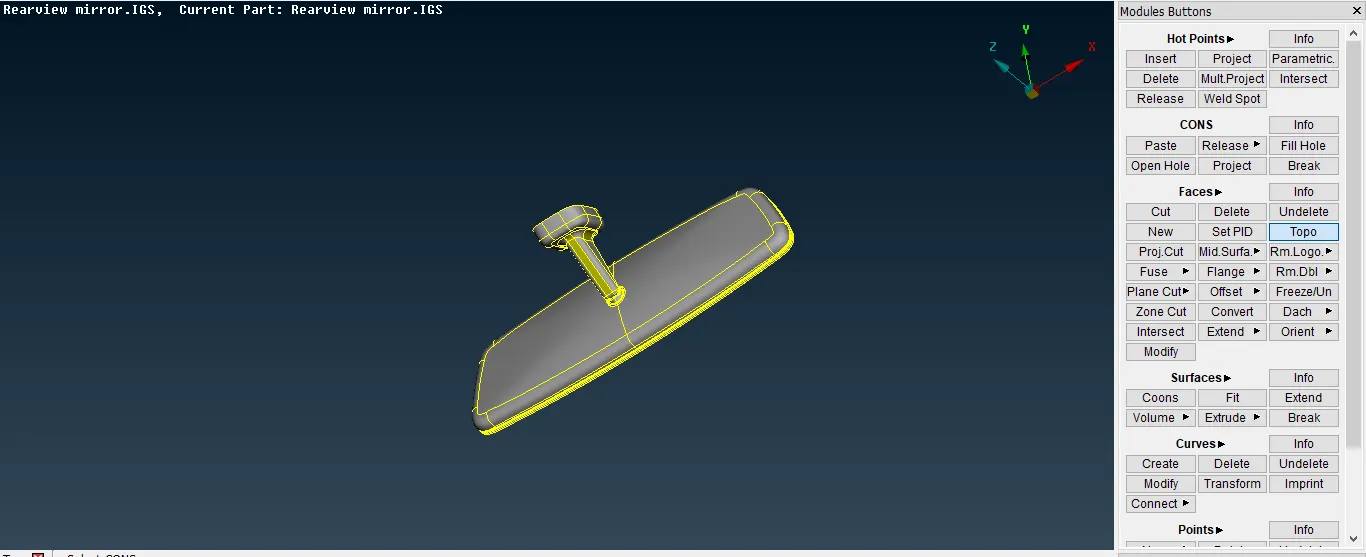

• At first geometry check is done using geomery option from check box.

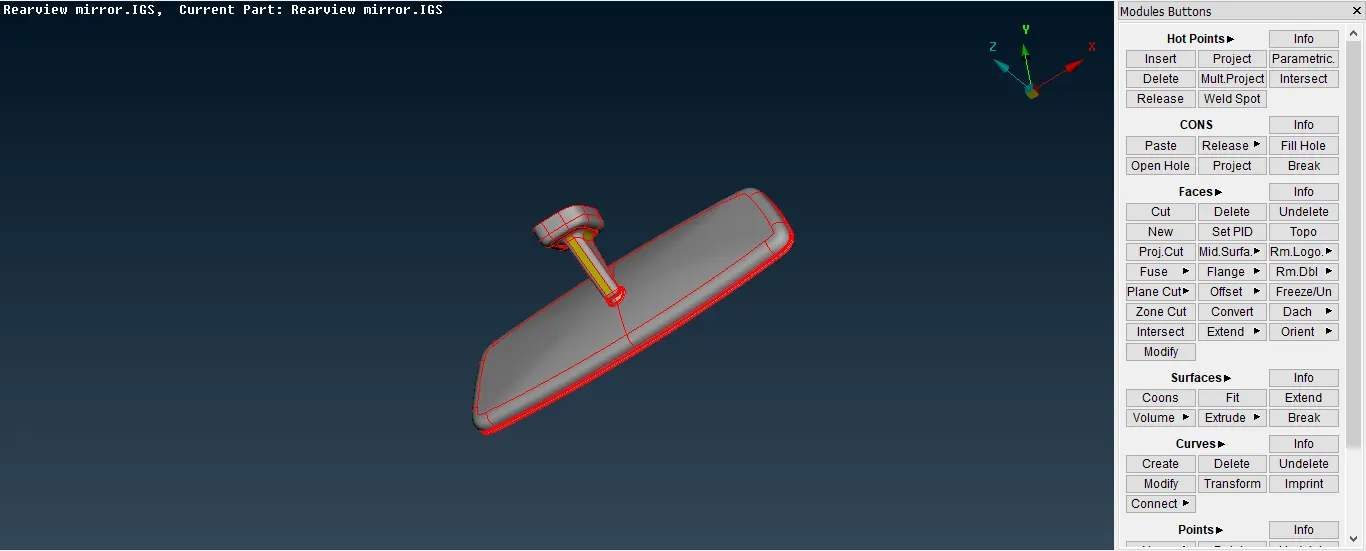

• Geometry check is done for cracks,single cons and unusal parts connection.
• Then using auto fix ,I fixed the model .

• Now as the geomerty is clean then futurn moce to meshing,Now defeatured the fillets which are failing for minimun length criteria.

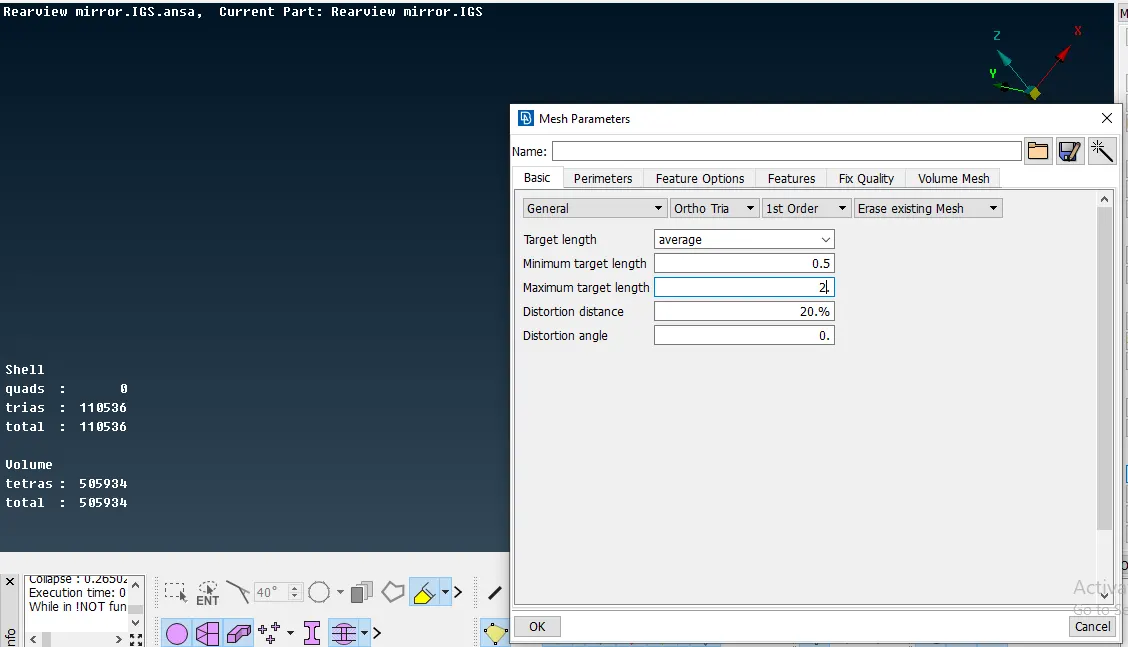

• Then move for meshing by assigning all the mesh and quality parameters.

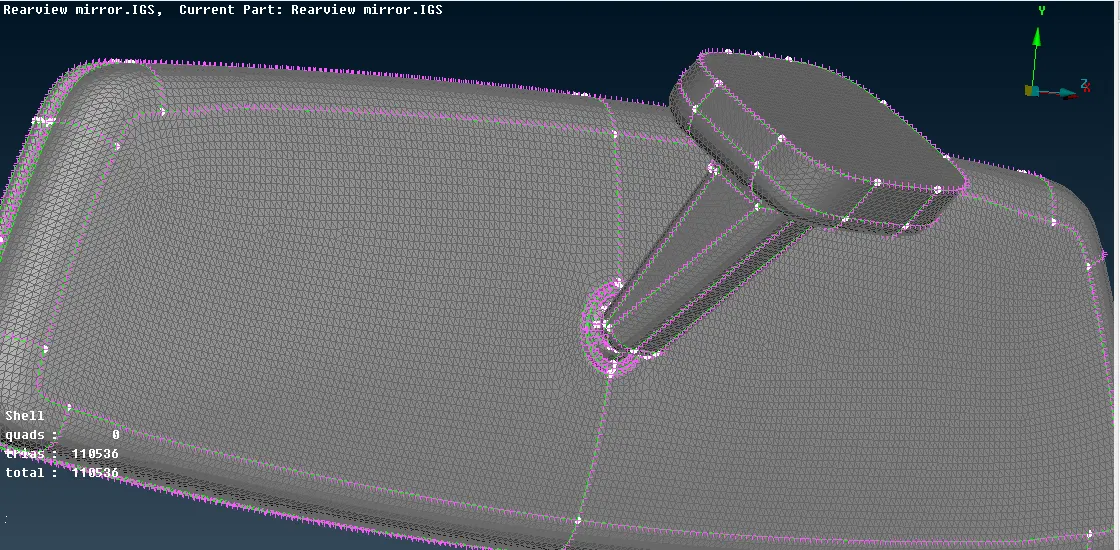

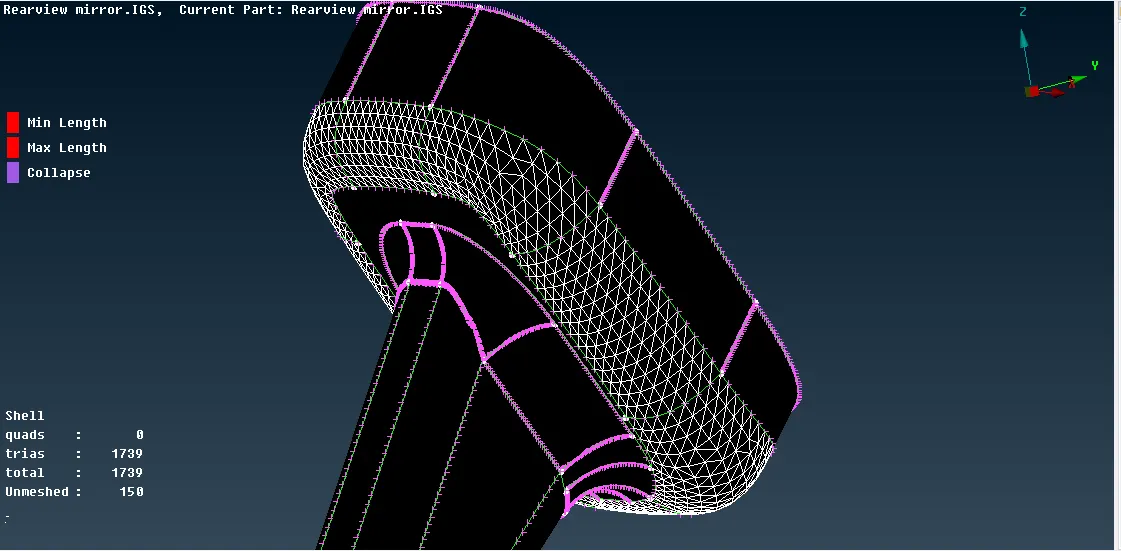

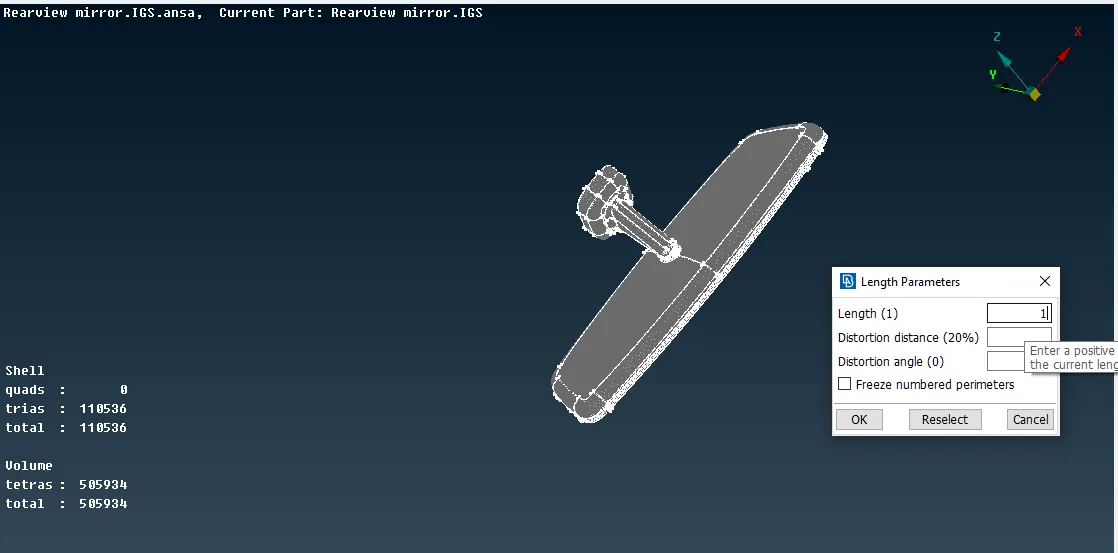

• Then start meshing with ortho trais on the curve parts for better capturing.Hence reconstruct the mesh agian to capture properly.

• After that mesh with trains in plane portions to reduce the computational time in the model.

• After complition of mesh model checked for quality and fix them.

• Now move towards the solid meshing part.

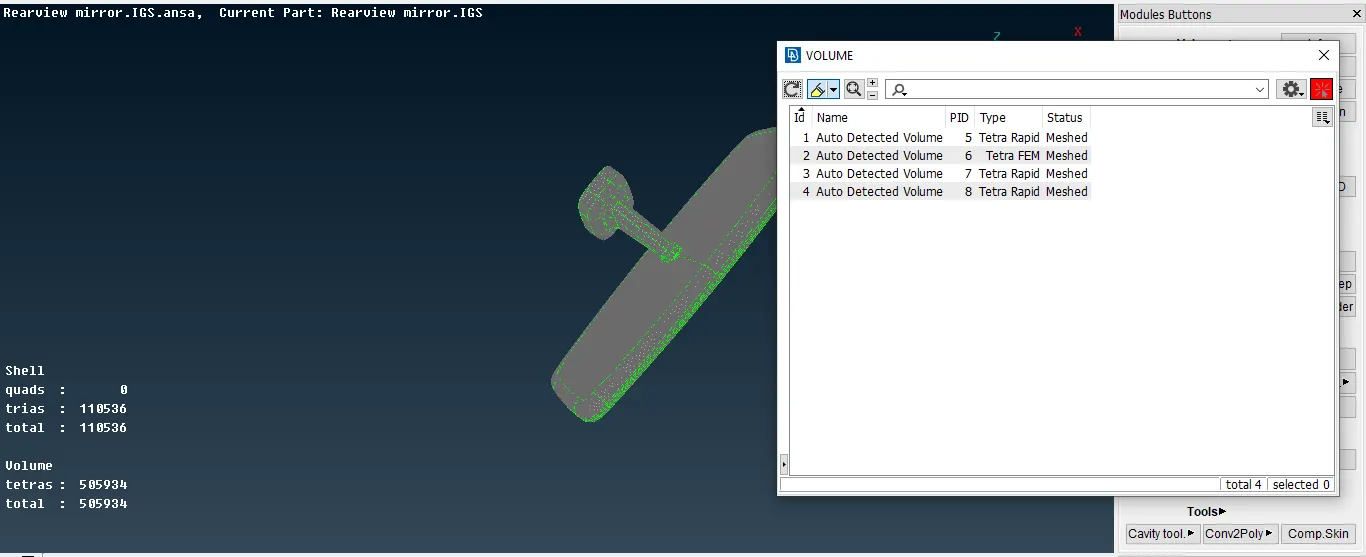

• At first assigned the volume to the geometry.

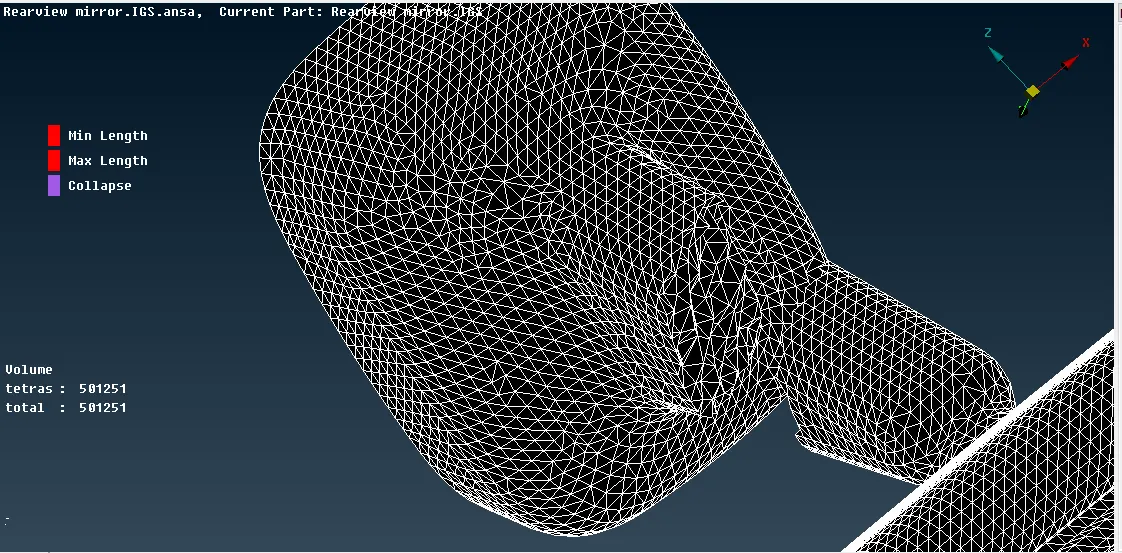

• Then used the tetra rapid tetra option to mesh the model in tetra mesh.

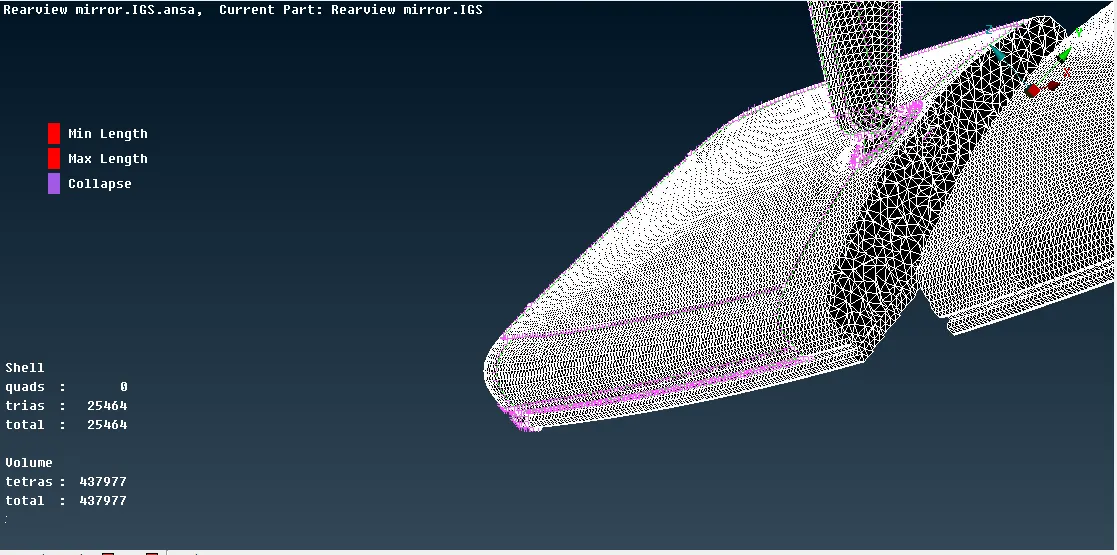

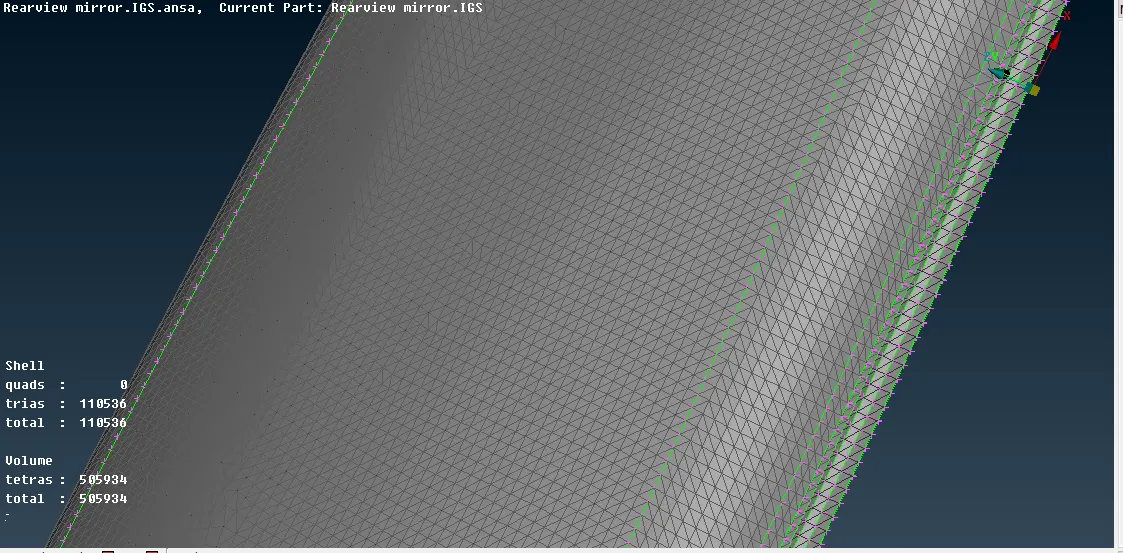

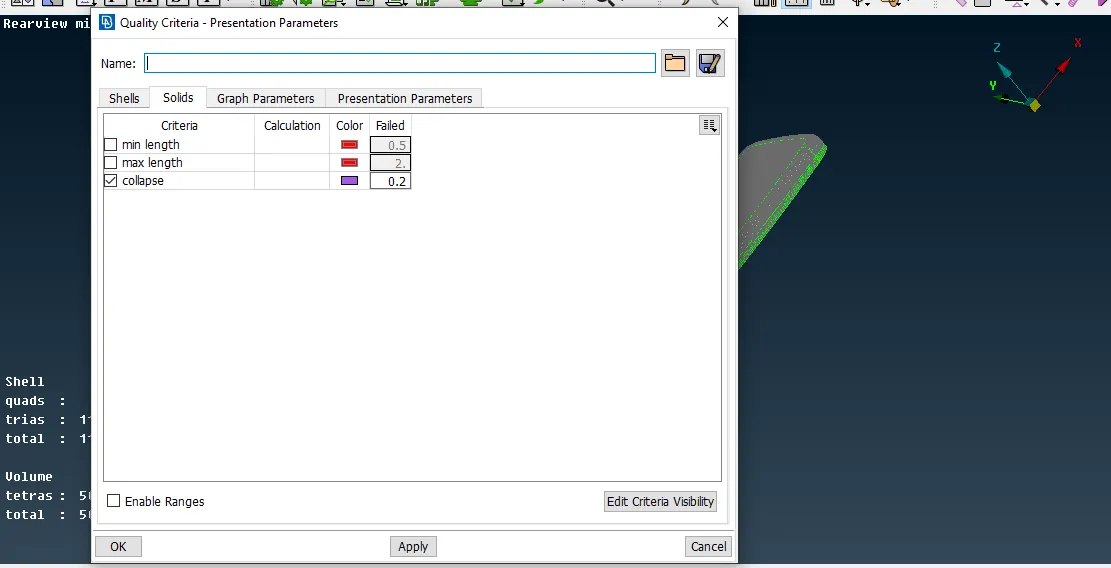

• Then checked the model for tet collapse quality its passing succesfully.hence the model is competed.

CONCLUSION: The model is free of any quality issue and meshed is tetra mesh.Hence ANSA is useful to create the tetra mesh.

LINK FOR THE FILE: https://drive.google.com/file/d/1LSL8ssLqalTH2_qKNwOu7p2JEi7v4RVi/view?usp=sharing
