Week 4 Challenge

TOOLING DIRECTION

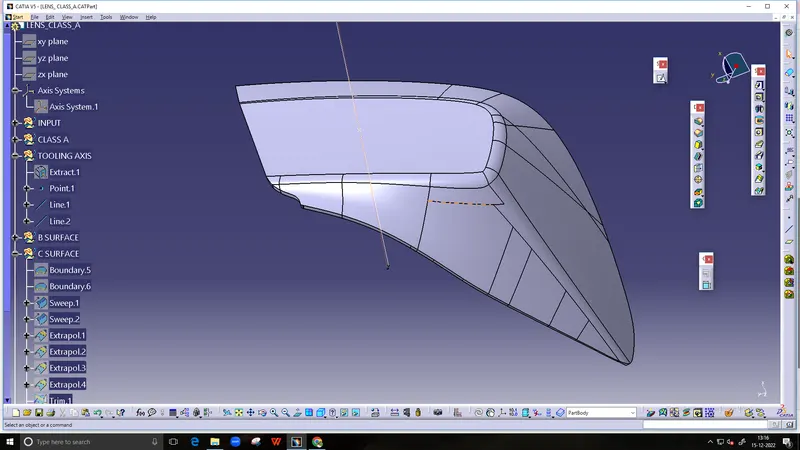

The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

PARTING LINE

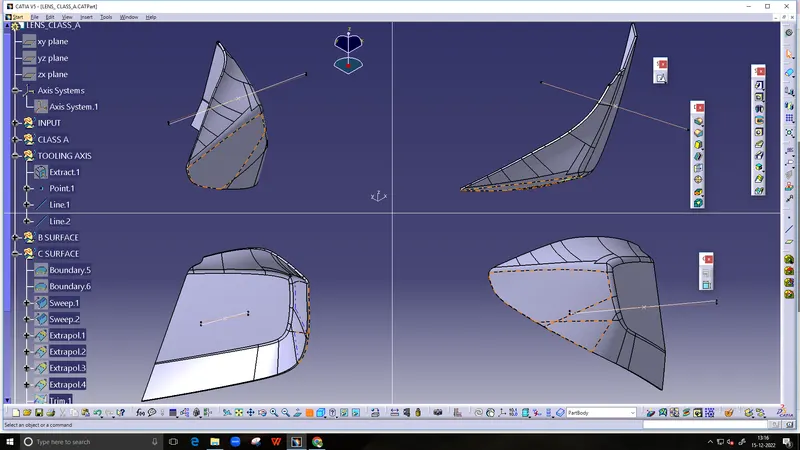

A “parting line” is the line or seam of separation on the part where the two halves of the mold meet, and it can not be avoided.
